Lotus 120-277V Input Driver / 0-10V Dimmable Driver HBL015-AW-10-01L

SKU : HBL015-AW-10-01L Categories : , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 39.89

Lotus LED Lights – 120-277V Input driver in Connection box with 0-10v Dimmable for Light by Lotus 15W models in (2 Prong).

Connection box wire capacity: Maximum of 4 No. 12 AWG or 5 No 14 AWG

  • 120-277V input
  • 0-10V Dimmable
  • Compatible with Light by Lotus models LED-2-S15W (Single Color Temp ONLY) , AD-LED-4-S15W(Single Color temp & 5CCT) & LED-6-S15W-FG (3K Model only)

Product Information
  • Input Voltage: 120-277 V AC
  • 0-10V Dimmable
  • Output Voltage: 36 V DC, Constant Current 340 mA
  • Power Factor > 0.95
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Connection box wire capacity: Maximum of 4 No 12 AWG or 5 No 14 AWG
  • c ETL us recognized component

DIMENSIONS:

  • 3 3/4? x 2 1/2? x 1 1/2?

COMPATIBLE FIXTURES:

  • LED-2-S15W : Single CCT 2700K, 3000K or 4000K only
  • AD-LED-4-S15W : All CCTs – single and selectable
  • LED-6-S15W-FG : Single CCT 3000K only

Input: White (Neutral) & Black (Hot) wires with quick connectors. Connect to 120V – 277V AC according to the Dimmer Manufacturer’s Instructions.

Output: Screw-in connector compatible Light by Lotus fixtures from the list above.

0-10V control wires: Grey (-) and Purple (+). Connect to dimming or control system 0-10V only.
DO NOT CONNECT TO LINE VOLTAGE. If you short the Grey and Purple wires the fixture would be turned off.

Specification Sheet

Customer Reviews

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

You may also like…

Lotus AD-LED-4-S15W – 15 Watt 4″ Round & Square Recessed High Output LED Downlight – Dimmable – 120V

Lotus AD-LED-4-S15W – 15 Watt 4″ Round & Square Recessed High Output LED Downlight – Dimmable – 120V

CAD$ 64.37 Read more

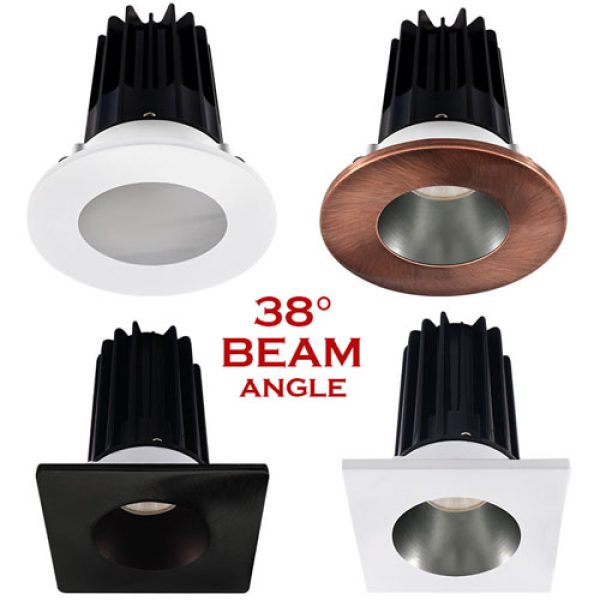

Lotus LED-2-S15W-2700K-38D – 15 Watt 2″ LED Recessed Downlight – 38° – 2700K – 120V
