Lotus DL205S-6-15W-5CCT-R90 – 15 Watt 6″ PIR Round LED Disk Downlight 120V

SKU : N/A Categories : , , , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 19.86

The Lotus 6″ PIR Round Disk Downlight is an energy efficient lighting option for small rooms that would benefit from motion activated on/off functionality. Attached motion sensor allows for convenient automatic on/off function when you step into and out of the area in which it’s installed. A high CRI of 90+ provides true color rendering in the area of illumination. Fast and easy installation in junction boxes lets you save on labor as well. Perfect for Residential, Commercial, Hospitality, Multi Family, Closet applications.

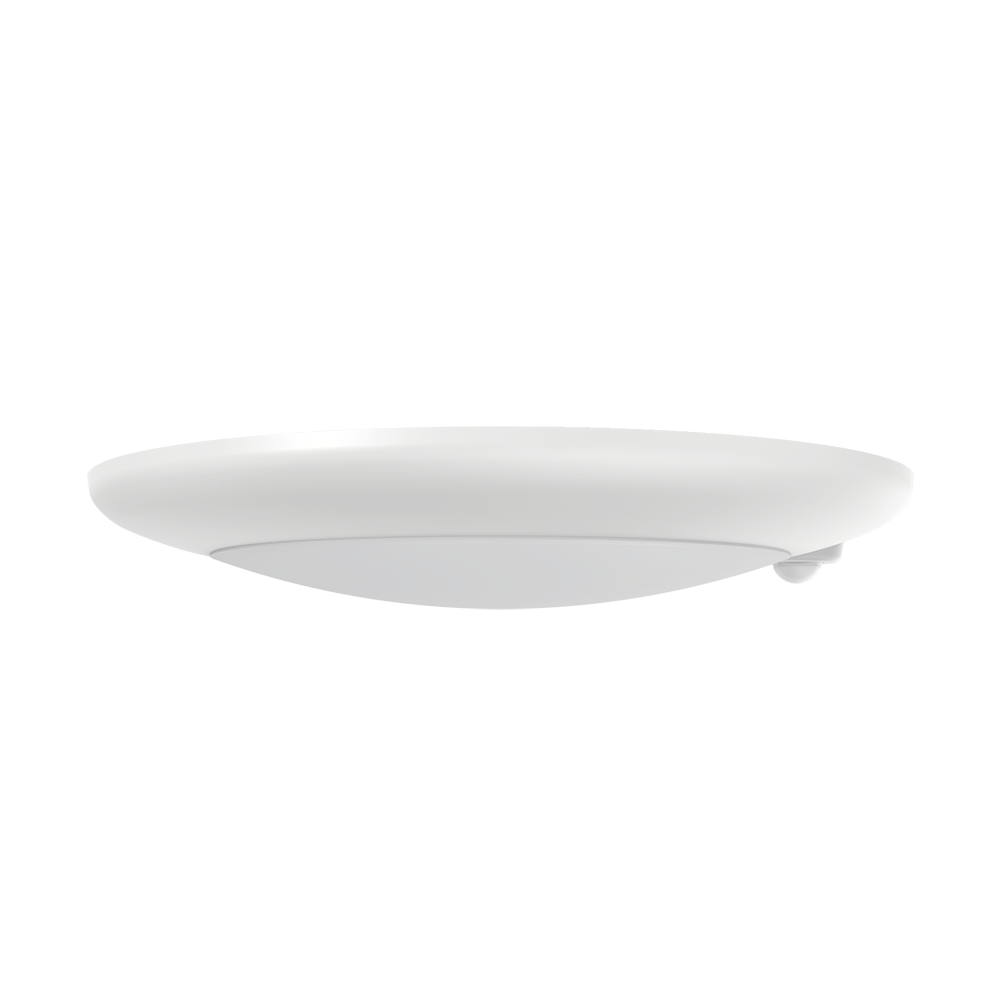

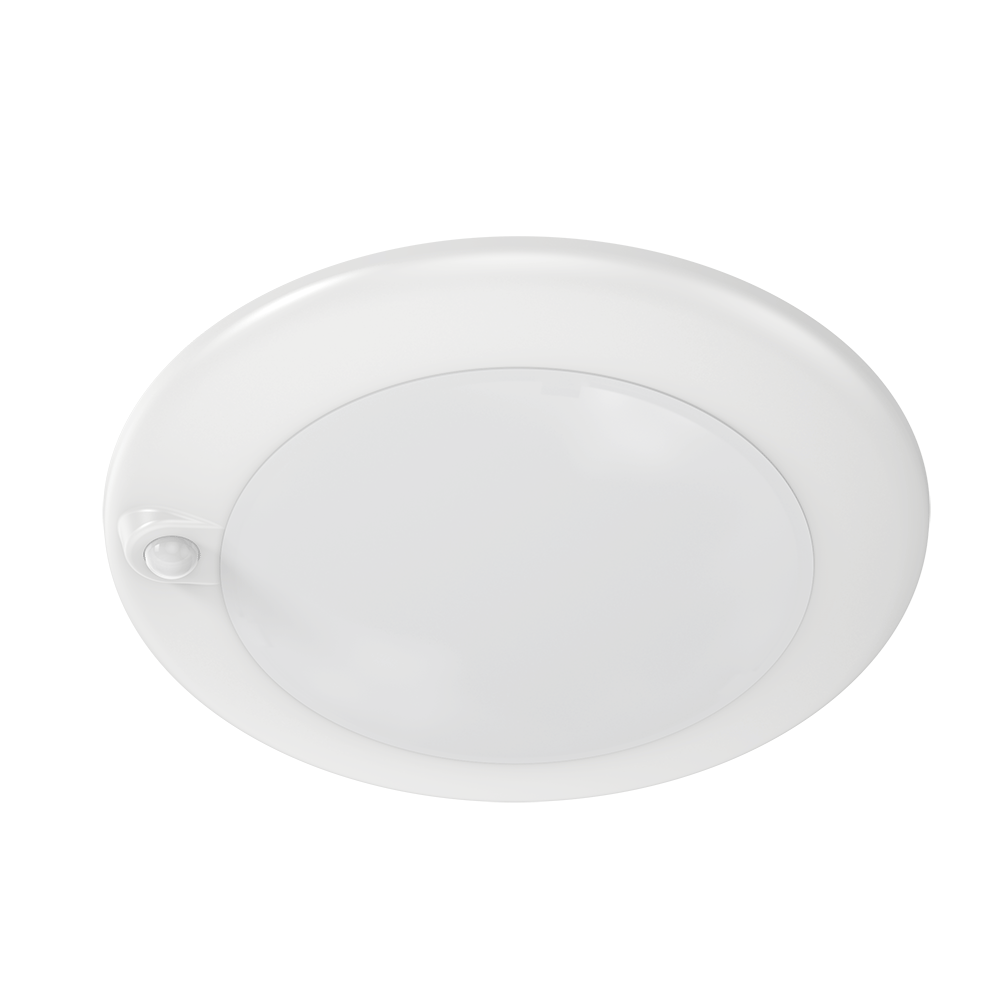

The DL205S-6-15W-5CCT-R90 is a 6″ round, 15 watt PIR Disk Downlight with the following features:

  • 6″ Round Surface Mount Energy-Efficient Fixture with PIR Sensor
  • Fast & Easy to Install in J-Box or as 6″ Can Retrofit
  • Wet Location Approved – Suitable For Indoor & Outdoor Installations
  • 5CCT User Selectable 2700-3000-3500-4000-5000K
  • Time delay selectable 10 s, 1 min or 10 min
  • CRI 90+ for True Color Rendering
  • White & Black trims in stock
  • Triac Dimmable Down to 10% Flicker Free
  • cETLus, Energy Star, JA8 certified

Product Information

CONSTRUCTION:
6″ Round Surface Mount Energy-Efficient Fixture with PIR Sensor

MOUNTING:
Refer to Installation Instructions under the Download Tab.

  • Energy Used: 15W
  • Halogen equivalent: 100W
  • Input Voltage: 120V AC Driverless Flicker Free
  • Beam Angle: 115°
  • Light color: 5CCT User Selectable 2700-3000-3500-4000-5000K
  • Light output: 1140-1200-1270-1200-1110 lm
  • Time delay selectable 10 s, 1 min or 10 min
  • Trim color:  White & Black in stock
  • CRI: 90+
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Certification: cETLus, Energy Star, JA8, Wet Location

DIMENSIONS:

  • OD 7 5/16″; Thickness 1″

Retrofit Kit for 6″ Cans
model # 6RK-DL205-6

Specification Sheet:

Installation Instructions:

Photometric PDF files:
PDF at 2700K | PDF at 3000K | PDF at 3500K | PDF at 4000K | PDF at 5000K

Photometric IES files:
IES at 2700K | IES at 3000K | IES at 3500K | IES at 4000K | IES at 5000K


Link to Energy Star: DL205S-6-15W-5CCT-R90
