Lotus 8″ Round Commercial 5 CCT & 5 Wattage Selectable – DL254-8-35W-M-A5C5-HO

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 83.01

The Lotus traditional style LED commercial downlights are a versatile option to provide long lasting, energy efficient LED illumination for your office, retail or other commercial lighting application. They are wattage and color temperature tunable, allowing the installer or end-user to select their desired brightness and color temperature to suit their preferences. Their high CRI of 80 means you’ll enjoy true color rendering in the area of illumination ,while their regressed optics reduce glare. They are suitable for installation in wet locations as well as direct contact with insulation, and are 0-10V dimmable. Optional black and silver trim rings as well as goof rings available (sold separately).

The DL254-8-35W-M-A5C5-HO is an 8″ round LED downlight that provides 1,760 up to 4,010 lumens of 5CCT-tunable white light color temperatures and the following features:

  • All in one 0-10 V dimmable 8″ LED downlight for retrofit & new construction
  • Perfect for hospitality, healthcare, shopping mall & retail, office, exterior soffit
  • Universal voltage 120-347 V
  • 0-10 V Dimmable 5%-100%
  • 5 CCT selectable 2700 – 3000 – 3500 – 4000 – 5000 K
  • 5 Wattage Adjustable 16 – 22 – 26 – 30 – 35 W
  • White Trim with White or Silver (Alzak) reflector in stock
  • Type IC, Wet location & Air-tight
  • Warranty: 5 Year

Product Information

CONSTRUCTION:

All in one solution 8″ round recessed commercial grade LED fixture.
Perfect for hospitality, shopping mall & retail, office, exterior soffit, etc.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 5 1/4″

  • Input: 120V-347V AC 50/60 Hz
  • Power Levels (W): 16 | 22 | 26 | 30 | 35
  • Light Output (lm): 1760 – 4010
  • Color Temperature (K): 2700K | 3000K | 3500K | 4000K| 5000K
  • White Trim with White or Silver (Alzak) reflector in stock
  • Dimming: 0 – 10V
  • Beam Angle: 90°
  • CRI: 80
  • Approved Location: Insulated Ceiling & Wet Locations
  • Ambient Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Projected Life: 70% Light Output at 50,000 Hours
  • Compliance: cETLus
  • Warranty: 5 Year

DIMENSIONS:

  • ID 8″; OD 10 1/4″; Thickness 5 1/4″
  • Cut out: 8″ to 9″

Suitable for insulated ceilings, open plenum, and wet locations.

Accessories – Sold Separately

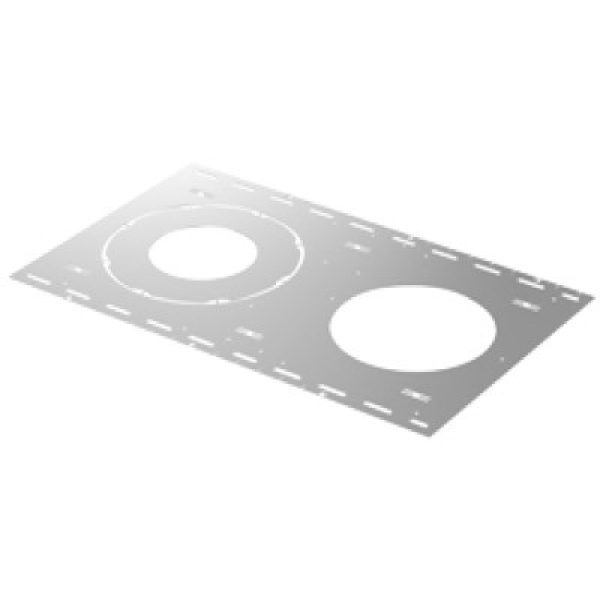

New Construction Mounting Plate for Stud Ceiling model # LBL-MP-C4-8-STUD


New Construction Mounting Plate for T-bar Ceiling model # LBL-MP-C4-10-TBAR
