Lotus AD-107T-24V – 2.2 Watt Ultra Slim LED Puck Light – Dimmable

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 13.78

Lotus LED Light’s puck lights are an innovative and versatile option for your under cabinet, cove, or other small area application where you require lighting that is slim in size and bright in lumen output. These puck lights can be surface or recessed mounted, and can be easily connected together using a 6-port hub (sold separately). Easily swap trim colors (white, black, and brushed nickel trims included) using magnetic technology. With a CRI of 90+, these puck lights provide true color rendering in area of illumination.

The AD-107T-24V is a slim size puck light with a width of 1/4″, included with White, Black and Brushed Nickel trims with the following features:

  • 24V DC Input Options
  • Slim to size and bright in lumen output
  • With a width of 1/4″, the puck light can be recessed or surface mounted

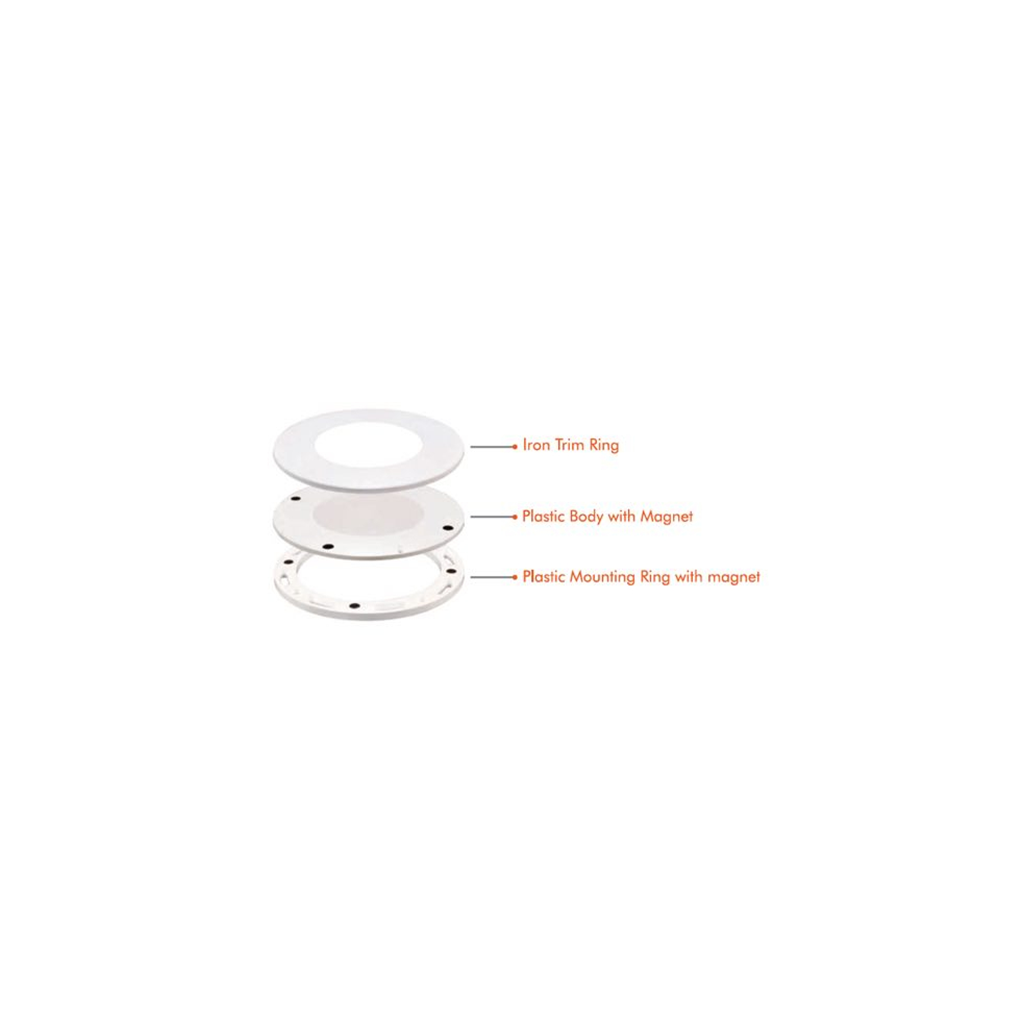

  • Easily swap the trim color with the magnetic technology engineered into the pucks
  • Connect the puck lights to the power supply using a 6-port hub and wires already integrated
  • Can be purchased in single packs
  • Each puck includes a Mounting Bracket & 3 Trims (White, Black and Brushed Nickel)
  • Warranty: 3 Year

Product Information

MOUNTING:
1/4″ Thin Surface Mounted or 1/8″ Thin Recessed Mounted.
Installation Instructions

  • Energy Used: 2.2W
  • Halogen Equivalent: 15W
  • Input: 24V DC
  • Hard Wired Driver: TRIAC Dimmable 10% – 100% (Sold Separately)
  • Beam Angle: 120°
  • Light colour options:  Soft White 3000K, Neutral White 4000K
  • Light output: Soft White 150 lm, Neutral White 170 lm
  • CRI 90 + for True Colour Rendering
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Certification: cETLus

DIMENSIONS:

  • ID 2 1/4″ ; OD 3″ ; Depth: 1/4″ Thin Surface Mounted or 1/8″ Thin Recessed Mounted

1 Puck Packaging Includes:

Puck Light with plug-in wires|3 Trims: White, Black, & Brushed Nickel | Mounting Bracket

Hard Wired Triac Dimmable Driver

24Watt

  • 24V model # HBL024-120-24-D

6-Port Hub

  • cat # AD-107THB1

Specification Sheets

Sales Sheet

Installation Instructions

PDF Photometric file 30K model

IES Photometric file 30K model
