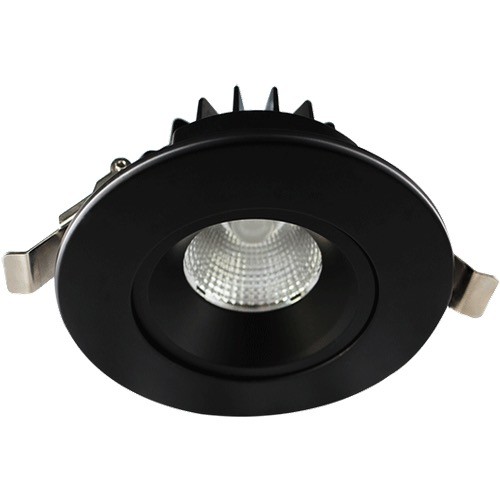

Lotus AD-LED-4-S12W-LREY – 4″ Round Venus Adjustable Recessed Gimbal LED – 12W – 120V

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 54.67

The Lotus LED Lights 4″ round Venus series LED gimbal downlights are designed to go where no other fixture can. Being IC-rated, they can be installed directly into an insulated ceiling without requiring a recessed housing and, being only 2.5″ deep, can be installed where ceiling space is limited. Installation is simple – just cut a hole and the attached spring clips snap the fixture into place. These gimbal downlights emit a 38º beam of light that is adjustable in a 20º tilt in each direction and 360º rotation. A high CRI of 90+ means you’ll enjoy true color rendering in the area of illumination, while their regressed optics provide low glare. Being CCT-tunable, you can choose between 5 different color temperature options to suit your preference. Ideal applications include sloped ceilings, highlighting artwork, cabinets and recessed alcoves.

The AD-LED-4-S12W-LREY is a 4″ round 12 watt LED gimbal downlight in a white or black finish and is available in 3K (single color temp), 5CCT or DTW models with the following features:

    • 4″ round Venus gimbal LED with regressed optics
    • 3 light options: 3000K single color, 5 CCT selectable 2700K to 5000K, or Dim-to-Warm 3000K to 1800K
    • 38º beam of light that is adjustable in a 20º tilt in each direction and 360º rotation
    • High CRI of 90+ for true color rendering
    • Air-tight
    • Energy Star
    • Title-24 compliant
    • Triac dimmable down to 5%
    • 2 1/4″ Deep – Fits in limited space ceilings
    • Type IC Rated – No Housing Required
    • Wet Location & Airtight
    • 5 Year Warranty

Product Information

CONSTRUCTION:
4″ Round Venus Adjustable Recessed LED 12W

MOUNTING:
Cut hole in ceiling and snap fixture in opening with attached spring clips.
Ceiling Clearance Required: 2 1/2″

  • Input Voltage: 120V AC
  • Dimmability – TRIAC Dimmable 5% – 100%
  • Energy Used: 12W
  • Halogen equivalent: 90W
  • Beam Angle: 38°
  • 3 Light color options: 3000K, 5CCT selectable, Dim to Warm 3000K-1800K
  • Light output: 3K 880 lm, 5CCT 780-910 lm, DTW 700 lm
  • CRI: 90+
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Rated: cETLus, Energy Star

DIMENSIONS:

  • ID 4″; OD 5″; Depth 2 1/4″
  • Cut Out 4 1/4″ to 4 1/2″

Mounting Plate Flat 13″

  • cat #MP4-2

Mounting Plate Flat 26″

  • cat # RIP4

Jumper Cable *

  • 10 ft
  • cat # JC10

*maximum extension 40 feet
