Lotus AD-LED-4-S15W – 15 Watt 4″ Round & Square Recessed High Output LED Downlight – Dimmable – 120V

SKU : N/A Categories : , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 64.37

The new Lotus LED Lights 4″” recessed high output downlight is an innovative, high-performance downlight that is IC-rated and can be installed directly into the ceiling with no housing required. Being only 3.5″” thick, this fixture can be installed where ceiling space may be limited. A high CRI of 90+ means you get the truest color rendering in the illuminated area. Perfect for both commercial and residential applications.

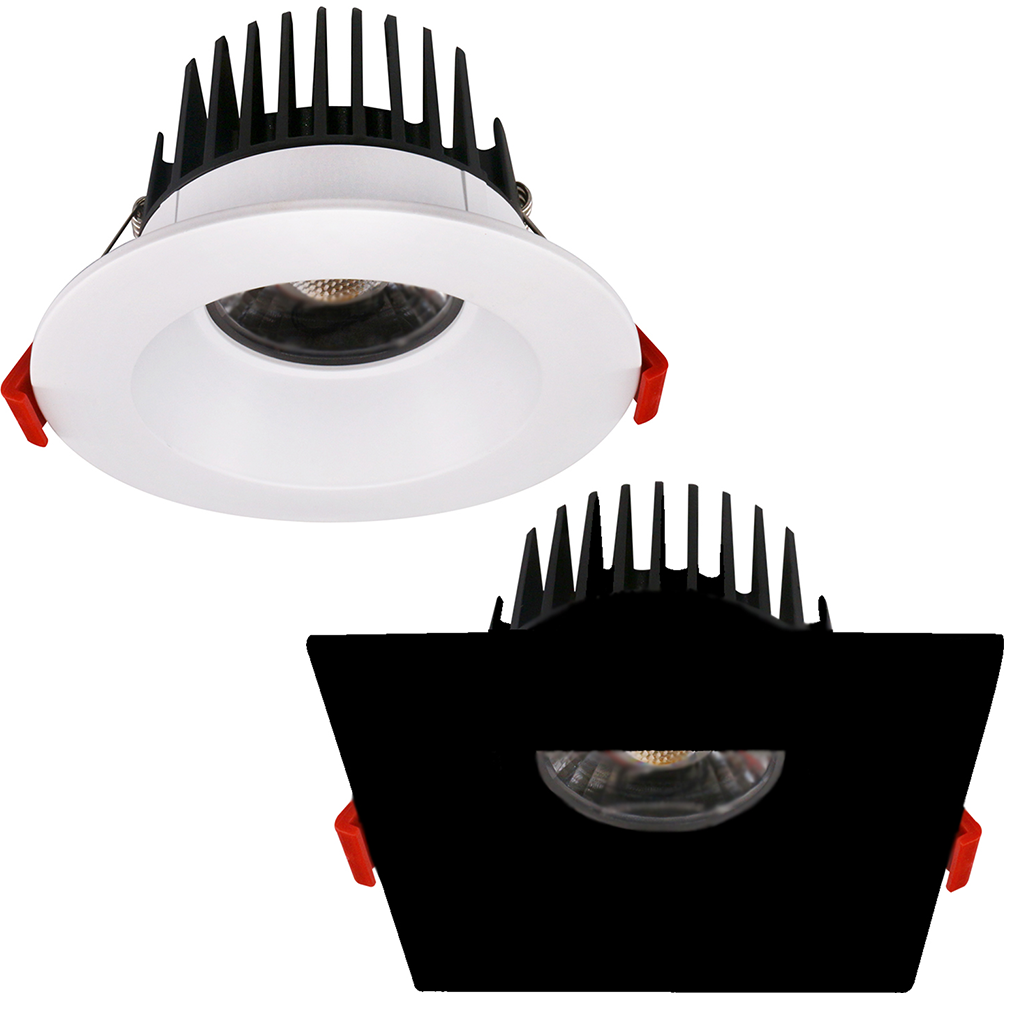

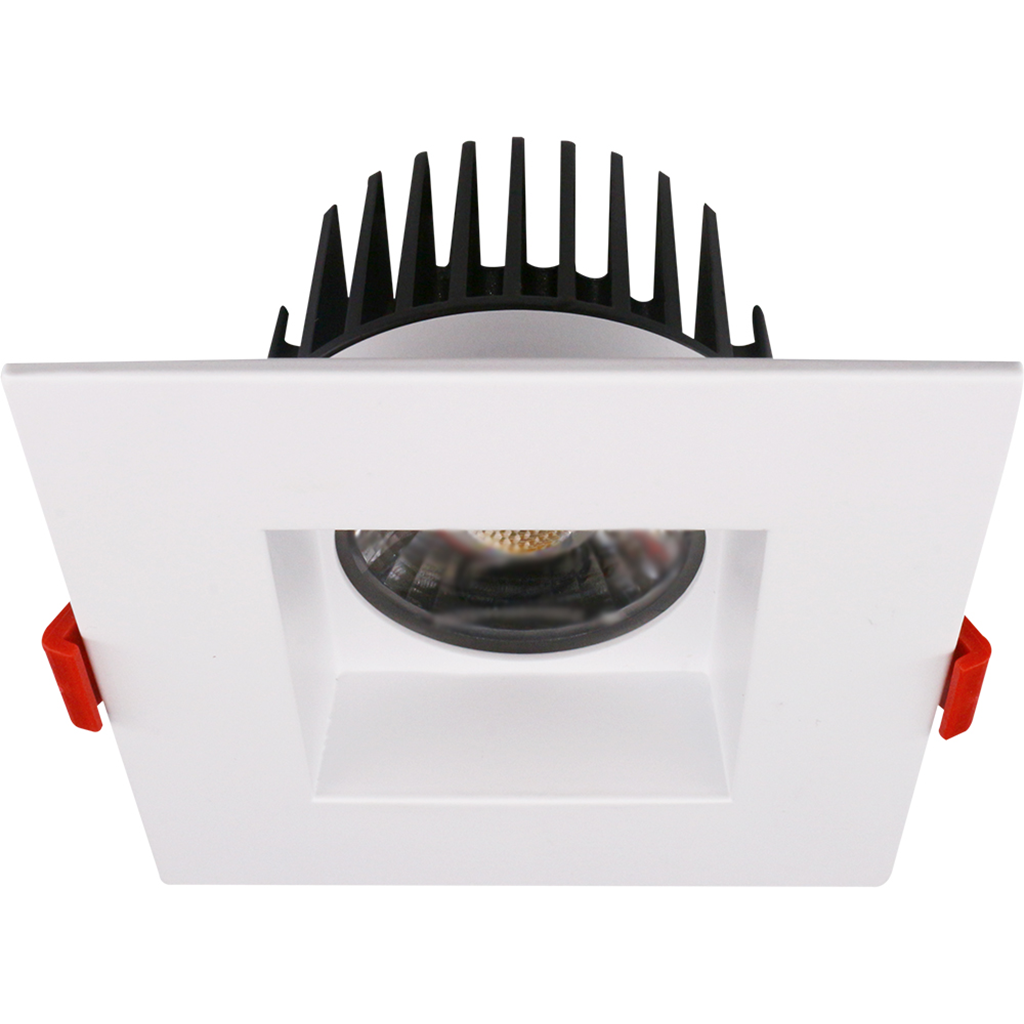

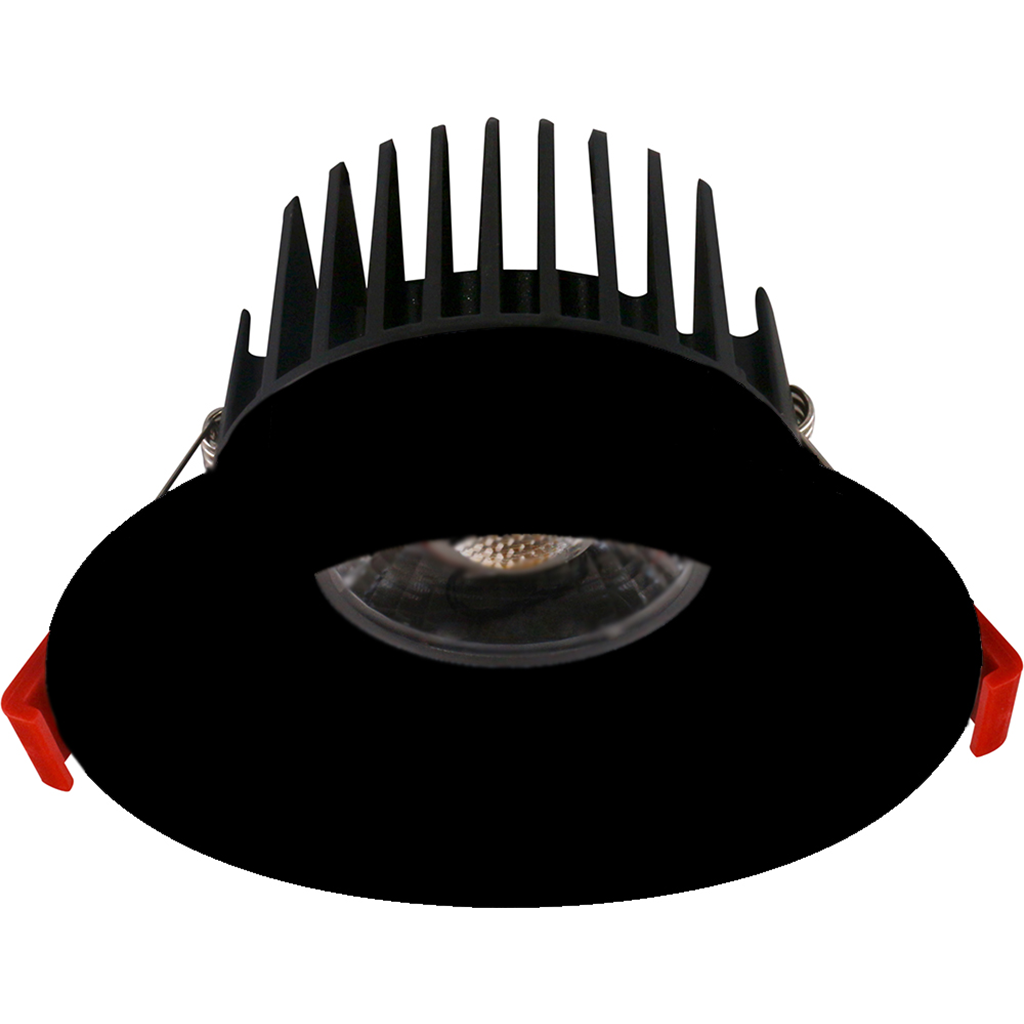

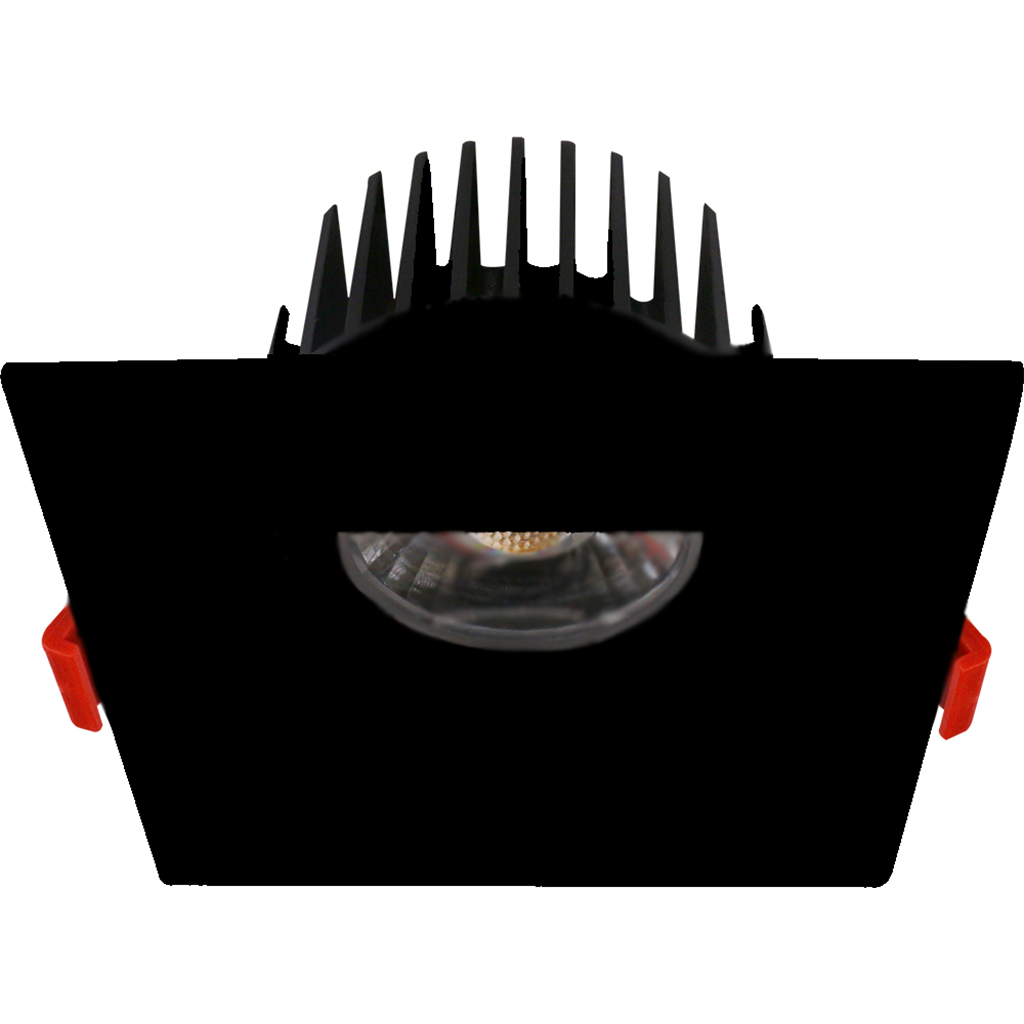

The AD-LED-4-S15W is a 4″ Round or Square 15 watt high output recessed LED downlight, available in White and Black trim with the following features.

    • 40º beam angle
    • Fast and easy installation
    • Driver inside connection box – no junction box needed
    • Dimmable on TRIAC dimming systems down to 10%
    • High CRI of 90+ for true color rendering
    • Airtight, IC-rated for insulated ceilings, and damp location approved
    • Energy Star
    • Title-24 certified
    • 50,000 hour rated
    • 5 year warranty

Product Information

CONSTRUCTION:
Round & Square 4″ Regressed fixtures with integral driver in connection box.
One driver for every fixture required. Round & Square options for trims.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 3 1/2″

  • Default Driver Input Voltage: 120V AC (Dimmable – TRIAC Dimmers 10% – 100%)
  • Energy Used: 15W
  • Halogen equivalent: 100W
  • Beam Angle: 40°
  • Light colour options: 3000K or 4000K or 5CCT from 2700K to 5000K
  • CRI: 90+
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Rated: cETLus, Energy Star, T24

DIMENSIONS:

  • ID 3 1/8″; OD 4 1/2″; Thickness 1 7/8″
  • Cut out: 3 3/4″
  • Junction Box Dimensions (with driver inside):

Suitable for Insulated Ceiling & Damp Locations.

Mounting Plates

  • Flanged: cat # FRP312

  • Flat: cat # MP334

4 inch budget flat

Jumper Cables 10 ft

  • cat # JC10
  • cat # JC-5CCT-10 for 5CCT model only

Specification Sheets

Installation Instructions


Link to Energy Star: AD-LED-4-S15W-#K**-R

Video

Customer Reviews

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

You may also like…

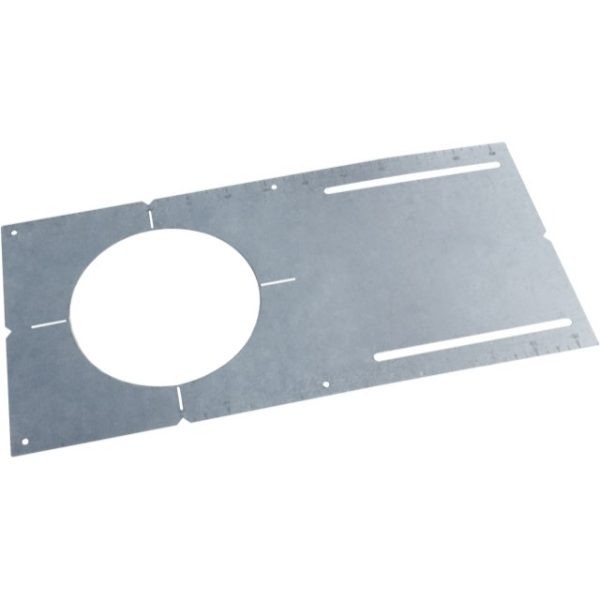

Lotus 3 3/4″ Flat Rough-In Plates For New Construction – MP334
