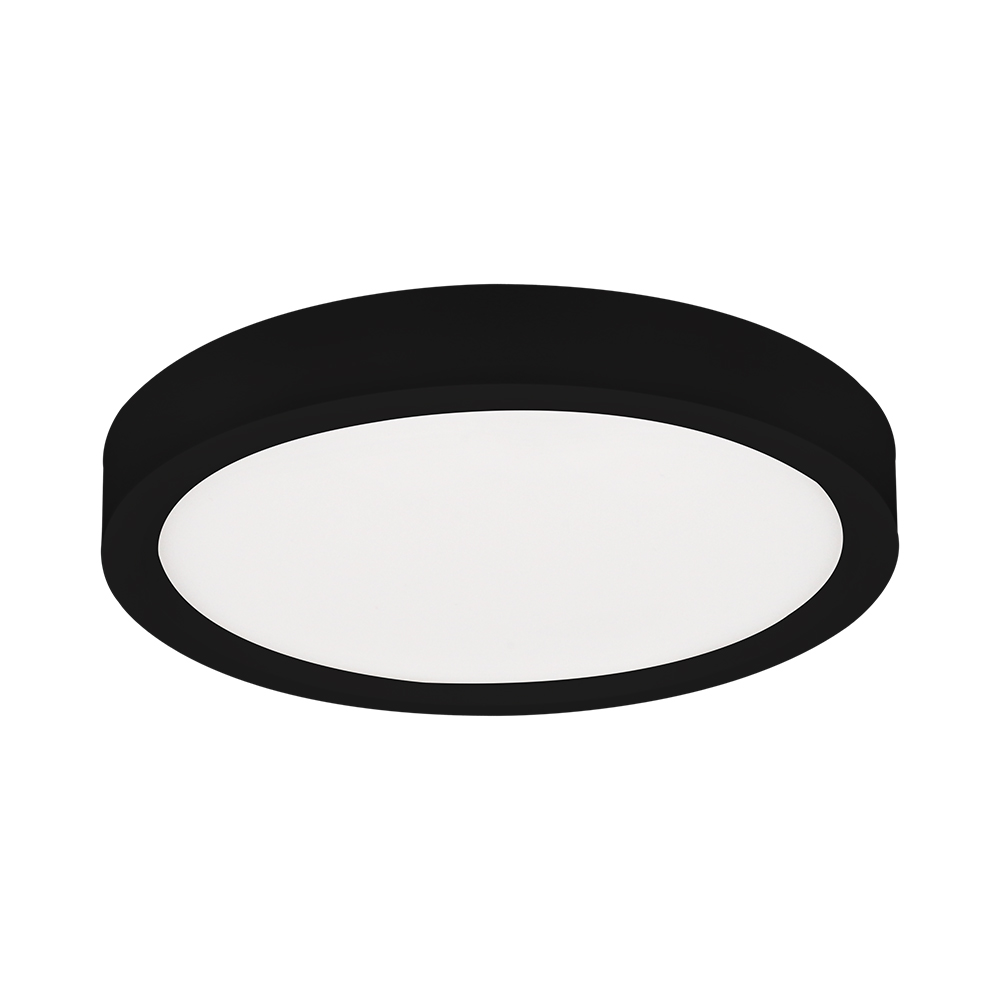

Lotus ADS5R9-5CCT – 10 Watt 5″ LED Surface Mount – 5CCT – 120V

SKU : ADS5R9-5CCT Categories : , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 30.65

The Lotus LED Lights, 5″ surface mount LED edge-lit ceiling light is an energy efficient option that is suitable for both indoor and outdoor applications. It’s low-profile design with narrow flange provide a modern, architectural appearance and the high CRI of 90+ provides true color rendering in the area of illumination. Fast and easy installation in junction boxes lets you save on labor, and the flicker free AC design provides comfortable, irritation-free light output. Perfect for multi-family, residential, and hospitality applications.

The ADS5R9-5CCT is a 5″ round, 10 watt LED surface mount fixture that provides up to 575 lumens of CCT-tunable (2700K-5000K) white light and the following features:

  • 5″ Multi-Purpose Surface Mounted Energy-Efficient Fixture
  • Low Profile With Narrower Flange For Elegant Appearance
  • White & Black Trims in stock
  • Fast & Easy to Install in J-Box – Save on Labor
  • Triac Dimmable Down to 10%
  • Flicker Free AC Design
  • Wet Location Approved – Suitable For Indoor & Outdoor Installations
  • CRI 90+ for True Color Rendering
  • 5CCT User Selectable 2700K – 3000K – 3500K – 4000K – 5000K
  • Warranty: 5 Year

Product Information

CONSTRUCTION:
Round 5″ Multi-Purpose Surface Mount Fixture

MOUNTING:
Installation Instructions

  • Driver Input Voltage: 120V AC
  • Dimmability – TRIAC Dimmable 10% – 100%
  • Energy Used: 10W
  • Halogen equivalent: 60W
  • Beam Angle: 100°
  • Light color: 5CCT – 2700K, 3000K, 3500K, 4000K or 5000K
  • Light output (LM): 515 | 540 | 575 | 575 | 560
  • CRI: 90+
  • White & Black Trims in stock
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Warranty: 5 Years
  • Rated: cETLus, Energy Star, T24

DIMENSIONS:

  • OD 5 3/8″ Thickness 5/8″

Specification Sheets
ADS5R9-5CCT

Photometric PDF files

Photometric IES files

Link to Energy Star

Video

Customer Reviews

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
