Lotus HIGH OUTPUT 11 Watt 3″ Round Regressed LED Gimbal Thin Trim – LRG3-HO-TT

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 75.46

Save on labor with the Lotus 3″ round regressed HIGH OUTPUT 11watt LED gimbal downlight Thin Trim Model. Installation is simple, just cut a hole in the ceiling and the attached spring clips snap the fixture into place – no housing required! These slim recessed fixtures are air-tight, IC-rated for direct contact with insulation, and suitable for damp or wet locations. A high CRI provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings and highlighting artwork or other features.

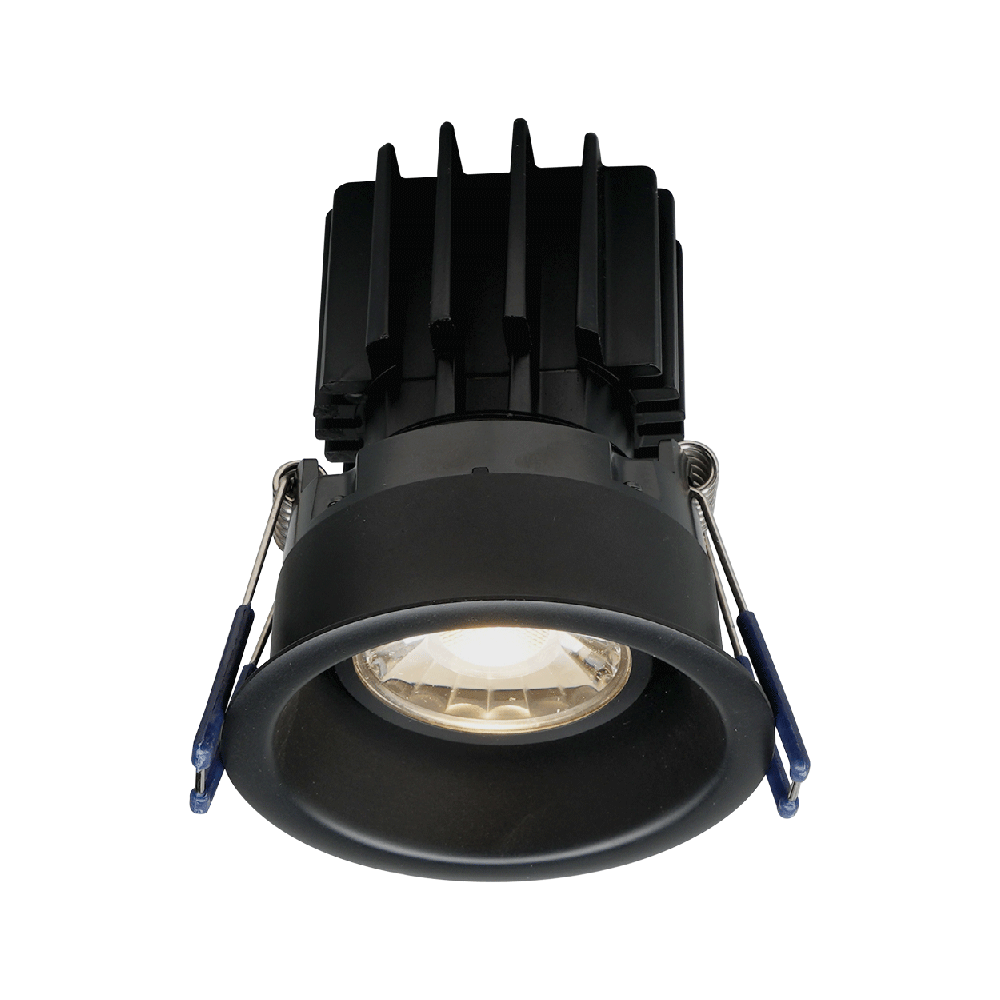

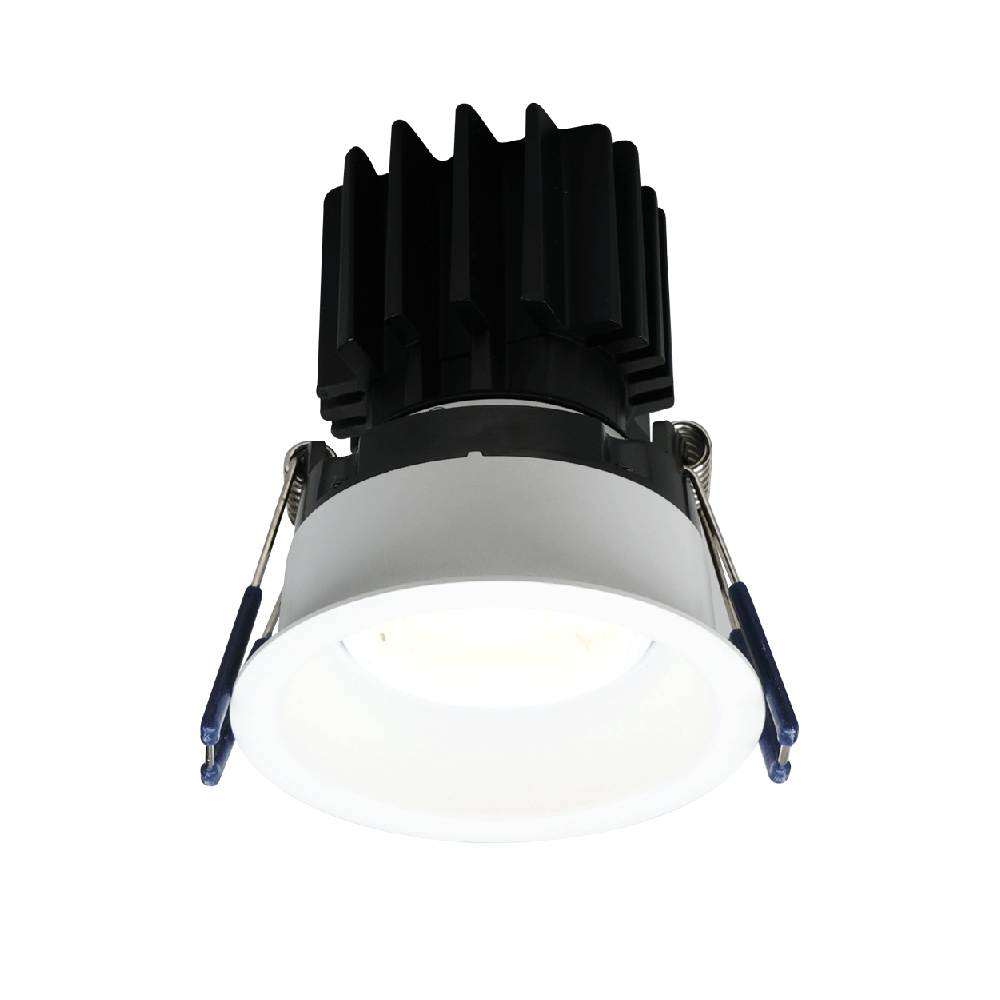

The LRG3-HO-TT Model is a 3″ round HIGH OUTPUT 11Watt regressed LED gimbal downlight Thin Trim, available in White or Black Trim option

  • Model LRG3-HO-TT
  • 1/4″ Trim for High-End Contemporary Installations
  • 3 1/2″ Deep – Install Where Ceiling Space Is Limited
  • 11W High Output of our original patented best seller
  • Type IC Rated – Approved for Direct Contact with Insulation
  • Air-Tight, Wet Location, Insulated and Non Insulated Ceilings
  • Light options: 5CCT user selectable 2700-3000-3500-4000-5000K or Dim to Warm 3000K to 1800K
  • CRI 90+ for True Colour Rendering
  • Triac Dimmable with most CL dimmers 120V input
  • 0-10V Dimmable Option with 120V to 347V input
  • External Driver Inside Connection Box – No Junction Box Needed
  • Warranty: 10 Year on Residential, 5 Year on Business application warranty.
  • cULus Listed

Product Information

CONSTRUCTION:
Round 3″ Regressed Gimbal fixtures with Thin Trim. Class 2 Isolated external driver factory installed inside junction box.
One driver for every fixture required.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 2 1/2″ for Romex, 3 1/2″ for MC or BX installations

  • Default Driver: 120V – Triac Dimmable with most CL dimmers
  • Optional Driver: 120V-347V 0-10V Dimmable
  • Power factor: > 0.98
  • Energy Used: 11W
  • Halogen equivalent: 90W
  • Beam Angle: 38° with 20° tilt and 360° rotation
  • Light colour options: 5CCT user selectable 2700-3000-3500-4000-5000K or Dim to Warm 3000K to 1800K
  • Light output: 920 | 950 | 1050 | 1050 | 1050 | DTW 770 lm
  • CRI: 90 +
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus approved, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Air-Tight

DIMENSIONS:

  • ID 2 1/2″; OD 3 1/8″; Thickness 3 1/2″
  • Cut out: 2 3/4″
  • Junction Box Dimensions (with driver inside): 3 1/4″ x 2 1/4″ x 1 1/2″

Suitable for wet locations and soffit installations.

120-347V / 0-10V Dimmable Driver

  • LLL-LD1025T3

Mounting Plates

  • Cat # MP234

Jumper Cables 6 ft & 10ft

  • cat # EXC6
  • cat # EXC20
