Lotus HIGH OUTPUT 11 Watt 3″ Round Regressed LED Gimbal Trimless – LRG3-HO-IT

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 104.72

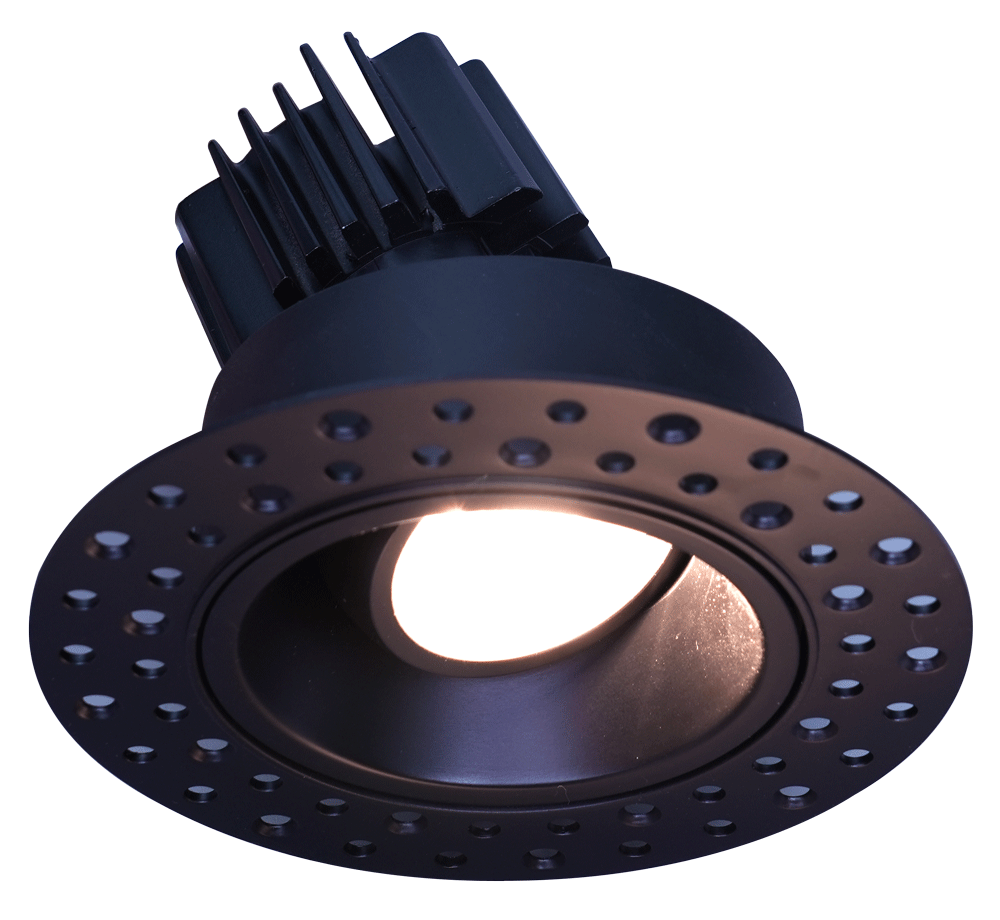

The Lotus LED Lights 3″ round regressed HIGH OUTPUT 11watt LED gimbal downlight Trimless Model. Their mud ring trims allow for easy of application of drywall spackle over mud rings after installation, providing the seamless ‘trimless’ appearance. These slim recessed fixtures are air-tight, IC-rated for direct contact with insulation, and suitable for damp or wet locations. A high CRI provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings and highlighting artwork or other features.

The LRG3-HO-IT Model is a 3″ round HIGH OUTPUT 11Watt regressed LED gimbal downlight Trimless, available in White or Black Trim option

  • Model LRG3-HO-IT
  • Trimless for High-End Contemporary Installations
  • 3 1/2″ Deep – Install Where Ceiling Space Is Limited
  • 11W High Output of our original patented best seller
  • Type IC Rated – Approved for Direct Contact with Insulation
  • Air-Tight, Wet Location, Insulated and Non Insulated Ceilings
  • Light options: 5CCT user selectable 2700-3000-3500-4000-5000K or Dim to Warm 3000K to 1800K
  • CRI 90+ for True Colour Rendering
  • Triac Dimmable with most forward phase dimmers 120V input
  • 0-10V Dimmable Option with 120V to 347V input
  • External Driver Inside Connection Box – No Junction Box Needed
  • Warranty: 10 Year on Residential, 5 Year on Commercial Installations
  • cULus Listed

Product Information

CONSTRUCTION:
Round 3″ Regressed Gimbal Trimless fixtures. Class 2 Isolated external driver factory installed inside junction box.
One driver for every fixture required.

SPECIFICATIONS:
Ceiling Clearance Required: 4″

  • Default Driver: 120V – Triac Dimmable with most forward phase dimmers
  • Optional Driver: 120V-347V 0-10V Dimmable
  • Power factor: > 0.98
  • Energy Used: 11W
  • Halogen equivalent: 90W
  • Beam Angle: 38° with 20° tilt and 360° rotation
  • Light colour options: 5CCT user selectable 2700-3000-3500-4000-5000K or Dim to Warm 3000K to 1800K
  • Light output: 920 | 950 | 1050 | 1050 | 1050 | DTW 770 lm
  • CRI: 90 +
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus approved, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Air-Tight

DIMENSIONS:

  • ID 3 1/8″; OD 4 3/4″; Thickness 3 1/2″
  • Cut out: 3 1/8″
  • Junction Box Dimensions (with driver inside): 3 1/4″ x 2 1/4″ x 1 1/2″

Suitable for wet locations.

120-347V / 0-10V Dimmable Driver

  • LLL-LD1025T3

Jumper Cables 6 ft & 10ft

  • cat # EXC6
  • cat # EXC20
