Lotus LBL-JB10W-5CCT-AC – 5″ 10 Watt J-Box Mount LED Downlight – 5CCT – 120V

SKU : N/A Categories : , , , , , Tag : Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 36.33

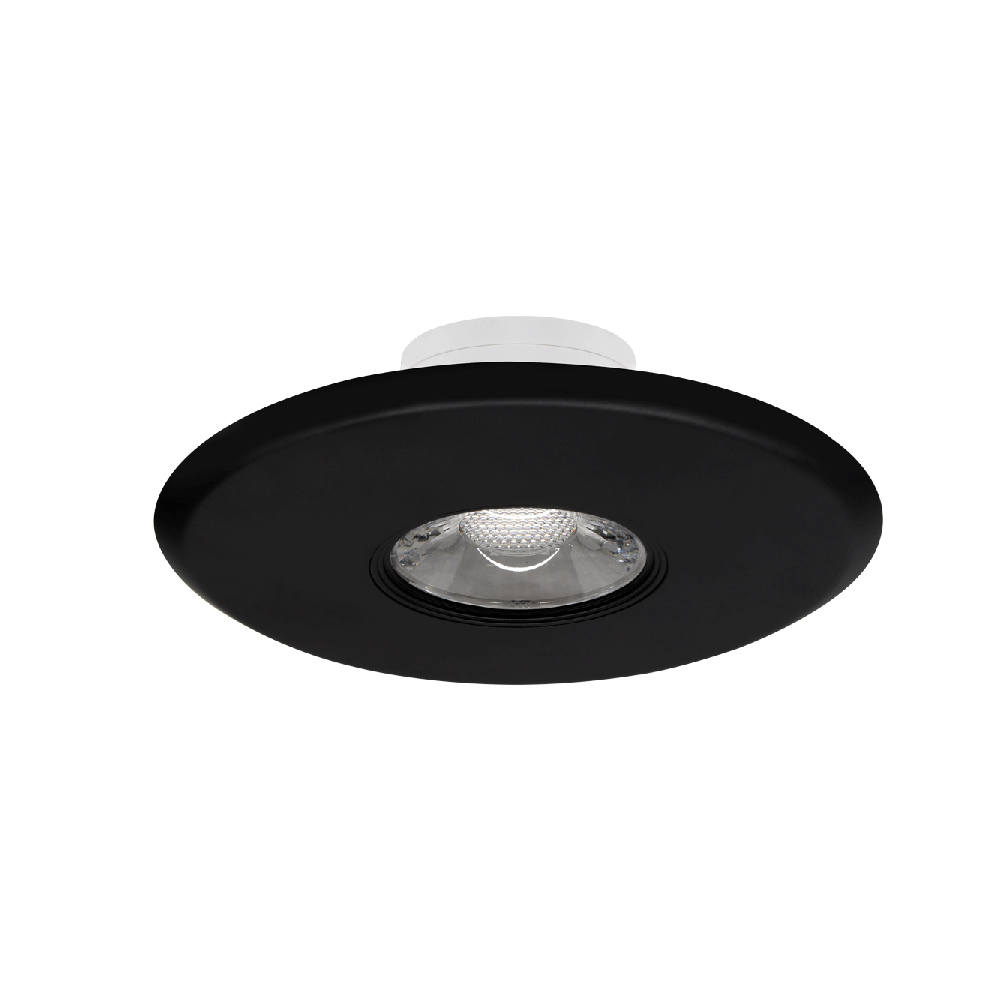

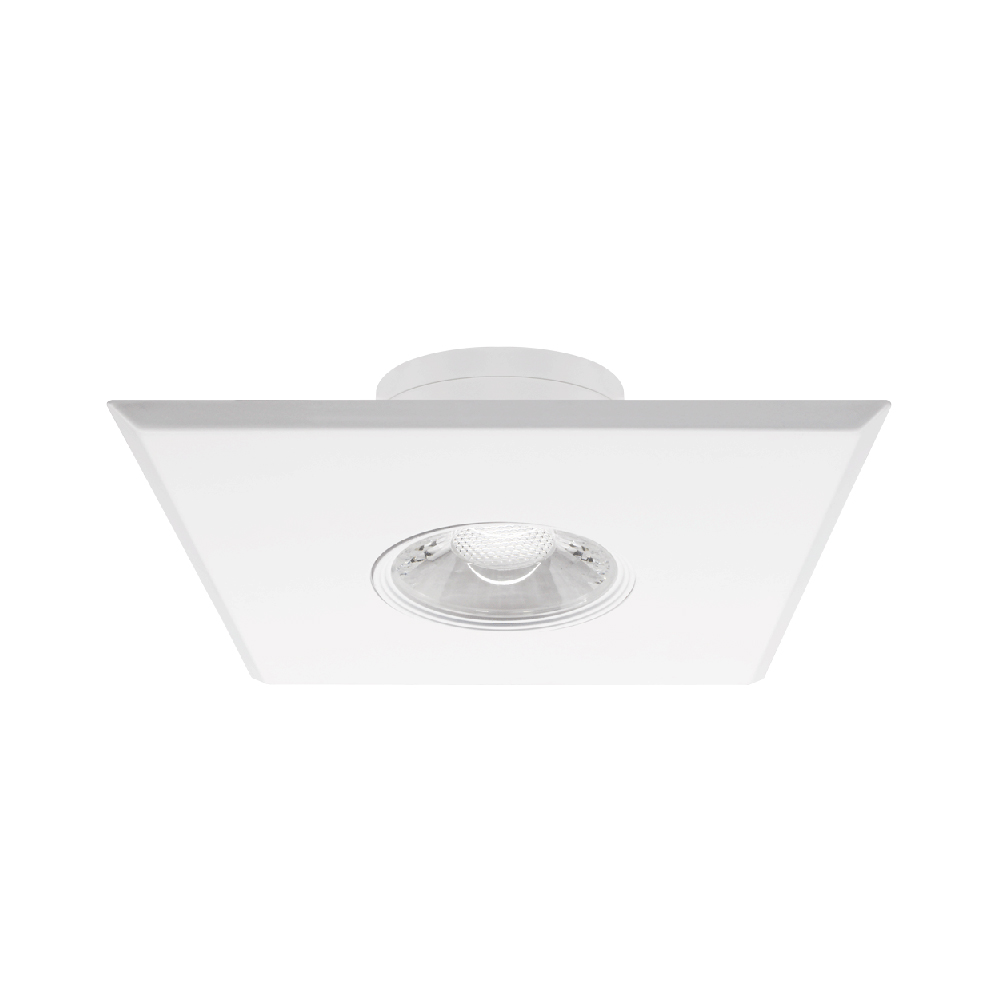

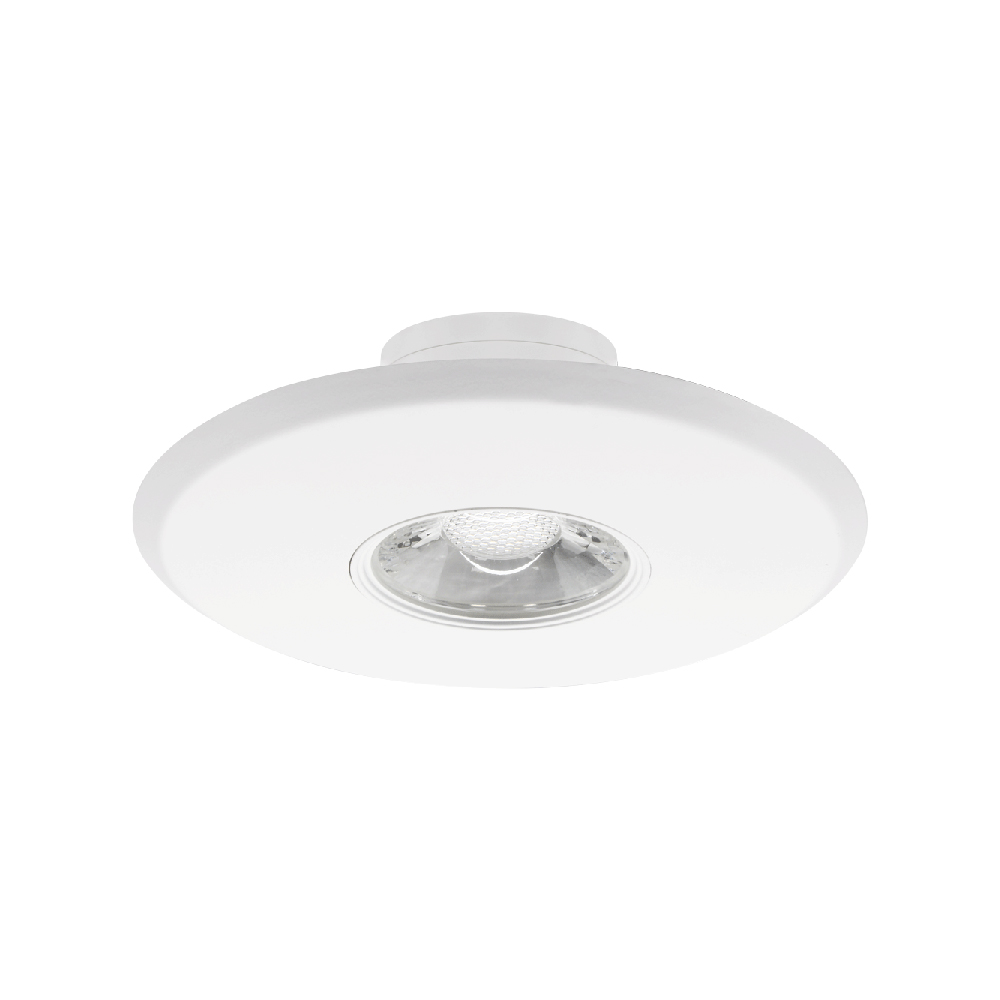

This innovative 5″ 2ND GENERATION downlight by Lotus LED Lights can be installed in an octagonal J-box housing with 5CCT Color Selectable. They come standard with a white Round White Trim, Round Black, Square White and Square Black  trim with magnetic connection (sold separately) available. Being wet location rated, these fixtures are suitable for outdoor or shower applications. A high CRI of 90+ provides true color rendering in the area of illumination.

The LBL-JB10W-5CCT-AC is a 2nd Generation 5″ round 10 watt fixture with the following features:

  • 5″ Ultimate J-Box Mount Fixture
  • Fits in 4″ octagon plastic junction boxes 2 1/8″ deep
  • Model LBL-JB10W-5CCT-AC with AC driver – smaller driver
  • Fits in most 3-0 and 4-0 junction boxes 1 1/2″ deep
  • Available retrofit kit for 4″ recessed housing mount

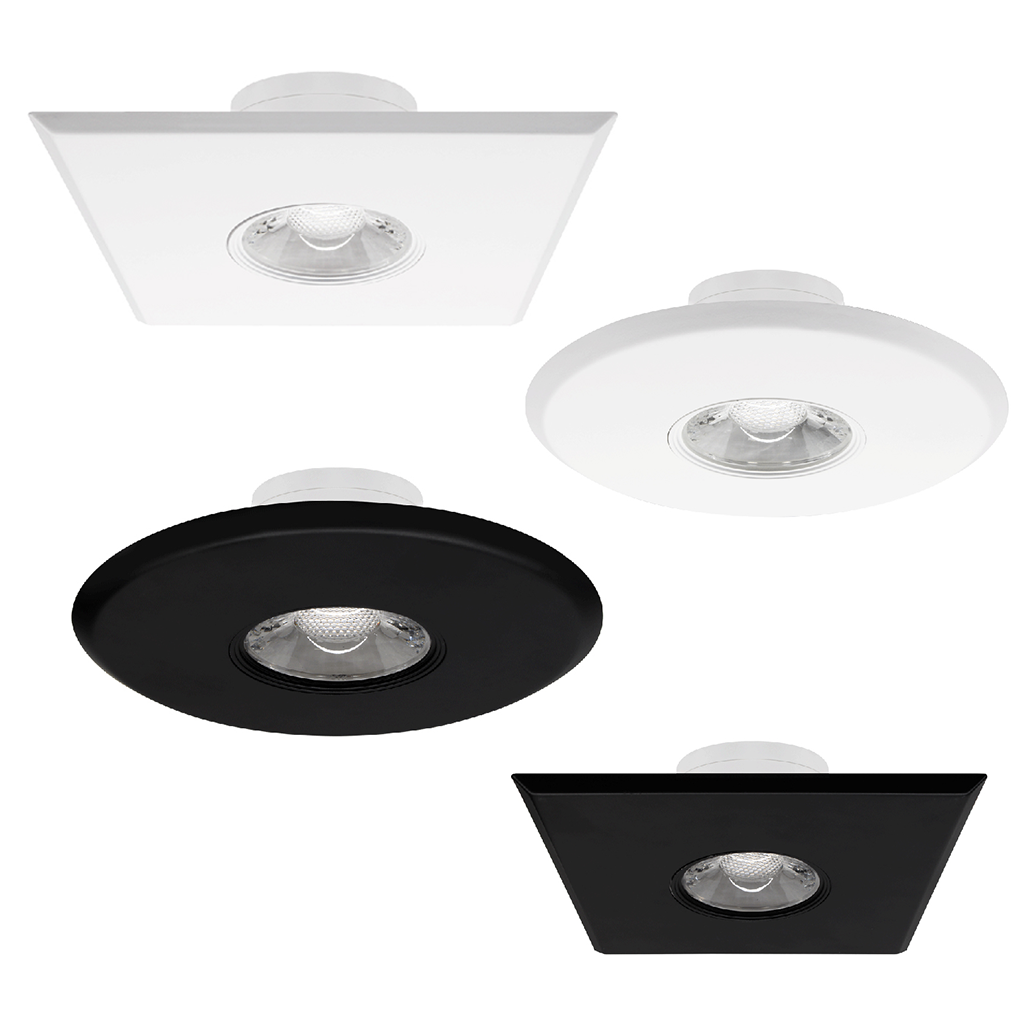

  • Interchangeable Magnetic Trims – Round & Square, White & Black
  • Options of 60° or 38° directional light beam for reduced glare
  • Recessed Fixture Look Due to Very Thin Trim
  • Wet Location approved – Suitable for Showers and Outdoor
  • 5CCT user selectable 2700-3000-3500-4000-5000K
  • CRI 90+ for True Color Rendering
  • Meets Fire Rating Code When Used in a Fire Rated J-Box
  • Warranty: 5 Years

Product Information

CONSTRUCTION:

    5″ ultimate J-box mount LED with interchangeable magnetic trims. Fits in 4″ octagon plastic junction boxes 2 1/8″ deep

SPECIFICATIONS:

  • Input Voltage: 120V AC
  • Dimmability – TRIAC Dimmable 5% – 100%
  • Energy Used: 10W
  • Halogen equivalent: 50W
  • User selectable 5CCT 2700K-3000K-3500K-4000K-5000K
  • Light output: 600 lm to 740 lm
  • Options of 60° or 38° directional light beam for reduced glare
  • CRI: 90+
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Approved Location: Wet Locations
  • Certification: cETLus

DIMENSIONS:

  • OD 5 1/4″ ; Depth 1 1/8″ ; Visible Trim Thickness 1/8″

Specification Sheets

Photometric PDF files:

PDF LBL-JB10W-5CCT 2700K

PDF LBL-JB10W-5CCT 3000K

PDF LBL-JB10W-5CCT 3500K

PDF LBL-JB10W-5CCT 4000K

PDF LBL-JB10W-5CCT 5000K

Photometric IES files:

IES LBL-JB10W-5CCT 2700K

IES LBL-JB10W-5CCT 3000K

IES LBL-JB10W-5CCT 3500K

IES LBL-JB10W-5CCT 4000K

IES LBL-JB10W-5CCT 5000K

Video

Customer Reviews

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
