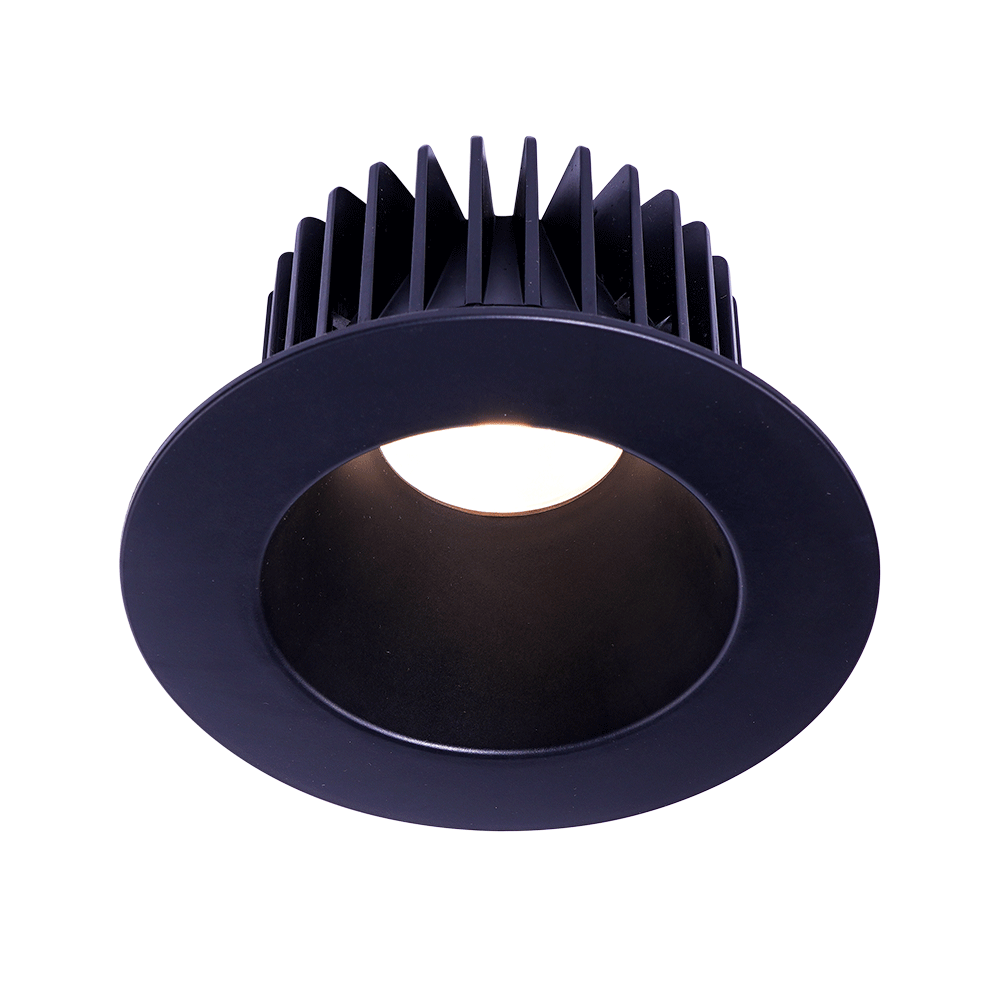

Lotus LD4R-4R-CPL-WH – 15 Watt 4″ Round Corrosion Resistant Deep Regressed LED Downlight

SKU : N/A Categories : , , , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 112.42

The new deep regressed models by Lotus LED Lights provide efficient LED illumination without glare in an elegantly designed downlight. The deep reflector and high-end finish trim present an architectural aesthetic, and open-plenum rated armored cable connection are suitable for commercial application. Being IC-rated, these lights can be installed right into the ceiling without housing and, being only 3.5″ deep, can be installed where ceiling space is limited. A high CRI of 90+ means you’ll enjoy true color rendering in the area of illumination. Comes standard as 120V dimmable, with optional 0-10V dimmable driver available.

The LD4R-4R-CPL-WH is a 4″ round 15 watt deep regressed corrosion-resistant LED downlight in a white finish with the following features:

  • 120V operation and dimming
  • Corrosion resistant polycarbonate trim constructed of 80% polyamide PA66 + 20% fiberglass 20GF material
  • High CRI of 90+ for true color rendering
  • Includes standard dimmable driver
  • Open plenum rated armored cable and metal connectors
  • Fast and easy installation and no junction box required
  • IP54 wet location rated
  • IC-rated
  • Air-tight
  • Energy Star
  • Operating temperature: -40º to 104º F
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty

Product Information

CONSTRUCTION:

4″ Round Deep Regressed LED – Elegant Design Without Glare. Driver Inside Connection Box with Romex Quick Connectors.
One driver for every fixture required.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 3 1/2″

  • Default Driver Input Voltage: 120V AC TRIAC Dimmable
  • Optional Driver Input Voltage: 120V-347V AC 0-10V Dimmable
  • Power factor:  0.98
  • Energy Used: 15W
  • Halogen equivalent: 110W
  • Beam Angle: 30°
  • Light Options: 2700K, 3000K, 3500K, 4000K, 5000K, 5CCT user selectable, Dim to Warm 3000-2000K or 3000-1800K
  • Light output 15W model: Warm White 1100 lm, Soft White 1200 lm, Bright White 1250 lm, Neutral White 1300 lm, Daylight White 1400 lm, Dim to Warm 3000-2000K 900 lm, Dim to Warm 3000-1800K 980 lm
  • CRI: 90+
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus, Energy Star (except DTW), T24

DIMENSIONS:

  • ID 4″; OD 4 7/8″; Thickness 3 1/2″
  • Cut out: 4″
  • Junction Box Dimensions (with driver inside): 3 3/4″ x 3 3/8″ x 1 1/2″

Suitable for insulated ceilings, open plenum, and wet locations.

Optional 120-347V Input Driver

  • 0-10V Dimmable
  • cat # LLL-LD1535TR

Flat Rough-In Plate

  • for Regular Trims: cat # RIP4

Flanged Rough – In Plate

  • for Regular Trims: cat # FRP4

Low Voltage Extension Cable

    • cat # MEC10

Goof Ring Round OD 5 3/4″

  • White – cat #GR4
  • Black – cat # GR4-BK

Specification Sheet:

LD4R-CPL

pdf files
Single CCT
PDF file LD4R-27K | PDF file LD4R-30K | PDF file LD4R-35K | PDF file LD4R-40K | PDF file LD4R-50K |PDF file LD4R-32K |PDF file LD4R-3018K

5 CCT
PDF file LD4R-5CCT-27K | PDF file LD4R-5CCT-30K | PDF file LD4R-5CCT-35K | PDF file LD4R-5CCT-40K | PDF file LD4R-5CCT-50K

IES files
Single CCT
IES file LD4R-27K | IES file LD4R-30K | IES file LD4R-35K | IES file LD4R-40K | IES file LD4R-50K |IES file LD4R-32K |IES file LD4R-3018K

5 CCT
IES file LD4R-5CCT-27K | IES file LD4R-5CCT-30K | IES file LD4R-5CCT-35K | IES file LD4R-5CCT-40K | IES file LD4R-5CCT-50K


Links to Energy Star: LD4R-27K | LD4R-30K | LD4R-35K | LD4R-40K | LD4R-50K

Product Video

Customer Reviews

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

You may also like…

Lotus 10′ Low-Voltage Extension Cable – MEC10

Lotus 10′ Low-Voltage Extension Cable – MEC10

CAD$ 12.32 Read more
Utilize this 10′ low voltage extension cable with your Lotus LED Lights low-voltage downlights
  • Length – 10 feet
  • Inter-linkable up to 40 feet maximum extension
  • 18 AWG
  • UL listed

Downloads:

Certifications
Lotus Flanged Rough-In Plate with Expandable Bars for 4″ Downlights – FRP4

Lotus Flanged Rough-In Plate with Expandable Bars for 4″ Downlights – FRP4

CAD$ 12.46 Read more
Utilize this new construction rough-in plate to assist with placement and pre-wiring your Lotus LED 4″ models. Use this rough-in plate for easier layout planning and new construction pre-wiring.

Downloads:

Certifications
Lotus Rough-in Plate for 4″ Downlights – RIP4

Lotus Rough-in Plate for 4″ Downlights – RIP4

CAD$ 9.60 Read more
Utilize this new construction rough-in plate to assist with placement and pre-wiring your Lotus LED 4″ models. Use this rough-in plate for easier layout planning and new construction pre-wiring. Made of galvanized steel and is 26″ long to fit up to 24″ spaced studs/joists. Minimum Order Quantity : 5pcs

Downloads:

Certifications
Lotus 347V / 0-10V Dimmable Driver – LLL-LD1535TR

Lotus 347V / 0-10V Dimmable Driver – LLL-LD1535TR

CAD$ 32.98 Read more
The LLL-LD1535-TR is a 120-347V, 0-10 dimmable driver option for the Lotus LED LL4RR, LL4SR, LD4R (non-high output), LD4S (non-high output) or LD4R-IT (non-high output)series recessed downlights. The 120V driver will be replaced with this 120-347V driver before shipping. Compatible LED Driver for Lotus LED LL4RR, LL4SR, LD4R (non-high output), LD4S (non-high output) or LD4R-IT (non-high output) series downlight, can be purchased by it self or with a fixture.

Related products

Lotus LD8R – 18 Watt 8″ Deep Regressed LED Downlight – 120V

Lotus LD8R – 18 Watt 8″ Deep Regressed LED Downlight – 120V

CAD$ 120.40 Read more
The new deep regressed models by Lotus LED Lights provide efficient LED illumination without glare in an elegantly designed downlight. The deep reflector and high-end finish trim present an architectural aesthetic, and open-plenum rated armored cable connection are suitable for commercial application. Being IC-rated, these lights can be installed right into the ceiling without housing and, being only 4.5" deep, can be installed where ceiling space is limited. A high CRI of 90+ means you'll enjoy true color rendering in the area of illumination. Comes standard as 120V dimmable, with optional 0-10V dimmable driver available. The LD8R is an 8" round 18 Watt deep regressed LED downlight, available in 4 different reflector and trim options and with the following features.
  • Includes standard dimmable driver
  • IC-rated
  • Wet and damp location rated
  • High CRI of 90+ for true color rendering
  • Open plenum rated armored cable and metal connectors
  • Fast and easy installation and no junction box required
  • Air-tight
  • Energy Star
  • Title-24 certified
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty
Lotus LL4G – 15 Watt & 11.4 Watt 4″ LED Gimbal – 120V

Lotus LL4G – 15 Watt & 11.4 Watt 4″ LED Gimbal – 120V

CAD$ 67.76 Read more
The Lotus LED Lights 4" round LED gimbal downlights are designed to go where no other fixture can. Being IC-rated, they can be installed directly into an insulated ceiling without requiring a recessed housing and, being only 2" deep, can be installed where ceiling space is limited. Installation is simple - just cut a hole and the attached spring clips snap the fixture into place. These gimbal downlights emit a 38º beam of light that is adjustable in a 10º tilt in each direction and 360º rotation. A high CRI of 90+ means you'll enjoy true color rendering in the area of illumination. Ideal applications include sloped ceilings, highlighting artwork, cabinets and recessed alcoves. The LL4G is a 4" round 15w OR 11.4w HIGH or LOW output LED gimbal downlight in a white, black and brushed nickel finish with the following features:
  • Includes standard dimmable driver
  • 2700K, 3000K, 3500K, 4000K, 5000K, Dim To Warm 3000K to 2000K, and 5CCT
  • Regular 11.4W and High Output 15W
  • IC-rated
  • 38º beam of light that is adjustable in a 10º tilt in each direction and 360º rotation
  • Wet and damp location rated
  • High CRI of 90+ for true color rendering
  • IP54
  • Air-tight
  • Energy Star
  • Title-24 certified
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty

Lotus LSG2-HO – 5.5 Watt 2″ High Output Square Regressed LED Gimbal – 120V

Lotus LSG2-HO – 5.5 Watt 2″ High Output Square Regressed LED Gimbal – 120V

CAD$ 58.52 Read more
Save on labor with the Lotus LED Lights High Output 2" square regressed LED gimbal downlight. Installation is simple, just cut a hole in the ceiling and the attached spring clips snap the fixture into place - no housing required! These slim recessed fixtures are air-tight, IC-rated for direct contact with insulation, and suitable for damp or wet locations. A high CRI provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings and highlighting artwork or other features. The LSG2-HO is a 2" square 5.5 watt high output regressed LED gimbal downlight, available in White and Black finish with the following features:
    • 120V operation and dimming
    • 24° beam angle with 10° tilt each direction and 360° rotation
    • 1 3/4" thin - install where ceiling space is limited
    • IC rated - no housing required
    • High CRI of 90+ for true color rendering
    • IP54 rated
    • Suitable in wet and damp locations
    • Oil based spray painted - scratch resistant and smooth finish
    • Title-24 certified
    • Energy Star
    • 50,000 hour rated
    • 10 year residential / 5 year business application warranty
Lotus LL2G-HO – 5.5 Watt 2″ High Output LED Gimbal – 120V

Lotus LL2G-HO – 5.5 Watt 2″ High Output LED Gimbal – 120V

CAD$ 52.36 Read more

The Lotus LED Lights High Output 2" round LED gimbal downlights are designed to go where no other fixture can. Being IC-rated, they can be installed directly into an insulated ceiling without requiring a recessed housing and, being only 1.5" deep, can be installed where ceiling space is limited. Installation is simple - just cut a hole and the attached spring clips snap the fixture into place. These gimbal downlights emit a 24º beam of light that is adjustable in a 10º tilt in each direction and 360º rotation. A high CRI of 90+ means you'll enjoy true color rendering in the area of illumination. Ideal applications include sloped ceilings, highlighting artwork, cabinets and recessed alcoves.

The LL2G-HO is a 2" round 5.5 watt high output LED gimbal downlight, available in White, Black or Brushed Nickel trim with the following features:
  • Includes standard dimmable driver
  • IC-rated
  • 24º beam of light that is adjustable in a 10º tilt in each direction and 360º rotation
  • Wet and damp location rated
  • High CRI of 90+ for true color rendering
  • IP54
  • Air-tight
  • Energy Star
  • Title-24 certified
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty
Ceiling clearance required: 1.5" with driver remotely installed / 5" when driver is next to fixture


Recently Viewed Products

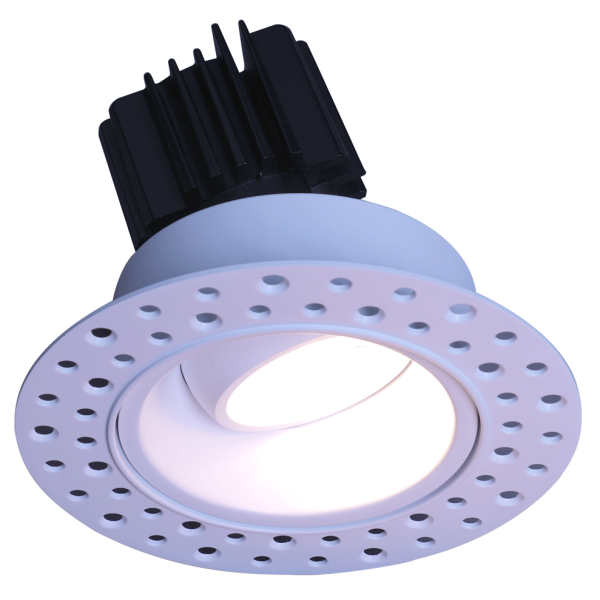

Lotus HIGH OUTPUT 11 Watt 3″ Round Regressed LED Gimbal Trimless – LRG3-HO-IT
