Lotus LD6R-HO – 30 Watt HIGH OUTPUT 6″ Deep Regressed LED Downlight

SKU : N/A Categories : , , , , , , , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 133.00

The new deep regressed models by Lotus LED Lights provide efficient LED illumination without glare in an elegantly designed downlight. The deep reflector and high-end finish trim present an architectural aesthetic, and open-plenum rated armored cable connection are suitable for commercial application. Being IC-rated, these lights can be installed right into the ceiling without housing and, being only 3.5″ deep, can be installed where ceiling space is limited. A high CRI of 90+ means you’ll enjoy true color rendering in the area of illumination. Comes standard as 120V dimmable, with optional 0-10V dimmable driver available.

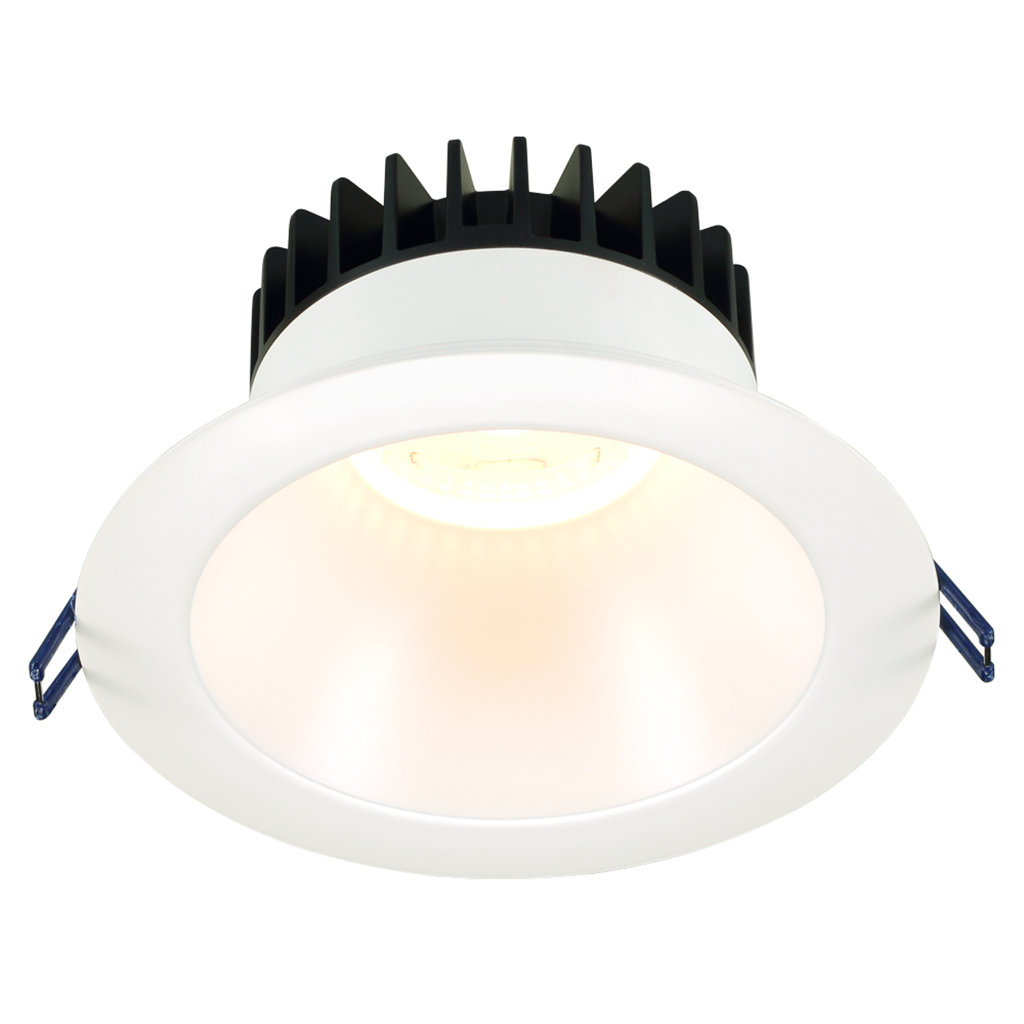

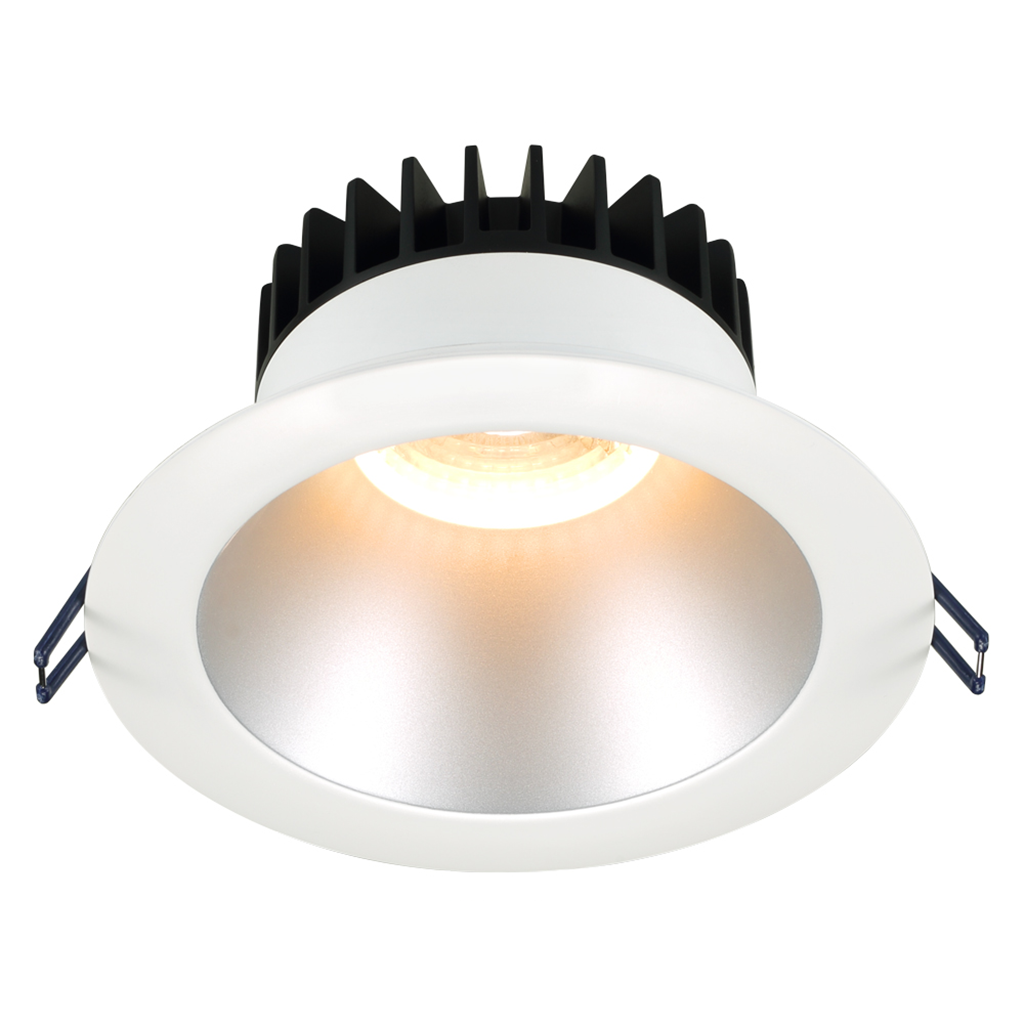

The LD6R-HO is a 6″ round 30 watt deep regressed LED downlight, available in 5 different reflector and trim options with the following features.

  • 120V dimmable (0-10V dimmable driver available)
  • IC-rated
  • Wet and damp location rated
  • High CRI of 90+ for true color rendering
  • Open plenum rated armored cable and metal connectors
  • Fast and easy installation and no junction box required
  • Air-tight
  • Energy Star
  • Title-24 certified
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty





Product Information

CONSTRUCTION:

6″ Round Deep Regressed LED – Elegant Design Without Glare. Driver Inside Connection Box with Romex Quick Connectors.
One driver for every fixture required.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 3″

  • Default Driver Input Voltage: 120V AC TRIAC Dimmable
  • Optional Driver Input Voltage: 120V-347V AC 0-10V Dimmable
  • Energy Used: 18W
  • Power factor:  0.98
  • Beam Angle: 38°
  • Light colour options: Warm White 2700K, Soft White 3000K, Bright White 3500K, Neutral White 4000K, Daylight White 5000K
  • 30W model CCT options & lumen output: 2700K (2630 lm), 3000K (2700 lm), 3500K (2810 lm), 4000K (2900 lm), 5000K (3000 lm)
  • CRI: 90+
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus, Energy Star (except DTW & 5CCT), T24

DIMENSIONS:

  • ID 6 1/8″; OD 6 3/4″; Thickness 3 1/2″
  • Cut out: 6 1/4″ to 6 1/2″
  • Junction Box Dimensions (with driver inside): 3 3/4″ x 3 3/8″ x 1 1/2″
  • Junction Box Wire Capacity: Max 5 No 12 AWG or 8 No 14 AWG

Suitable for insulated ceilings, open plenum, and wet locations.

Optional 120-347V Input Driver

  • 0-10V Dimmable
  • cat # LLL-LD3580TR

Flat Rough-In Plate

  • cat # RIP6

Flanged Rough – In Plate

  • cat # FRP6

Low Voltage Extension Cable

    • cat # MEC10

Goof Ring Round OD 7 5/8″

  • White – cat #GR6

Specification Sheet:

PDF FILES 30W
PDF file LD6R-27K-HO | PDF file LD6R-30K-HO | PDF file LD6R-35K-HO | PDF file LD6R-40K-HO | PDF file LD6R-50K-HO

IES FILES 30W
IES file LD6R-27K-HO | IES file LD6R-30K-HO | IES file LD6R-35K-HO | IES file LD6R-40K-HO| IES file LD6R-50K-HO


Links to Energy Star: LD6R-27K-HO | LD6R-30K-HO | LD6R-35K-HO | LD6R-40K-HO | LD6R-50K-HO
