Lotus LD8R – 18 Watt 8″ Deep Regressed LED Downlight – 120V

SKU : N/A Categories : , , , , , , , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 120.40

The new deep regressed models by Lotus LED Lights provide efficient LED illumination without glare in an elegantly designed downlight. The deep reflector and high-end finish trim present an architectural aesthetic, and open-plenum rated armored cable connection are suitable for commercial application. Being IC-rated, these lights can be installed right into the ceiling without housing and, being only 4.5″ deep, can be installed where ceiling space is limited. A high CRI of 90+ means you’ll enjoy true color rendering in the area of illumination. Comes standard as 120V dimmable, with optional 0-10V dimmable driver available.

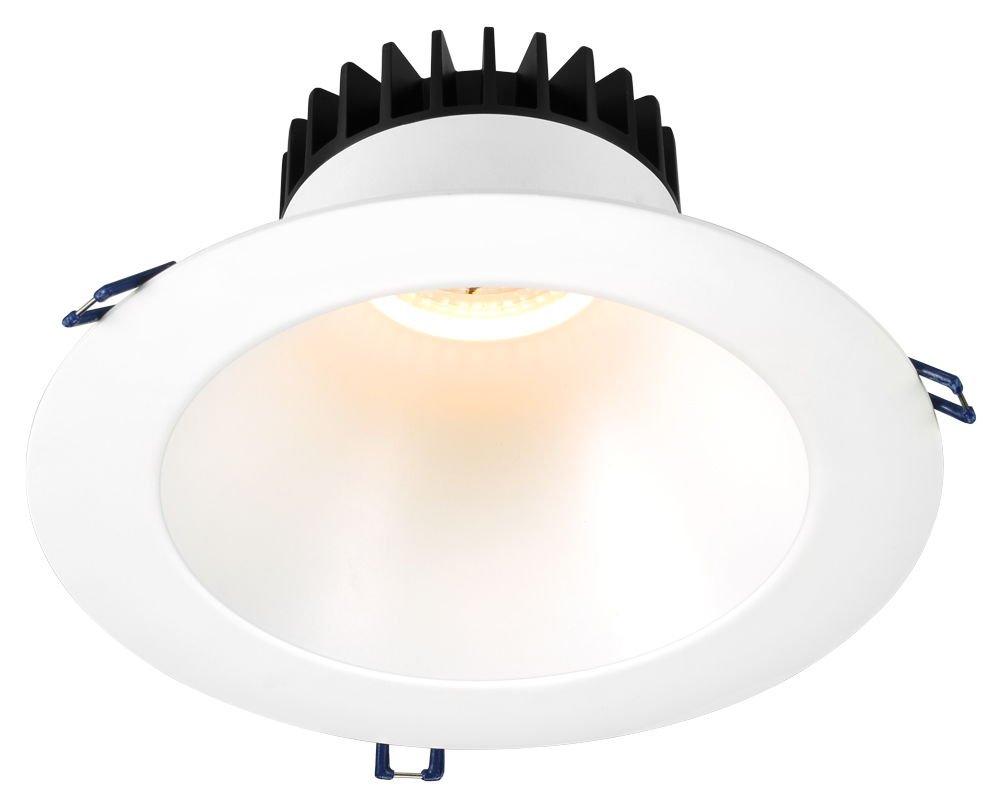

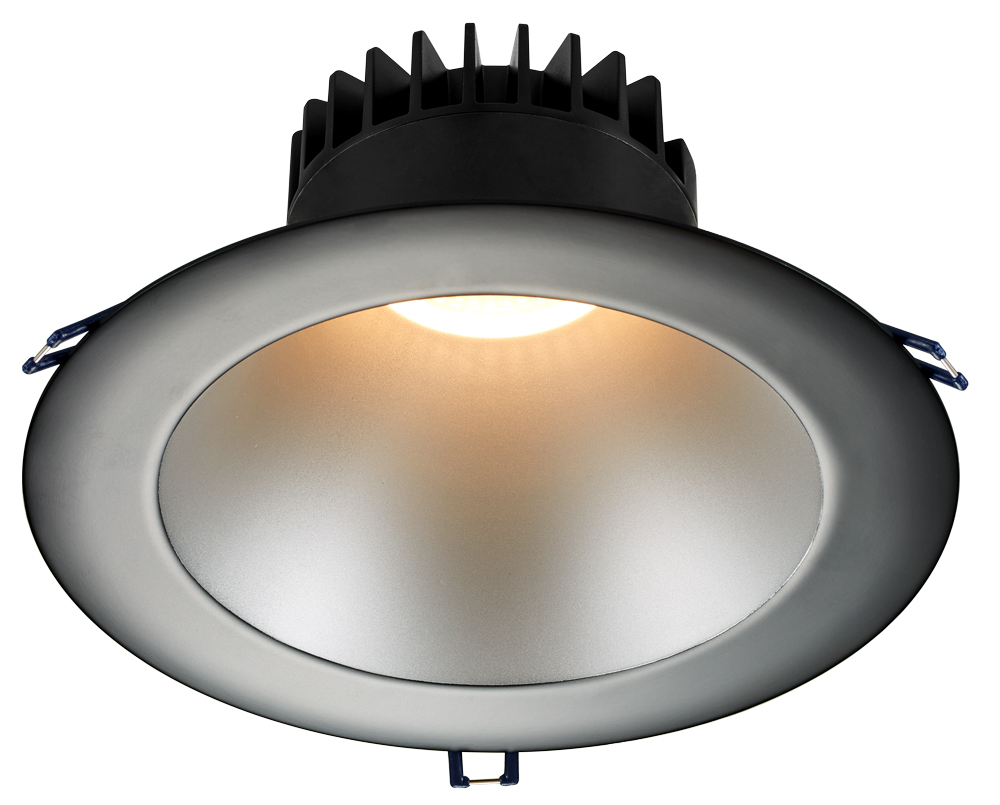

The LD8R is an 8″ round 18 Watt deep regressed LED downlight, available in 4 different reflector and trim options and with the following features.

  • Includes standard dimmable driver
  • IC-rated
  • Wet and damp location rated
  • High CRI of 90+ for true color rendering
  • Open plenum rated armored cable and metal connectors
  • Fast and easy installation and no junction box required
  • Air-tight
  • Energy Star
  • Title-24 certified
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty

Product Information

CONSTRUCTION:

8″ Round Deep Regressed LED – Elegant Design Without Glare. Driver Inside Connection Box with Romex Quick Connectors.
One driver for every fixture required.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 4″

  • Default Driver Input Voltage: 120V AC TRIAC Dimmable
  • Optional Driver Input Voltage: 120V-347V AC 0-10V Dimmable
  • Energy Used: 18W
  • Power factor:  0.98
  • Beam Angle: 38°
  • Light colour options: 5CCT User Color Selectable, Warm White 2700K, Soft White 3000K, Bright White 3500K, Neutral White 4000K, Daylight White 5000K and Dim to Warm 3000K – 2000K
  • 18W model CCT options & lumen output: 2700K (1500 lm), 3000K (1550 lm), 3500K (1600 lm), 4000K (1650 lm), 5000K (1700 lm) & Dim To Warm 3000K to 2000K (1150 lm), 5CCT
  • CRI: 90+
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus, Energy Star (except DTW & 5CCT), T24

DIMENSIONS:

  • ID 7 1/2″; OD 9″; Thickness 4 1/2″
  • Cut out: 7 1/2″ to 8″
  • Junction Box Dimensions (with driver inside): 3 3/4″ x 3 3/8″ x 1 1/2″
  • Junction Box Wire Capacity: Max 5 No 12 AWG or 8 No 14 AWG

Suitable for insulated ceilings, open plenum, and wet locations.

Optional 120-347V / 0-10v Dimmable Driver

  • 0-10V Dimmable
  • cat # LLL-LD2050TR

Flat Rough-In Plate

  • cat # RIP8

Low Voltage Extension Cable

    • cat # MEC10

Goof Rings White

  • OD 9 1/2″ – cat # GR8
  • OD 10 1/2″ – cat # GR810

Specification Sheet:

PDF files 18W
Single CCT
PDF file LD8R-27K | PDF file LD8R-30K | PDF file LD8R-35K | PDF file LD8R-40K | PDF file LD8R-50K | PDF file LD8R-32K
5CCT
PDF file LD8R-5CCT-27K | PDF file LD8R-5CCT-30K | PDF file LD8R-5CCT-35K | PDF file LD8R-5CCT-40K | PDF file LD8R-5CCT-50K

IES files 18W
Single CCT
IES file LD8R-27K | IES file LD8R-30K | IES file LD8R-35K | IES file LD8R-40K | IES file LD8R-50K | IES file LD8R-32K
5CCT
IES file LD8R-5CCT-27K | IES file LD8R-5CCT-30K | IES file LD8R-5CCT-35K | IES file LD8R-5CCT-40K | IES file LD8R-5CCT-50K

Links to Energy Star

LD8R-27K | LD8R-30K | LD8R-35K | LD8R-40K | LD8R-50K
