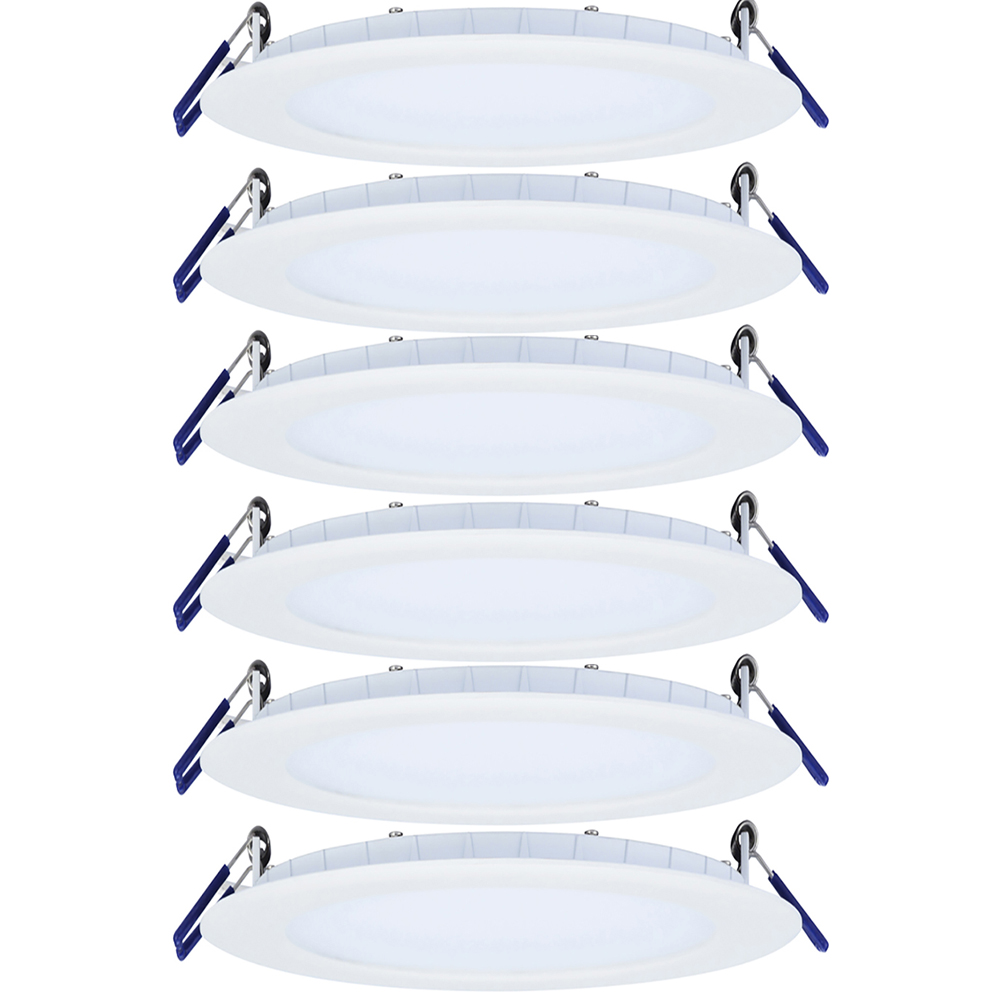

Lotus LE6R-5CCT-WH-6P – 14Watt 6″ Round Economy Recessed – 6 PACK

SKU : LE6R-5CCT-WH-6P Categories : , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 150.92

Lotus LED Lights Round Economy Recessed 5CCT 6 PACK LED downlights offer you 5 different kelvin temperature options. Utilize the switch inside the integral driver that comes with each light to choose between warm 27K, warm 30K, warm-neutral 35K, neutral 40K, or daylight 50K white light color temperatures. Perfect option for contractors to stock up on, allowing you to suit each downlight to your customer’s preferences. For the end user, these are also easy to change as preferences do. The versatility of choices combined with the quality you’ve come to expect from Lotus LED Lights, the original IC-rated thin downlight manufacturer, combined with a price that won’t break your budget make these lights the best choice for you in your new construction or renovation light installations.

The LE6R-5CCT-6P, 6 PACK 6″ Round dimmable LED downlight in a white finish with the following features:

  • Power 14W
  • 5CCT User Selectable 2700K | 3000K | 3500K | 4000K | 5000K
  • White trim in stock
  • 6 Pack Option for additional savings
  • Superb Light Quality with CRI 90+
  • Type IC Rated – Approved for Direct Contact with Insulation
  • Air-Tight, Wet Location, Insulated and Non Insulated Ceilings
  • Triac Dimmable with Forward Phase LED Dimmers 120V input
  • Warranty 5 Year
  • cULus Listed

Product Information

CONSTRUCTION:
Round 6″ fixtures with integral LEDs. Class 2 isolated external driver factory installed inside junction box.
One driver for every fixture required.

MOUNTING:
Cut out hole in ceiling (6 1/4″ to 6 1/2″) and snap fixture in opening with attached spring clips.
Space in ceiling needed for the driver to fit through the hole – 1 1/2″.

  • Input Voltage: 120V Triac Dimmable
  • Power factor: > 0.98
  • Energy Used: 14W
  • Halogen equivalent: 90W
  • Beam Angle: 110°
  • Light colour options: 5CCT User Selectable
  • Light output: 2700K 910lm, 3000K 970lm, 3500K 1050lm, 4000K 1070lm, 5000K 1030lm
  • CRI 90+
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus Listed, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Air-Tight

DIMENSIONS:

  • ID 6 1/8; OD 6 3/4″; Thickness 1/2″
  • Cut out: 6 1/8″ to 6 1/4″
  • Junction Box Dimensions (with driver inside): 3 3/4″ x 3 3/8″ x 1 1/2″

Suitable for wet locations and soffit installations.

Mounting Plate Flat

  • model #MP6-2

  • model #RIP6

Mounting Plate Flanged

  • model # FRP6

Jumper Cable 10ft – maximum extension 40 feet

  • model # EXC10-5CCT

Specification Sheet

Spec Sheet LE6R-5CCT

Photometric PDF files:

PDF 2700K | PDF 3000K | PDF 3500K | PDF 4000K | PDF 5000K

Photometric IES files:

IES 2700K| IES 3000K | IES 3500K| IES 4000K| IES 5000K
