Lotus LED-1-S6W-3K – 6 Watt 2″ Mini LED Round / Square Recessed Downlight 24V – 3000K

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 46.05

The Lotus LED Lights 2″ mini LED recessed downlight is an ultra-compact and versatile mini downlight that is easily connected via daisy chained low-voltage cable to either a remote mounted class 2 power supply or solar inverter. They are constructed of die cast aluminum housing and, being only 2.375″ deep, they can fit where ceiling space is limited. Their internal terminal block design allows for operation without junction box as well. These mini downlights are great for niche, cabinets, soffits or off-grid solar powered applications.

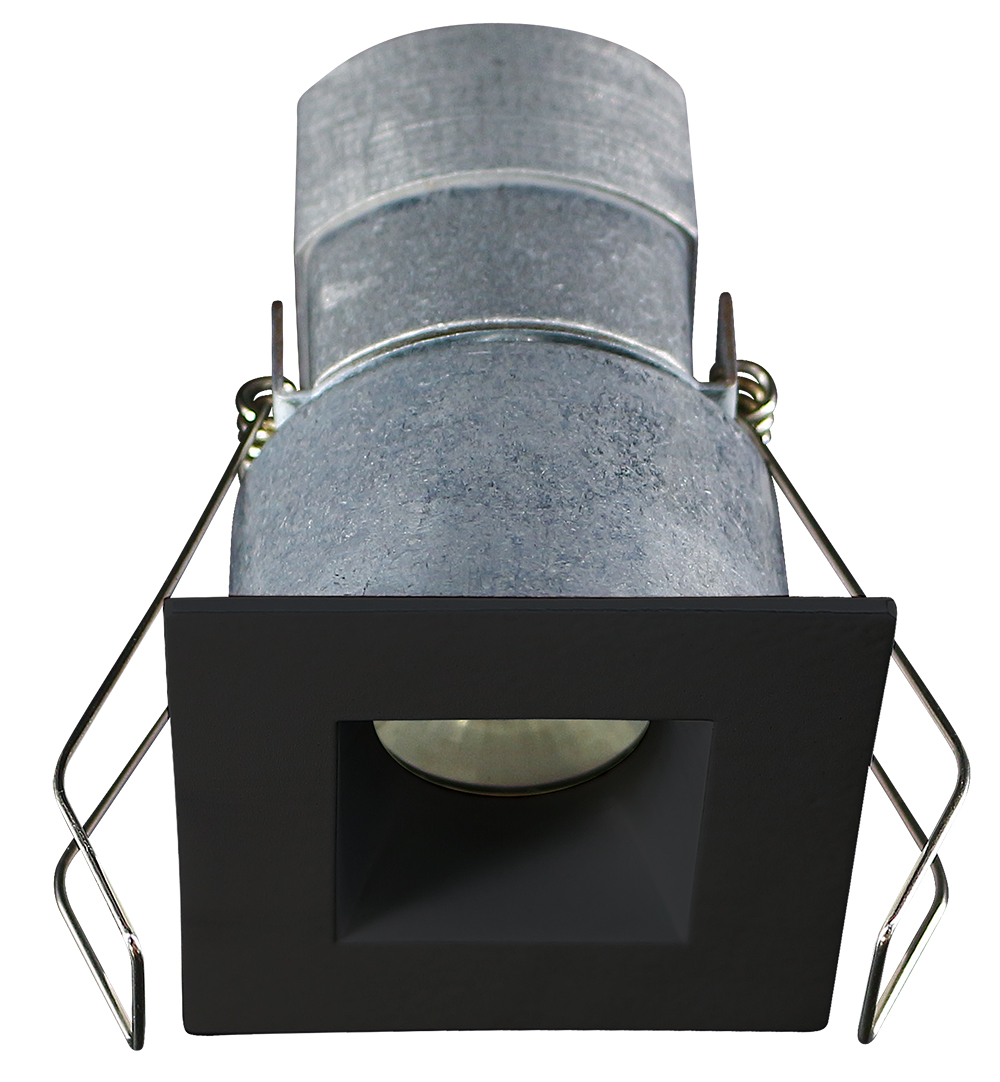

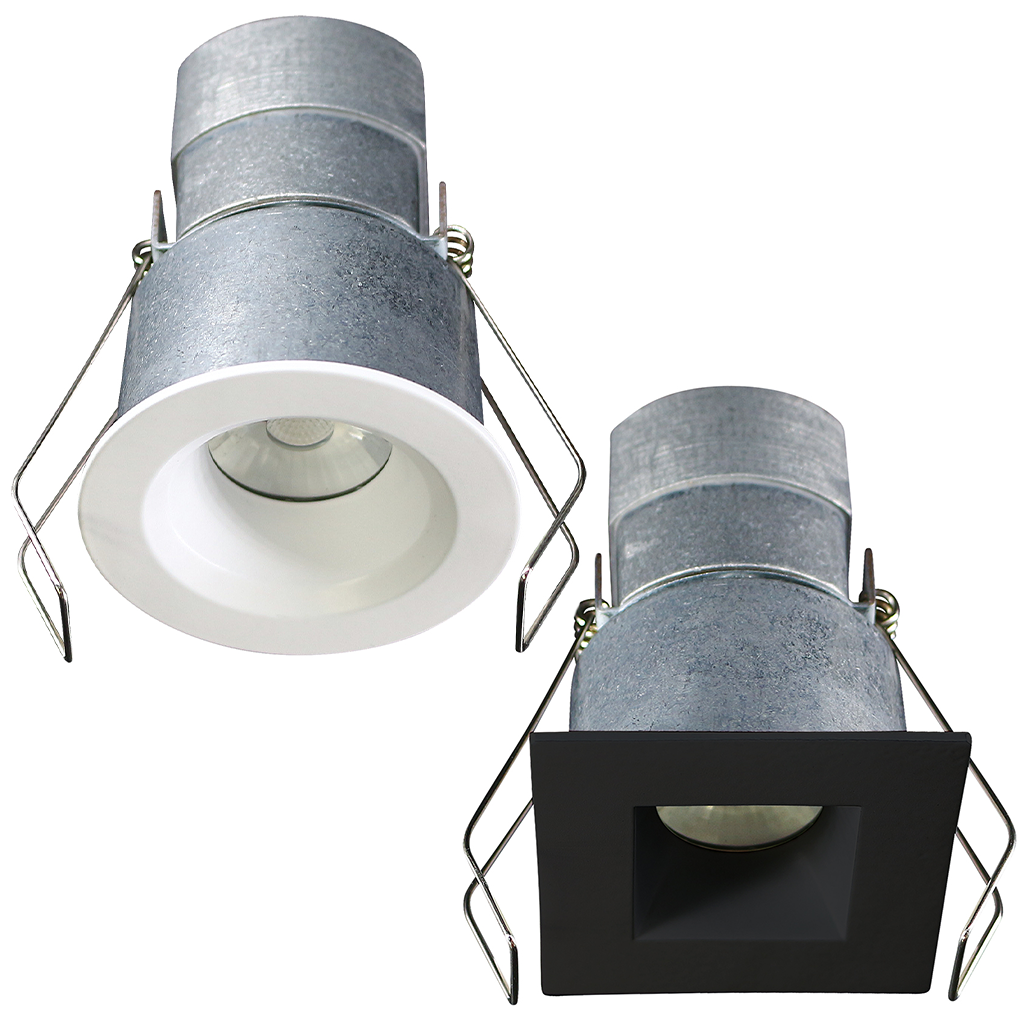

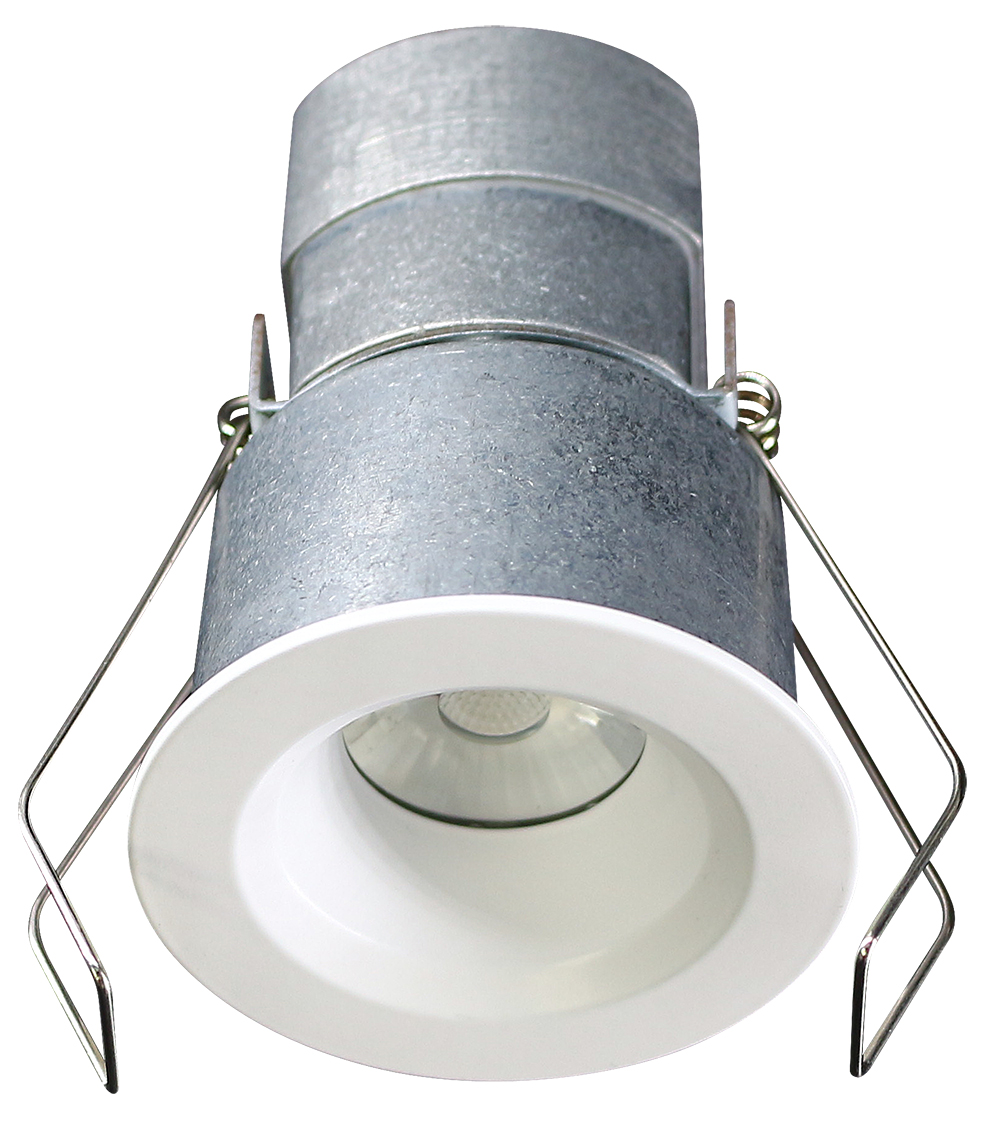

The LED-1-S6W-3K is a 2″ round or square 6 watt LED downlight in a white and black trim with the following features:

  • Input 24V AC/DC
  • White & Black trims with 1/8″ & 1/4″ lips
  • Ultra compact, versatile, easily connected via daisy chained low voltage cable
  • Internal terminal block – No junction box needed
  • Fast and Easy To Install – Save On Labor
  • 2 7/8″ Deep – Install Where Ceiling Space Is Limited
  • Type IC Rated – No Housing Required
  • 6W 480 lm Comparable to 35W halogen
  • Stock Light Color: 3000K
  • CRI 90+ for True Color Rendering
  • Warranty: 3 Year
  • cETLus certified

Product Information

CONSTRUCTION:
2″ Mini Recessed LED 24V with interchangeable trims.
Ultra compact, versatile, easily connected via daisy chained low voltage cable to an either remote mounted class 2 power supply or solar inverter.
Die cast aluminum housing.

MOUNTING:
Cut hole in ceiling and snap fixture in opening with attached spring clips.
Ceiling Clearance Required: 3″

  • Input Voltage: 24V AC/DC
  • Energy Used: 6W
  • Halogen equivalent: 35W
  • Beam Angle: 38°
  • Light colour options: Soft White 3000K
  • Light output: 480 lm
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Approved Locations: Insulated Ceilings & Damp Locations
  • Rated: cETLus

DIMENSIONS:

  • ID 1 15/16″, OD 2 1/4″; Depth 2 7/8″
  • Cut out: 2″
  • Mounting surface from 1/8″ to 1 1/2″ thick

Suitable for Insulated Ceiling & Damp Locations.

Mounting Plate

  • RIP2

24V Drivers

  • LBL-DC24V96W
  • LBL-DC24V30W
  • LBL-DC24V30W-PLUG
