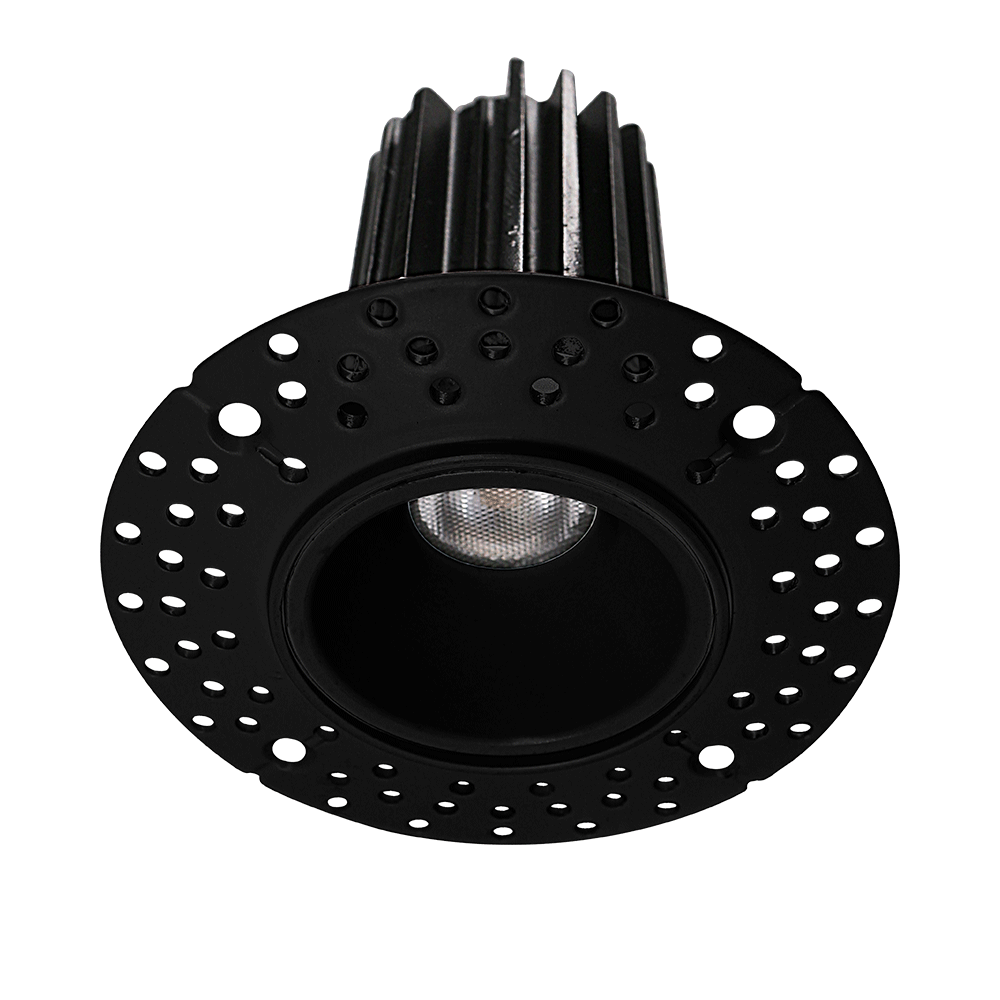

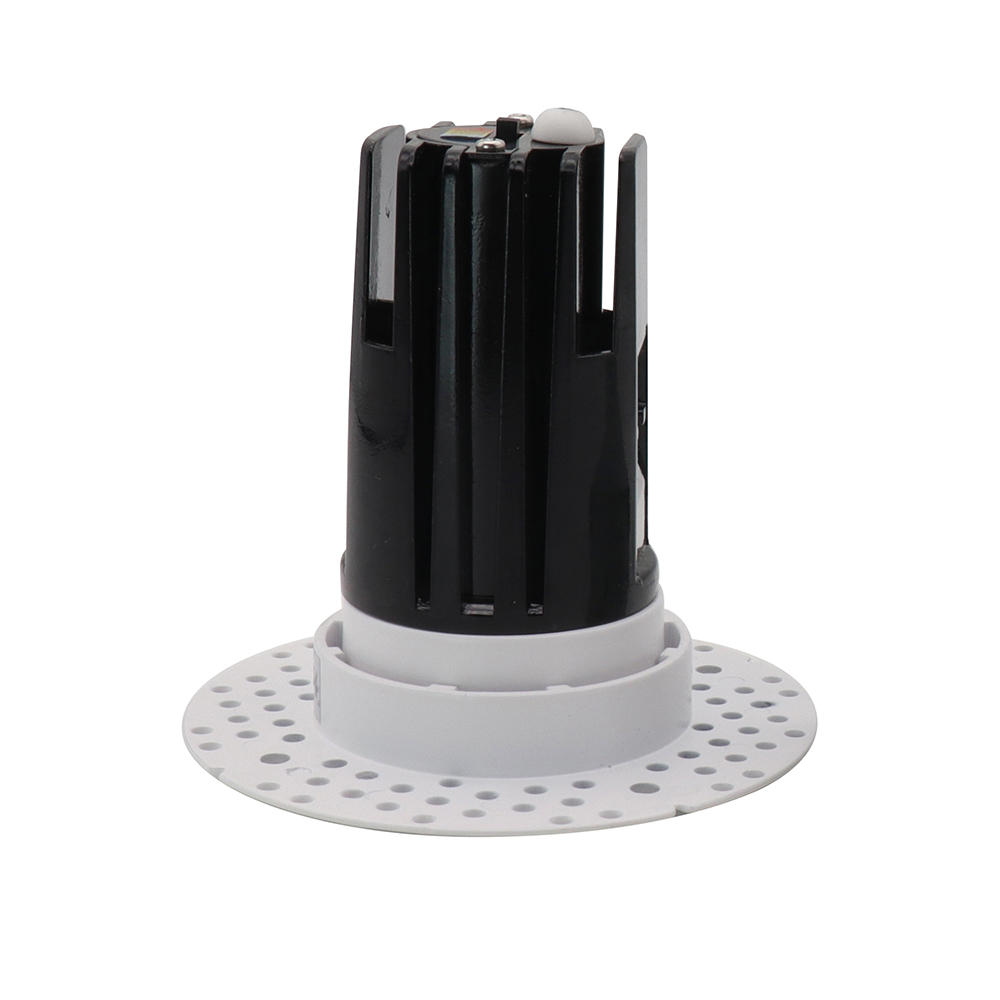

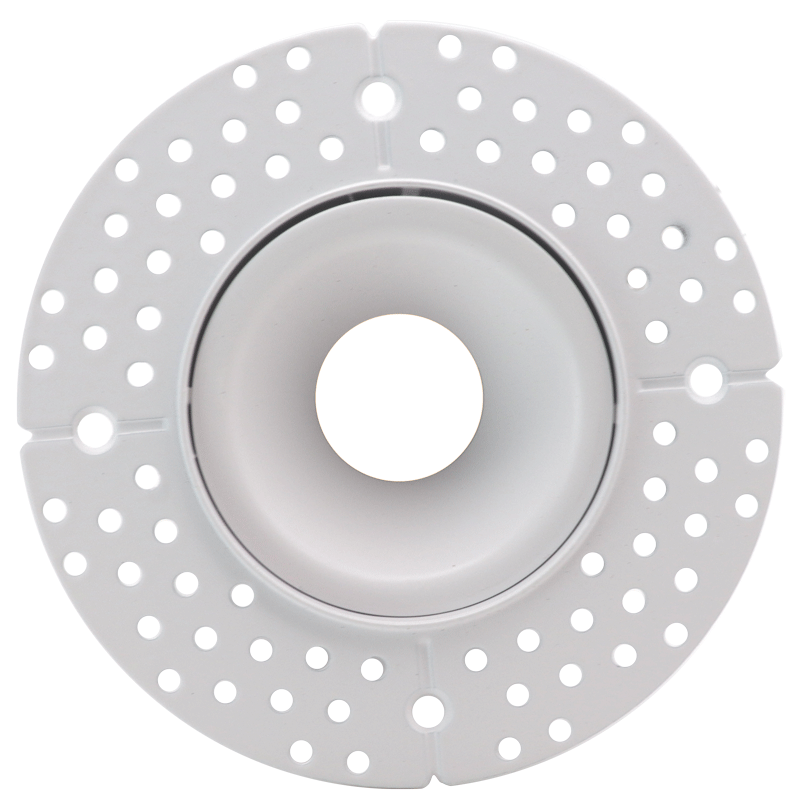

Lotus LED-1-S7W-5CCT – 2″ Trimless 7 Watt Round LED Downlight

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 81.47

Lotus LED Lights 2″ round LED TRIMLESS downlight is an excellent choice to provide long lasting, energy efficient LED illumination to your general ceiling lighting application. They are IC-rated and only 3 3/8″ deep, making them suitable for installation directly into the ceiling where space is limited and without a recessed housing. Being CCT-tunable, these fixtures allow the installer to choose between 5 different white light color temperatures to suit the application or end-users preference. Their high CRI of 90+ provides true color rendering in the area of illumination.

The LED-LED-1-S7W-5CCT-1R-TRIMLESS-WH is a 7 watt, 2″ Round Trimless Recessed LED downlight in a white finish following features:

  • 5CCT User Selectable Light Color
  • CRI 90+ for True Color Rendering
  • White Trimless in stock, other colors available as custom
  • Beam options: 38° (standard), 24° available as adder
  • 3 3/8″ Deep – Fits Where Ceiling Space Is Limited
  • Type IC Rated – No Housing Required
  • Driver Inside Connection Box – No Junction Box Needed
  • 120V Triac Dimmable Driver Included
  • Wet Location approved
  • Warranty: 3 Year
  • cETLus & Energy Star certified

Product Information

CONSTRUCTION:

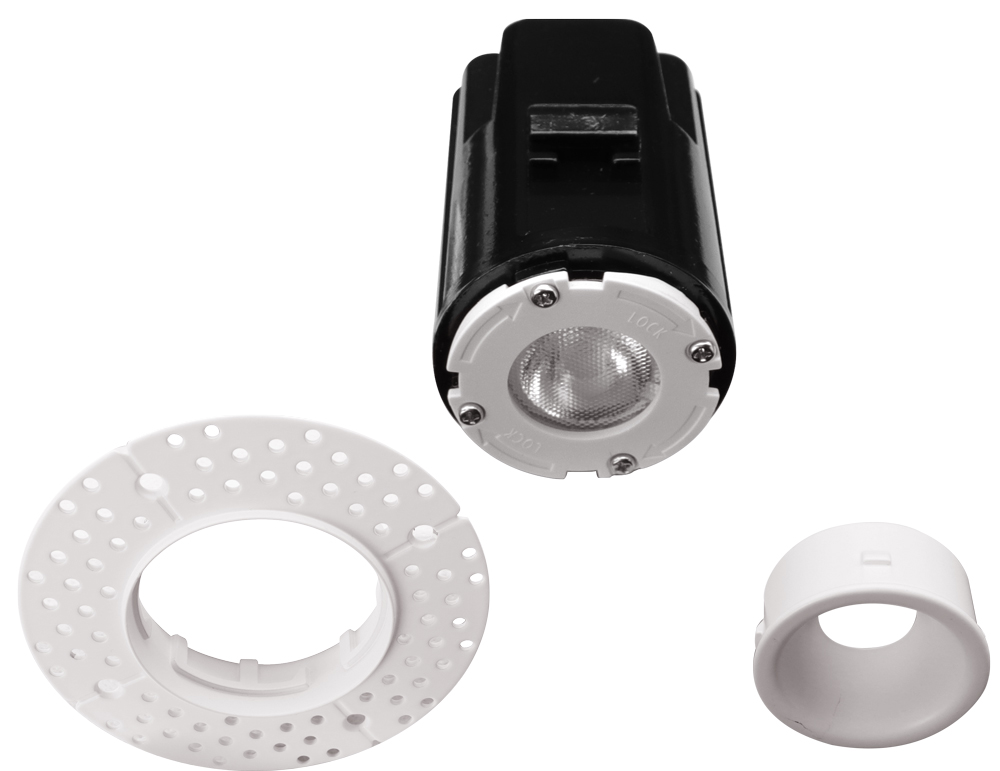

2″ Round Trimless Recessed LED fixture.

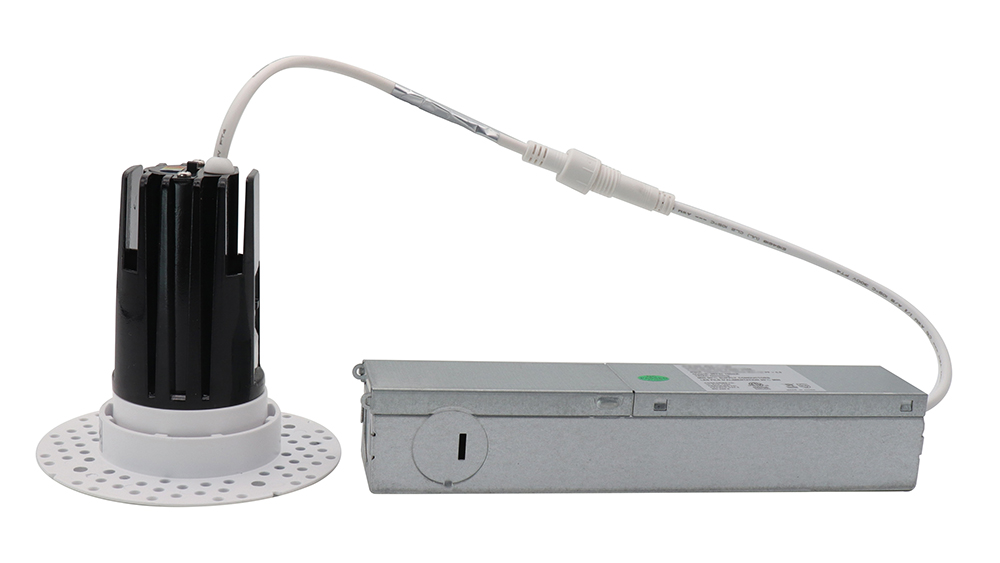

Driver inside connections box included – one driver for every fixture required.

Specifications:
Ceiling Clearance Required: 5″

  • Input Voltage: 120V AC
  • Triac Dimmable 100% – 10%
  • Energy Used: 7W
  • Halogen equivalent: 35W
  • Beam options: 38° (standard), 24° available as adder
  • Light colour options: 5CCT user selectable 2700-3000-3500-4000-5000K
  • Light output: 430-460-480-480-450 lm
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Approved Locations: Insulated Ceilings & Wet Locations
  • Certifications: cETLus, Energy Star
  • Warranty: 3 Year

DIMENSIONS:

  • ID 2″, OD 3 3/4″; Thickness 3 3/8″
  • Cut out: 2 1/4″
  • Junction Box Dimensions (with driver inside): 7 1/8” x 1 1/4” x 1 1/4”

Suitable for Insulated Ceiling & Wet Locations.

Accessories – Sold separately.

  • JC-10 (Extension Cable)
  • MP214 (Rough-in Plate)

Photometric PDF files with 38° lens:

PDF 2700K | PDF 3000K | PDF 3500K | PDF 4000K | PDF 5000K

Photometric IES files with 38° lens:

IES 2700K | IES 3000K | IES 3500K | IES 4000K | IES 5000K
