Lotus LED-3-S7W-FG – 3″ Round Floating Gimbal LED 7W

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 29.26

Save on labor with the Lotus 3″ Round Floating Gimbal LED downlight. Installation is simple, just cut a hole in the ceiling and the attached spring clips snap the fixture into place with no housing required. These recessed fixtures are air-tight, IC-rated for direct contact with insulation, and suitable for Insulated Ceilings and Damp location only. A high CRI provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings and highlighting artwork or other features.

The LED-3-S7W-FG model is a 3″ round 7 watt LED floating gimbal downlight in a white and black finish with the following features:

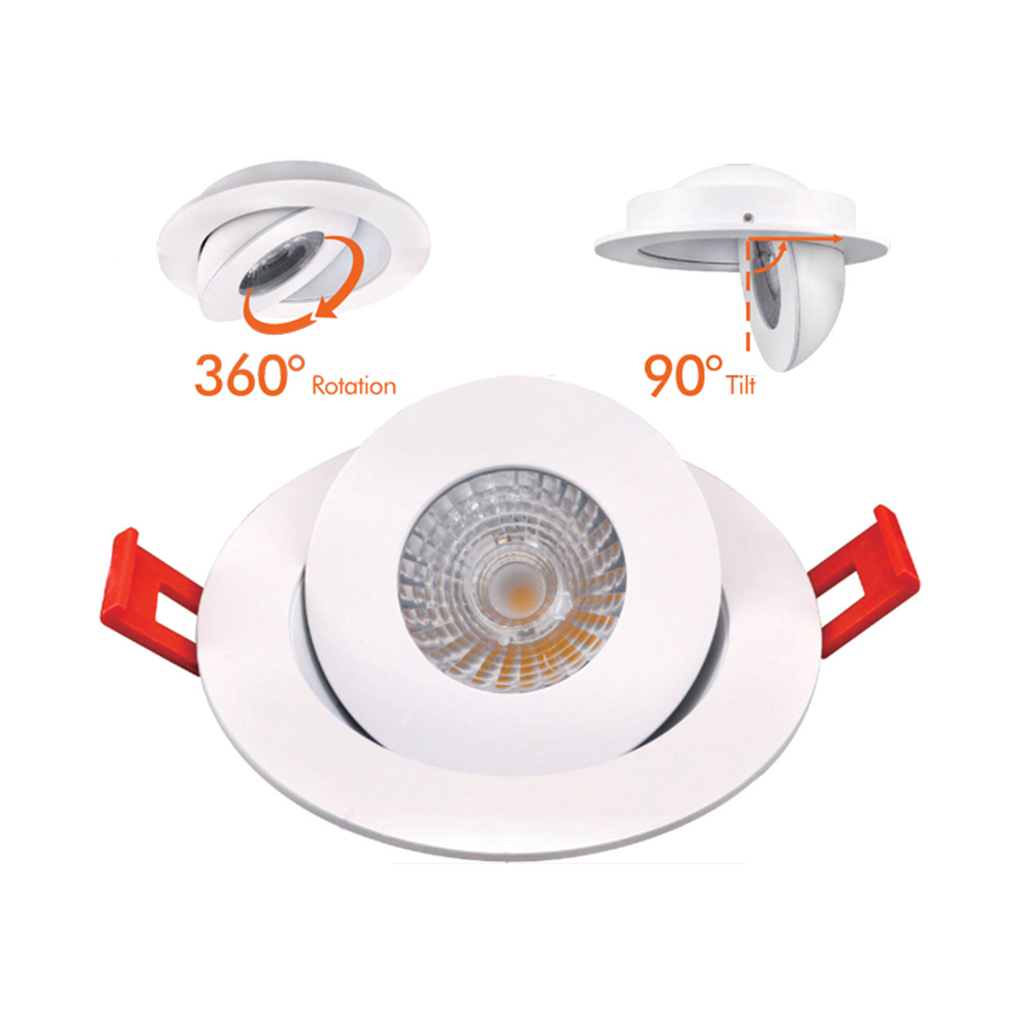

  • 3″ Round Floating Gimbal
  • Adjustable in any direction and easy to use
  • Perfect for directions accent lighting
  • 5 CCT Switchable – from 2700K to 5000K, or Dim to Warm 3000K to 1800K, or Single Color Temperature 3000K
  • Triac dimmable down to 10%
  • 1 1/4″ Deep – Fits in limited space ceilings
  • Type IC Rated – No Housing Required
  • Damp Location & Airtight
  • 3 Year Warranty

Product Information

CONSTRUCTION:
3″ Round Floating Gimbal Recessed LED

MOUNTING:
Cut hole in ceiling and snap fixture in opening with attached spring clips.
Ceiling Clearance Required: 1″

  • Input Voltage: 120V AC
  • Dimmability – TRIAC Dimmable 10% – 100%
  • Energy Used: 7W
  • Halogen equivalent: 50W
  • Beam Angle: 38°
  • Light color options: 5 CCT switchable: 2700-3000-3500-4000-5000, or Dim to Warm 3000K to 1800K, or Single Color Temperature 3000K
  • Light output: 550-640 lm for the 5CCT, and 465 lm for dim to warm
  • CRI: 90+
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Rated: cETLus

DIMENSIONS:

  • ID 3 1/2″; OD 4 1/4″; Depth 1 1/4″
  • Cut Out 3 3/4″

Mounting Plate Flat 13″

  • model #MP334

  • FRP312

Jumper Cable *

  • 10 ft
  • for 5CCT model # JC-5CCT-10
  • for Dim to Warm model # JC-10

*maximum extension 40 feet
