Lotus LED-4-S9W-5CCT-FG-SQ-WH 4″ Round Floating Gimbal LED 9W 5CCT – 120V

SKU : N/A Categories : , , , , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 38.42

Save on labor with the Lotus LED Lights 4″ Round Floating Gimbal LED downlight. Installation is simple, just cut a hole in the ceiling and the attached spring clips snap the fixture into place with no housing required. These recessed fixtures are air-tight, IC-rated for direct contact with insulation, and suitable for damp location only. A high CRI provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings and highlighting artwork or other features.

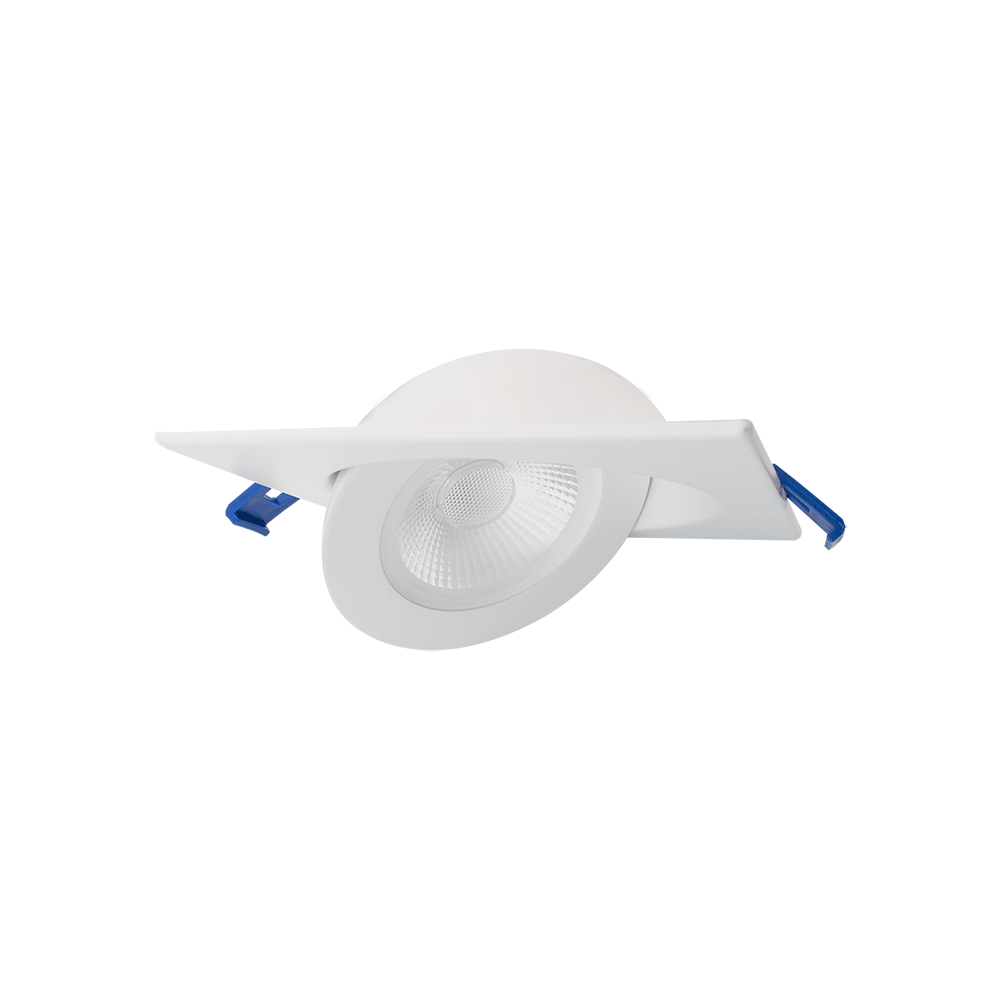

The LED-4-S9W-5CCT-FG-SQ-WH model is a 4″ square 9 watt LED floating gimbal downlight in a white finish with the following features:

  • 4″ Square Floating Gimbal
  • Adjustable in any direction and easy to use
  • Perfect for directions accent lighting
  • 5 CCT Switchable from 2700K to 5000K
  • Triac dimmable down to 10%
  • Beam options: 38° (standard), 24° & 60° available as adder
  • 1 1/2″ Deep – Fits in limited space ceilings
  • Type IC Rated – No Housing Required
  • Damp Location & Airtight

Product Information

CONSTRUCTION:
4″ Square Floating Gimbal Recessed LED

MOUNTING:

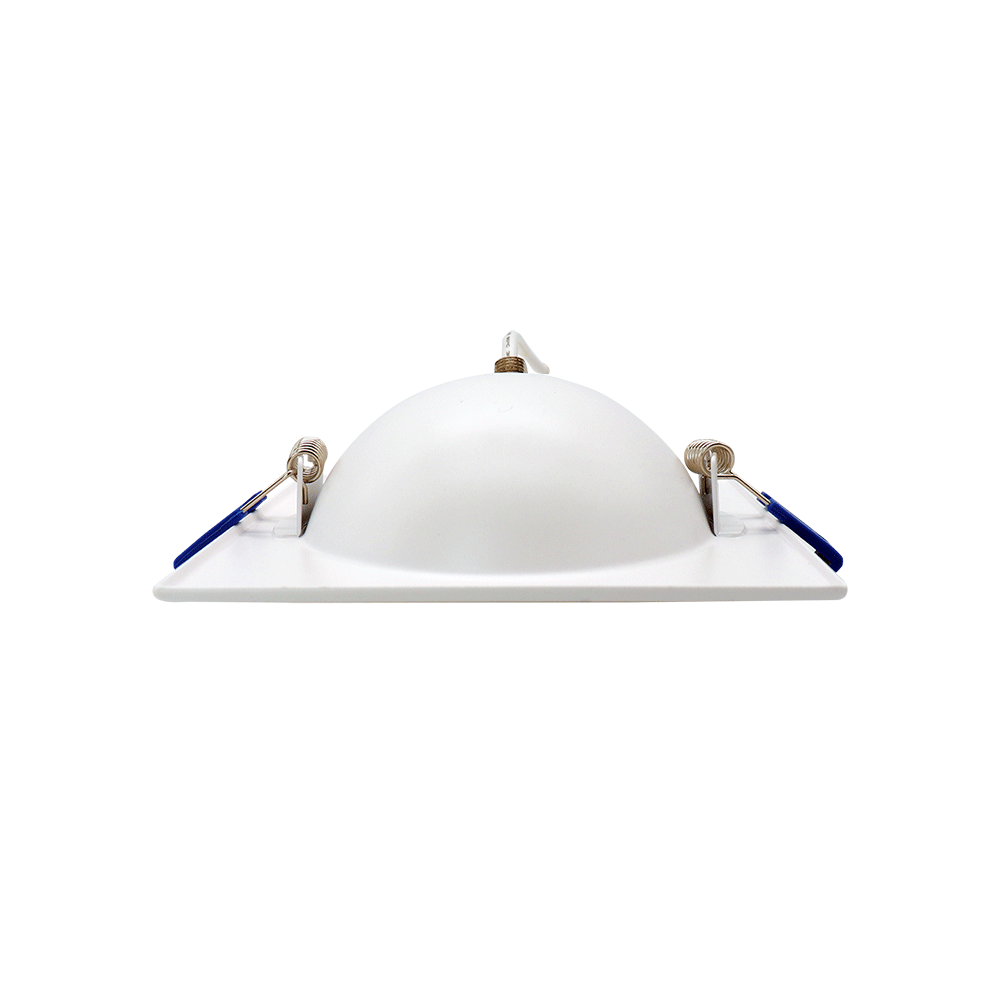

Cut hole in ceiling and snap fixture in opening with attached spring clips.

  • Input Voltage: 120V AC
  • Dimmability – TRIAC Dimmable 10% – 100%
  • Energy Used: 9W
  • Halogen equivalent: 60W
  • Beam options: 38° (standard), 24° & 60° available as adder
  • Light color options: 5 CCT switchable 2700-3000-3500-4000-5000K
  • Light output: 740-855
  • CRI: 90+
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Rated: cETLus

DIMENSIONS:

  • ID 4″; OD 5″ Square; Depth 1 1/2″
  • Cut Out 4 1/8″ to 4 1/4″

Sold Separately:

Rough in Plates:

Extension Cables:

Photometric PDF files with 38° lens:

pdf file LED-4-S9W-5CCT-FG at 2700K

pdf file LED-4-S9W-5CCT-FG at 3000K

pdf file LED-4-S9W-5CCT-FG at 3500K

pdf file LED-4-S9W-5CCT-FG at 4000K

pdf file LED-4-S9W-5CCT-FG at 5000K

Photometric IES files with 38° lens:

IES file LED-4-S9W-5CCT-FG at 2700K

IES file LED-4-S9W-5CCT-FG at 3000K

IES file LED-4-S9W-5CCT-FG at 3500K

IES file LED-4-S9W-5CCT-FG at 4000K

IES file LED-4-S9W-5CCT-FG at 5000K
