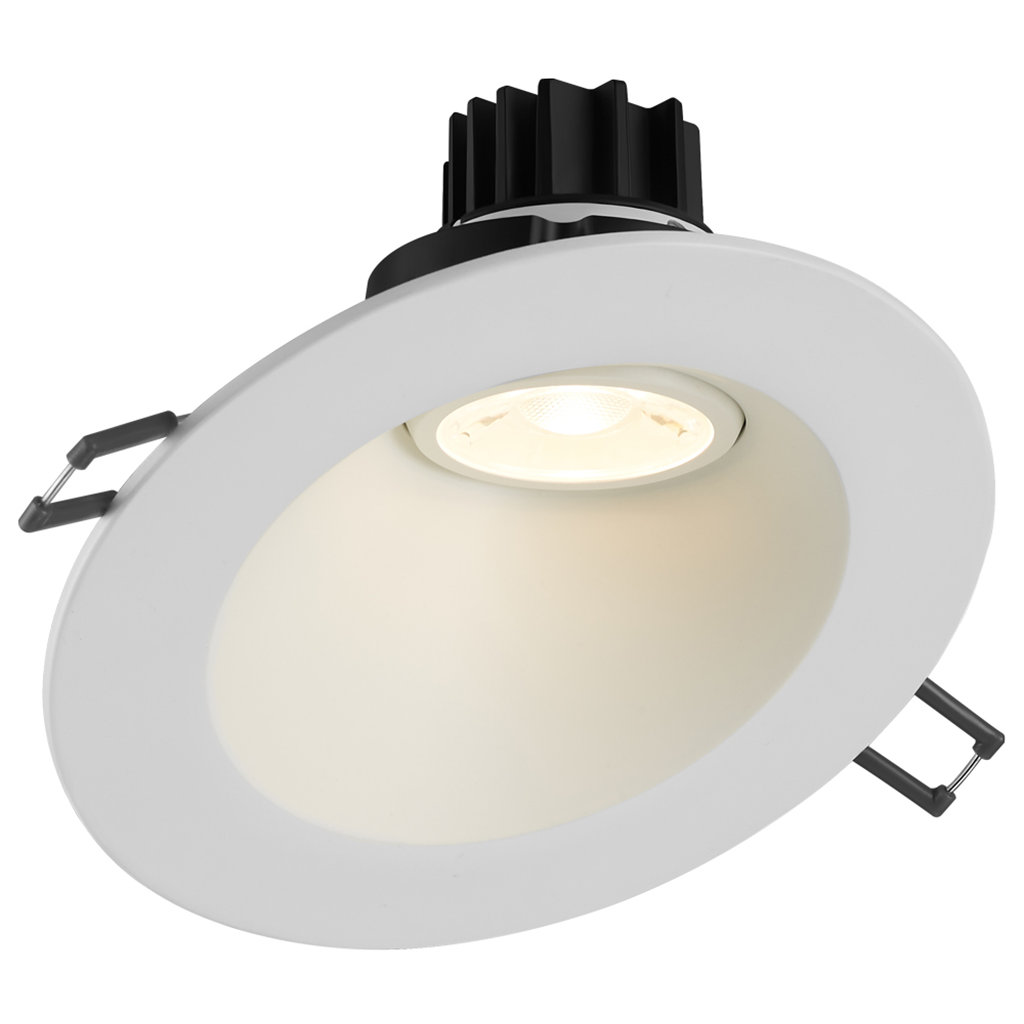

Lotus LED Lights 11 Watt 4″ Sloped LED Gimbal HIGH OUTPUT LRG3-HO-4RSL – 120V

SKU : N/A Categories : , , , , , , , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 104.72

Save on labor with the Lotus 4″ round sloped regressed LED gimbal downlight. Installation is simple, just cut a hole in the ceiling and the attached spring clips snap the fixture into place with no housing required. These 30º sloped trim models are ideal for 5º to 55º sloped ceilings. They are air-tight, IC-rated for direct contact with insulation, and suitable for damp or wet locations. A high CRI of 90+ provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings, creating wall wash effects and highlighting artwork or other features. Watch the below video to learn more.

The LRG3-4RSL-HO is a 4″ round 11 watt sloped regressed LED gimbal downlight in a white, black and oil rubbed bronze finish with the following features:

  • Includes standard dimmable driver
  • 5CCT Color selectable from 2700K, 3000K, 3500K, 4000K, 5000K, Dim To Warm 3000K to 1800K
  • 30º sloped trim suitable for 5º to 55º sloped ceilings (1:12 through 17:12 pitch range)
  • 38° beam angle / 20° tilt / 360° rotation
  • 3″ thin – install where ceiling space is limited
  • IC rated – no housing required
  • High CRI of 90+ for true color rendering
  • IP54 rated
  • Suitable in wet and damp locations
  • Oil based spray painted – scratch resistant and smooth finish
  • Title-24 certified
  • Operating temp: -40º to 104º F
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty



Product Information

CONSTRUCTION:
4″ Sloped Round Regressed Gimbal LED.
30° Sloped Trim for Wall Washing and Sloped Ceilings from 5° to 55°.
Class 2 Isolated external driver factory installed inside junction box. One driver for every fixture required.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 2 1/2″

  • Default Driver Triac Dimmable: 120V AC Input
  • Optional Driver 0-10V Dimmable: 120V-347V AC Input
  • Power factor: > 0.98
  • Energy Used: 11W
  • Halogen equivalent: 90W
  • Beam Angle: 38° Beam with 20° tilt and 360° rotation
  • Light colour options: 5CCT User selectable Warm White 2700K, Soft White 3000K, Bright White 3500K, Neutral White 4000K, Daylight White 5000K, Dim to Warm 3000K to 1800K
  • Light output 11W: 2700K 950 lm, 3000K 1020 lm, 3500K 1090 lm, 4000K 1120 lm, 5000K 1120 lm, Dim to Warm 760 lm
  • CRI: 90 +
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus approved, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Energy Star(except Dim to Warm and 5CCT), Air-Tight

DIMENSIONS:

  • ID 4 1/2″; OD 5 3/4″; Thickness 4″
  • Cut out: 4 1/2″ to 5″
  • Junction Box Dimensions (with driver inside): 3 3/4″ x 3 3/8″ x 1 1/2″

Suitable for wet locations and soffit installations.

120-347v / 0-10v Dimmable Dvier

  • LLL-LD1025T3

Mounting Plate

  • RIP5
  • FRP5

Extension Cables

  • EXC6
  • EXC20

Specification Sheet
Spec Sheet LRG3-HO-4RSL

PDF files
pdf file LRG3-HO-5CCT-4RSL at 2700K | pdf file LRG3-HO-5CCT-4RSL at 3000K | pdf file LRG3-HO-5CCT-4RSL at 3500K | pdf file LRG3-HO-5CCT-4RSL at 4000K | pdf file LRG3-HO-5CCT-4RSL at 5000K | pdf file LRG3-HO-4RSL-3018K at 100%

IES files
IES file LRG3-HO-5CCT-4RSL at 2700K | IES file LRG3-HO-5CCT-4RSL at 3000K | IES file LRG3-HO-5CCT-4RSL at 3500K | IES file LRG3-HO-5CCT-4RSL at 4000K | IES file LRG3-HO-5CCT-4RSL at 5000K | IES file LRG3-HO-3018K-4RSL at 100%
