Lotus LED Lights – 11Watt 4″ Square Slim Recessed (1st Generation) – LY4S

Sale!
SKU : N/A Categories : , , , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 55.00 CAD$ 35.00

The 4″ square super thin round recessed downlight by Lotus LED Lights is the original thin LED downlight. Being IC-rated, they install quickly and easily directly into the ceiling with no can required. Their thin 1/2″ depth allows for installation directly under ceiling joists for maximum layout flexibility. Constructed of a durable die cast aluminum body for optimal heat dissipation.

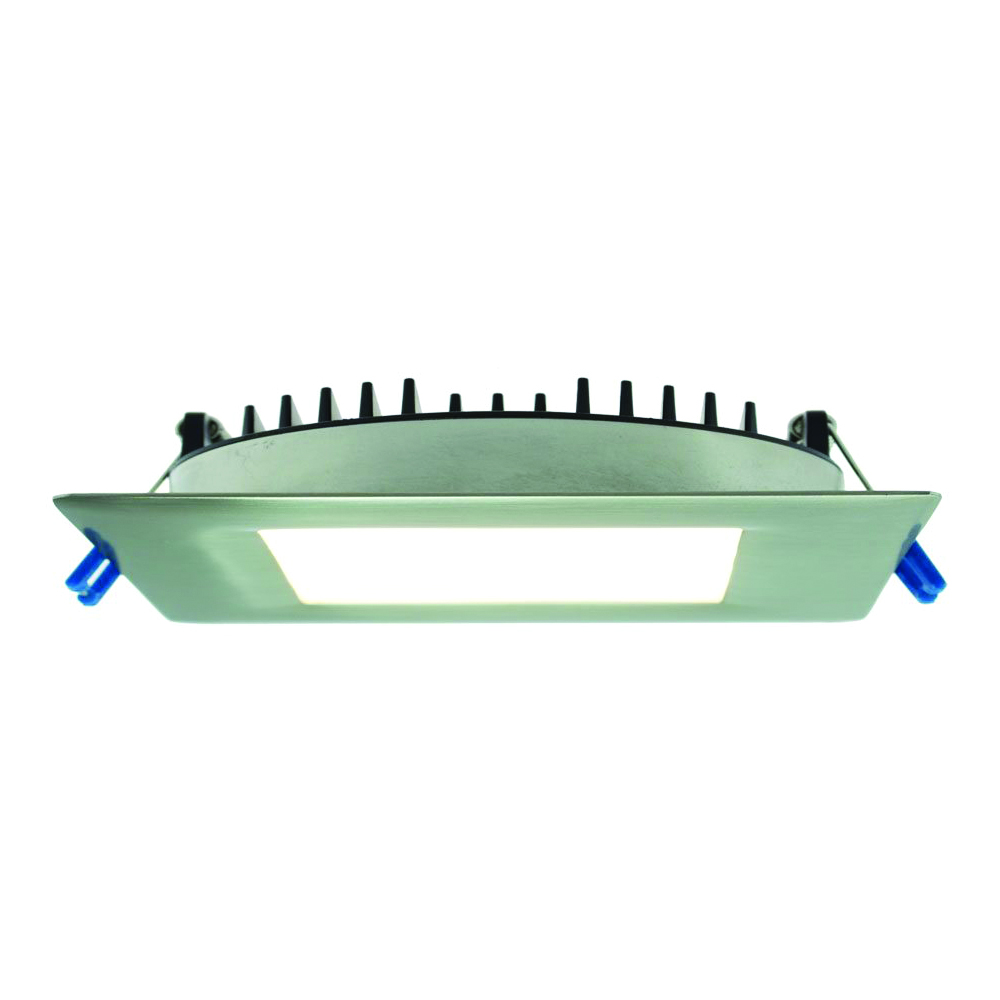

The LY4S is a 4″ square 11 watt thin recessed LED downlight, available in Brushed Nickel finish with the following features:

  • Model LY4S
  • cULus Listed and Energy Star Certified
  • Type IC Rated – Approved for Direct Contact with Insulation
  • Air-Tight, Wet Location, Insulated and Non-Insulated Ceilings
  • Triac Dimmable with most CL dimmers 120V input
  • 0-10V Dimmable Option 120V – 347V input
  • Warranty: 10 Year on Residential, 5 Year on Commercial Installations
  • External Driver Inside Connection Box – No Junction Box Needed

Product Information

CONSTRUCTION:
Square 4″ fixtures with integral LEDs. Round back side for easy installation.
Isolated external driver factory installed inside junction box. One driver for every fixture required.

MOUNTING:
Cut hole in ceiling and snap fixture in opening with attached spring clips.
Space in ceiling needed for the driver to fit through the hole – 2″.

  • Default Driver Input Voltage: 120V AC 60 Hz (Dimmable)
  • Optional Driver Input Voltage: 277V-347V AC 60 Hz (Not Dimmable)
  • Power factor: > 0.95
  • Energy Used: 11W
  • Halogen equivalent: 65W
  • Beam Angle: 120°
  • Light colour options: Warm White 3000°K and Neutral White 4100°K
  • Light output: Warm White 700 lm, Neutral White 800 lm
  • CRI: 84 for 3000°K and 82 for 4100°K
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Energy Star, Air-Tight

DIMENSIONS:

  • 4″ square front plate; Round back side with 4 1/8″ diameter; Thickness 1 3/8″
  • Cut out: 4 1/8″ to 4 1/4″
  • Junction Box Dimensions (with driver inside): 3 5/16″ x 3 5/16″ x 1 1/8″

Suitable for damp locations.

  • Warm White 3000K is yellowish, similar to halogen and incandescent light. Creates soft, calming feeling. We recommend the Warm White for bedrooms, living rooms and kitchens with warm coloured countertops and cabinets.
  • Neutral White 4100K is whiter, colder and more energizing light. Using this colour will make the room look white, modern and brighter. We recommend the Neutral White for bathrooms, offices and work areas, garages, kitchens with white or dark countertops and cabinets.

Our experience with LED recessed lights since 2008 shows that about 70% of our customers prefer the Warm White and 30% like the Neutral White.

Extension Calbes

  • EXC20
  • EXC6

Rough-in Plates

  • RIP4
  • MP4-2
  • FRP4

120-347V / 0-10V Dimmable

  • LLL-LD1535T

Specification Sheets
LY4S

pdf files
LY4S/30K | LY4S/41K

IES files
LY4S/30K | LY4S/41K


Links to Energy Star: LY4S 30K ; LY4S 41K

Video

Customer Reviews

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

You may also like…

Lotus Flanged Rough-In Plate with Expandable Bars for 4″ Downlights – FRP4

Lotus Flanged Rough-In Plate with Expandable Bars for 4″ Downlights – FRP4

CAD$ 12.46 Read more
Utilize this new construction rough-in plate to assist with placement and pre-wiring your Lotus LED 4″ models. Use this rough-in plate for easier layout planning and new construction pre-wiring.

Downloads:

Certifications
Lotus Rough-in Plate for 4″ Downlights – RIP4

Lotus Rough-in Plate for 4″ Downlights – RIP4

CAD$ 9.60 Read more
Utilize this new construction rough-in plate to assist with placement and pre-wiring your Lotus LED 4″ models. Use this rough-in plate for easier layout planning and new construction pre-wiring. Made of galvanized steel and is 26″ long to fit up to 24″ spaced studs/joists. Minimum Order Quantity : 5pcs

Downloads:

Certifications
Lotus 347V / 0-10V Dimmable Driver – LLL-LD1535T

Lotus 347V / 0-10V Dimmable Driver – LLL-LD1535T

CAD$ 26.18 Read more
The LLL-LD1535T is a 120-347V, 0-10 dimmable driver option for the Lotus LED LL4R / LY4RCS / LL4S / LY6RCS / LY6S / LRG6 / LRG6-6RSL / LL4G-HO / LRG4-HO Models recessed downlights. The 120V driver will be replaced with this 120-347V driver before shipping. Compatible LED Driver for Lotus LED LL4R / LY4RCS / LL4S / LY6RCS / LY6S / LRG6 / LRG6-6RSL / LL4G-HO / LRG4-HO Models series downlight, can be purchased by it self or with a fixture.
Lotus 20′ Extension Cord – EXC20

Lotus 20′ Extension Cord – EXC20

CAD$ 12.45 Read more
The EXC20 is a 20 foot extension cord used to allow for remote mounting of the driver for your Lotus LED downlight. This inter-linkable cord easily and securely extends the low voltage cable between the fixture and diver. A maximum of 40 feet extension is allowed.

Downloads:

Certifications

Related products

Lotus LD8R – 18 Watt 8″ Deep Regressed LED Downlight – 120V

Lotus LD8R – 18 Watt 8″ Deep Regressed LED Downlight – 120V

CAD$ 120.40 Read more
The new deep regressed models by Lotus LED Lights provide efficient LED illumination without glare in an elegantly designed downlight. The deep reflector and high-end finish trim present an architectural aesthetic, and open-plenum rated armored cable connection are suitable for commercial application. Being IC-rated, these lights can be installed right into the ceiling without housing and, being only 4.5" deep, can be installed where ceiling space is limited. A high CRI of 90+ means you'll enjoy true color rendering in the area of illumination. Comes standard as 120V dimmable, with optional 0-10V dimmable driver available. The LD8R is an 8" round 18 Watt deep regressed LED downlight, available in 4 different reflector and trim options and with the following features.
  • Includes standard dimmable driver
  • IC-rated
  • Wet and damp location rated
  • High CRI of 90+ for true color rendering
  • Open plenum rated armored cable and metal connectors
  • Fast and easy installation and no junction box required
  • Air-tight
  • Energy Star
  • Title-24 certified
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty
Lotus LD4R – 15 Watt 4″ Round Deep Regressed LED Downlight – 120V

Lotus LD4R – 15 Watt 4″ Round Deep Regressed LED Downlight – 120V

CAD$ 83.16 Read more
The new deep regressed models by Lotus LED Lights provide efficient LED illumination without glare in an elegantly designed downlight. The deep reflector and high-end finish trim present an architectural aesthetic, and open-plenum rated armored cable connection are suitable for commercial application. Being IC-rated, these lights can be installed right into the ceiling without housing and, being only 3.5" deep, can be installed where ceiling space is limited. A high CRI of 90+ means you'll enjoy true color rendering in the area of illumination. Comes standard as 120V dimmable, with optional 0-10V dimmable driver available. The LD4R is a 4" round 15 watt deep regressed LED downlight, available in 6 different trim and reflector options and with the following features.
  • 15W LD4R Polycarbonate Trim LD4R-CPL
  • Deep Regressed LED – Elegant Design Without Glare
  • Interchangeable Trims With High End Finishes
  • Armoured Cable & Metal Connectors – Open Plenum Rated
  • Type IC, Air-Tight & Wet Location – No Housing Required
  • 3 1/2″ thick – fits in limited ceiling space
  • Triac Dimmable with most CL dimmers 120V input
  • 0-10V Dimmable Option 120V – 347V input
  • Light Options: 2700K, 3000K, 3500K, 4000K, 5000K, 5CCT user selectable, Dim to Warm 3000-2000K or 3000-1800K
  • Light output 15W: 2700K-1100 lm, 3000K-1200 lm, 3500K-1250 lm, 4000K-1300 lm, 5000K-1400 lm, Dim To Warm 3000K to 2000K-900 lm, Dim To Warm 3000K to 1800K-980 lm
  • Light output 18W: 2700K-1500 lm, 3000K-1550 lm, 3500K-1600 lm, 4000K-1650 lm, 5000K-1700 lm, Dim To Warm 3000K to 2000K-1150 lm, Dim To Warm 3000K to 1800K-1250 lm
  • Driver Inside Connection Box with Romex Quick Connectors
  • Beam Angle: 30° (default)
  • Warranty: 10 Year Residential, 5 Year Commercial Installations
  • cULus certified and Energy Star (single CCT only) approved
Lotus LD4R-HO-IT – 18 Watt 4″ High Output Round Deep Regressed LED Downlight – Trimless Model – 120V

Lotus LD4R-HO-IT – 18 Watt 4″ High Output Round Deep Regressed LED Downlight – Trimless Model – 120V

CAD$ 127.82 Read more
The new deep regressed models by Lotus LED Lights provide efficient LED illumination without glare in an elegantly designed downlight. The deep reflector and trimless design provides an architectural aesthetic, and open-plenum rated armored cable connection are suitable for commercial application. Being IC-rated, these lights can be installed right into the ceiling without housing and, being only 3.5" deep, can be installed where ceiling space is limited. A high CRI of 90+ means you'll enjoy true color rendering in the area of illumination. Comes standard as 120V dimmable, with optional 0-10V dimmable driver available. Requires use of flanged rough-in-plate (FRP412) - see recommended accessories. The LD4R-HO-IT is a 4" round 18 watt deep regressed trimless LED downlight, available in silver, black and white reflector with the following features:
  • Includes standard dimmable driver
  • Triac Dimmable with most CL dimmers 120V input
  • 0-10V Dimmable Option 120V – 347V input
  • IC-rated
  • Wet and damp location rated
  • High CRI of 90+ for true color rendering
  • Open plenum rated armored cable and metal connectors
  • Fast and easy installation and no junction box required
  • Air-tight
  • Energy Star
  • Title-24 certified
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty

Lotus LSG2-HO – 5.5 Watt 2″ High Output Square Regressed LED Gimbal – 120V

Lotus LSG2-HO – 5.5 Watt 2″ High Output Square Regressed LED Gimbal – 120V

CAD$ 58.52 Read more
Save on labor with the Lotus LED Lights High Output 2" square regressed LED gimbal downlight. Installation is simple, just cut a hole in the ceiling and the attached spring clips snap the fixture into place - no housing required! These slim recessed fixtures are air-tight, IC-rated for direct contact with insulation, and suitable for damp or wet locations. A high CRI provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings and highlighting artwork or other features. The LSG2-HO is a 2" square 5.5 watt high output regressed LED gimbal downlight, available in White and Black finish with the following features:
    • 120V operation and dimming
    • 24° beam angle with 10° tilt each direction and 360° rotation
    • 1 3/4" thin - install where ceiling space is limited
    • IC rated - no housing required
    • High CRI of 90+ for true color rendering
    • IP54 rated
    • Suitable in wet and damp locations
    • Oil based spray painted - scratch resistant and smooth finish
    • Title-24 certified
    • Energy Star
    • 50,000 hour rated
    • 10 year residential / 5 year business application warranty

Recently Viewed Products

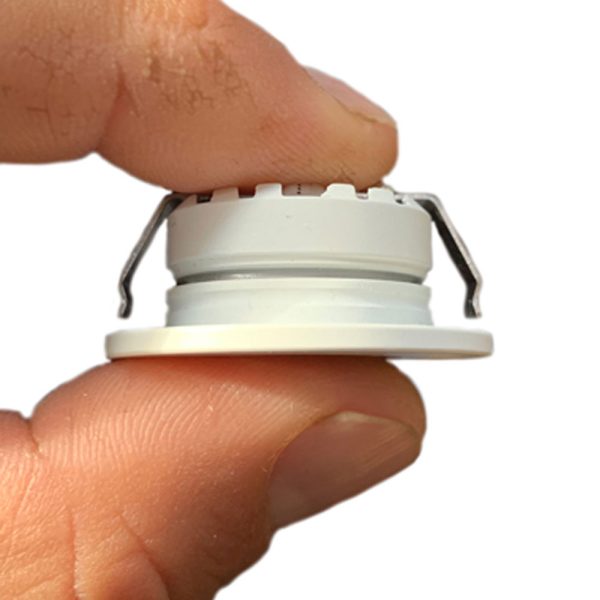

Louts LED Lights – AD-108 – 1Watt – 1″ Mini Puck LED Light – 12v
