Lotus LED Lights – 3″ Floating Torpedo LED 15W – AD-3-S15W-FC

SKU : N/A Categories : , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 69.30

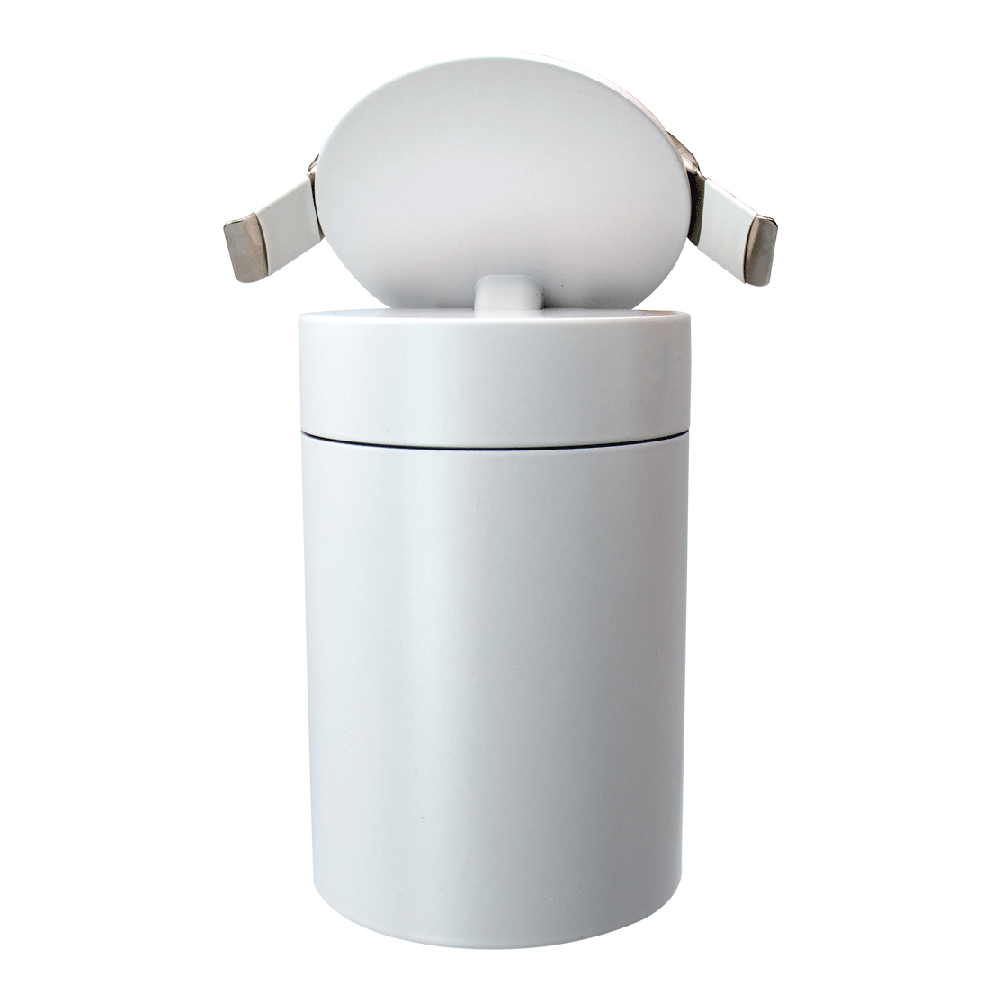

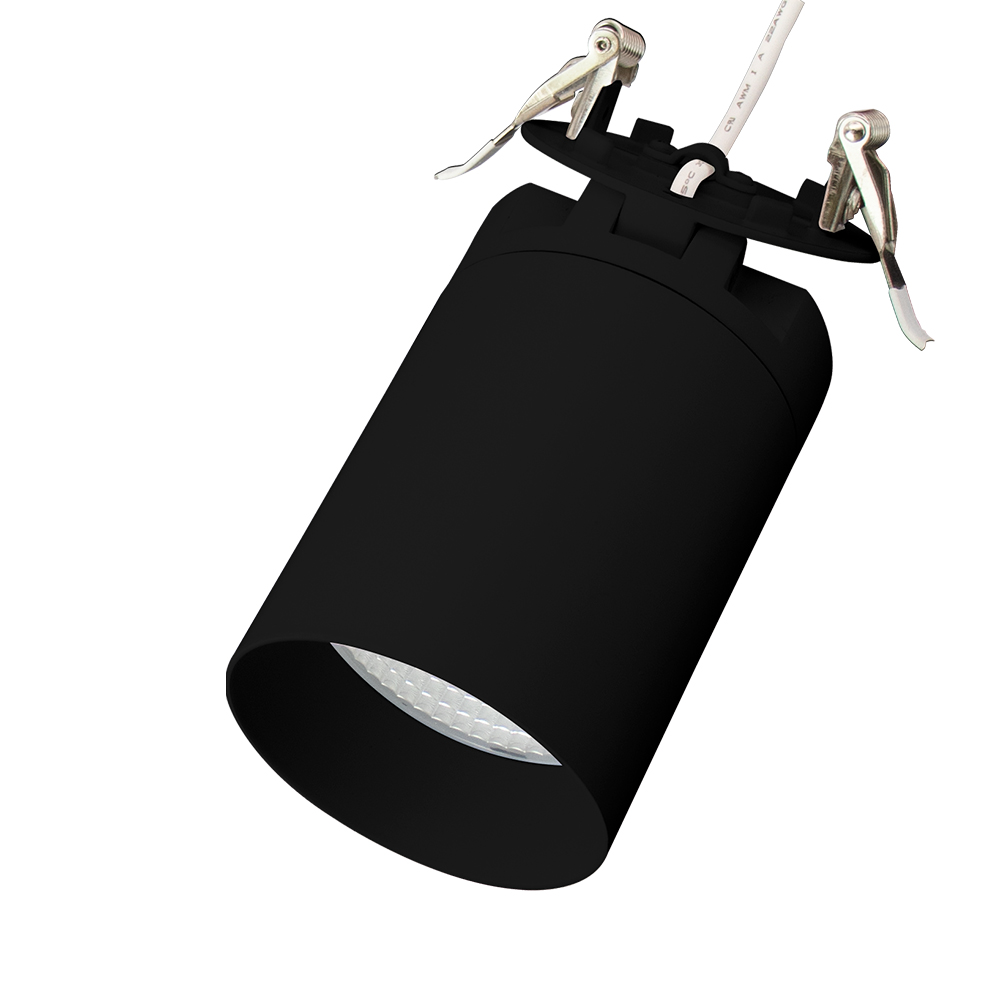

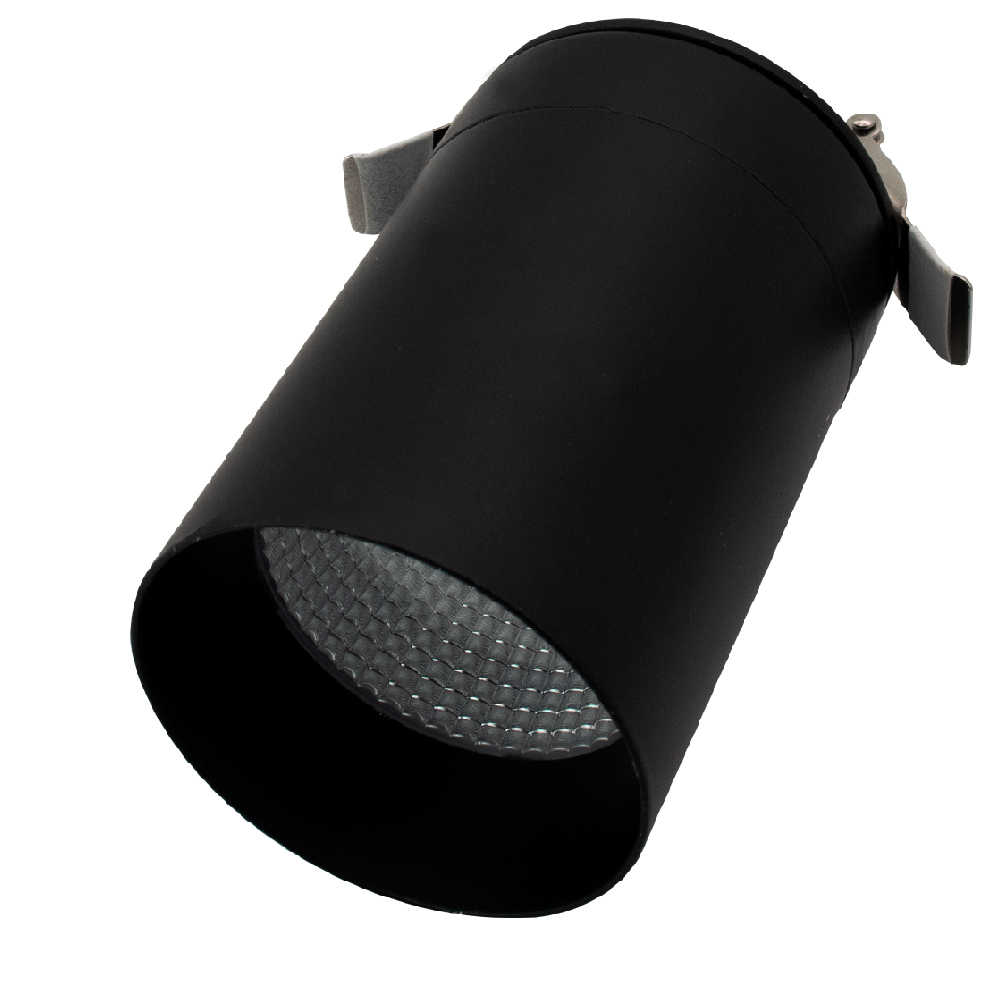

AD-3-S15W-FC by Light by Lotus is a Mono Point multi directional floating torpedo LED cylinder. Use as a straight down or gimbal fixture, it is available in 38° Standard beam angle or optional 15° & 24° (by custom order). CRI90+ for true color rendering and has an IP54 WET rated location.

The AD-3-S15W-FC is a 3″ Flating Torpedo LED 15W in 5CCT or 3018K DTW and with the following features:

  • Mono point multi directional floating torpedo LED cylinder
  • Ideal for slopped ceilings, soffits, wall washing, highlighting artwork, task and general lighting
  • Use as a straight down or gimbal fixture
  • Track light effect without tracks needed
  • Adjustable up to 60° Tilt
  • 5 CCT Switchable 2700K to 5000K or Dim to Warm 3000K to 1800K
  • CRI 90+ for true color rendering
  • Driver Inside Connection Box – No Junction Box Needed
  • Default driver 120V input Triac dimmable
  • Optional driver 120-347V input 0-10V dimmable
  • Type IC Rated – No Housing Required
  • Wet Location & Airtight

Product Information

CONSTRUCTION:
Mono point multi directional floating torpedo LED cylinder. Use as a straight down or gimbal fixture

MOUNTING:
Cut hole in ceiling and snap fixture in opening with attached spring clips.

  • Default driver 120V input Triac dimmable
  • Optional driver 120-347V input 0-10V dimmable
  • Power: 15W
  • Halogen equivalent: 100W
  • Beam Angle: 38° standard | 15° & 24° optional
  • Light color options: 5 CCT switchable: 2700-3000-3500-4000-5000, or Dim to Warm 3000K to 1800K
  • Light output: 830-1050 lm for the 5CCT / 960 lm for DTW at 3000K
  • CRI: 90+
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Rated: cETLus

DIMENSIONS:

  • ID 2 3/8″ OD 2 3/4″ length 4 1/4″
  • Cut Out 2 1/2″

Extension Cables:

120-347 / 0-10v Dimmable Drivers

Specification Sheet

Installation Instructions:

Photometric PDF files 38° beam:

PDF file 5CCT at 2700K 38°

PDF file 5CCT at 3000K 38°

PDF file 5CCT at 3500K 38°

PDF file 5CCT at 4000K 38°

PDF file 5CCT at 5000K 38°

PDF file DTW at 3000K 38°

Photometric PDF files 24° beam:

PDF file 5CCT at 2700K 24°

PDF file 5CCT at 3000K 24°

PDF file 5CCT at 3500K 24°

PDF file 5CCT at 4000K 24°

PDF file 5CCT at 5000K 24°

PDF file DTW at 3000K 24°

Photometric PDF files 15° beam:

PDF file 5CCT at 2700K 15°

PDF file 5CCT at 3000K 15°

PDF file 5CCT at 3500K 15°

PDF file 5CCT at 4000K 15°

PDF file 5CCT at 5000K 15°

PDF file DTW at 3000K 15°

Photometric IES files 38° beam:

IES file 5CCT at 2700K 38°

IES file 5CCT at 3000K 38°

IES file 5CCT at 3500K 38°

IES file 5CCT at 4000K 38°

IES file 5CCT at 5000K 38°

IES file DTW at 3000K 38°

Photometric IES files 24° beam:

IES file 5CCT at 2700K 24°

IES file 5CCT at 3000K 24°

IES file 5CCT at 3500K 24°

IES file 5CCT at 4000K 24°

IES file 5CCT at 5000K 24°

IES file DTW at 3000K 24°

Photometric IES files 24° beam:

IES file 5CCT at 2700K 15°

IES file 5CCT at 3000K 15°

IES file 5CCT at 3500K 15°

IES file 5CCT at 4000K 15°

IES file 5CCT at 5000K 15°

IES file DTW at 3000K 15°

Customer Reviews

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

You may also like…

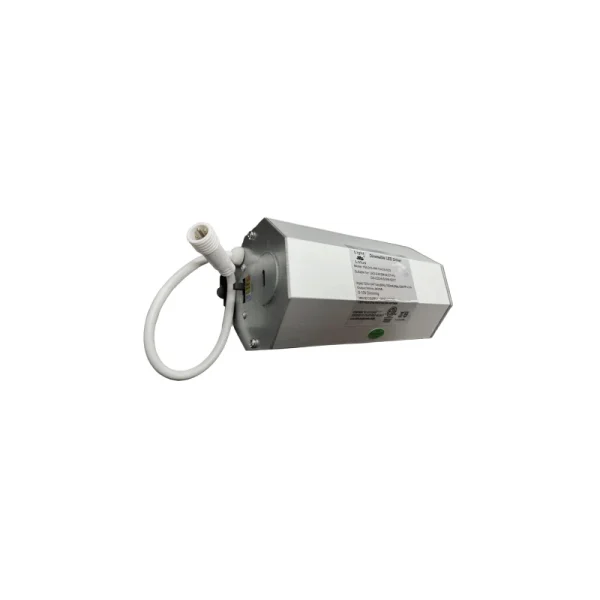

Lotus 120-347V Input Driver / 0-10V Dimmable Driver HBL015-AW-10-01A-5CS
