Lotus LED Lights COB LED Tape Light – ES-FSCOBWW-24-IP67 – High Temperature Installations

SKU : N/A Categories : , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 132.44

LED tape by Lotus LED Lights is a great option for your cove, under cabinet, decorative and other general ambient lighting application. This COB (chip-on-board) tape light produces seamless illumination with no hotspots and no need for an extrusion or cover, and are also more flexible than traditional tape light styles. Every foot of tape in this 16.4′ reel uses just 3 watts. Their high CRI of 90+ ensures true color rendering in the area of illumination. Requires 24V DC power supply.

The ES-FSCOBWW-24-IP67 is a 3W/ft, available in 16.4ft LED tape light reel for high temperature installations, available in 27K, 3K, 4K, 5K and with the following features:

  • COB LED flexible linear light for high temperature installations
  • Rated up to +220°F (+105°C)
  • Seamless linear light – no diffused cover needed
  • No hotspots and with CRI 90+ for vibrant colors
  • Reinforced design for stable performance when bending & twisting
  • 3 oz copper PCB and real gold wires for superb light maintenance
  • Wires on both ends, 16ft reels
  • 3W/ft, in stock 2700K, 3000K, 4000K & 5000K
  • Warranty: 5 Year Indoor / 3 Year Outdoor
  • cULus certified

Included in package : 2 end caps, 16 transparent solicone mounting clips & 32 screws.

Product Information

SPECIFICATIONS:

  • Input Voltage: 24V DC
  • Power: 3 W/ft
  • Operating Temperature: Rated up to +220°F (+105°C)
  • Maximum Connecting Length 16 ft / 5 meters
  • Beam Angle: 120°
  • Light color options Warm White 2700K, Soft White 3000K, Neutral White 4000K and Daylight White 5000K
  • CRI 90 + for True Colour Rendering
  • LED Operation Type: Constant Voltage
  • Certification: cULus
  • Warranty: 5 Year Indoor / 3 Year Outdoor

APPLICATIONS:

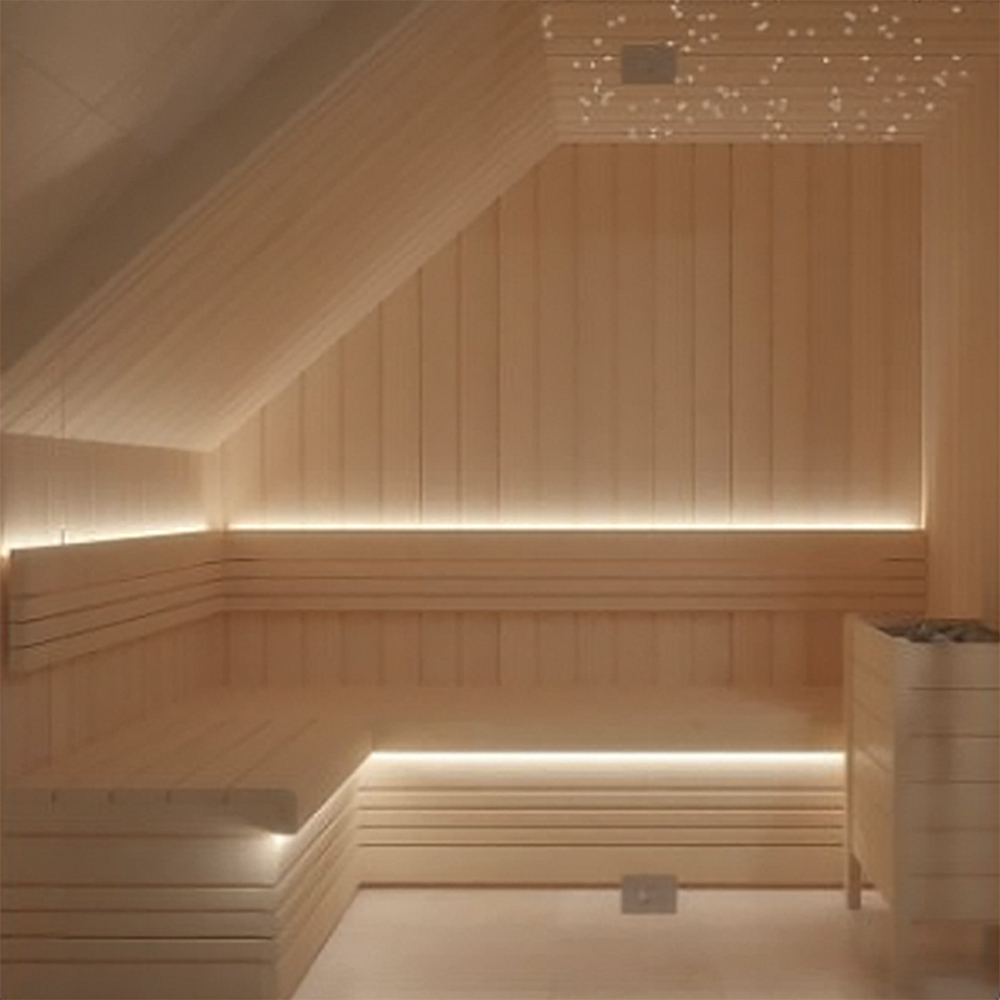

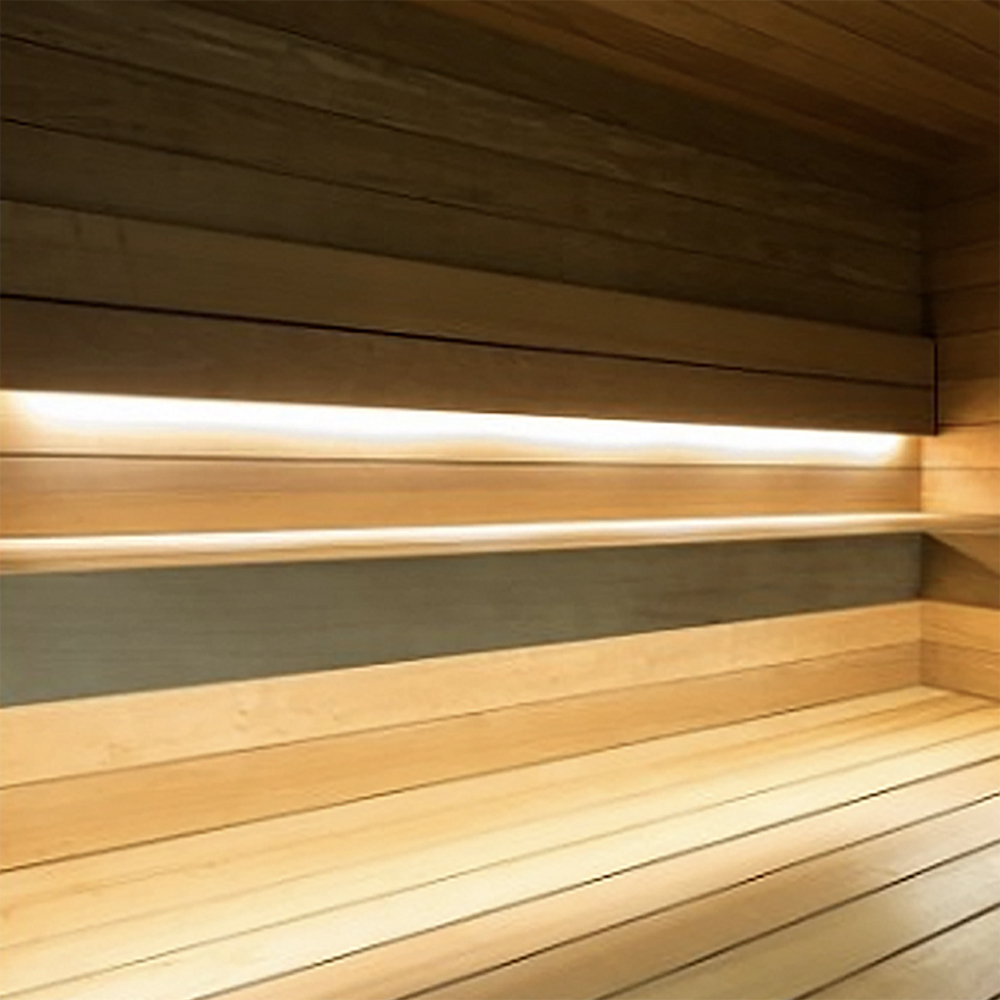

  • Saunas, Spas, Steam Showers

DIMENSIONS:

  • 1/2″ wide; 16 ft length, 2″ cuttable increment

Suitable for Wet Locations

Spec Sheet
