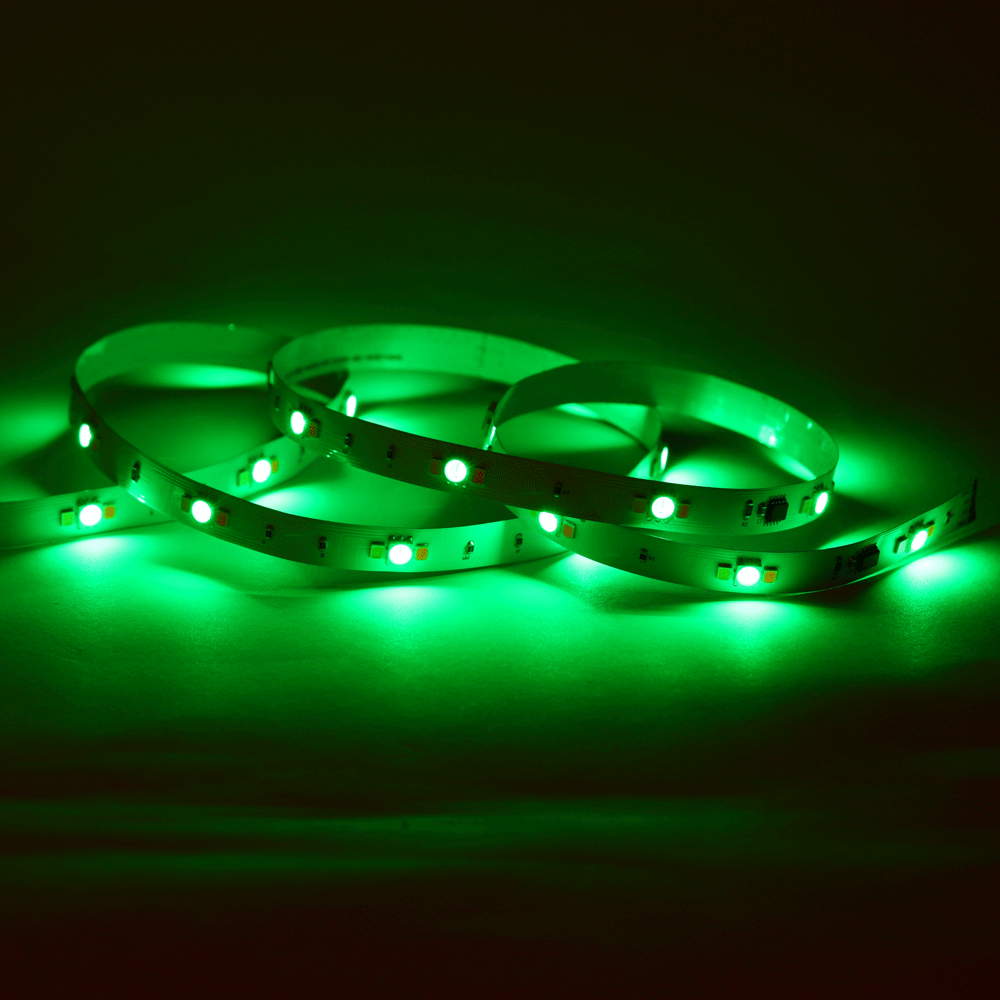

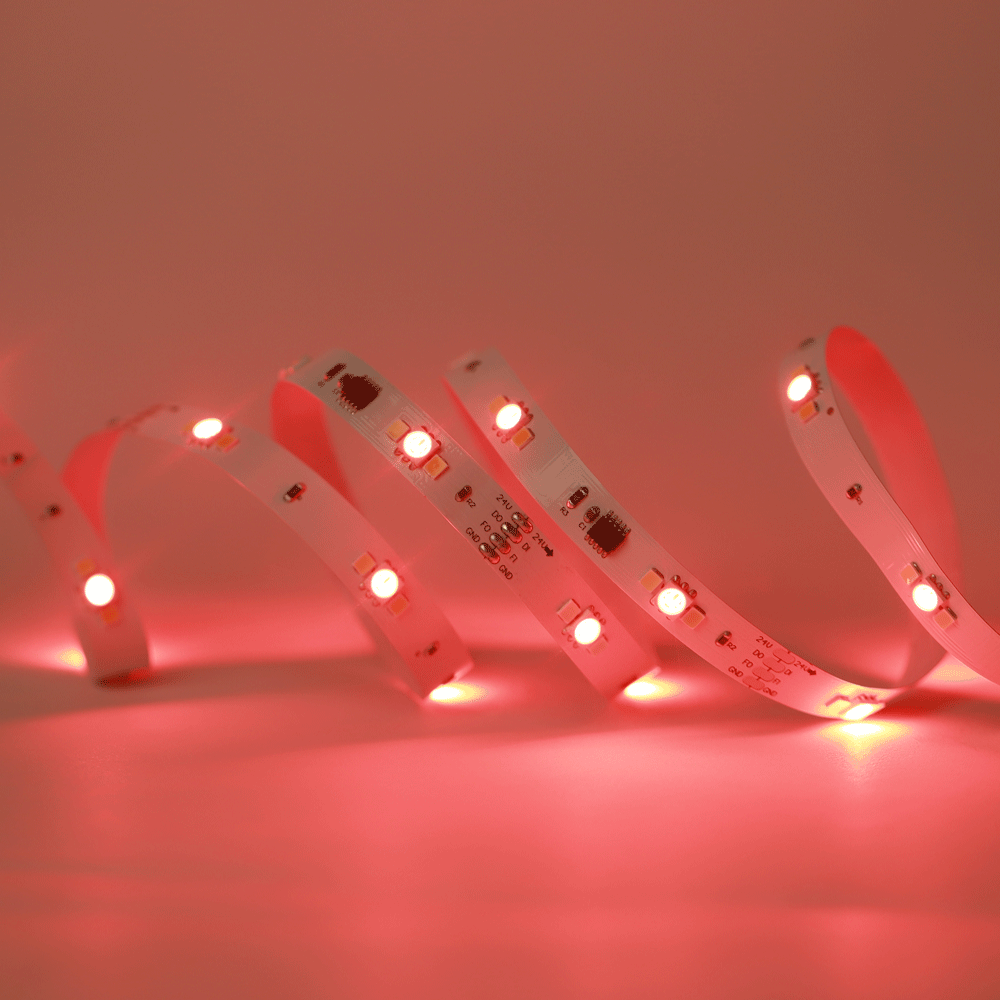

Lotus LED Lights RGBTW Tape Light – LBL-5050-2835-72P-24V-10MM-RGBTW-SPI-IP20

SKU : LBL-5050-2835-72P-24V-10MM-RGBTW-SPI-IP20 Categories : , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 63.00

RGBTW tape by Lotus LED Lights is a great option for your cove, under cabinet, decorative and other general ambient lighting application. Every foot of tape in this 33′ reel uses just 1.5 watts. Each reel is backed with 3M brand adhesive tape to ensure a strong, durable connection to whatever surface it is applied to, and their LEDs sizes : RGB – 5050, Warm & Cool White – 2835. Requires 24V DC Constant Voltage Power Supply.

The LBL-5050-2835-72P-24V-10MM-RGBTW-SPI-IP20 is a 1.5W/ft, available in 33ft and with the following features:

  • RGB + Tunable White LED flexible strip
  • SMT Type 24V DC for dry locations SPI controlled
  • 1.5W/ft, 33 ft long (10m), total of 40 pixel groups
  • Double sided adhesive 3M tape
  • Warranty: 3 Year
  • cETLus certified

Note:

  1. Suitable for dry locations only.
  2. Requires 24V DC power supply (see recommended accessories for Lotus brand).
  3. Power Supply needed every 33ft (10m)
  4. SPI (Serial Peripheral Interface) Required
  5. Maximum 128 SPI controllers per network
  6. Cuttable every 10″ (25cm). Minimum Bending Radius 2″

Product Information

MOUNTING:
Installation surface must be smooth, clean and dry.
Double sided adhesive 3M tape and wires on both ends.

  • RGB + Tunable White
  • SPI controlled
  • Input Voltage: 24V DC
  • Power: 1.5 W/ft
  • Maximum Connecting Length 33 ft / 10 meters
  • Beam Angle: 130°
  • Operating Temperature: -13°F (-25°C) to +113°F (+45°C)
  • LED Operation Type: Constant Voltage
  • Certification: cULus
  • Warranty: 3 Year

APPLICATIONS:

  • Indoor linear light installations – Undercabinet, Cove, Valance, Decorative

Suitable for Indoor and Dry Locations

Spec Sheet

Photometric files per 3.3 ft / 1 meter piece

PDF:
pdf at 2700K | pdf at 6000K | pdf at RGB all on

IES:
ies at 2700K | ies at 6000K | ies at RGB all on

Customer Reviews

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

You may also like…

Lotus MQR-100 – QR-Code Display for MESHLE Guest Control

Lotus MQR-100 – QR-Code Display for MESHLE Guest Control

CAD$ 222.60 Read more
The MQR‑100 QR‑Display is a smart e‑ink interface that seamlessly connects guests and visitors to your Bluetooth Mesh lighting network, no app installation needed. Simply plug it in via USB‑C to generate a temporary, secure QR code. It’s perfect for hotels, showrooms, exhibitions, and any environment where quick, temporary access to lighting or IoT devices is desired.

Key Features

  • 4.2″ E‑Ink Screen: Displays a clear, high-resolution QR code, low power and highly readable.

  • Easy Setup: Connects via USB‑C @ 5 V DC (< 1 A draw) to initialize and generate the code.

  • Bluetooth Mesh Node: Functions as a mesh relay, securely encrypted, without requiring an app on the client’s device.

  • Universal BLE Access: Users scan the QR code and gain browser-based control of compatible MESHLE devices, no downloads needed.

  • Guest & Visitor Ready: Ideal for hospitality, trade shows, rentals, any place needing temporary access control.

  • Certifications & Support: FCC certified with a 5‑year warranty, robust enough for indoor spaces from -10 °C to +55 °C (14 °F to 131 °F).

Downloads:

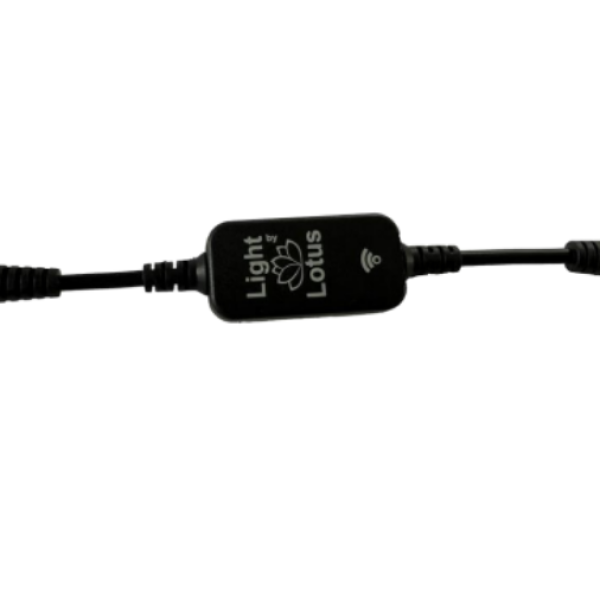

Lotus 23W-1L – Gateway for SPI Controller

Lotus 23W-1L – Gateway for SPI Controller

CAD$ 175.00 Read more
The 23W‑1L Gateway acts as the bridge between a Bluetooth Mesh lighting network and your Wi‑Fi/cloud environment, enabling remote, group, and voice control of all connected Meshle-compatible devices—even when you're away from home.

Key Features

  • Dual Connectivity: Links your local Bluetooth Mesh (BLE) network with your 2.4 GHz Wi‑Fi for remote and voice-enabled control.

  • Supports Voice Assistants: Fully compatible with Alexa, Google Assistant, and Meshle app for versatile command options.

  • Wide Input Voltage Range: Works on 12-24 V DC, with a maximum output of 6 A and 144 W total power load, enough to serve an SPI controller plus connected LED strips.

  • IP23 Rated: Designed to withstand light exposure to solid objects and vertical dripping water; suitable for indoor environments.

  • Reliable Operations: Operates effectively within a temperature range of 25 °C to +45 °C (-13 to +113 °F) and is FCC certified.

  • Warranty: Comes with a 5-year manufacturer warranty for long-term peace of mind.

Downloads:

Lotus S54072W092S10-SPI – SPI Controller for RGBTW Strips

Lotus S54072W092S10-SPI – SPI Controller for RGBTW Strips

CAD$ 124.60 Read more
A cloud-enabled LED strip controller, the S54072W092S10‑SPI supports a wide range of RGB/RGBTW LED strip configurations, offering advanced control via Bluetooth mesh and the Meshle app. It’s tailored for dynamic lighting setups demanding group coordination, animations, and precise color management.

Key Features:

  • Wide Voltage Range: Operates on 5–24 V DC, supplying up to 5 A per channel, and a total output power of 120 W.

  • SPI Output for Precise Control: Equipped with two SPI output channels for granular per-pixel control—ideal for detailed lighting effects.

  • Advanced App & Mesh Capabilities:

    • Supports Meshle app and Bluetooth Mesh (BLE 4.1+) for local and group-based control.

    • Integrates with 2.4 GHz Wi-Fi for cloud access.

    • Manage colors, animations, timers, rules, device configs, and power-up states.

Performance & Compatibility:

  • Pixel Support: Up to 600 pixel dots per controller, with compatibility extending to 150 m (approx. 495 ft) of Lotus RGBTW LED strip.

  • Signal Integrity: Maintains signal fidelity with an indoor wireless range up to 50 ft (15 m) and outdoor up to 100 ft (30 m).

Downloads:

Lotus LBL-DC24V96W – 24V DC Driver – 96 Watt Capacity – 120V / 0-10V Dimmable

Lotus LBL-DC24V96W – 24V DC Driver – 96 Watt Capacity – 120V / 0-10V Dimmable

CAD$ 79.18 Read more
Utilize this driver to power your Lotus LED Lights 24V product
  • 120V input to 24V DC output
  • 120V or 0-10V dimmable
  • 96W max power
  • 3/4″ deep – fits where space is limited
  • IP67 wet location rated
  • Operating temperature: -40º to 104º F
  • 3 year warranty

Related products

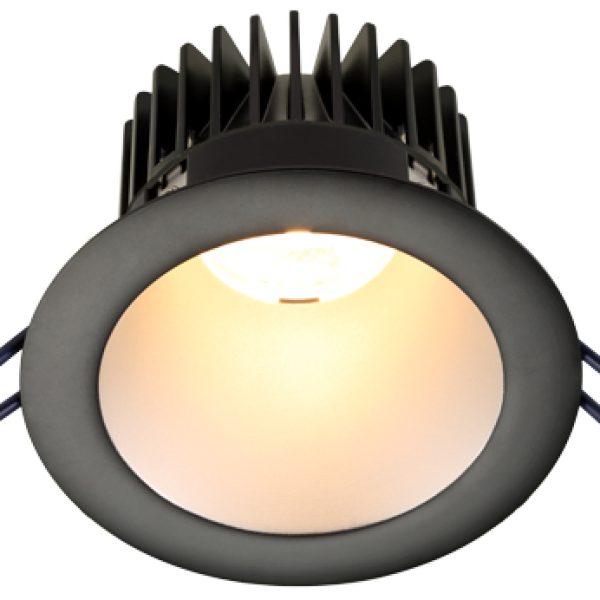

Lotus LD4R-HO – 18 Watt 4″ High Output Round Deep Regressed LED Downlight – 120V

Lotus LD4R-HO – 18 Watt 4″ High Output Round Deep Regressed LED Downlight – 120V

CAD$ 98.56 Read more
The new deep regressed models by Lotus LED Lights provide efficient LED illumination without glare in an elegantly designed downlight. The deep reflector and high-end finish trim present an architectural aesthetic, and open-plenum rated armored cable connection are suitable for commercial application. Being IC-rated, these lights can be installed right into the ceiling without housing and, being only 3.5" deep, can be installed where ceiling space is limited. A high CRI of 90+ means you'll enjoy true color rendering in the area of illumination. Comes standard as 120V dimmable, with optional 0-10V dimmable driver available. The LD4R-HO is a 4" round 18 watt deep regressed LED downlight, available in 6 different trim and reflector options and with the following features.
  • Includes standard dimmable driver
  • IC-rated
  • Wet and damp location rated
  • High CRI of 90+ for true color rendering
  • Open plenum rated armored cable and metal connectors
  • Fast and easy installation and no junction box required
  • Air-tight
  • Energy Star
  • Title-24 certified
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty

Lotus LD4R – 15 Watt 4″ Round Deep Regressed LED Downlight – 120V

Lotus LD4R – 15 Watt 4″ Round Deep Regressed LED Downlight – 120V

CAD$ 83.16 Read more
The new deep regressed models by Lotus LED Lights provide efficient LED illumination without glare in an elegantly designed downlight. The deep reflector and high-end finish trim present an architectural aesthetic, and open-plenum rated armored cable connection are suitable for commercial application. Being IC-rated, these lights can be installed right into the ceiling without housing and, being only 3.5" deep, can be installed where ceiling space is limited. A high CRI of 90+ means you'll enjoy true color rendering in the area of illumination. Comes standard as 120V dimmable, with optional 0-10V dimmable driver available. The LD4R is a 4" round 15 watt deep regressed LED downlight, available in 6 different trim and reflector options and with the following features.
  • 15W LD4R Polycarbonate Trim LD4R-CPL
  • Deep Regressed LED – Elegant Design Without Glare
  • Interchangeable Trims With High End Finishes
  • Armoured Cable & Metal Connectors – Open Plenum Rated
  • Type IC, Air-Tight & Wet Location – No Housing Required
  • 3 1/2″ thick – fits in limited ceiling space
  • Triac Dimmable with most CL dimmers 120V input
  • 0-10V Dimmable Option 120V – 347V input
  • Light Options: 2700K, 3000K, 3500K, 4000K, 5000K, 5CCT user selectable, Dim to Warm 3000-2000K or 3000-1800K
  • Light output 15W: 2700K-1100 lm, 3000K-1200 lm, 3500K-1250 lm, 4000K-1300 lm, 5000K-1400 lm, Dim To Warm 3000K to 2000K-900 lm, Dim To Warm 3000K to 1800K-980 lm
  • Light output 18W: 2700K-1500 lm, 3000K-1550 lm, 3500K-1600 lm, 4000K-1650 lm, 5000K-1700 lm, Dim To Warm 3000K to 2000K-1150 lm, Dim To Warm 3000K to 1800K-1250 lm
  • Driver Inside Connection Box with Romex Quick Connectors
  • Beam Angle: 30° (default)
  • Warranty: 10 Year Residential, 5 Year Commercial Installations
  • cULus certified and Energy Star (single CCT only) approved
Lotus LD4R-HO-IT – 18 Watt 4″ High Output Round Deep Regressed LED Downlight – Trimless Model – 120V

Lotus LD4R-HO-IT – 18 Watt 4″ High Output Round Deep Regressed LED Downlight – Trimless Model – 120V

CAD$ 127.82 Read more
The new deep regressed models by Lotus LED Lights provide efficient LED illumination without glare in an elegantly designed downlight. The deep reflector and trimless design provides an architectural aesthetic, and open-plenum rated armored cable connection are suitable for commercial application. Being IC-rated, these lights can be installed right into the ceiling without housing and, being only 3.5" deep, can be installed where ceiling space is limited. A high CRI of 90+ means you'll enjoy true color rendering in the area of illumination. Comes standard as 120V dimmable, with optional 0-10V dimmable driver available. Requires use of flanged rough-in-plate (FRP412) - see recommended accessories. The LD4R-HO-IT is a 4" round 18 watt deep regressed trimless LED downlight, available in silver, black and white reflector with the following features:
  • Includes standard dimmable driver
  • Triac Dimmable with most CL dimmers 120V input
  • 0-10V Dimmable Option 120V – 347V input
  • IC-rated
  • Wet and damp location rated
  • High CRI of 90+ for true color rendering
  • Open plenum rated armored cable and metal connectors
  • Fast and easy installation and no junction box required
  • Air-tight
  • Energy Star
  • Title-24 certified
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty

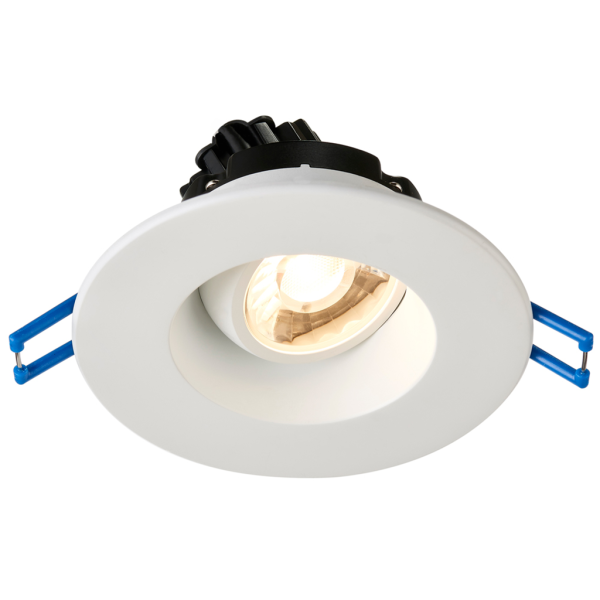

Lotus LRG3 – 7.5 Watt 3″ Round Regressed LED Gimbal – 38° Beam Angle – 120V
