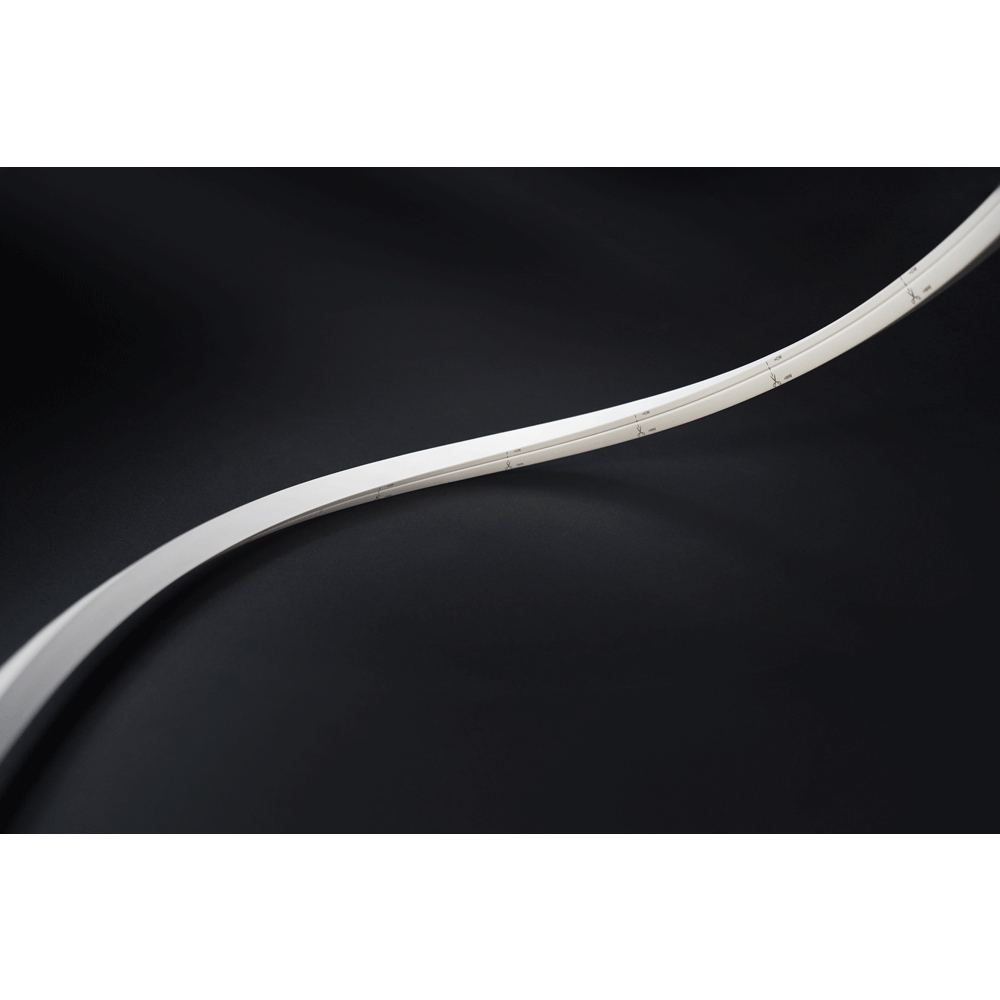

Lotus LED Lights Tape Light – ES-1010A-C-8W-IP67 – Surface Mount 3D Neonflex

SKU : N/A Categories : , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 61.60

LED tape by Lotus LED Lights is a great option for your cove, under cabinet, decorative and other general ambient lighting application. Surface Mount 3D Bendable LED Neonflex waterproof, seamless linear light – no diffused cover needed, no aluminum channel needed, no hotspots. Every foot of tape uses 2.4 watts. Their high CRI of 90+ ensures true color rendering in the area of illumination. Requires 24V DC power supply.

The ES-1010A-C-8W-IP67 Surface Mount 3D Bendable LED Neonflex 24v 2.4w/ft available in 27K, 30K, 40K and 50K with the following features:

  • 3D bendable surface mount neonflex waterproof
  • Seamless linear light – no diffused cover needed
  • No aluminum channel needed
  • No hotspots and with CRI 90+ for vibrant colors
  • Reinforced design for stable performance when bending & twisting
  • 4 oz copper PCB and real gold wires for superb light maintenance
  • Available in 4ft, 8ft and 16ft lengths with wires on both ends
  • 2.4W/ft, in stock 2700K, 3000K, 4000K & 5000K
  • Warranty: 5 Year Indoor / 3 Year Outdoor
  • cULus certified

Included in every package: 2 end caps, 1 aluminum bracket and 1 screw per foot

Product Information

SPECIFICATIONS:

  • Input Voltage: 24V DC
  • Power: 2.4 W/ft
  • Operating Temperature: -4°F (-20°C) to +220°F (+105°C)
  • Maximum Connecting Length 16 ft / 5 meters
  • Beam Angle: 120°
  • Light color options Warm White 2700K, Soft White 3000K, Neutral White 4000K and Daylight White 5000K
  • CRI 90 + for True Colour Rendering
  • LED Operation Type: Constant Voltage
  • Certification: cULus
  • Warranty: 5 Year Indoor / 3 Year Outdoor

APPLICATIONS:

  • Undercabinet & Cove Lighting

DIMENSIONS:

  • Available in 4ft, 8ft and 16ft lengths with Wires on both ends
  • Minimum Bending Diameter: 4 3/4″ (120mm) Horizontal | 6″ (150 mm) Vertical
  • Cuttable Increment: 4″ (100 mm)

Suitable for Wet Locations

Spec Sheet
