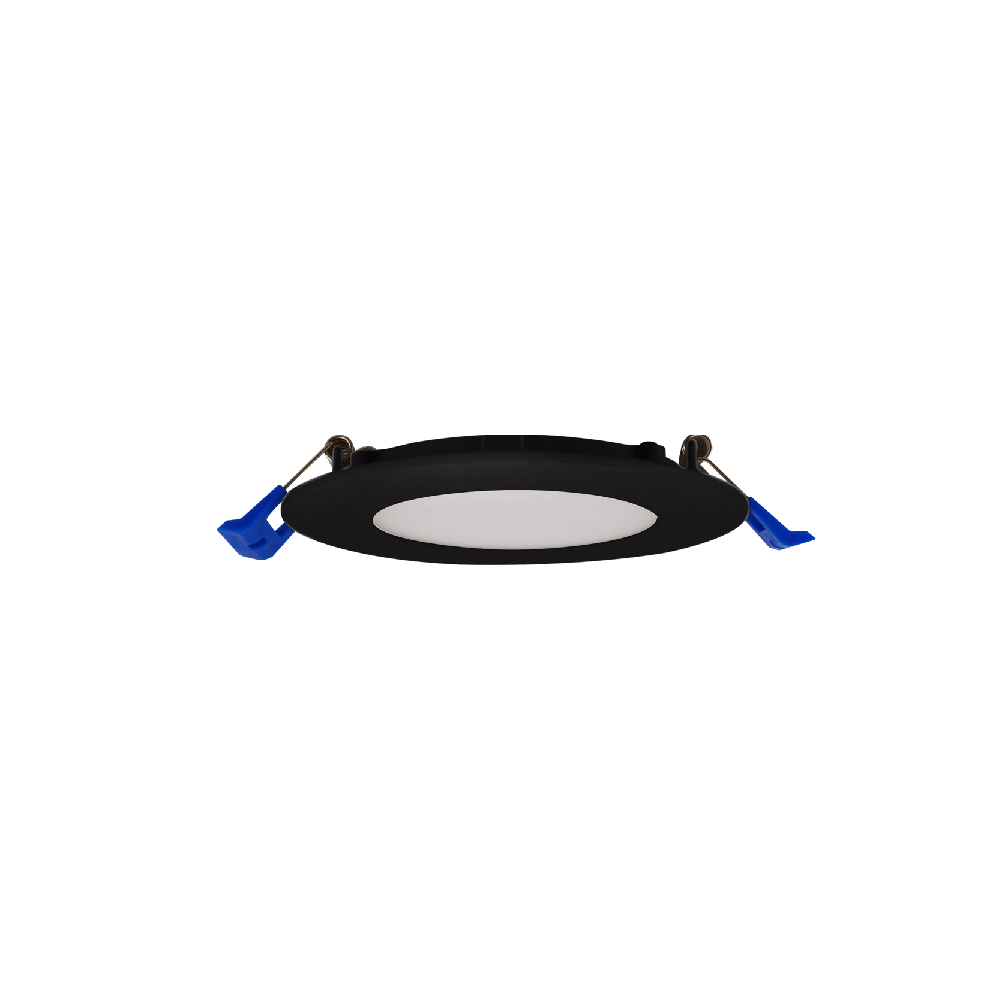

Lotus LED-S9W – 9 Watt 4″ Ultra Slim Round Recessed LED Downlight

Sale!
SKU : N/A Categories : , , , , Tags : , , , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 18.00 CAD$ 13.60

Lotus LED Lights white tunable ultra slim LED downlights offer you 5 different kelvin temperature options to choose from or single temperature option 3000K or 4000K! Utilize the switch inside the integral driver that comes with each light to choose between warm 27K, warm 30K, warm-neutral 35K, neutral 40K, or daylight 50K white light color temperatures. Perfect option for contractors to stock up on, allowing you to suit each downlight to your customer’s preferences. For the end user, these are also easy to change as preferences do. The versatility of choices combined with the quality you’ve come to expect from Lotus LED Lights, the original IC-rated thin downlight manufacturer, combined with a price that won’t break your budget make these lights the best choice for you in your new construction or renovation light installations.

The LED-S9W is a 9 watt, 4″ round dimmable LED downlight in a white or Black finish with the following features:

  • Single Color Temperature, 3000K & 4000K
  • CCT-tunable: choose between warm 27K, warm 30K, warm-neutral 35K, neutral 40K or daylight 50K white light color temperatures
  • 120V operation and dimming on TRIAC dimmers down to 10%
  • IC rated- no housing required and suitable for contact with insulation
  • 1/2″ thick- can be installed directly under ceiling joists
  • Damp location rated
  • Energy Star
  • 50,000 hour rated
  • 3 year warranty

Product Information

CONSTRUCTION:
Round 4″ Ultra Slim Recessed fixtures with integral Driver in Connection Box. Single color or 5 CCT.
One driver for every fixture required.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required for driver to fit: 2 1/2″

  • Energy Used: 9W
  • Halogen equivalent: 60W
  • Beam Angle: 120°
  • Light colour options:  Soft White 3000K | Neutral White 4000K | 5CCT : 2700K | 3000K |3500K | 4000K | 5000K
  • Light output: 3000K 600 lm, 4000K 620 lm, 5CCT : 620 | 650 | 690 | 680 | 660
  • CRI: 80
  • Driver Input Voltage: 120V AC
  • Dimmability – TRIAC Dimmable 10% – 100%
  • White & Black trims in stock
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Warranty: 3 Years
  • Compliance: cETLus, Energy Star

DIMENSIONS:

  • ID 4″; OD 4 7/8″; Thickness 1″
  • Cut out: 4″
  • Junction Box Dimensions (with driver inside): 3 3/8″ x 3 3/8″ x 1 1/8″

Suitable for Insulated Ceilings & Damp Locations.

Specification Sheet

Sales Sheet

Installation Instructions

Photometric pdf files
pdf LED-S9W single 3000K

Photometric PDF files 5CCT version:
PDF at 2700K | PDF at 3000K | PDF at 3500K | PDF at 4000K | PDF at 5000K

IES files
ies LED-S9W single 3000K

IES files 5CCT version:
IES at 2700K | IES at 3000K | IES at 3500K | IES at 4000K | IES at 5000K


Link to Energy Star: LED-S9W
