Lotus LFR-4R-RB-9W-5CCT – 9 Watt 4″ Round Fire Rated Regressed Backlit LED 5CCT

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 36.26

Lotus LED Lights white tunable ultra slim LED downlights offer you 5 different kelvin temperature options. Utilize the switch inside the integral driver that comes with each light to choose between warm 27K, warm 30K, warm-neutral 35K, neutral 40K, or daylight 50K white light color temperatures. Perfect option for contractors to stock up on, allowing you to suit each downlight to your customer’s preferences. For the end user, these are also easy to change as preferences do. The versatility of choices combined with the quality you’ve come to expect from Lotus LED Lights, the original IC-rated thin downlight manufacturer, combined with a price that won’t break your budget make these lights the best choice for you in your new construction or renovation light installations.

2 Hour Fire Rated without additional housing or hardware, with Heat resistant steel casing & Heavy Duty Steel spring clips, it has been tested to comply with UL 263-2011(R2022), STM E119-20 & CAN/ULC-S101-14

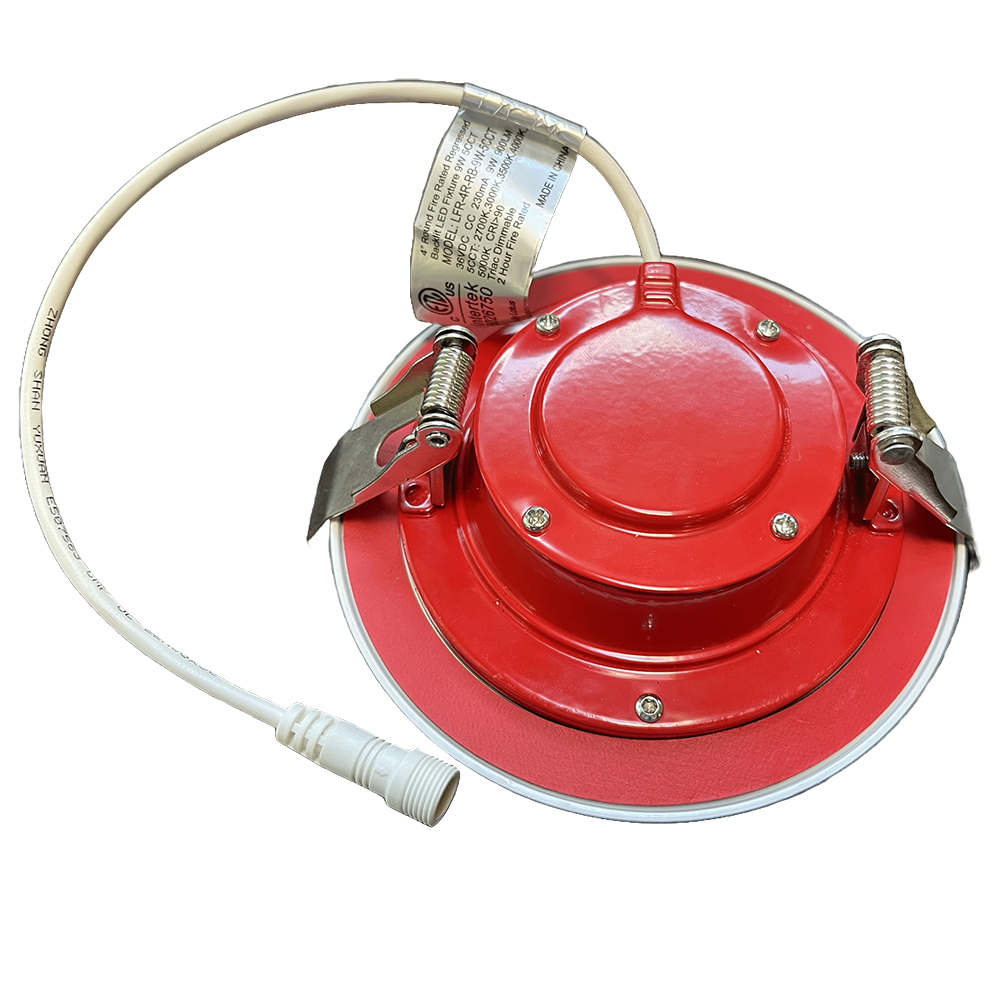

The LFR-4R-RB-9W-5CCT is a 9 watt, 4″ round Fire Rated Flat Backlit LED downlight in a white finish with the following features:

  • 2 Hour Fire Rated without additional housing or hardware
  • Type IC & Air-Tight Rated – No Housing Required
  • Heat Resistant Steel Casing provides up to 2 Hour Fire Protection
  • Heavy Duty Steel Spring Clips for easy installation
  • 3/8″ Regressed for reduced glare
  • 1 1/2″ Spring Height for installations on 2 x 5/8″ drywall
  • Plenum Rated Cable for Commercial Installations
  • 1 1/4″ Thick – Install in Limited Ceiling Spaces

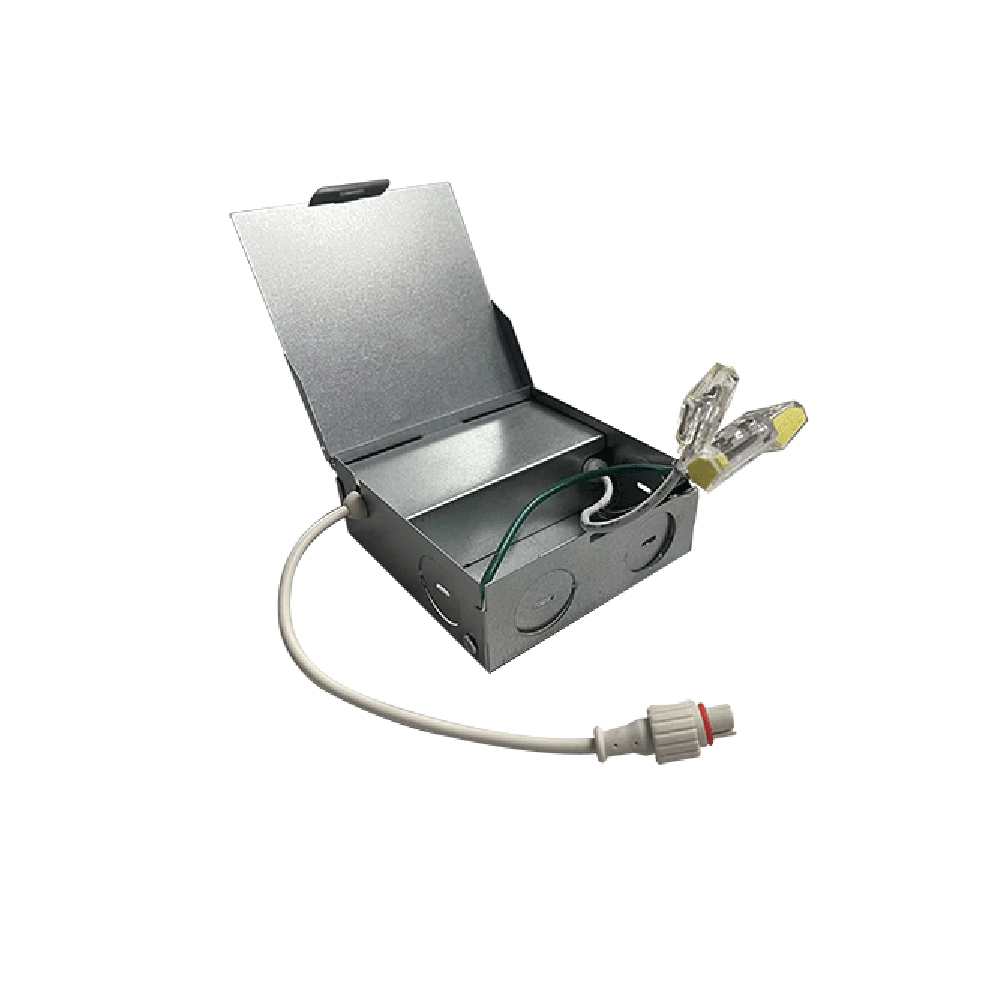

  • Driver Inside Connection Box – No Junction Box Needed
  • 5 CCT User Selectable Light Colors
  • CRI 90+ for True Color Rendering

Product Information

Specifications:

  • Applications Multi-Family Residential, Basements & Commercial
  • Energy Used 9 W
  • Color Temperature (K) 2700 – 3000 – 3500 – 4000 – 5000
  • Light Output (lm) 960 – 1060 – 1080 – 1100 – 1080
  • Halogen Equivalent 90 W
  • Beam Angle 100°
  • CRI 90+
  • Driver Input 120V AC 50/60 Hz
  • Dimming TRIAC Dimmers 10% – 100%
  • Junction Box Volume 9.69 cubic inches / Max 5 No 12 AWG or 8 No 14 AWG
  • Approved Location Insulated Ceiling & Wet Locations
  • Cable FT6 / CMP Plenum Rated
  • Air Tight & Type IC Yes
  • Ambient Temperature -4°F (-20°C) to +104°F (+40°C)
  • Projected Life 70% Light Output at 50,000 Hours
  • Certification cETLus
  • Fire Rating UL 263-2011(R2022), STM E119-20 & CAN/ULC-S101-14
  • Warranty 3 Year

DIMENSIONS:

  • ID 4″, OD 5 1/8″, Cut Out 4″ to 4 1/4″
  • Fixture Thickness: 1 1/4″
  • 120V Triac Dimmable Driver Included

INSTALLATION :

INSTRUCTIONS FOR PROPER ASSEMBLY
Cut a circular opening in the gypsum ceiling such that the annular space between the ceiling membrane and the fixture does not exceed 1/8 inch.
Ensure penetrations do not exceed 100 square inches in any 100 square feet of ceiling area.
Install with a minimum separation of 4 feet between units.
Maintain a minimum 1 inch space between the edge of the fixture and closest structural member.

Specification Sheet

Photometric PDF files:

PDF 2700K | PDF 3000K | PDF 3500K | PDF 4000K | PDF 5000K

Photometric IES files:

IES 2700K | IES 3000K | IES 3500K | IES 4000K | IES 5000K
