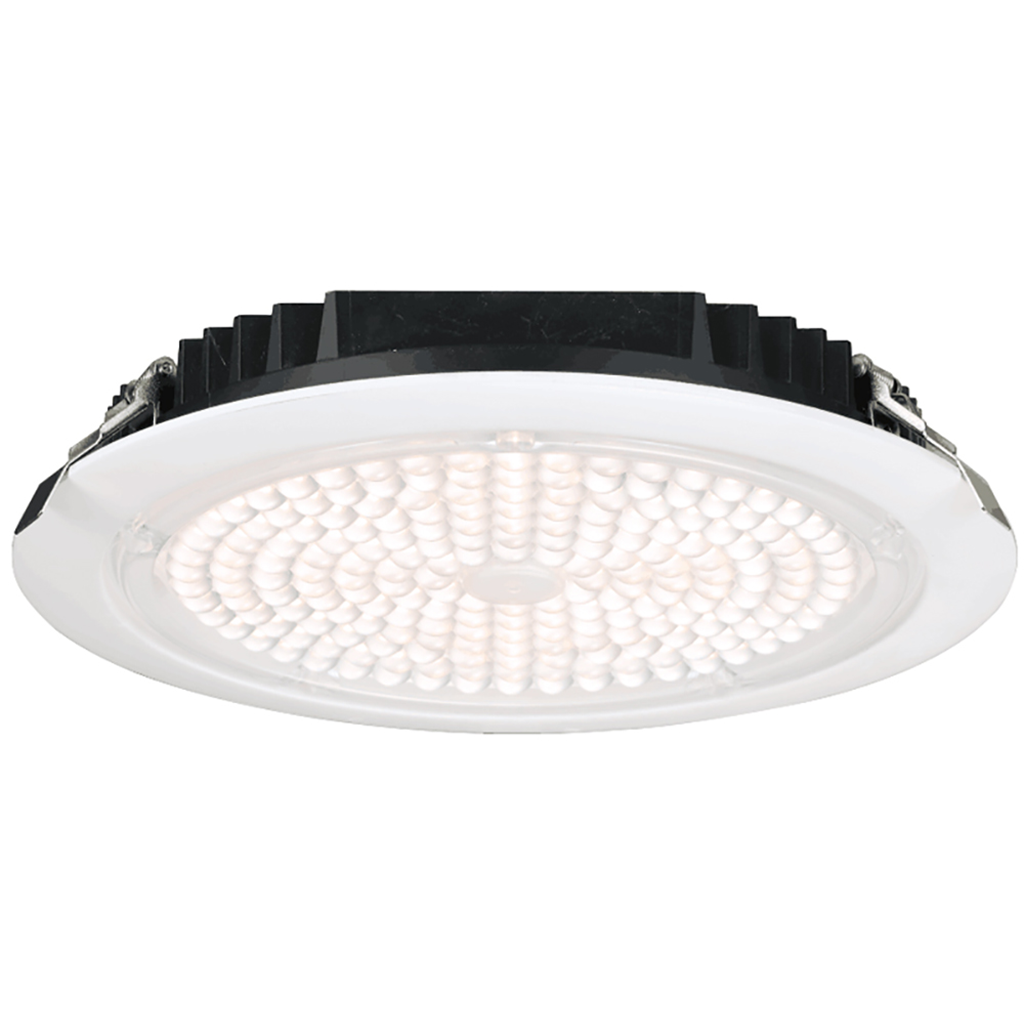

Lotus LL10R – 50 Watt 10″ Commercial Recessed LED Downlight – 0-10V Dimmable

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 175.00

The Lotus LED Lights, 10″ commercial grade recessed downlight is a powerful and efficient fixture that is bright enough to replace many other traditional commercial fixture types. Being IC-rated, they install quickly and easily directly into insulated ceilings with no can required. Their thin 2-1/4” depth allows for maximum layout flexibility and where ceiling space is limited. They are air-tight and IP65 wet location rated as well. Perfect choice if you are looking for a powerful, easily installable fixture for your commercial lighting application.

The LL10R is an 10″ round 50 watt commercial grade LED downlight in a white or black finish with the following features:

  • 120-277V operation
  • 0-10V dimming
  • IC rated
  • Fast and easy to install
  • 2 1/4″ above ceiling clearance required
  • IP65 wet location rated
  • Air-tight
  • Includes required driver – powers one fixture only
  • 50,000 hour rated
  • 5 year warranty

For new construction and remodel applications – not suitable as retro fit trim for existing down lights

Product Information

CONSTRUCTION:
Round 10″ fixtures with integral LEDs. Isolated external driver factory installed inside connection box. One driver for every fixture required.

MOUNTING:
Cut hole in ceiling and snap fixture in opening with attached spring clips.
Space in ceiling needed 2 1/4″.

  • Default Driver Input Voltage: 120V-277V AC – Dimmable 0-10V
  • Optional Driver Input Voltage: 120-347V AC – Dimmable 0-10V
  • Power factor: 0.98
  • Energy Used: 50W
  • MH / HPS equivalent: 100W
  • Beam Angle: 60°
  • Light colour options: Soft White 3000K and Neutral White 4000K
  • Light output: Soft 6300 lm, Neutral 6700 lm
  • CRI 80
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Air-Tight

DIMENSIONS:

  • ID 10″; OD 12″
  • Cut out: 10″ to 11″

Suitable for wet locations.

Optional 347V Input Driver

  • 0-10V Dimmable
  • cat # LLL-LD50WH

Pendant Mount Kit

  • cat # PMK810
  • Includes aircraft cable and 6 ft extension

Low Voltage Extension Cable

  • cat # BXC6

Goof Rings

  • round OD 14″ cat #GR10-14
    • round OD 16″ cat #GR10-16
    • Spec Sheet: GR10-16
    • square 14″ cat #GS10-14
    • Spec Sheet: GS10-14
  • square 16″ cat #GS10-16
  • Spec Sheet: GS10-16



Specification Sheet
Spec Sheet LL10R

pdf files
LL10R-30K | LL10R-40K

IES files
LL10R-30K | LL10R-40K
