Lotus LL2G-HO – 5.5 Watt 2″ High Output LED Gimbal – 120V

SKU : N/A Categories : , , , , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 52.36

The Lotus LED Lights High Output 2″ round LED gimbal downlights are designed to go where no other fixture can. Being IC-rated, they can be installed directly into an insulated ceiling without requiring a recessed housing and, being only 1.5″ deep, can be installed where ceiling space is limited. Installation is simple – just cut a hole and the attached spring clips snap the fixture into place. These gimbal downlights emit a 24º beam of light that is adjustable in a 10º tilt in each direction and 360º rotation. A high CRI of 90+ means you’ll enjoy true color rendering in the area of illumination. Ideal applications include sloped ceilings, highlighting artwork, cabinets and recessed alcoves.

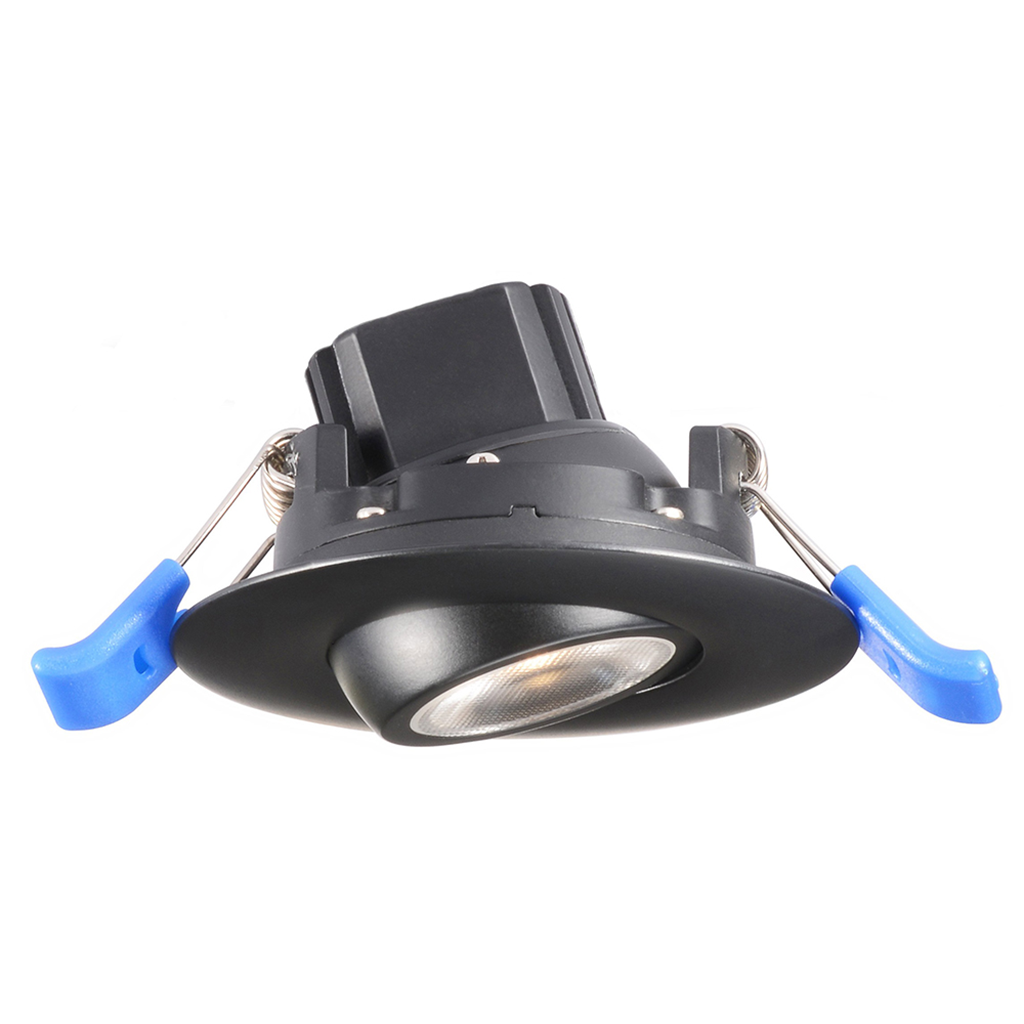

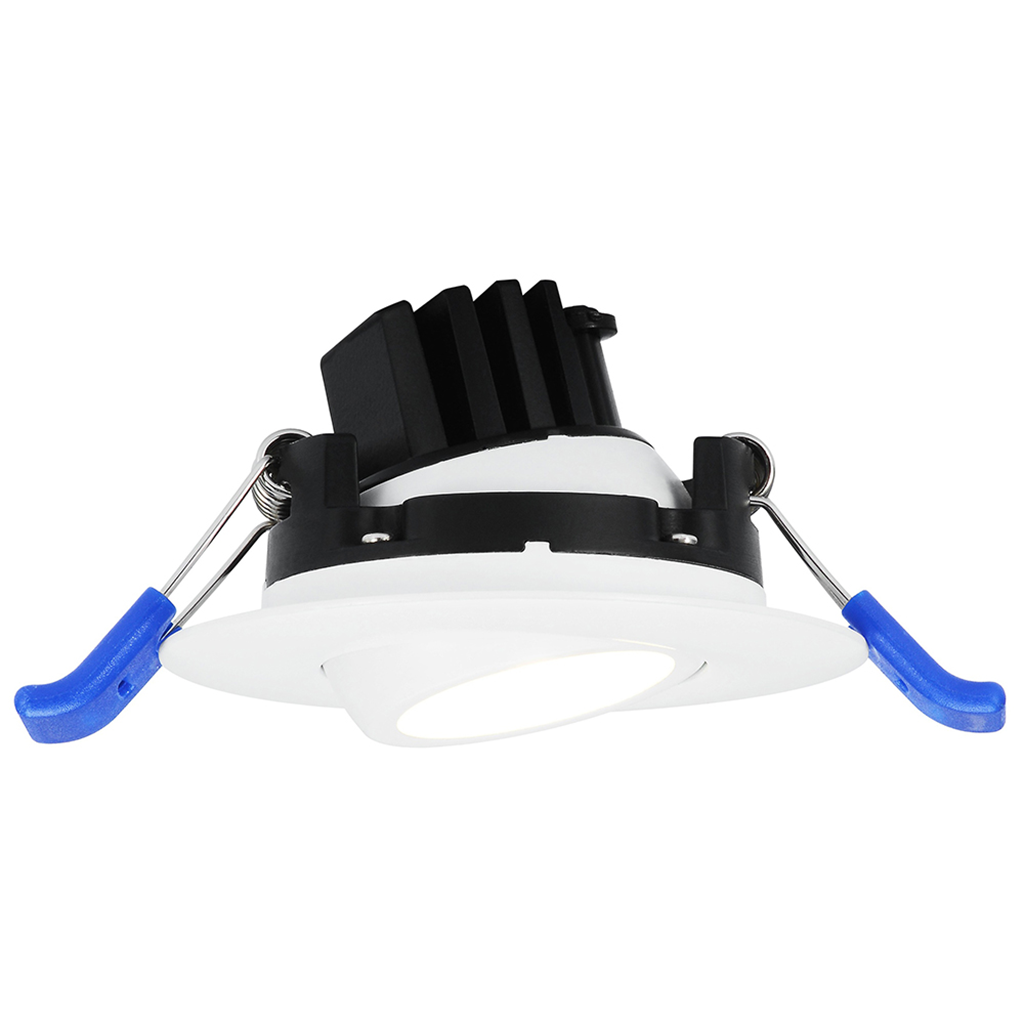

The LL2G-HO is a 2″ round 5.5 watt high output LED gimbal downlight, available in White, Black or Brushed Nickel trim with the following features:

  • Includes standard dimmable driver
  • IC-rated
  • 24º beam of light that is adjustable in a 10º tilt in each direction and 360º rotation
  • Wet and damp location rated
  • High CRI of 90+ for true color rendering
  • IP54
  • Air-tight
  • Energy Star
  • Title-24 certified
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty

Ceiling clearance required: 1.5″ with driver remotely installed / 5″ when driver is next to fixture



Product Information

CONSTRUCTION:
2″ Eyeball Gimbal fixture with integral LEDs. Class 2 Isolated external driver factory installed inside junction box.
One driver for every fixture required.

MOUNTING:
Cut hole in ceiling and snap fixture in opening with attached spring clips.
Ceiling Clearance Required: 1 1/2″ with driver remotely installed, 5″ if driver is next to the fixture.

  • Default Driver: 120V input Triac Dimmable with most CL dimmers
  • Optional Driver: 120V-347V input 0-10V Dimmable
  • Energy Used: 5.5W
  • Power factor: > 0.95
  • Beam Angle: 24° Beam with 20° tilt and 360° rotation
  • Color Temperatures: 2700K / 3000K / 3500K / 4000K / 5000K / Dim to Warm 3000-1800K
  • Light Output 5.5W: 2700K – 450 lm, 3000K – 490 lm, 3500K – 500 lm, 4000K – 530 lm, 5000K – 550 lm, Dim to Warm – 430 lm
  • CRI 90+
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus approved, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Air-Tight, Wet Location

DIMENSIONS:

  • ID 2″, OD 2 1/2″; Thickness 1 1/2″
  • Cut out: 2″ 1/8″
  • Junction Box Dimensions (with driver inside): 3 3/4″ x 2″ x 1 3/4″

Suitable for wet locations and soffit installations.

ACCESSORIES  Sold Separately

Optional 120V – 347V Driver
0-10V Dimmable Cat # LLL-LD0612T

Low Voltage Extension Cables
6ft – cat # EXC6 20ft – cat # EXC20

Rough-In Plates – cat # RIP2

RIP2 n

Specification Sheets

LL2G-HO

PDF files

pdf LL2G-27K-HO | pdf LL2G-30K-HO | pdf LL2G-35K-HO | pdf LL2G-40K-HO | pdf LL2G-50K-HO | pdf LL2G-3018K-HO

IES files

ies LL2G-27K-HO | ies LL2G-30K-HO | ies LL2G-35K-HO | ies LL2G-40K-HO | ies LL2G-50K-HO | ies LL2G-3018K-HO


Links to Energy Star

LL2G-27K-HO | LL2G-30K-HO | LL2G-35K-HO | LL2G-40K-HO | LL2G-50K-HO
