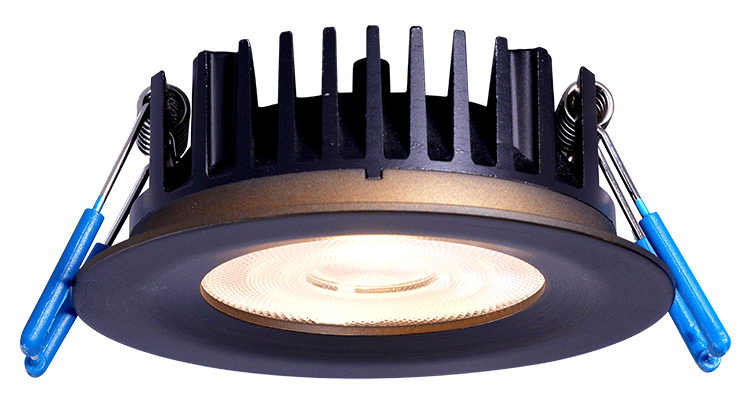

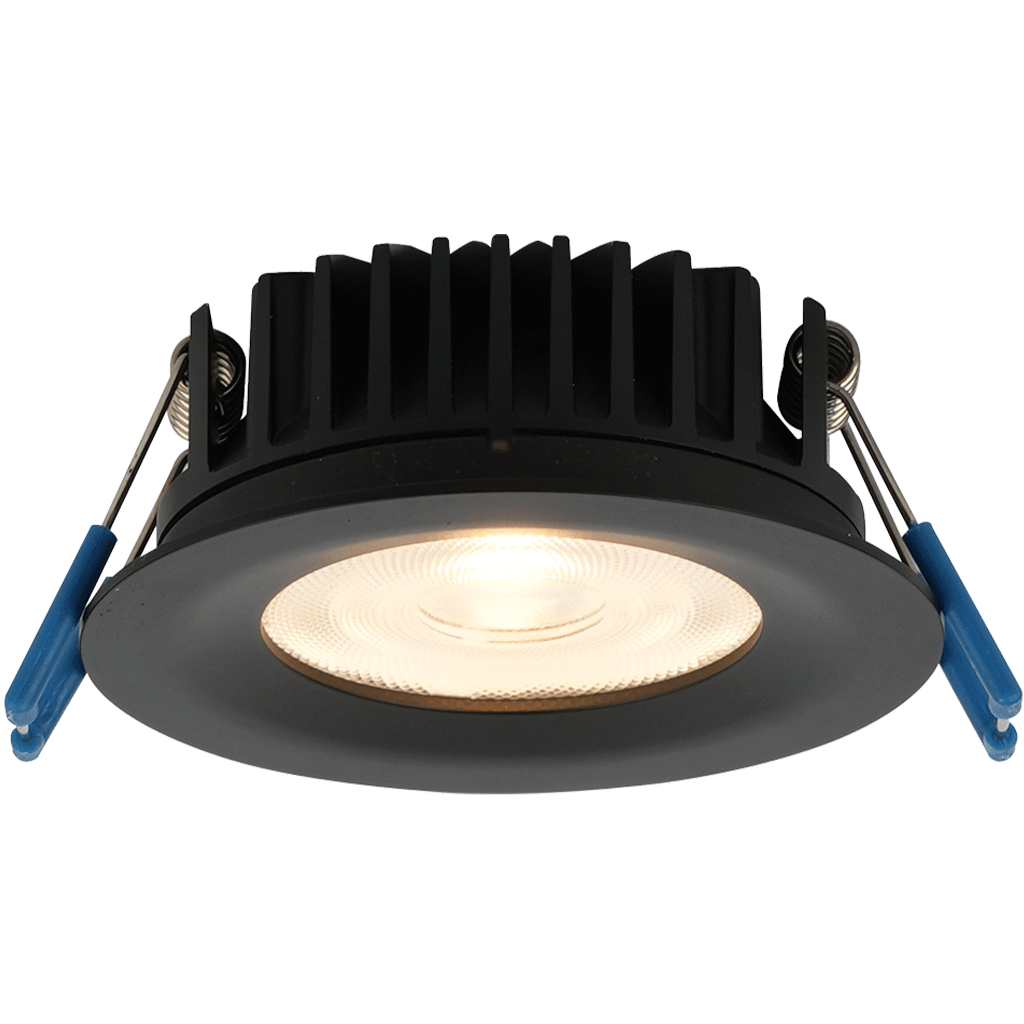

Lotus LL3R-5CCT – 11 Watt 3″ Round Slim Recessed LED Downlight

SKU : N/A Categories : , , , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 64.68

Save on labor with the Lotus LED Lights 3″ Round Slim Recessed LED downlight. Being IC-rated, they install quickly and easily directly into the ceiling with no can required. being only 1 1/4″ deep, can be installed where ceiling space is limited. A high CRI of 90+ means you’ll enjoy true color rendering in the area of illumination. Comes standard as 120V dimmable, with optional 0-10V dimmable driver available.

The LL3R is a 11 watt 38° Round Slim Recessed LED Downlight, available in White and Black trim with the following features:

  • 38° Degree Directional Beam for Reduced Glare
  • 1-1/4″ Deep – Install Where Ceiling Space Is Limited
  • 5 CCT User Selectable 2700-5000K or Dim to Warm 3000-1800K options
  • CRI 90+ for True Color Rendering
  • Type IC Rated – No Housing Required
  • Air-Tight & Wet Location rated
  • Default Driver Triac Dimmable 120V input
  • Optional Driver 0-10V Dimmable 120-347V input
  • Warranty: 10 Year Residential / 5 Year Commercial
  • cULus Certified

Product Information

CONSTRUCTION:
3″ Round Slim Recessed LED fixtures with integral Driver in Connection Box.
One driver for every fixture required.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required for driver to fit: 3 1/2″

  • Power: 11 W
  • Halogen equivalent: 90 W
  • Beam Angle: 38°
  • 5 CCT User Selectable 2700-3000-3500-4000-5000K or Dim to Warm 3000K to 1800K options
  • Light output: 27K-780lm | 30K-850lm | 35K-920lm | 40K-940lm | 50K-930lm | 3018K-900lm
  • CRI: 90+
  • Driver Input Voltage: 120V AC
  • Default Driver Triac Dimmable 120V input
  • Optional Driver 0-10V Dimmable 120-347V input
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Warranty: 10 Year Residential / 5 Year Commercial
  • Compliance: cULus

DIMENSIONS:

  • ID 2 7/8″, OD 3 1/2″, Depth 1 1/4″
  • Cut out: 3″
  • Junction Box Dimensions (with driver inside): 3 3/8″ x 2 1/4″ x 1 1/2″

Suitable for Insulated Ceilings & Wet Locations.

Accessories Sold Separately

Low Voltage Extension Cables

6ft – cat # EXC6 20ft – model # EXC20

Rough-In Plates

Model # RIP3

Flanged Plate with Hanger Bars

Model # FRP3

Specification Sheet

Photometric PDF files with 38° beam:
5CCT model:
PDF 2700K | PDF 3000K | PDF 3500K | PDF 4000K | PDF 5000K
Dim to Warm 3000-1800K model:
PDF 3018K

Photometric IES files with 38° beam:
5CCT model:
IES 2700K | IES 3000K | IES 3500K | IES 4000K | IES 5000K
Dim to Warm 3000-1800K model:
IES 3018K
