Lotus LL4RR / LL4SR – 14.5 Watt 4″ Round & Square Regressed LED Downlight – 120V

SKU : N/A Categories : , , , , , , , Tags : , , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 58.80

The 4″ Square and Round regressed LED downlight by Lotus LED Lights is one of the most impressive recessed fixtures on the market today with it’s commercial grade quality and architectural design. Being IC-rated, they install quickly and easily directly into the ceiling with no can required. Their thin 2″ depth allows for maximum layout flexibility and where ceiling space is limited. They come supplied with integral LEDs, a built-in driver and armored cable with metal connectors making them suitable for commercial applications. This fixture is a great choice for bathrooms, offices, garages, and kitchens.

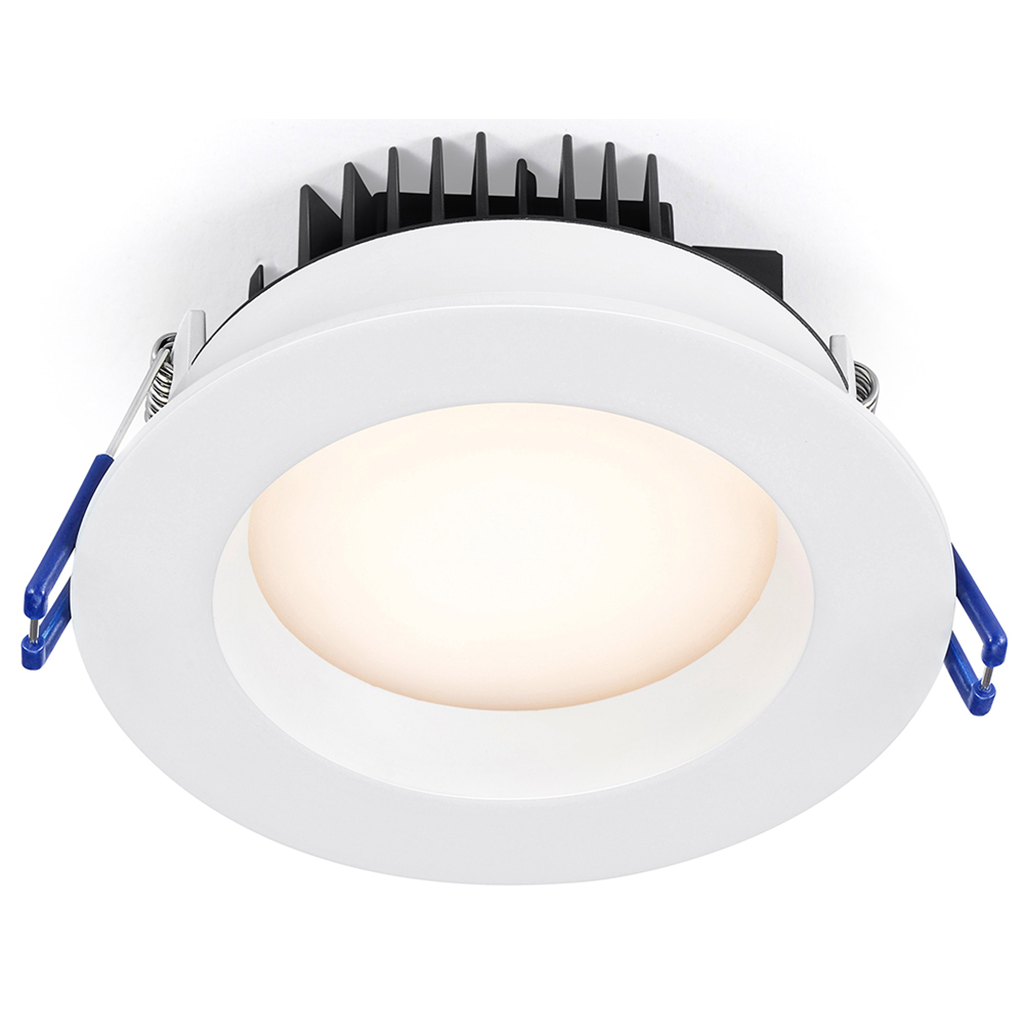

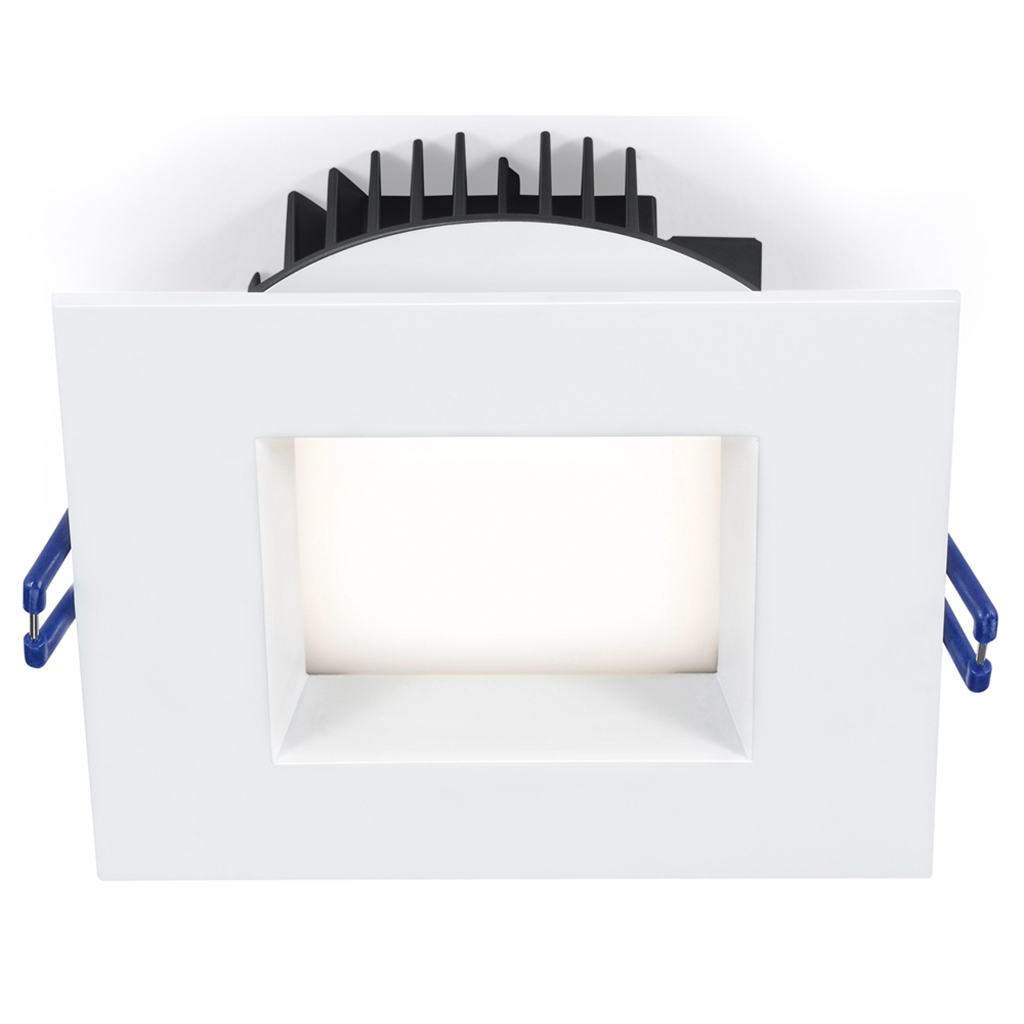

The LL4SR & LL4RR is a 4″ square and round 14.5 watt regressed LED downlight, available in White and Black finish with the following features.

  • Open Plenum Rated
  • Type IC Rated – Approved for Direct Contact with Insulation
  • Air-Tight, Wet Location, Insulated and Non Insulated Ceilings
  • Light Color: 2700K, 3000K, 4000K, 5CCT & Dim to Warm 3000K to 1800K
  • Superb Light Quality with CRI 90+
  • Triac Dimmable with most CL dimmers 120V input
  • 0-10V Dimmable Option 120V – 347V input
  • External Driver Inside Connection Box – No Junction Box Needed
  • Warranty: 10 Year on Residential, 5 Year on Commercial Installations
  • cULus Listed,  Energy Star and T24 Certified

Product Information

CONSTRUCTION:
Round & Square 4″ Regressed LED fixtures with External Driver Inside Connection Box.
Commercial Grade Quality With Architectural Design.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
2″ Above Ceiling Clearance Required. Quick connectors Included.

  • Default Driver Input Voltage: 120V AC (Dimmable)
  • Optional Driver Input Voltage: 120V-347V / 0-10V Dimmable
  • Energy Used: 14.5W
  • Halogen equivalent: 90W
  • Beam Angle: 90°
  • Light colour options: 2700K, 3000K, 4000K and Dim to Warm 3000-1800K
  • Light output: 2700K 950 lm, 3000K 1000 lm, 4000K 1020 lm and 3018K 900 lm
  • CRI > 90 for True Colour Rendering
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus Listed
  • Rated: Type IC (Direct Contact with Insulation), Energy Star, Open Plenum, Wet Location, Air-Tight, T24

DIMENSIONS:

  • OD 5″ (125 mm) Square; ID 4″ (100 mm); Thickness 2″ (51 mm)
  • Cut out: 4″ to 4 1/4″

Suitable for Insulated Ceilings & Open Plenum locations.

Mounting Plate

    • RIP4
    • MP4-2
    • MP4
    • FRP4

Extension Cable

  • MEC10

120-347v / 0-10v Dimmable Driver

  • LLL-LD1535TR

ROUND

Specification Sheets
LL4RR

pdf files
LL4RR-27K | LL4RR-30K | LL4RR-40K | LL4RR-3018K

IES files
LL4RR-27K | LL4RR-30K | LL4RR-40K | LL4RR-3018K


Links to Energy Star:
LL4RR-27K | LL4RR-30K | LL4RR-40K

SQUARE

Specification Sheets
LL4SR

pdf files
LL4SR-27K | LL4SR-30K | LL4SR-40K | LL4SR-3018K

IES files
LL4SR-27K | LL4SR-30K | LL4SR-40K | LL4SR-3018K


Links to Energy Star:
LL4SR-27K | LL4SR-30K | LL4SR-40K
