Lotus LL6S – 17 Watt 6″ Super Thin Square Recessed LED Downlight – 120V

SKU : N/A Categories : , , , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 53.20

The 6″ square super thin round recessed downlight by Lotus LED Lights is the original thin LED downlight. Being IC-rated, they install quickly and easily directly into the ceiling with no can required. Their thin 1/2″ depth allows for installation directly under ceiling joists for maximum layout flexibility. Constructed of a durable die cast aluminum body for optimal heat dissipation.

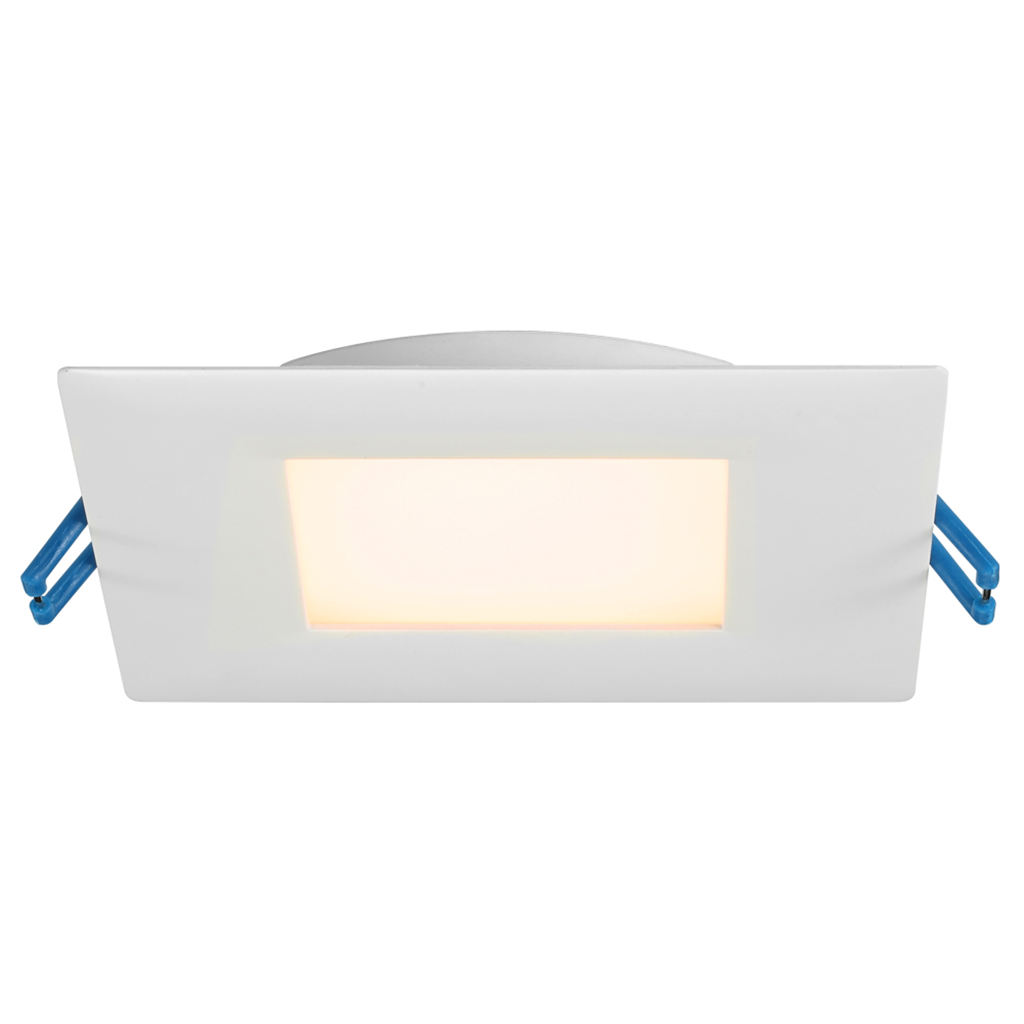

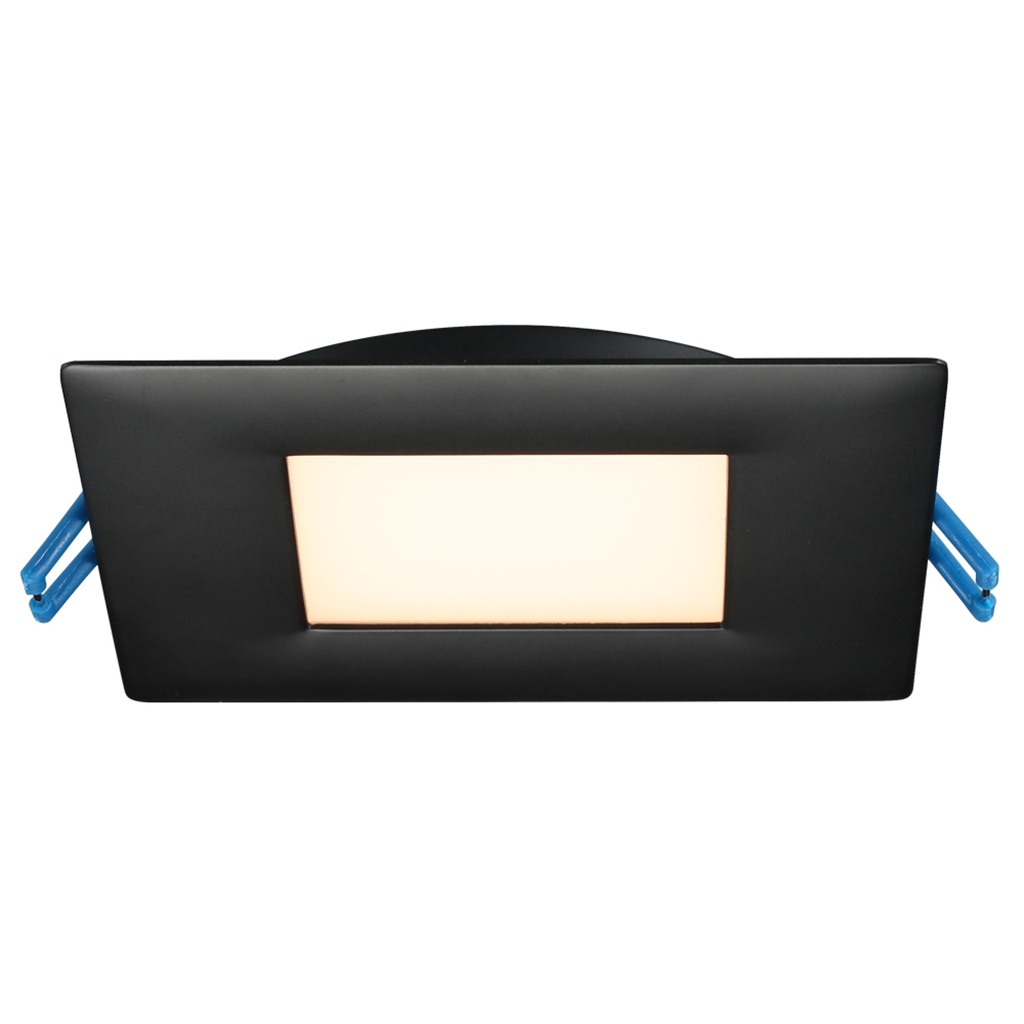

The LL6S is a 6″ square 17 watt thin recessed LED downlight, available in White and Black finish with the following features:

    • Includes standard dimmable driver
    • Type IC rated – no housing required
    • 1/2″ thin – installs directly under joists, maximum layout flexibility
    • Wet and damp location rated
    • High CRI of 90+ for true color rendering
    • Scratch resistant and smooth oil based finish
    • Driver inside connection box – no junction box required
    • IP54 rated
    • Air-tight
    • Title-24 certified
    • Energy Star
    • 50,000 hour rated
    • 10 year residential / 5 year business application warranty

Product Information

CONSTRUCTION:
Square 6″ fixtures with integral LEDs. Round back side for easy installation.
Isolated external driver factory installed inside junction box. One driver for every fixture required.

MOUNTING:
Cut hole in ceiling and snap fixture in opening with attached spring clips.
Space in ceiling needed for the driver to fit through the hole – 1 1/2″.

  • Default Driver Input Voltage: 120V AC (Dimmable)
  • Optional Driver Input Voltage: 277V-347V AC (Not Dimmable)
  • Power factor: 0.98
  • Energy Used: 17W
  • Halogen equivalent: 100W
  • Beam Angle: 100°
  • Light colour options: Warm White 2700K, Soft White 3000K, Neutral White 4000K
  • Light output: Warm 1000 lm, Soft 1050 lm, Neutral 1100 lm
  • CRI 80
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Energy Star, Wet Location, Air-Tight

DIMENSIONS:

  • OD 6 3/4? square; ID 6 1/8?; Thickness 1/2?
  • Cut out: 6 1/4″ to 6 1/2″
  • Junction Box Dimensions (with driver inside): 3 5/16″ x 3 5/16″ x 1 1/8″

Suitable for wet locations.

Extension Calbes

  • EXC20
  • EXC6

Rough-in Plates

  • RIP6
  • MP6-2
  • FRP6

120-347V / 0-10V Dimmable

  • LLL-LD2050T

Specification Sheets
LL6S

pdf files
LL6S-27K | LL6S-30K | LL6S-40K

IES files
LL6S-27K | LL6S-30K | LL6S-40K


Links to Energy Star: LL6S-27K | LL6S-30K | LL6S-40K
