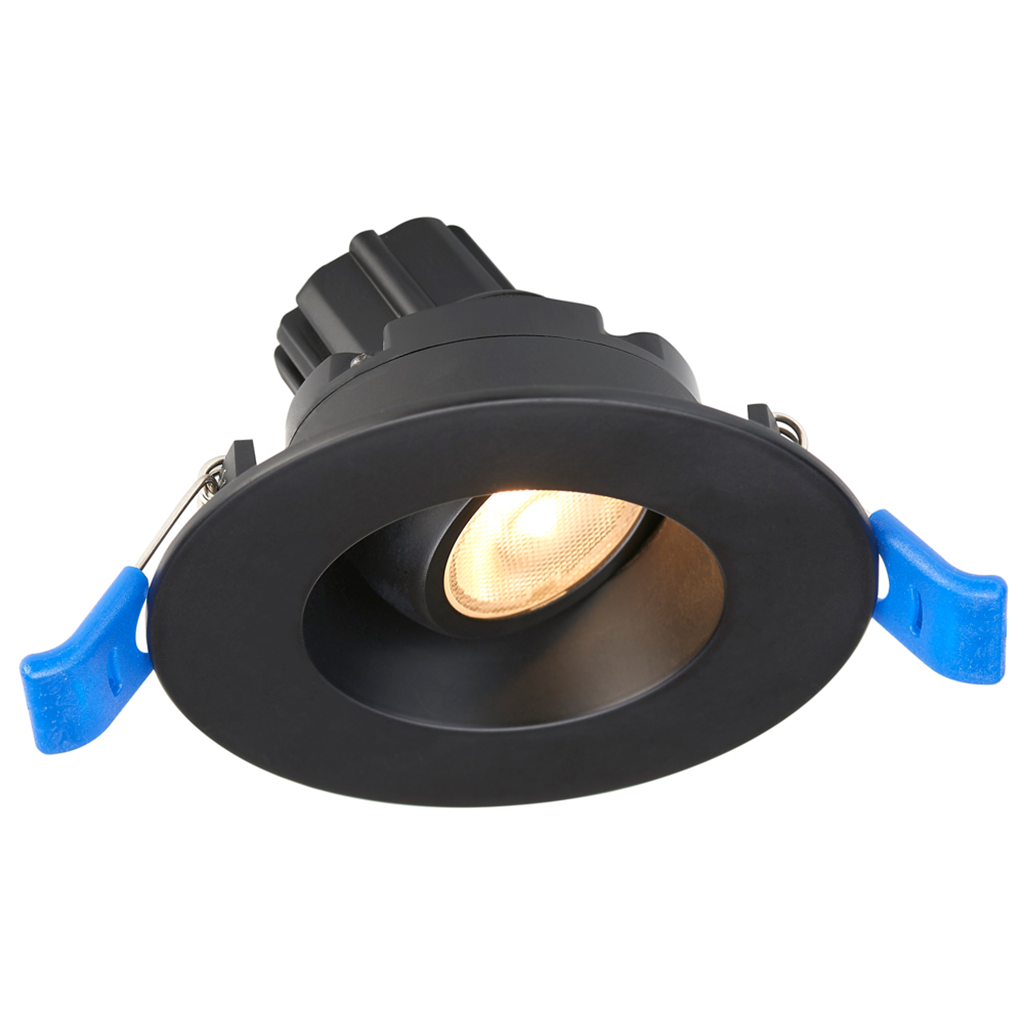

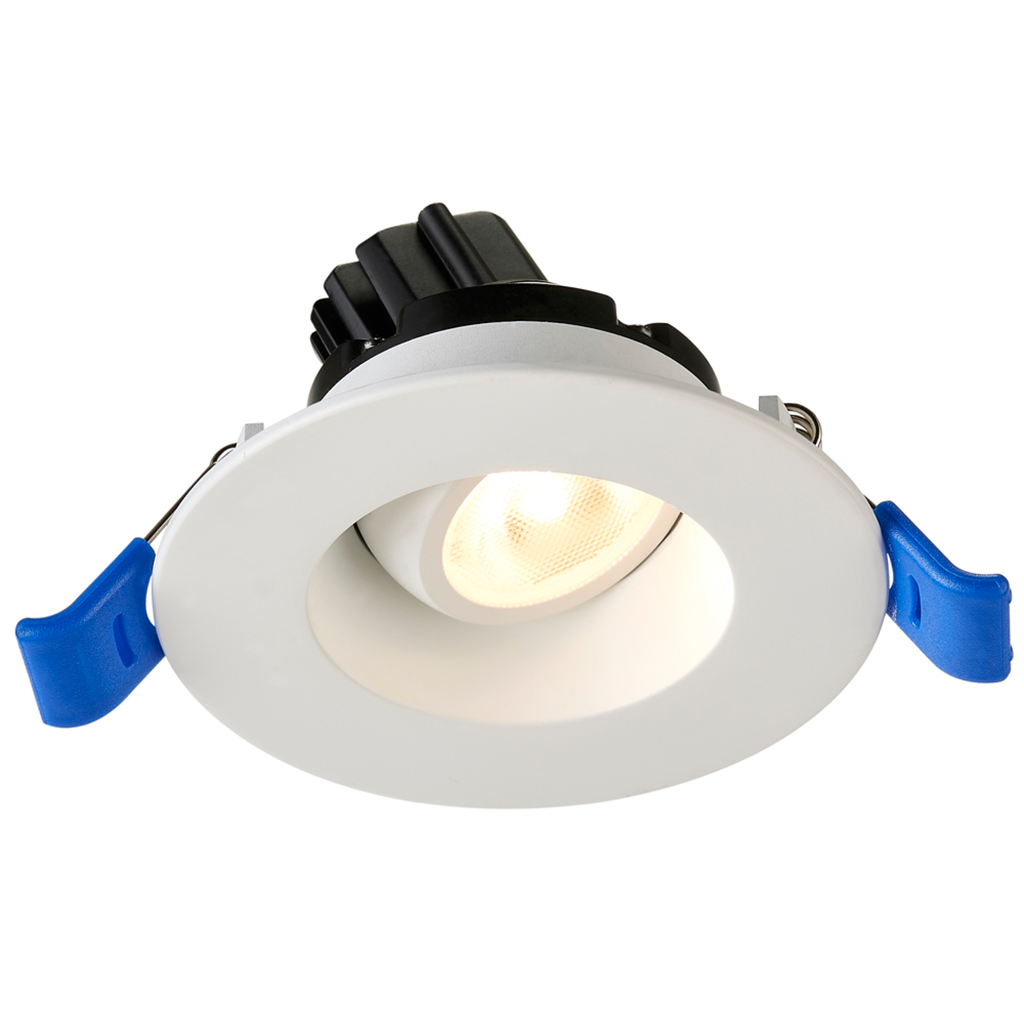

Lotus LRG2-HO – 5.5 Watt 2″ High Output Round Regressed LED Gimbal – 120V

SKU : N/A Categories : , , , , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 55.44

Save on labor with the Lotus Lotus LED Lights High Output 2″ round regressed LED gimbal downlight. Installation is simple, just cut a hole in the ceiling and the attached spring clips snap the fixture into place – no housing required! These slim recessed fixtures are air-tight, IC-rated for direct contact with insulation, and suitable for damp or wet locations. A high CRI provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings and highlighting artwork or other features.

The LRG2-HO is a 2″ round 5.5 watt high output regressed LED gimbal downlight, available in White and Black finish with the following features:

  • Includes standard dimmable driver
  • 24° beam angle with 10° tilt each direction and 360° rotation
  • 1 3/4″ thin – install where ceiling space is limited
  • IC rated – no housing required
  • High CRI of 90+ for true color rendering
  • IP54 rated
  • Suitable in wet and damp locations
  • Oil based spray painted – scratch resistant and smooth finish
  • Title-24 certified
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty

Product Information

CONSTRUCTION:
2″ Round Regressed Gimbal fixture with integral LEDs. Class 2 Isolated external driver factory installed inside junction box.
One driver for every fixture required.

MOUNTING:
Cut hole in ceiling and snap fixture in opening with attached spring clips.
Ceiling Clearance Required: 1 1/2″ with driver remotely installed, 5″ if driver is next to the fixture.

  • Default Driver: 120V input Triac Dimmable with most CL dimmers
  • Optional Driver: 120V-347V input 0-10V Dimmable
  • Energy Used: 5.5W
  • Power factor: > 0.95
  • Beam Angle: 24° Beam with 20° tilt and 360° rotation
  • Color Temperatures: 2700K / 3000K / 3500K / 4000K / 5000K / Dim to Warm 3000-1800K
  • Light Output 5.5W: 2700K – 450 lm, 3000K – 490 lm, 3500K – 500 lm, 4000K – 530 lm, 5000K – 550 lm, Dim to Warm – 430 lm
  • CRI 90+
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus approved, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Energy Star(only LRG2-HO and except Dim to Warm), T24, Air-Tight

DIMENSIONS:

  • ID 2 1/2″, OD 3″; Thickness 1 3/4″
  • Cut out: 2 1/2″ to 2 3/4″
  • Junction Box Dimensions (with driver inside): 2 3/4″ x 2″ x 1 3/4″

Suitable for wet locations and soffit installations.

ACCESSORIES  Sold Separately

Optional 120V – 347V Driver
0-10V Dimmable Cat # LLL-LD0612T

Low Voltage Extension Cables
6ft – cat # EXC6 20ft – cat # EXC20

Rough-In Plates – cat # RIP2

RIP2 n

Specification Sheets
LRG2-HO

PDF files

pdf file LRG2-27K-HO | pdf file LRG2-30K-HO | LRG2-35K-HO | pdf file LRG2-40K-HO | pdf file LRG2-50K-HO | pdf file LRG2-3018K-HO

IES files

ies file LRG2-27K-HO | ies file LRG2-30K-HO | ies file LRG2-35K-HO | ies file LRG2-40K-HO | ies file LRG2-50K-HO | ies file LRG2-3018K-HO

Links to Energy Star

LRG2-27K-HO | LRG2-30K-HO | LRG2-35K-HO | LRG2-40K-HO | LRG2-50K-HO
