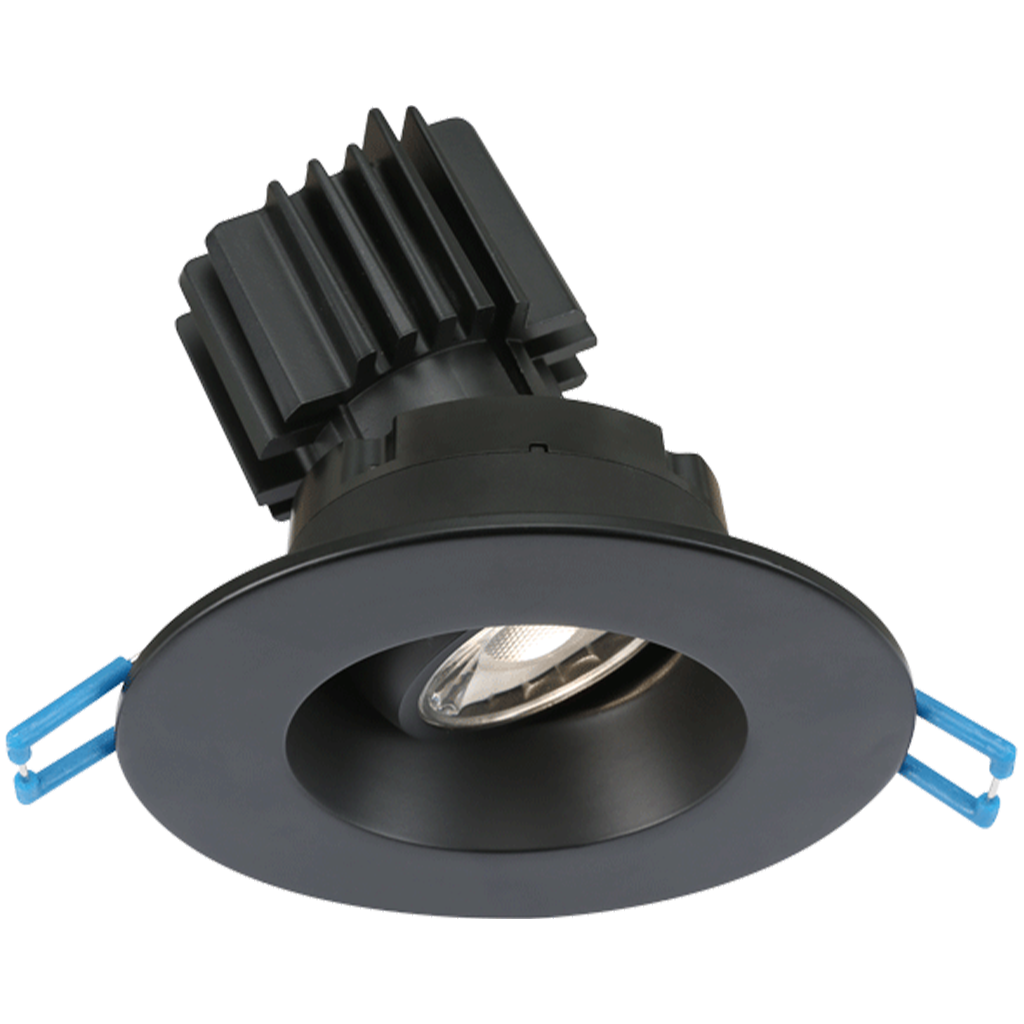

Lotus LRG3-4CCT+DTW-HO-WH 3″ Round Regressed LED Gimbal 4CCT + Dim to Warm – 120V

SKU : N/A Categories : , , , , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 78.54

Save on labor with the Lotus 3″ round regressed HIGH OUTPUT 11watt LED gimbal downlight. Installation is simple, just cut a hole in the ceiling and the attached spring clips snap the fixture into place – no housing required! These slim recessed fixtures are air-tight, IC-rated for direct contact with insulation, and suitable for damp or wet locations. A high CRI provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings and highlighting artwork or other features.

The LRG3-4CCT+DTW-HO Model is a 3″ round HIGH OUTPUT 11Watt regressed LED gimbal downlight, available in White Trim option with the following features:

  • 4 CCT + Dim to Warm User Selectable Recessed Gimbal Fixture
  • Light options: 2200K, 2700K, 3000K, 4000K, Dim To Warm 3500K to 2700K
  • Air-Tight, Wet Location, Insulated and Non Insulated Ceilings
  • CRI 90+ for True Colour Rendering
  • Triac Dimmable with most CL dimmers 120V input
  • 0-10V Dimmable Option with 120V to 347V input
  • External Driver Inside Connection Box – No Junction Box Needed
  • Warranty: 10 Year on Residential, 5 Year on Commercial Installations
  • cULus Listed

Product Information

CONSTRUCTION:
Round 3″ Regressed Gimbal fixtures with integral LEDs. Class 2 Isolated external driver factory installed inside junction box.
One driver for every fixture required.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 2 1/2″ for Romex, 3 1/2″ for MC or BX installations

  • Default Driver: 120V – Triac Dimmable with most CL dimmers
  • Optional Driver: 120V-347V 0-10V Dimmable
  • Power factor: > 0.98
  • Energy Used: 11W
  • Halogen equivalent: 90W
  • Beam Angle: 38° with 20° tilt and 360° rotation
  • Light colour options: 2200 | 2700 | 3000 | 4000 | Dim to Warm 3500K to 2700K
  • Light output: 930 | 945 | 950 | 960 | DTW 955 lm
  • CRI: 90 +
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus approved, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Air-Tight

DIMENSIONS:

  • ID 3 1/4″; OD 4 1/4″; Thickness 2 1/2″
  • Cut out: 3 1/4″ to 3 1/2″
  • Junction Box Dimensions (with driver inside): 3 1/4″ x 2 1/4″ x 1 1/2″

Suitable for wet locations and soffit installations.

120-347V / 0-10V Dimmable Driver

  • LLL-LD1025T3

Mounting Plates

  • Flanged: cat # FRP312
  • Flat: cat # RIP312

Jumper Cables 6 ft & 10ft

  • cat # EXC6
  • cat # EXC20

Spec Sheet LRG3-4CCT+DTW-HO

PDF files
pdf file at 2200K | pdf file at 2700K |pdf file at 3000K | pdf file at 4000K | pdf file at Dim to Warm 3500K to 2700K

IES files
IES file at 2200K | IES file at 2700K | IES file at 3000K | IES file at 4000K | IES file at Dim to Warm 3500K to 2700K

Video

Customer Reviews

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

You may also like…

Lotus 347V / 0-10V Dimmable Driver – LLL-LD1025T3

Lotus 347V / 0-10V Dimmable Driver – LLL-LD1025T3

CAD$ 26.18 Read more
The LLL-LD1025T3 is a 120-347V, 0-10 dimmable driver option for the Lotus LED LSG3-HO, LRG3-HO and LL3R series recessed downlights. The 120V driver will be replaced with this 120-347V driver before shipping. Compatible LED Driver for Lotus LED LSG3-HO, LRG3-HO and LL3R series downlight, can be purchased by it self or with a fixture.
Lotus Flanged Rough-In Plate with Expandable Bars – FRP312

Lotus Flanged Rough-In Plate with Expandable Bars – FRP312

CAD$ 11.97 Read more
Utilize this new construction rough-in plate to assist with placement and pre-wiring your Lotus LED Lights.
  • 14″ to 24″ adjustable bars included
  • 1/2″ flange for precise drywall installation
  • Integrated driver-connection box on plate
  • Model : FRP312

Downloads:

Certifications
Lotus Rough-in Plate for 3″ Square and Round Regressed Gimbals – RIP312

Lotus Rough-in Plate for 3″ Square and Round Regressed Gimbals – RIP312

CAD$ 9.24 Read more
Utilize this new construction rough-in plate is for use with Lotus LED 3″ Square and Round Regressed Gimbals. Use this rough-in plate for easier layout planning and new construction pre-wiring. Made of galvanized steel and is 26″ long to fit up to 24″ spaced studs/joists. Minimum Order Quantity : 5pcs

Downloads:

Certifications
Lotus 20′ Extension Cord – EXC20

Lotus 20′ Extension Cord – EXC20

CAD$ 12.45 Read more
The EXC20 is a 20 foot extension cord used to allow for remote mounting of the driver for your Lotus LED downlight. This inter-linkable cord easily and securely extends the low voltage cable between the fixture and diver. A maximum of 40 feet extension is allowed.

Downloads:

Certifications

Related products

Lotus LD4R-HO-IT – 18 Watt 4″ High Output Round Deep Regressed LED Downlight – Trimless Model – 120V

Lotus LD4R-HO-IT – 18 Watt 4″ High Output Round Deep Regressed LED Downlight – Trimless Model – 120V

CAD$ 127.82 Read more
The new deep regressed models by Lotus LED Lights provide efficient LED illumination without glare in an elegantly designed downlight. The deep reflector and trimless design provides an architectural aesthetic, and open-plenum rated armored cable connection are suitable for commercial application. Being IC-rated, these lights can be installed right into the ceiling without housing and, being only 3.5" deep, can be installed where ceiling space is limited. A high CRI of 90+ means you'll enjoy true color rendering in the area of illumination. Comes standard as 120V dimmable, with optional 0-10V dimmable driver available. Requires use of flanged rough-in-plate (FRP412) - see recommended accessories. The LD4R-HO-IT is a 4" round 18 watt deep regressed trimless LED downlight, available in silver, black and white reflector with the following features:
  • Includes standard dimmable driver
  • Triac Dimmable with most CL dimmers 120V input
  • 0-10V Dimmable Option 120V – 347V input
  • IC-rated
  • Wet and damp location rated
  • High CRI of 90+ for true color rendering
  • Open plenum rated armored cable and metal connectors
  • Fast and easy installation and no junction box required
  • Air-tight
  • Energy Star
  • Title-24 certified
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty

Lotus LRG4-HO – 15 Watt 4″ High Output Regressed LED Gimbal – 120V

Lotus LRG4-HO – 15 Watt 4″ High Output Regressed LED Gimbal – 120V

CAD$ 90.86 Read more
Save on labor with the Lotus LED Lights 4″ round regressed LED gimbal downlight. Installation is simple, just cut a hole in the ceiling and the attached spring clips snap the fixture into place with no housing required. These recessed fixtures are air-tight, IC-rated for direct contact with insulation, and suitable for damp or wet locations. A high CRI provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings and highlighting artwork or other features. The LRG4-HO model is a 4″ round 15 watt high output regressed LED gimbal downlight in a White, Black and Oil Rubbed Bronze finish, with the following features:
  • Includes standard dimmable driver
  • 2700K, 3000K, 3500K, 4000K, 5000K, Dim To Warm 3000K to 2000K, and 5CCT and Dim To Warm 3000K to 1800K
  • 38° beam angle with 10° tilt each direction and 360° rotation
  • 3″ thin – install where ceiling space is limited
  • IC rated – no housing required
  • High CRI of 90+ for true color rendering
  • IP54 rated
  • Suitable in wet and damp locations
  • Oil based spray painted – scratch resistant and smooth finish
  • Title-24 certified
  • Energy Star
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty
Lotus LL4G – 15 Watt & 11.4 Watt 4″ LED Gimbal – 120V

Lotus LL4G – 15 Watt & 11.4 Watt 4″ LED Gimbal – 120V

CAD$ 67.76 Read more
The Lotus LED Lights 4" round LED gimbal downlights are designed to go where no other fixture can. Being IC-rated, they can be installed directly into an insulated ceiling without requiring a recessed housing and, being only 2" deep, can be installed where ceiling space is limited. Installation is simple - just cut a hole and the attached spring clips snap the fixture into place. These gimbal downlights emit a 38º beam of light that is adjustable in a 10º tilt in each direction and 360º rotation. A high CRI of 90+ means you'll enjoy true color rendering in the area of illumination. Ideal applications include sloped ceilings, highlighting artwork, cabinets and recessed alcoves. The LL4G is a 4" round 15w OR 11.4w HIGH or LOW output LED gimbal downlight in a white, black and brushed nickel finish with the following features:
  • Includes standard dimmable driver
  • 2700K, 3000K, 3500K, 4000K, 5000K, Dim To Warm 3000K to 2000K, and 5CCT
  • Regular 11.4W and High Output 15W
  • IC-rated
  • 38º beam of light that is adjustable in a 10º tilt in each direction and 360º rotation
  • Wet and damp location rated
  • High CRI of 90+ for true color rendering
  • IP54
  • Air-tight
  • Energy Star
  • Title-24 certified
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty

Lotus LL3G – 7.5 Watt 3″ LED Gimbal -120V

Lotus LL3G – 7.5 Watt 3″ LED Gimbal -120V

CAD$ 52.36 Read more
The Lotus LED Lights 3" round LED gimbal downlights are designed to go where no other fixture can. Being IC-rated, they can be installed directly into an insulated ceiling without requiring a recessed housing and, being only 1-3/4" deep, can be installed where ceiling space is limited. Installation is simple - just cut a hole and the attached spring clips snap the fixture into place. These gimbal downlights emit a 38º beam of light that is adjustable in a 10º tilt in each direction and 360º rotation. A high CRI of 90+ means you'll enjoy true color rendering in the area of illumination. Ideal applications include sloped ceilings, highlighting artwork, cabinets and recessed alcoves. The LL3G is a 3" round 7.5 watt LED gimbal downlight in a white finish that provides 600 lumens of 3000K warm white light and the following features:
  • Includes standard dimmable driver
  • IC-rated
  • 38º beam of light that is adjustable in a 10º tilt in each direction and 360º rotation
  • Wet and damp location rated
  • High CRI of 90+ for true color rendering
  • IP54
  • Air-tight
  • Energy Star
  • Title-24 certified
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty
Ceiling clearance required: 2.5" for Romex / 3 .5" for MC or BX installations

Recently Viewed Products

32Pack – Lotus Lotolite SC-DL09-D04H-A1-61RE – 4″ 9W Slim Round LED High-Lumen
featured

32Pack – Lotus Lotolite SC-DL09-D04H-A1-61RE – 4″ 9W Slim Round LED High-Lumen

CAD$ 443.52 Read more
Lotus LED Lights introduces Lotolite 4" Slim Round Panel High-Output LED downlight, offer you 5 different kelvin temperature options to choose from. Utilize the switch inside the integral driver that comes with each light to choose between warm 27K, warm 30K, warm-neutral 35K, neutral 40K, or daylight 50K white light color temperatures. Perfect option for contractors to stock up on, allowing you to suit each downlight to your customer's preferences. For the end user, these are also easy to change as preferences do. The versatility of choices combined with the quality you've come to expect from Lotus LED Lights, the original IC-rated thin downlight manufacturer, combined with a price that won't break your budget make these lights the best choice for you in your new construction or renovation light installations. The SC-DL09-D04H-A1-61RE a 9 watt, 4" Slim Round Panel High-Output LED Recessed downlight in a White or Black finish with the following features:
  • 32PCS in a PACK
  • Lotolite 4″ Slim Panel – delivering an impressive high-lumen output of 1000 lm from 9W
  • Up to 120 lm/W – Best in Class Efficiency
  • 5 CCT Field Selectable 2700-3000-3500-4000-5000K
  • Type IC, Air-Tight & Wet Location Rated – No Housing Required
  • CRI 90+ for true color rendering
  • White & Black trims in stock
  • Triac Dimmable with most CL dimmers 120V input
  • cETLus, FCC, Energy Star, JA8 certified
Lotus LED-2-S11W-EY-T-24D – 11 Watt 2″ Trimless Square Gimbal LED – 24°

Lotus LED-2-S11W-EY-T-24D – 11 Watt 2″ Trimless Square Gimbal LED – 24°

CAD$ 133.67 Read more
The new Lotus LED Lights trimless 2" Gimbal is an innovative, high-performance downlight that is IC-rated and can be installed directly into the ceiling with no housing required. Being only 5" tall, this fixture can be installed where ceiling space may be limited. Being CCT-tunable, they allow for the installer to easily select between 5 different white light color temperatures using a switch on the driver to best suit the application or end-users preference. A high CRI of 90+ means you get the truest color rendering in the illuminated area. Perfect for both commercial and residential applications. The LED-2-S11W-EY-T Square 11 watt 24° LED Trimless Gimbal, 5CCT-tunable with the following features.
  • 24° Beam Angle
  • Square Regressed Trimless Installation
  • Up to 20° tilt for slopped ceilings and wall washing
  • Power 11W
  • Light color options: 5CCT User Selectable 2700-3000-3500-4000-5000K, or Dim to Warm 3000K-1800K
  • 800 to 1000 lm Output – Designer Series High Performance Fixture
  • CRI 90+ for True Color Rendering
  • 5″ Deep – Fits in Limited Ceiling Space
  • Type IC Rated & Air-Tight – No Housing Required
  • Wet Location rated
  • 120V Triac Dimmable Driver Inside Connection Box – No Junction Box Needed
  • 5 Year Warranty
  • cETLus listed

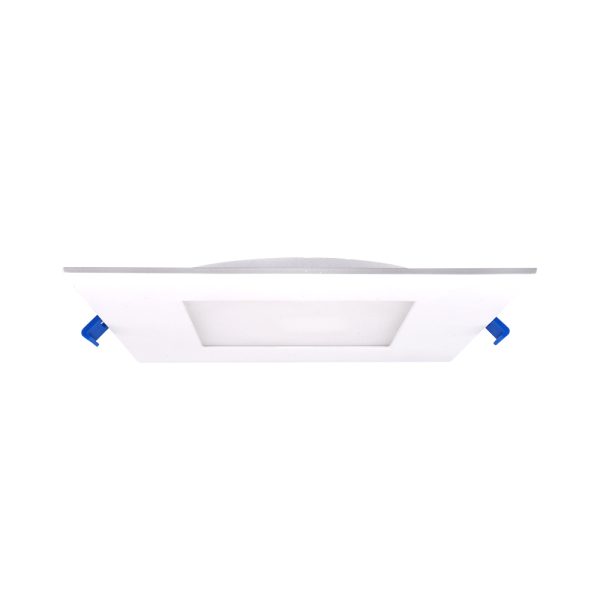

Lotus LED-6-S12W-5CCTWH-SQ – 12 Watt 6″ Ultra Slim Square Recessed LED Downlight
