Lotus LSD09-5CCT-24V – 2.5 Watt LED Mini Die-Cast Step Light – 24V

SKU : N/A Categories : , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 51.59

Lotus LED Light’s step lights are a great option for illuminating your stairwell, walkway area, or patio and deck. Dual horizontal and vertical mounting options and being suitable for outdoor and indoor applications make this step light a versatile option for your application.

The LSD09-5CCT-24V is a 24V Low Voltage, White or Black step light, available in 5CCT Color Temperature and with the following features:

  • Designed to highlight stairs, walls, and walkways

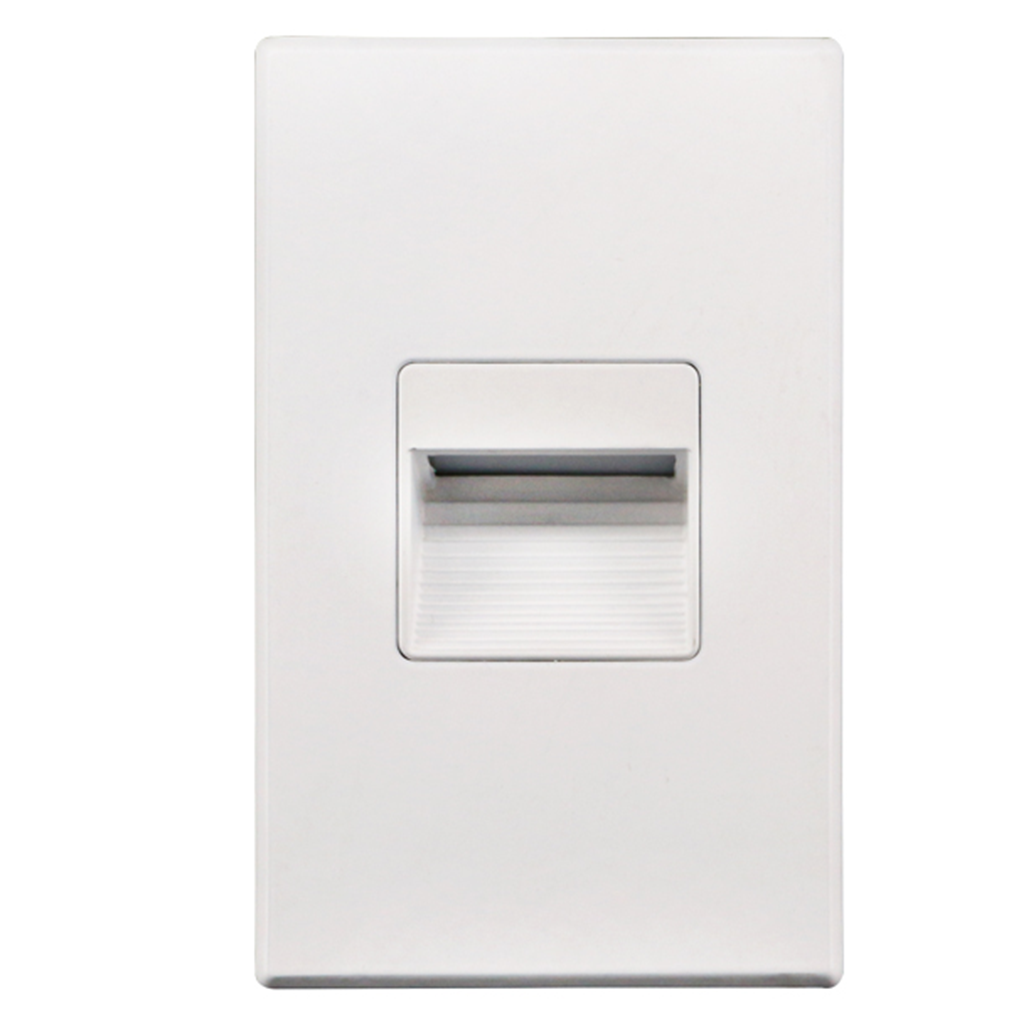

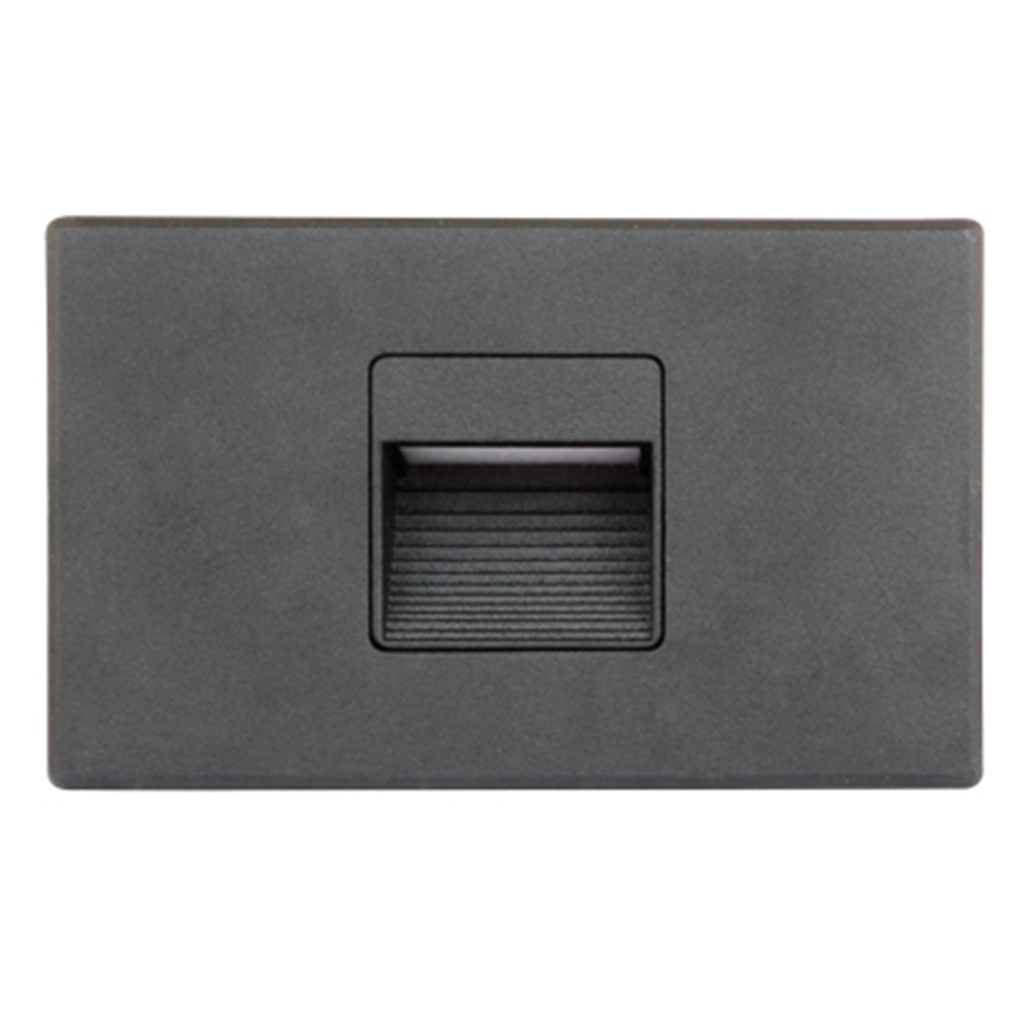

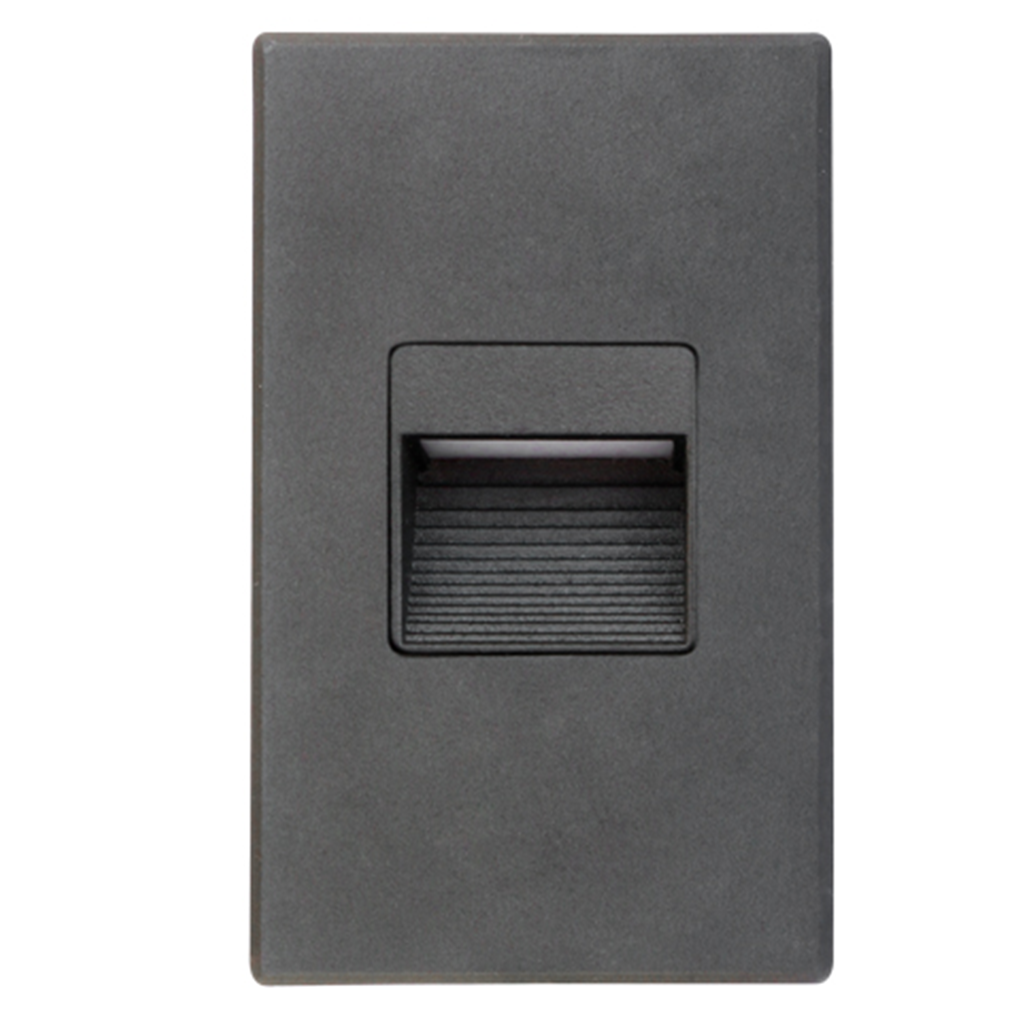

  • Dual Horizontal & Vertical mounting option in one fixture

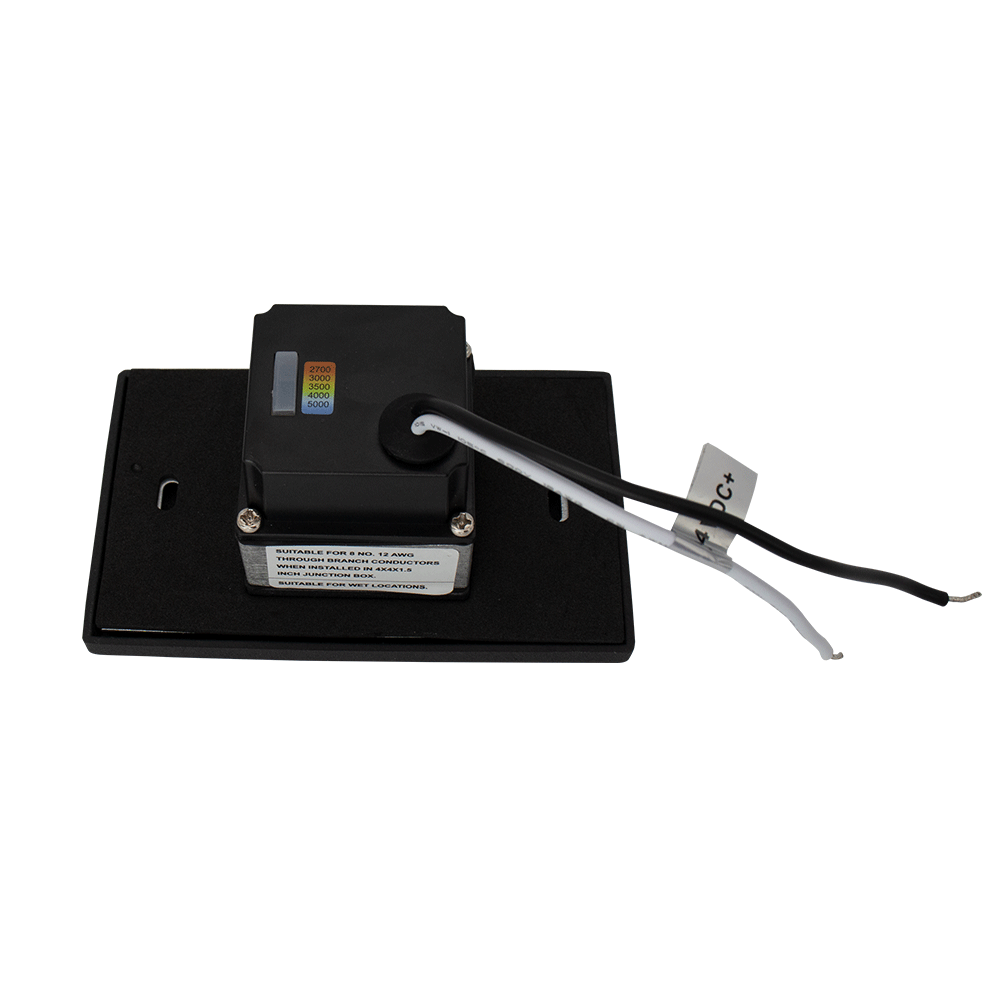

  • 5CCT user selectable
  • Dimmable with any 24V Dimmable Drivers.
  • 24V AC/DC Input options
  • Fits into 2″ x 4″ junction box
  • ETL listed for Wet Location

Product Information

MOUNTING:
Installation Instructions LSD

  • Input Voltage: 24V AC/DC
  • Total Power Consumption: 2.5W (5CCT)
  • Light options: 5CCT user selectable 2700-3000-3500-4000-5000
  • Light output: 80 to 100 lm
  • CRI 90 + for True Colour Rendering
  • White and Black stock options
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Certification: cETLus
  • Warranty: 5 Year

APPLICATIONS:

  • Stairways
  • Walkways
  • Patios
  • Decks

DIMENSIONS:

  • 4 1/2″ x 2 3/4″; 2″ thickness

Suitable for Indoor and Outdoor Installations

Spec Sheet:

Sales Sheet:

Installation Instructions:



Photometric PDF files:

    24V Input 5CCT:

PDF LSD09-5CCT-24V at 2700K

PDF LSD09-5CCT-24V at 3000K

PDF LSD09-5CCT-24V at 3500K

PDF LSD09-5CCT-24V at 4000K

PDF LSD09-5CCT-24V at 5000K



Photometric IES Files:

    24V Input 5CCT:

IES LSD09-5CCT-24V at 2700K

IES LSD09-5CCT-24V at 3000K

IES LSD09-5CCT-24V at 3500K

IES LSD09-5CCT-24V at 4000K

IES LSD09-5CCT-24V at 5000K
