Lotus LSG2-HO – 5.5 Watt 2″ High Output Square Regressed LED Gimbal – 120V

SKU : N/A Categories : , , , , , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 58.52

Save on labor with the Lotus LED Lights High Output 2″ square regressed LED gimbal downlight. Installation is simple, just cut a hole in the ceiling and the attached spring clips snap the fixture into place – no housing required! These slim recessed fixtures are air-tight, IC-rated for direct contact with insulation, and suitable for damp or wet locations. A high CRI provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings and highlighting artwork or other features.

The LSG2-HO is a 2″ square 5.5 watt high output regressed LED gimbal downlight, available in White and Black finish with the following features:

    • 120V operation and dimming
    • 24° beam angle with 10° tilt each direction and 360° rotation
    • 1 3/4″ thin – install where ceiling space is limited
    • IC rated – no housing required
    • High CRI of 90+ for true color rendering
    • IP54 rated
    • Suitable in wet and damp locations
    • Oil based spray painted – scratch resistant and smooth finish
    • Title-24 certified
    • Energy Star
    • 50,000 hour rated
    • 10 year residential / 5 year business application warranty

Product Information

CONSTRUCTION:
2″ Square Regressed Gimbal High Output fixture with integral LEDs. Class 2 Isolated external driver factory installed inside junction box.
One driver for every fixture required.

MOUNTING:
Cut hole in ceiling and snap fixture in opening with attached spring clips.
Ceiling Clearance Required: 1 1/2″ with driver remotely installed, 5″ if driver is next to the fixture.

  • Default Driver: 120V input Triac Dimmable with most CL dimmers
  • Optional Driver: 120V-347V input 0-10V Dimmable
  • Energy Used: 5.5W
  • Power factor: > 0.95
  • Beam Angle: 24° Beam with 20° tilt and 360° rotation
  • Color Temperatures: 2700K / 3000K / 3500K / 4000K / 5000K / Dim to Warm 3000-1800K
  • Light Output 5.5W: 2700K – 450 lm, 3000K – 490 lm, 3500K – 500 lm, 4000K – 530 lm, 5000K – 550 lm, Dim to Warm – 430 lm
  • CRI 90+
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus approved, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Energy Star(except Dim to Warm), T24, Air-Tight

DIMENSIONS:

  • ID 2 1/2″, OD 3″ Square; Thickness 1 3/4″
  • Cut out: 2 1/2″ to 2 3/4″
  • Junction Box Dimensions (with driver inside): 2 3/4″ x 2″ x 1 3/4″

Suitable for wet locations and soffit installations.

ACCESSORIES  Sold Separately

Optional 120V – 347V Driver
0-10V Dimmable Cat # LLL-LD0612T

Low Voltage Extension Cables
6ft – cat # EXC6 20ft – cat # EXC20

Rough-In Plates – cat # RIP2

RIP2 n

Specification Sheets
LSG2-HO

PDF files

pdf file LSG2-27K-HO | pdf file LSG2-30K-HO | pdf file LSG2-35K-HO | pdf file LSG2-40K-HO | pdf file LSG2-50K-HO | pdf file LSG2-3018K-HO

IES files

ies file LSG2-27K-HO | ies file LSG2-30K-HO | ies file LSG2-35K-HO | ies file LSG2-40K-HO | ies file LSG2-50K-HO | ies file LSG2-3018K-HO

Links to Energy Star

LSG2-27K-HO | LSG2-30K-HO | LSG2-35K-HO | LSG2-40K-HO | LSG2-50K-HO

Video

Customer Reviews

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

You may also like…

Lotus 347V / 0-10V Dimmable Driver – LLL-LD0612T

Lotus 347V / 0-10V Dimmable Driver – LLL-LD0612T

CAD$ 26.18 Read more
The LLL-LD0612-T is a 120-347V, 0-10 dimmable driver option for the Lotus LED high output LL2G-HO and LRG2-HO series recessed downlights. The 120V driver will be replaced with this 120-347V driver before shipping. Compatible LED Driver for Lotus LED high output LL2G-HO, LRG2-HO and LSG2-HO series downlight, can be purchased by it self or with a fixture.
Lotus 20′ Extension Cord – EXC20

Lotus 20′ Extension Cord – EXC20

CAD$ 12.45 Read more
The EXC20 is a 20 foot extension cord used to allow for remote mounting of the driver for your Lotus LED downlight. This inter-linkable cord easily and securely extends the low voltage cable between the fixture and diver. A maximum of 40 feet extension is allowed.

Downloads:

Certifications
Lotus 6′ Extension Cord – EXC6

Lotus 6′ Extension Cord – EXC6

CAD$ 8.32 Read more
The EXC6 is a 6 foot extension cord used to allow for remote mounting of the driver for your Lotus LED downlight. This inter-linkable cord allows you to easily and securely extend the low voltage cable between the fixture and driver. A maximum of 40 feet extension allowed.

Downloads:

Certifications

Related products

Lotus LD6R – 18 Watt 6″ Deep Regressed LED Downlight – 120V

Lotus LD6R – 18 Watt 6″ Deep Regressed LED Downlight – 120V

1 Ratings
CAD$ 105.00 Read more
The new deep regressed models by Lotus LED Lights provide efficient LED illumination without glare in an elegantly designed downlight. The deep reflector and high-end finish trim present an architectural aesthetic, and open-plenum rated armored cable connection are suitable for commercial application. Being IC-rated, these lights can be installed right into the ceiling without housing and, being only 3.5" deep, can be installed where ceiling space is limited. A high CRI of 90+ means you'll enjoy true color rendering in the area of illumination. Comes standard as 120V dimmable, with optional 0-10V dimmable driver available. The LD6R is a 6" round 18 watt deep regressed LED downlight, available in 5 different reflector and trim options with the following features.
  • 120V dimmable (0-10V dimmable driver available)
  • IC-rated
  • Wet and damp location rated
  • High CRI of 90+ for true color rendering
  • Open plenum rated armored cable and metal connectors
  • Fast and easy installation and no junction box required
  • Air-tight
  • Energy Star
  • Title-24 certified
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty

Lotus LRG6-HO – 18 Watt 6″ High Output Regressed LED Gimbal – 120V

Lotus LRG6-HO – 18 Watt 6″ High Output Regressed LED Gimbal – 120V

CAD$ 100.10 Read more
Save on labor with the Lotus LED Lights 6" round regressed LED gimbal downlight. Installation is simple, just cut a hole in the ceiling and the attached spring clips snap the fixture into place with no housing required. These recessed fixtures are air-tight, IC-rated for direct contact with insulation, and suitable for damp or wet locations. Being CCT tunable, they allow for you to select between 5 different white light color temperatures- from warm 27K to daylight 50K and every color temperature in between. A high CRI provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings and highlighting artwork or other features. The LRG6-HO is a 6" round 18 watt regressed LED gimbal downlight available in White, Black and Oil Rubbed Bronze finish with the following features:
  • Includes standard dimmable driver
  • 2700K, 3000K, 3500K, 4000K, 5000K, Dim To Warm 3000K-2000K or 3000K-1800K, and 5CCT
  • 38° beam angle with 10° tilt each direction and 360° rotation
  • 3.5" thin - install where ceiling space is limited
  • IC rated - no housing required
  • High CRI of 90+ for true color rendering
  • IP54 rated
  • Suitable in wet and damp locations
  • Oil based spray painted - scratch resistant and smooth finish
  • Title-24 certified
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty
Lotus LRG4-HO – 15 Watt 4″ High Output Regressed LED Gimbal – 120V

Lotus LRG4-HO – 15 Watt 4″ High Output Regressed LED Gimbal – 120V

CAD$ 90.86 Read more
Save on labor with the Lotus LED Lights 4″ round regressed LED gimbal downlight. Installation is simple, just cut a hole in the ceiling and the attached spring clips snap the fixture into place with no housing required. These recessed fixtures are air-tight, IC-rated for direct contact with insulation, and suitable for damp or wet locations. A high CRI provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings and highlighting artwork or other features. The LRG4-HO model is a 4″ round 15 watt high output regressed LED gimbal downlight in a White, Black and Oil Rubbed Bronze finish, with the following features:
  • Includes standard dimmable driver
  • 2700K, 3000K, 3500K, 4000K, 5000K, Dim To Warm 3000K to 2000K, and 5CCT and Dim To Warm 3000K to 1800K
  • 38° beam angle with 10° tilt each direction and 360° rotation
  • 3″ thin – install where ceiling space is limited
  • IC rated – no housing required
  • High CRI of 90+ for true color rendering
  • IP54 rated
  • Suitable in wet and damp locations
  • Oil based spray painted – scratch resistant and smooth finish
  • Title-24 certified
  • Energy Star
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty
Lotus LRG3 – 7.5 Watt 3″ Round Regressed LED Gimbal – 38° Beam Angle – 120V

Lotus LRG3 – 7.5 Watt 3″ Round Regressed LED Gimbal – 38° Beam Angle – 120V

CAD$ 60.06 Read more
Save on labor with the Lotus 3" round regressed LED gimbal downlight. Installation is simple, just cut a hole in the ceiling and the attached spring clips snap the fixture into place - no housing required! These slim recessed fixtures are air-tight, IC-rated for direct contact with insulation, and suitable for damp or wet locations. A high CRI provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings and highlighting artwork or other features. The LRG3 Model is a 3" 38° round 7.5 watt regressed LED gimbal downlight in a white finish that provides 600 lumens of 3000K warm white light and the following features:
  • 38° Beam Angle
  • Includes standard dimmable driver
  • 38° beam angle with 20° tilt and 360° rotation
  • 2-1/2" thin - install where ceiling space is limited
  • IC rated - no housing required
  • High CRI of 90+ for true color rendering
  • IP54 rated
  • Suitable in wet and damp locations
  • Oil based spray painted - scratch resistant and smooth finish
  • Title-24 certified
  • Energy Star
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty

Recently Viewed Products

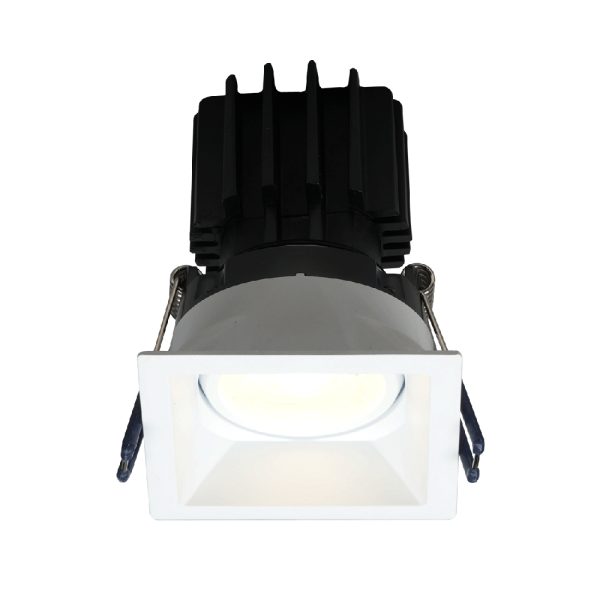

Lotus HIGH OUTPUT 11 Watt 3″ Square Regressed LED Gimbal Thin Trim – LSG3-HO-TT
