Lotus LED Lights - 3" Square Regressed LED Gimbal

Lotus LSG3 – 7.5 Watt 3″ Square Regressed LED Gimbal – 38° Beam Angle – 120V

SKU : N/A Categories : 3" Gimbal, 3" Indoor Fixtures, 3" Outdoor Fixtures, Adjustable Gimbal, Eyeball Gimbal Indoor Fixtures, Eyeball Gimbal Outdoor Fixtures, Indoor Lighting, Outdoor Lighting, Regressed Gimbal, Square Gimbal Tags : lotus-led-lights, lsg3 Brand: Lotus LED Lights

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :

CAD$ 64.68

Trim Color

White
Black

Color Temperature

2700K
3000K
4000K
3500K
5000K
DTW (3K-2K)
5CCT (27K-5K)

Clear

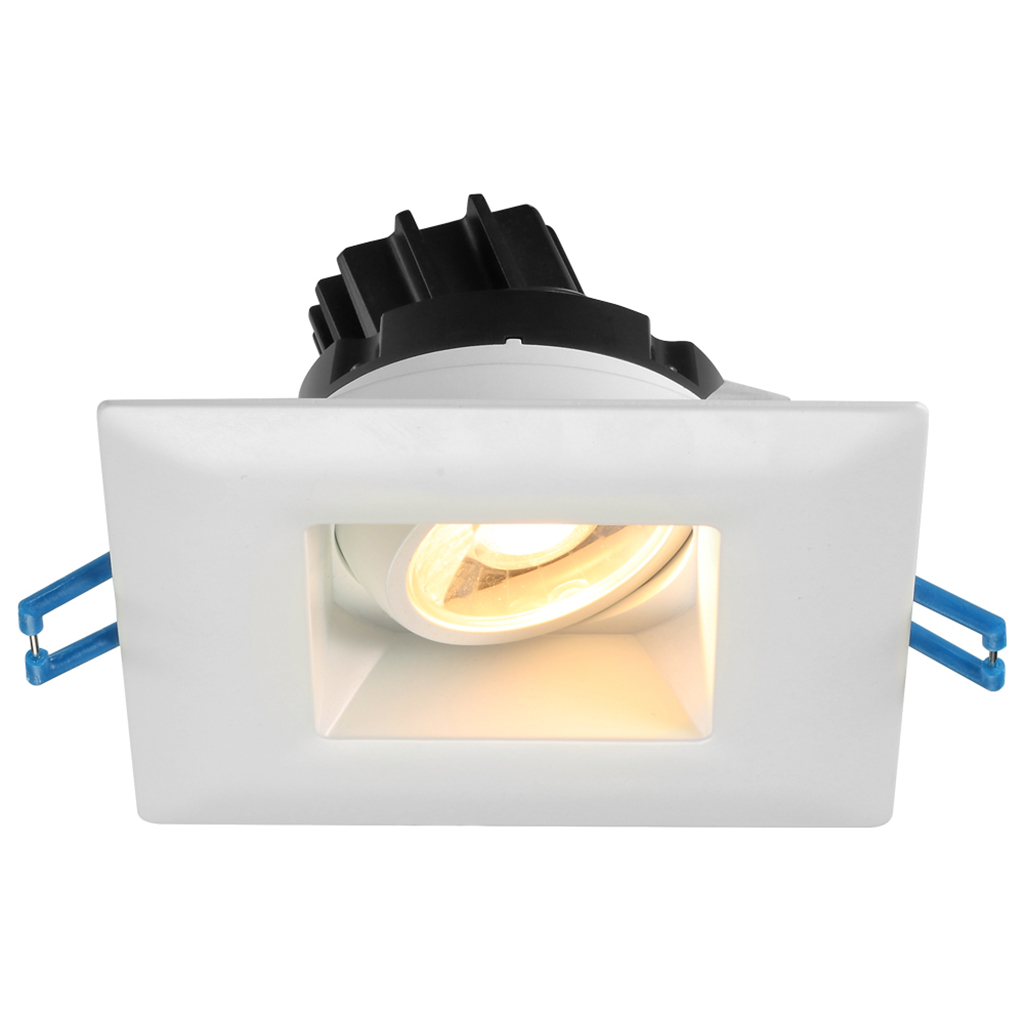

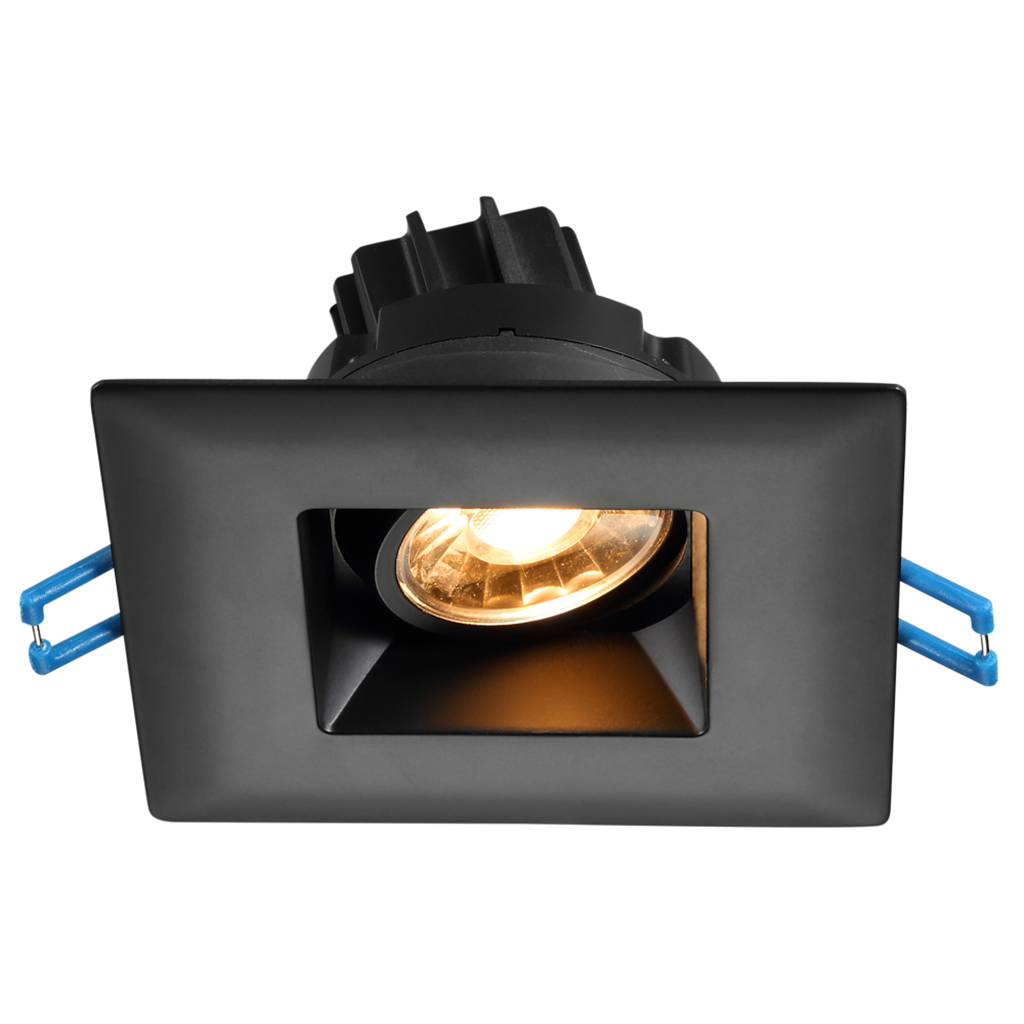

Save on labor with the Lotus LED Lights 3″ square regressed LED gimbal downlight. Installation is simple, just cut a hole in the ceiling and the attached spring clips snap the fixture into place – no housing required! These slim recessed fixtures are air-tight, IC-rated for direct contact with insulation, and suitable for damp or wet locations. A high CRI provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings and highlighting artwork or other features.

The LSG3 is a 3″ 38° square 7.5 watt regressed LED gimbal downlight in a white and black finish with following features:

38° Beam Angle
Includes standard dimmable driver
2700K, 3000K, 3500K, 4000K, 5000K, Dim To Warm 3000K to 2000K, and 5CCT
38° beam angle with 10° tilt each direction and 360° rotation
2-1/2″ thin – install where ceiling space is limited
IC rated – no housing required
High CRI of 90+ for true color rendering
IP54 rated
Suitable in wet and damp locations
Oil based spray painted – scratch resistant and smooth finish
Title-24 certified
Energy Star
50,000 hour rated
10 year residential / 5 year business application warranty

Product Information

Technical Specifications
Accessories
Downloads

CONSTRUCTION:
Square 3″ Regressed Gimbal fixtures with integral LEDs. Class 2 Isolated external driver factory installed inside junction box.
One driver for every fixture required.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 2 1/2″ for Romex, 3 1/2″ for MC or BX installations

Default Driver Input Voltage: 120V AC (Dimmable)
Optional Driver Input Voltage: 277V-347V AC (Not Dimmable)
Power factor: > 0.98
Energy Used: 7.5W
Halogen equivalent: 50W
Beam Angle: 38° Beam with 20° tilt and 360° rotation
Light colour options: Warm White 2700K, Soft White 3000K, Bright White 3500K, Neutral White 4000K and Daylight White 5000K, Dim to Warm 3000K to 2000K, 5CCT user selectable 2700K to 5000K
Light output: Warm White 580 lm, Soft White 600 lm, Bright White 620 lm, Neutral White 630 lm and Daylight White 650 lm, Dim To Warm 500 lm
CRI: 90 +
Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
Compliance: cULus approved, certified to CSA STD. C22.2 No. 250.0
Rated: Type IC (Direct Contact with Insulation), Energy Star, Air-Tight
