Lotus LY4RCS – 9 Watt 4″ Original Super Thin Round Recessed LED Downlight (1st Generation) – 120V

Sale!
SKU : N/A Categories : , , , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 40.60 CAD$ 26.60

The 4″ round original thin round recessed downlight by Lotus LED Lights is the original thin LED downlight. Being IC-rated, they install quickly and easily directly into the ceiling with no can required. Their thin 1/2″ depth allows for installation directly under ceiling joists for maximum layout flexibility. Constructed of a durable die cast aluminum body for optimal heat dissipation.

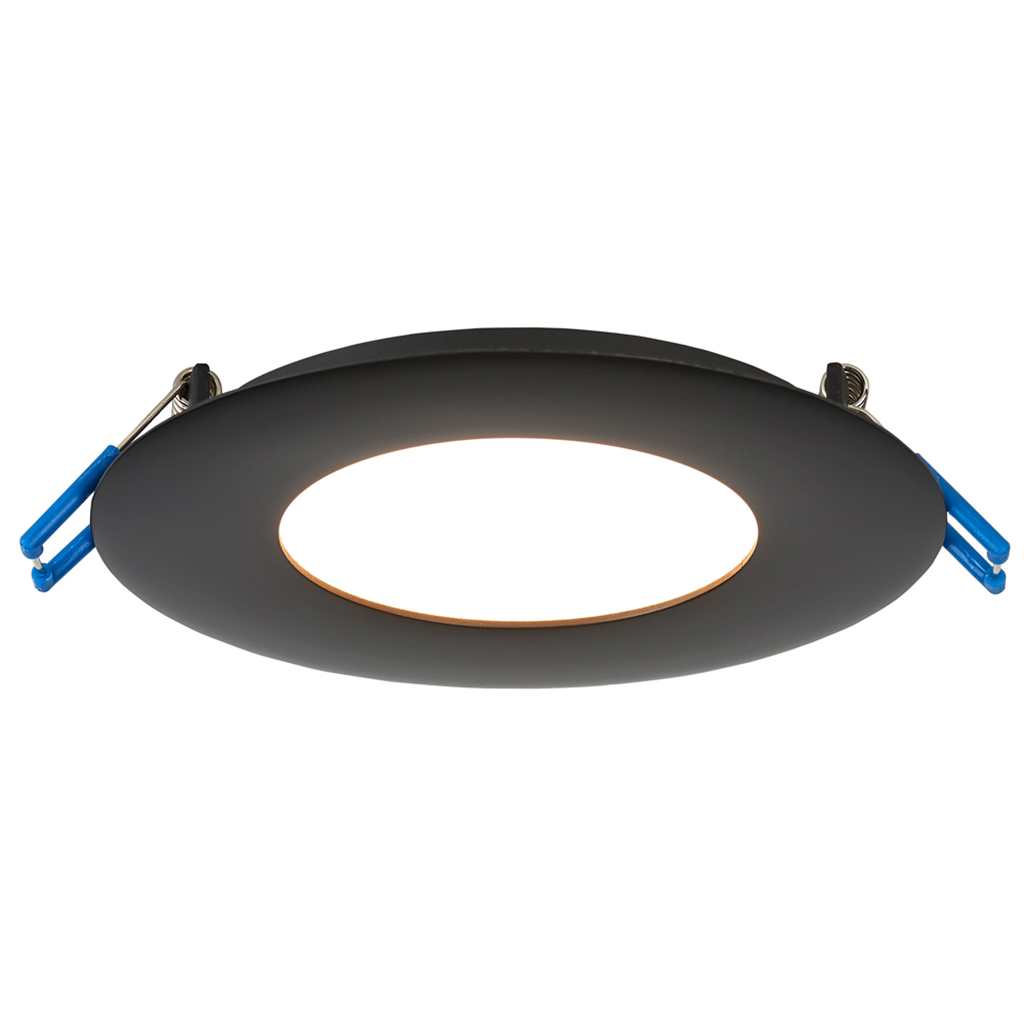

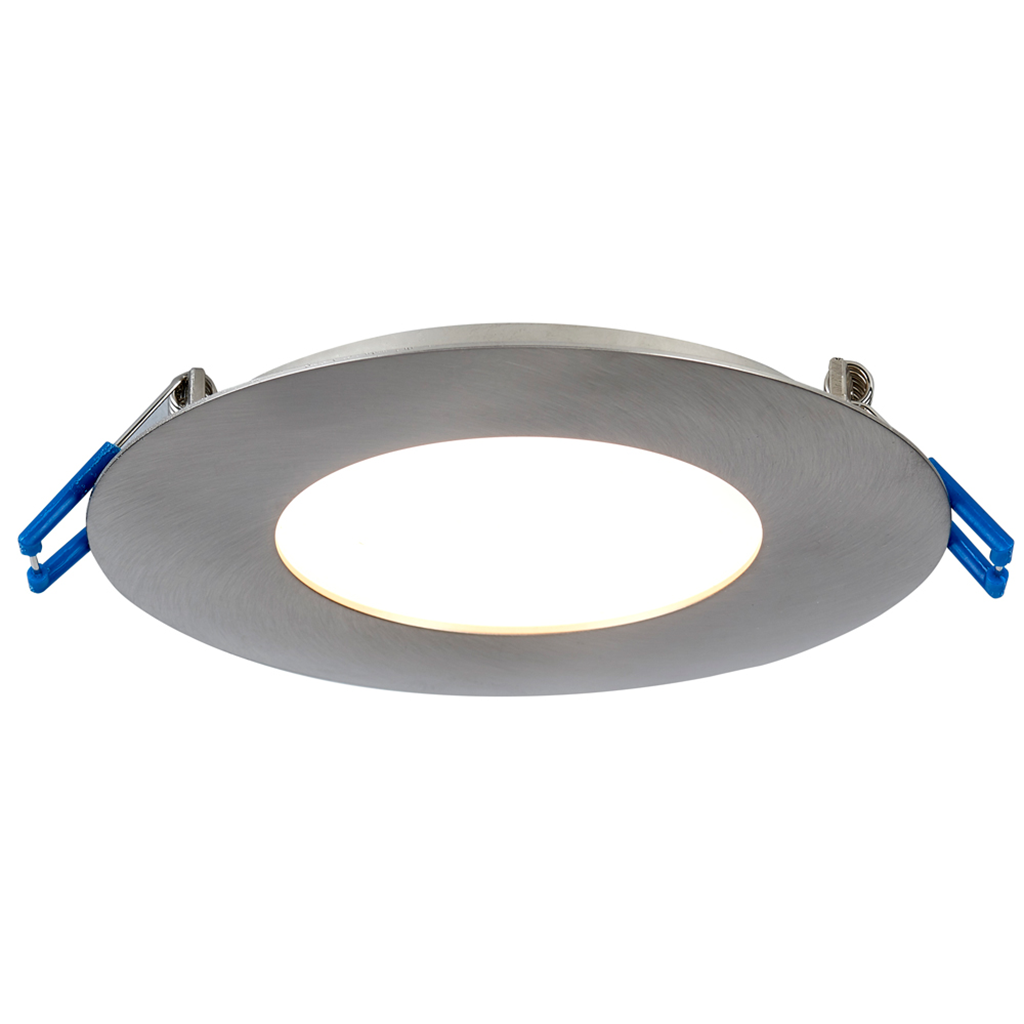

The LY4RCS model is a 4″ round 9 watt thin recessed LED downlight, available in White, Black and Brushed Nickel finish with the following features:

    • Includes standard dimmable driver
    • Type IC rated – no housing required
    • 1/2″ thin – installs directly under joists, maximum layout flexibility
    • Wet and damp location rated
    • Driver inside connection box – no junction box required
    • IP54 rated
    • Air-tight
    • Energy Star
    • 50,000 hour rated
    • 10 year residential / 5 year business application warranty

Product Information

CONSTRUCTION:
Round 4″ fixtures with integral LEDs. Isolated external driver factory installed inside junction box.
One driver for every fixture required.

MOUNTING:
Cut hole in ceiling and snap fixture in opening with attached spring clips.
Space in ceiling needed for the driver to fit through the hole – 2″.

  • Default Driver Input Voltage: 120V AC (Dimmable)
  • Optional Driver Input Voltage: 277V-347V AC (Not Dimmable)
  • Power factor: > 0.95
  • Energy Used: 9W
  • Halogen equivalent: 50W
  • Beam Angle: 120°
  • Light colour options: Warm White 3000K and Neutral White 4100K
  • Light output: Soft White 550 lm, Neutral White 600 lm
  • CRI: 84 for the 3000K and 82 for the 4100K
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus Listed, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Energy Star, Air-Tight

DIMENSIONS:

  • ID 4 1/8″; OD 4 3/4″; Thickness 1/2″
  • Cut out: 4 1/8″ to 4 1/4″
  • Junction Box Dimensions (with driver inside): 3 5/16″ x 3 5/16″ x 1 1/8″

Suitable for damp locations and soffit installations.

Extension Calbes

  • EXC20
  • EXC6

Rough-in Plates

  • RIP4
  • MP4-2
  • FRP4

120-347V / 0-10V Dimmable

  • LLL-LD1535T

Goof Rings

  • GR4
  • GR4-BK

Specification Sheets
LY4RCS

pdf files
LY4RCS/30K | LY4RCS/41K

IES files
LY4RCS/30K | LY4RCS/41K
