Lotus LY82RCD – 33 Watt 8″ Slim Round Recessed LED Downlight – 120V

SKU : N/A Categories : , , , , , , , , , , , Tag : Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 107.80

The Lotus LED Lights, traditional style LED commercial or residential lights is a versatile option to provide long lasting, energy efficient LED illumination for your office, retail or other commercial lighting or residential application. Available in 3K or 4K temperature, they are suitable for installation in wet locations as well as direct contact with insulation, and is available in 120v or 120v-347v / 0-10V dimmable, available in White or Black.

    • IC rated
    • 10-Year Residential Warranty / 5-year Commercial Warranty
    • No Access Above Ceiling Required
    • Approved for Direct Contact with Insulation
    • Includes Required Driver — Powers One Fixture Only
    • Good For 1.5″ Ceiling Thickness

Product Information

CONSTRUCTION:
Round 8″ fixtures with integral LEDs. Isolated external driver factory installed inside connection box. One driver for every fixture required.

MOUNTING:
Cut hole in ceiling and snap fixture in opening with attached spring clips.
Space in ceiling needed – 2″.

  • Default Driver Input Voltage: 120V AC (Dimmable)
  • Optional Driver Input Voltage: 277V-347V AC (Not Dimmable)
  • Power factor: 0.98
  • Energy Used: 33W
  • Halogen equivalent: 200W
  • Beam Angle: 120°
  • Light colour options: Warm White 3000°K and Neutral White 4100°K
  • Light output: Warm White 2200 lm, Neutral White 2400 lm
  • CRI: 84 for 3000°K and 82 for 4100°K
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Energy Star, Air-Tight

DIMENSIONS:

  • ID 7 1/4″; OD 9″; Thickness 2″
  • Cut out: 7 1/2″ to 8″
  • Connection Box Dimensions (with driver inside): 5″ x 3 5/16″ x 1 1/8″

Suitable for damp locations.

Extension Cables:

  • EXC6
  • EXC20

Rough-in Plates

  • RIP8

Goof Rings

  • GR8
  • GR810

120v-347v / 0-10v Dimmable Driver

  • LLL-LD3580T

Video

Customer Reviews

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

You may also like…

Lotus Goof Ring for 8″ Models – 10″ Cover Area – GR810

Lotus Goof Ring for 8″ Models – 10″ Cover Area – GR810

CAD$ 14.70 Read more
The GR8 is a goof ring for the 8” round recessed fixtures from Lotus LED Lights. If the cutout hole is too large, use this goof ring on an outside diameter of up to 10” and inside diameter of 8-1/4″.

Downloads:

Certifications
Lotus Goof Ring for 8″ Round Models – 9.5″ Cover Area – GR8

Lotus Goof Ring for 8″ Round Models – 9.5″ Cover Area – GR8

CAD$ 8.96 Read more
The GR8 is a goof ring for the 8” round recessed fixtures from Lotus LED Lights. If the cutout hole is too large, use this goof ring on an outside diameter of up to 9.5” and inside diameter of 7-1/2″.

Downloads:

Certifications

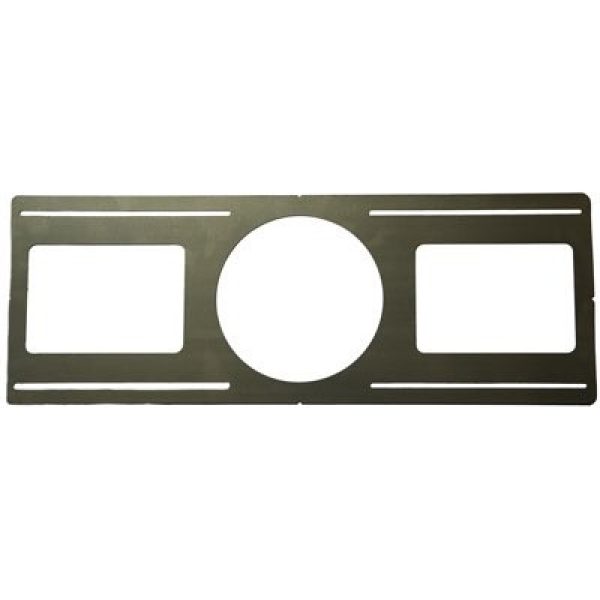

Lotus Rough-in Plate for 8″ Downlights – RIP8

Lotus Rough-in Plate for 8″ Downlights – RIP8

CAD$ 14.19 Read more
Utilize this new construction rough-in plate to assist with placement and pre-wiring your Lotus LED Lights 8″ models. Use this rough-in plate for easier layout planning and new construction pre-wiring. Made of galvanized steel and is 26″ long to fit up to 24″ spaced studs/joists. Minimum Order Quantity : 5pcs

Downloads:

Certifications
Lotus 347V / 0-10V Dimmable Driver – LLL-LD3580T

Lotus 347V / 0-10V Dimmable Driver – LLL-LD3580T

CAD$ 39.27 Read more
The LLL-LD3580T is a 120-347V, 0-10 dimmable driver option for the Lotus LED LY82RCD series recessed downlights. The 120V driver will be replaced with this 120-347V driver before shipping.
Compatible LED Driver for Lotus LED LY82RCD series downlight, can be purchased by it self or with a fixture.

Related products

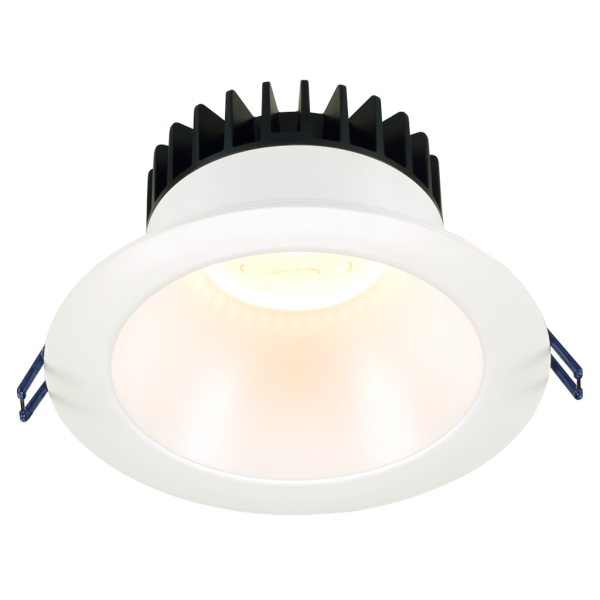

Lotus LD6R-HO – 30 Watt HIGH OUTPUT 6″ Deep Regressed LED Downlight
