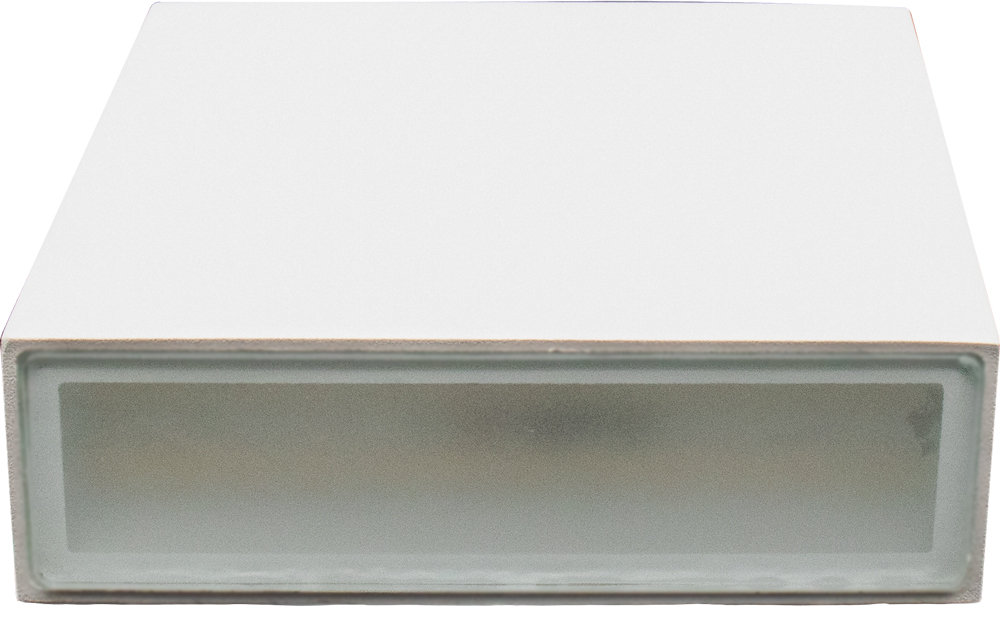

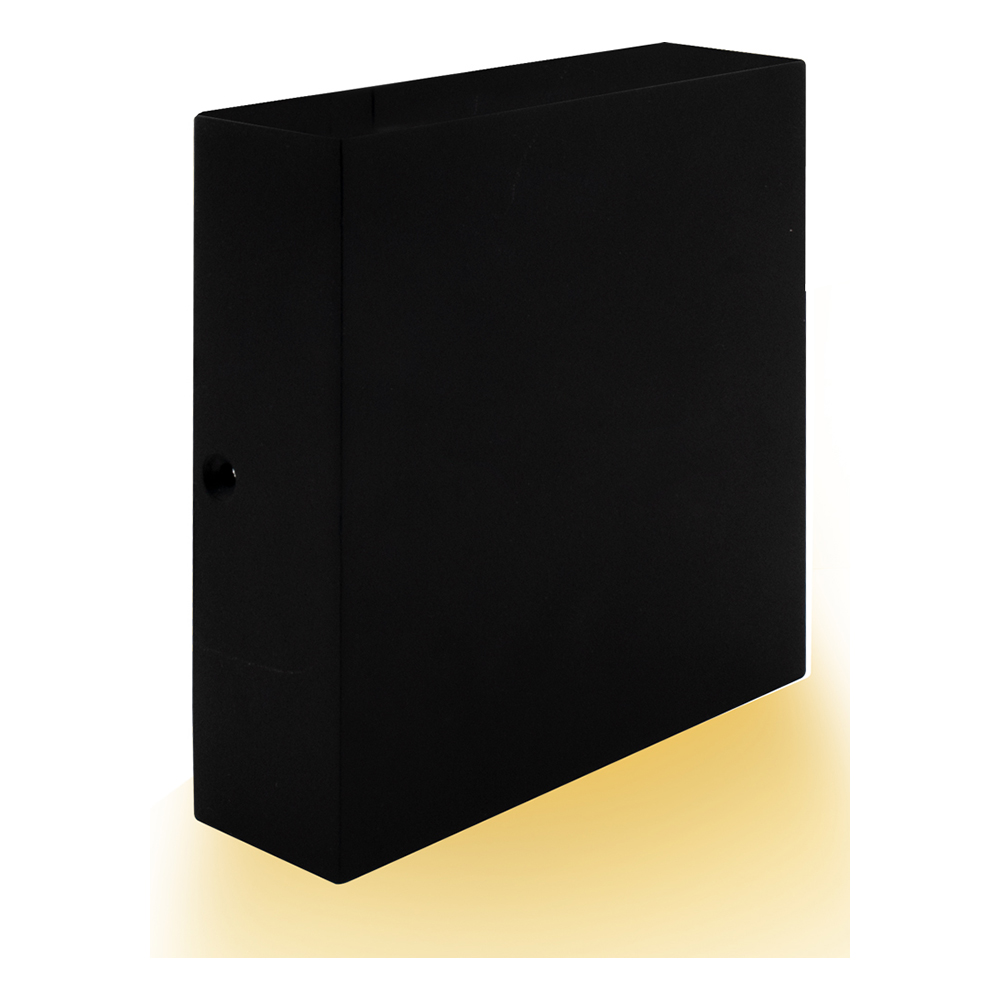

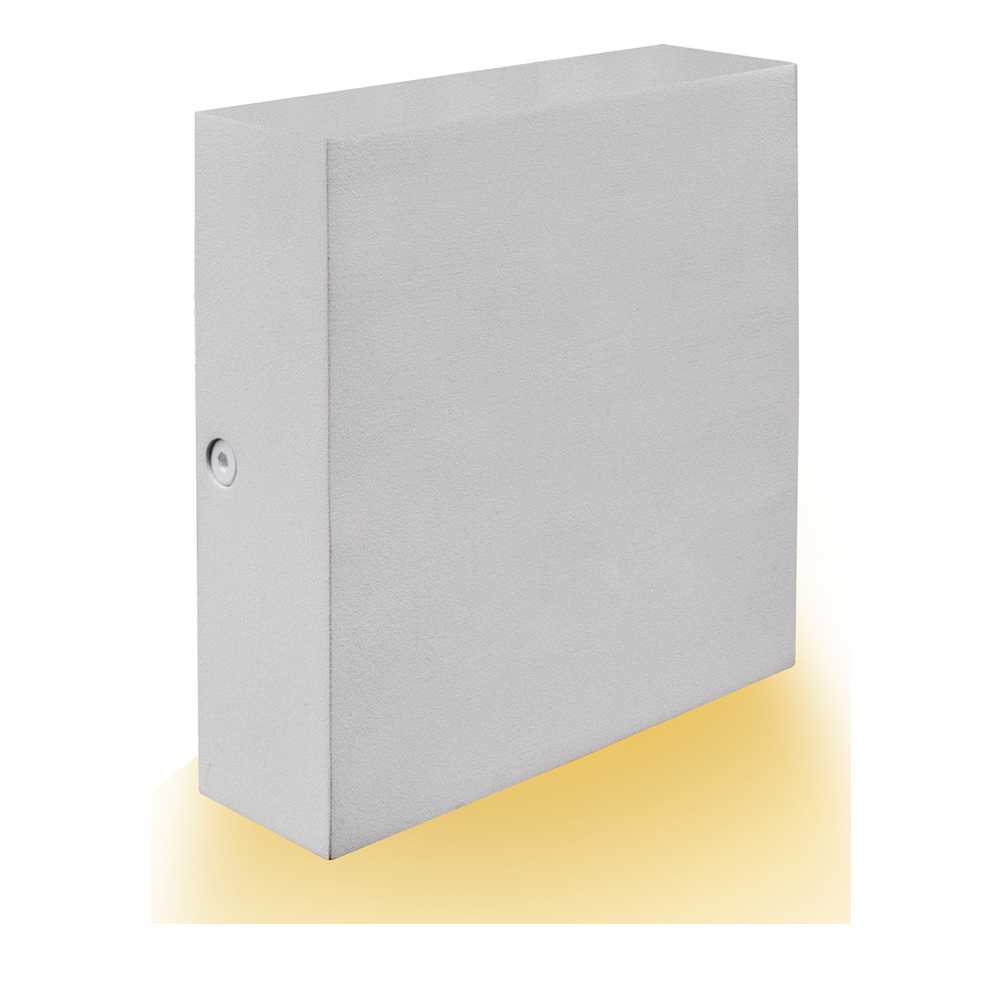

Lotus OD-5-1000L-5CCT – Wall Sconce LED Lights 5CCT 15Watt – 1 SIDE Only

SKU : N/A Categories : , , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 70.69

Wall Sconce by Lotus LED Lights can be installed in an octagonal J-box housing, suitable for Indoor & Outdoor installations. They are available in White and Black trim finish with Durable Aluminum alloy body with glass diffuser. Being wet location rated, these fixtures are suitable for outdoor applications. A high CRI of 90+ provides true color rendering in the area of illumination.

The OD-5-1000L-5CCT Wall Sconce LED Light is a 15 Watt Sconce light with the following features:

  • Wall Sconce Upward Only LED Light or Downward Only LED (User mounting preference)
  • Low Profile with elegant and modern design
  • Durable Aluminum Alloy Body with Glass Diffuser
  • Wet Location Approved – Suitable For Indoor & Outdoor Installations
  • 5CCT user selectable 2700K to 5000K
  • CRI 90+ for True Color Rendering
  • Triac dimmable
  • Warranty: 5 Year

Product Information

CONSTRUCTION:
Wall Sconce Upward & Downward or Downward Only LED Light 5CCT Dimmable.
Low Profile with elegant and modern design

SPECIFICATIONS:

  • Input Voltage: 120-277 V AC
  • Dimmability – TRIAC Dimmable 10% – 100%
  • Power: 15W
  • Halogen equivalent: 100W
  • Beam Angle: 85°
  • Light color (K) : 5CCT user selectable 2700 – 3000 – 3500 – 4000 – 5000 K
  • Light output (lm): 1140 – 1200 – 1260 – 1280 – 1220 lm
  • CRI: 90+
  • Trim color:  White and Black
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Warranty: 5 Years
  • Rated: cETLus

DIMENSIONS:

  • 4 3/4″ Square, Thickness 1 3/8″

Specification Sheets
Spec Sheet OD-5-1000L-5CCT

Photometric PDF files Up & Down model

Photometric PDF One Side Light model

Photometric IES files Up & Down model

Photometric IES files One Side Light model

Video

Customer Reviews

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
