Lotus RF-LED-6-S12W-5CCTWH-PL – 12W 6″ Retrofit Round Ultra Slim Budget LED

SKU : RF-LED-6-S12W-5CCTWH-PL Categories : , , , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 34.57

This innovative 4″ downlight by Lotus LED Lights comes with pre-installed universal mounting clips, a quick plug connector and an E26 adapter that provides for simple too-free installation, it’s as easy as changing a light bulb. Being wet location rated, these fixtures are suitable for outdoor or shower applications. A high CRI of 80 provides true color rendering in the area of illumination, and 5CCT color selectable.

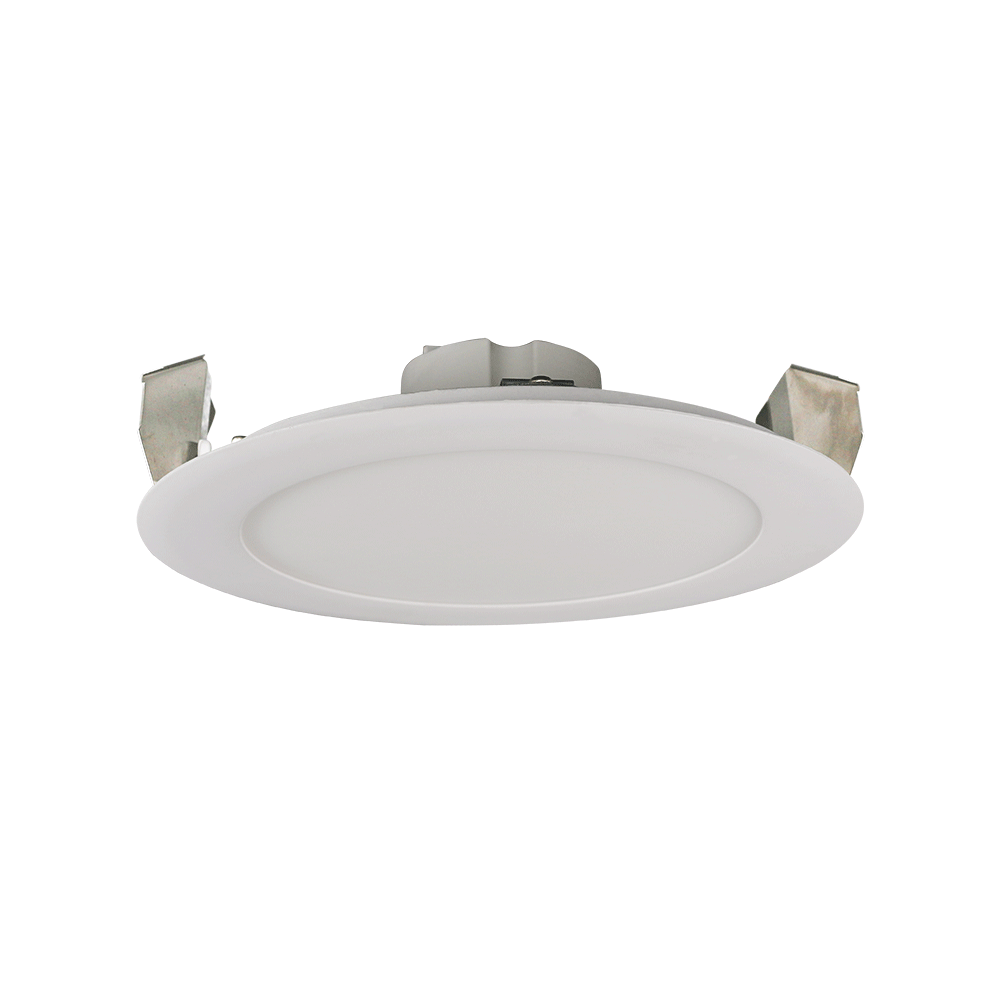

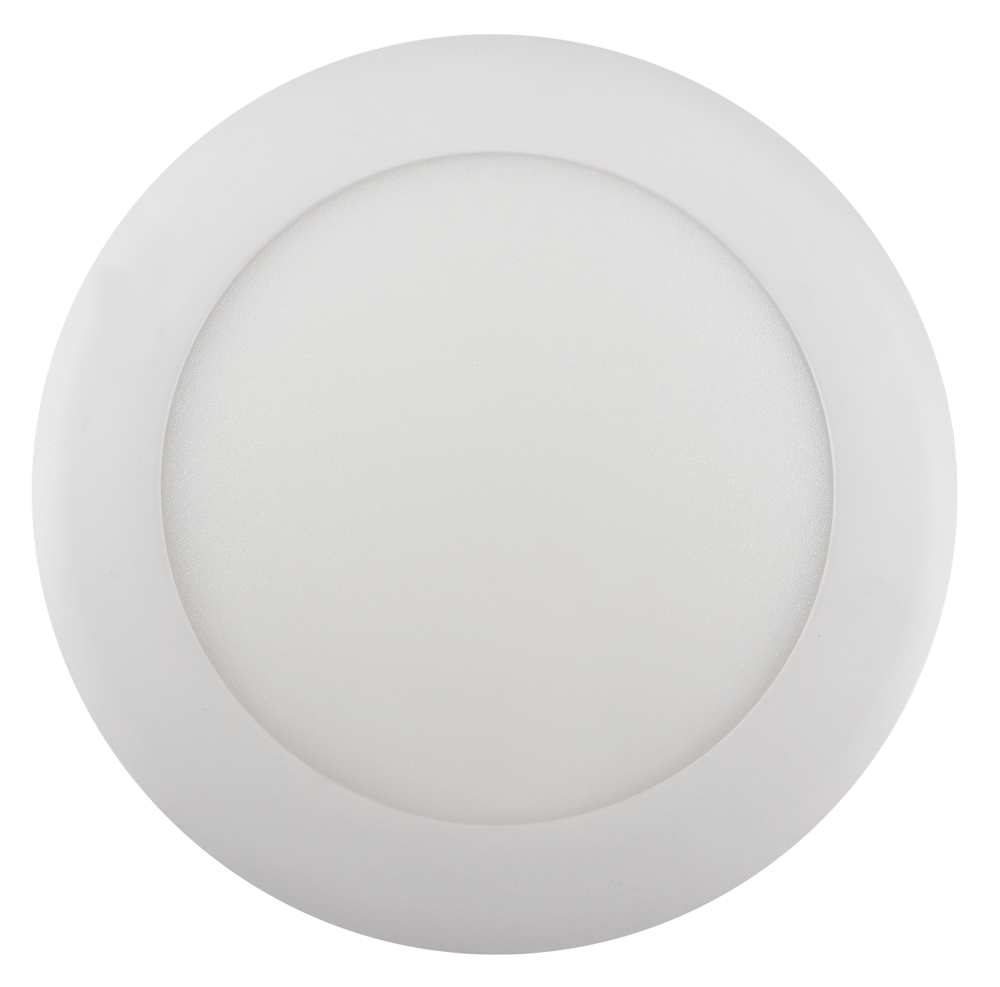

The RF-LED-6-S12W is a 6″ Round 12watt Retrofit Round Ultra Slim with the following features:

  • 6″ Retrofit Round Ultra Slim Budget LED 12W 5CCT
  • Uniform appearance, looks like a slim recessed 6″ panel light model LED-6-S12W-5CCT
  • Fits in 6″ recessed housings

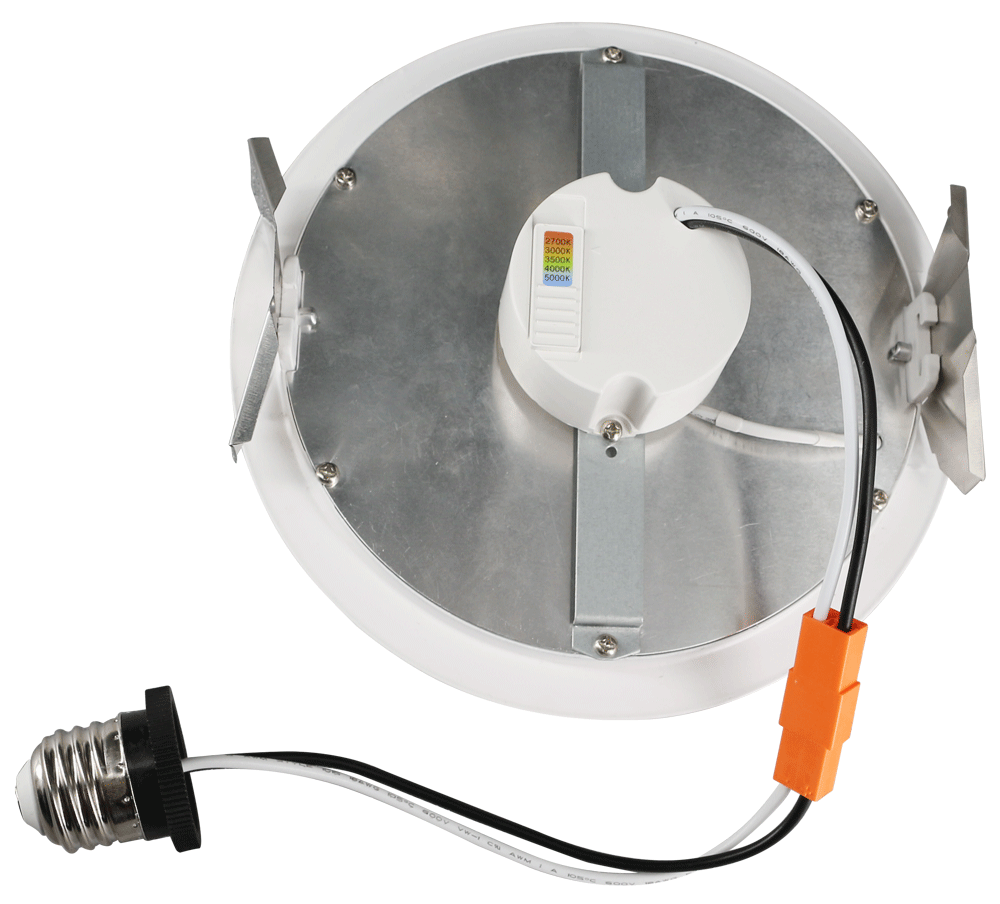

  • Easy install – comes with pre-installed universal mounting clips, a quick plug connector and an E26 adapter that provides for simple tool-free installation – it’s as easy as changing a light bulb
  • 5 CCT User Selectable Light Colors
  • Allows combination of retrofit and spring mounted fixtures with uniform appearance
  • Triac Dimmable with most CL dimmers 120V input
  • Warranty: 3 Year

Product Information

CONSTRUCTION:
6″ Retrofit Round Ultra Slim Budget LED 12W 5CCT.
Uniform appearance, looks like a slim recessed 6″ panel light.

SPECIFICATION:

  • Energy Used: 12W
  • Halogen equivalent: 90W
  • Beam Angle: 120°
  • Light colour: 5CCT user selectable 2700K | 3000K |3500K | 4000K | 5000K
  • Light output: 960 | 1040 | 1100 | 1120 | 1060
  • CRI: 80
  • Driver Input Voltage: 120V AC
  • Dimmability – TRIAC Dimmable 10% – 100%
  • White trim in stock
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Warranty: 3 Years
  • Compliance: cETLus

DIMENSIONS:

  • ID 6″; OD 7″
  • Fits in 6″ recessed housings

Suitable for Wet Locations.



Goof Rings

  • GR6

Specification Sheet

Photometric Files

PDF files

PDF at 2700K | PDF at 3000K | PDF at 3500K | PDF at 4000K | PDF at 5000K

IES files

IES at 2700K | IES at 3000K | IES at 3500K | IES at 4000K | IES at 5000K
