Lotus SMT-024-096VTDHV2 – 24V DC Driver – 96 Watt Capacity – 120V / 0-10V Dimmable, 5 in 1

SKU : SMT-024-096VTDHV2 Categories : , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 162.47

Lotus LED Lights’s 5-in-1 series of low-voltage drivers can be used to power your low-voltage lighting application. These slim and compact 24V DC constant voltage hardwire drivers are designed with dedicated compartments for both line voltage input and low voltage output wiring and multiple 7/8″ knockouts for easy wire configuration. They are capable of operating in all forward and reverse-phase dimming modes, from line-voltage (ELV/MLV/TRIAC), 0-10V, 1-10V, 10V PWM and even potentiometer dimming.

The SMT-024-096VTDHV2 is a 96 watt maximum dimmable driver for your 24V LED lighting products that also provides the following features:

  • 120-277V input – 24V DC output
  • 5-in-1 forward and reverse phase dimming: ELV / MLV / TRIAC / 0-10V / 1-10V / 10V PWM / potentiometer
  • Dedicated line voltage and low voltage wiring compartments
  • Minimum / maximum load: 9.6W / 96W
  • Multiple knock-outs for easy wiring
  • Short circuit, over-voltage, over-temperature, overload protections
  • Built-in power factor correction: PF greater than 0.98
  • cULus Listed Wet location rated
  • Class 2 / Type HL / FCC compliant
  • Operating temp: 40° to 140° F
  • 7 year warranty

Product Information
  • Model SMT-024-096VTDHV2
  • cULus Listed
  • Wet Location
  • 5-in-1 forward and reverse phase dimming: TRIAC / ELV / MLV, 0-10V, 1-10V, Potentiometer, 10V PWM
  • 120V-277V AC Input
  • 24V DC Output / 4A
  • Wiring Compartments for Line and Low Voltage Connections
  • Warranty: 7 Year

Specification Sheet
SMT-024-096VTDHV2

Video

Customer Reviews

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Related products

Lotus 347V / 0-10V Dimmable Driver – LLL-LD1535T

Lotus 347V / 0-10V Dimmable Driver – LLL-LD1535T

CAD$ 26.18 Read more
The LLL-LD1535T is a 120-347V, 0-10 dimmable driver option for the Lotus LED LL4R / LY4RCS / LL4S / LY6RCS / LY6S / LRG6 / LRG6-6RSL / LL4G-HO / LRG4-HO Models recessed downlights. The 120V driver will be replaced with this 120-347V driver before shipping. Compatible LED Driver for Lotus LED LL4R / LY4RCS / LL4S / LY6RCS / LY6S / LRG6 / LRG6-6RSL / LL4G-HO / LRG4-HO Models series downlight, can be purchased by it self or with a fixture.
Lotus 347V / 0-10V Dimmable Driver – LLL-LD1025T

Lotus 347V / 0-10V Dimmable Driver – LLL-LD1025T

CAD$ 26.18 Read more
The LLL-LD1025-T is a 120-347V, 0-10 dimmable driver option for the Lotus LED LL4G and LRG4 series recessed downlights. The 120V driver will be replaced with this 120-347V driver before shipping. Compatible LED Driver for Lotus LED LL4G or LRG4 series downlight, can be purchased by it self or with a fixture.
Lotus 347V / 0-10V Dimmable Driver – LLL-LD0716T

Lotus 347V / 0-10V Dimmable Driver – LLL-LD0716T

CAD$ 26.18 Read more
The LLL-LD0716-T is a 120-347V, 0-10 dimmable driver option for the Lotus LED LL3G, LRG3, LSG3 and LRG3-4RSL series recessed downlights. The 120V driver will be replaced with this 120-347V driver before shipping. Compatible LED Driver for Lotus LED LL3G, LRG3, LSG3 or LRG3-4RSL series downlight, can be purchased by it self or with a fixture.
Lotus SMT-024-096VTHV2 – 24V DC Driver – 96 Watt Capacity – Dimmable

Lotus SMT-024-096VTHV2 – 24V DC Driver – 96 Watt Capacity – Dimmable

CAD$ 142.98 Read more
Lotus LED Lights’s slim and compact 24V DC constant voltage hardwire drivers are designed with dedicated compartments for both line voltage input and low voltage output wiring and multiple 7/8″ knockouts for easy wire configuration. They are capable of operating in all forward and reverse-phase dimming modes. The SMT-024-096VTHV2 is a 96 watt maximum dimmable driver for your 24V LED lighting products that also provides the following features:
  • 120-277V input to 24V DC output
  • TRIAC dimming down to 5%
  • 96W max power
  • Wiring chambers for line and low-voltage connections
  • Protection from short circuit, over voltage and over heat incidents
  • 0.5 second start time
  • Damp and wet location rated
  • 7 year warranty

Recently Viewed Products

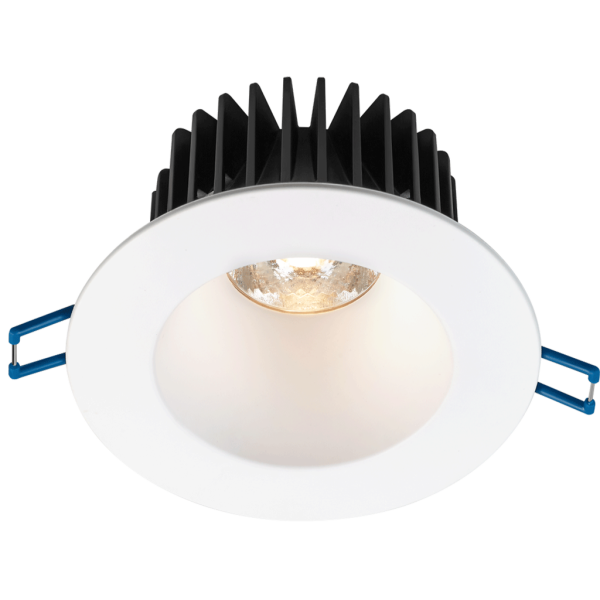

Lotus LD4R-4R-CPL-WH – 15 Watt 4″ Round Corrosion Resistant Deep Regressed LED Downlight
