Lotus TANGRA 3″ Fixed Square Deep Regressed Tin Trim – 120V

SKU : N/A Categories : , , , , , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 121.80

Bring precision, flexibility, and luminous excellence to your lighting projects with the L3F-SDT from Lotus LED’s NEW TANGRA series. This compact, high-performance downlight combines refined engineering and modular options to accommodate upscale residential and commercial builds.

The L3F-SDT Model is a 3″ Fixed Square Deep Regressed Thin Trim 11W / 15W, available in White, Black, Alzak, White-Black Duo, Oil Rubbed Bronze trims.

  • Model L3F-SDT
  • 4 3/4” Deep – Install Where Ceiling Space Is Limited
  • Available in 20°, 24°, 36°, 50° Light Beam
  • Type IC Rated – Approved for Direct Contact with Insulation
  • Air-Tight, Wet Location, Insulated and Non Insulated Ceilings
  • Light options: 5CCT (CRI95 or CRI98) | 3000K (CRI95 or CRI98) | Dim to Warm 3000K to 1800K (CRI95)
  • 120V AC Triac Dimmable 11W / 15W Selectable
  • 120-347V AC 0-10V Dimmable 11W / 15W Selectable
  • External Driver Inside Connection Box – No Junction Box Needed
  • Warranty: Lotus Warranties for as long as they manufacture this line + 5 years
  • Open Plenum
  • c ETL us Listed

Product Information

CONSTRUCTION:
3″ Tangra Fixed Square Deep Regressed Thin Trim.
One driver for every fixture required. Drivers ordered separately.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 4″

  • One Driver per Fixture Required (Drivers ordered separately)
  • 120V Triac Dimmable Residential Driver available
  • 120V Triac Dimmable Commercial Driver available
  • 120-347v / 0-10v Dimmable Residential Driver available.
  • 120-347v / 0-10v Dimmable Commercial Driver available.
  • Energy Used: 11W or 15W (User Selectable)
  • Beam Angle: 20°,24°, 36°, 50° Options available.
  • Light colour options: 5CCT user selectable, , 3000K fixed or Dim to Warm 3000K to 1800K (CRI95 Only), 4CCT (22-27-30-40K) + DTW 3500K to 2700K – CRI90
  • Light output: up to 1600lm at 3000K CRI95
  • CRI: 95 or 98
  • Ambient Operating Temperature: -40°F (-40°C) to +113°F (+45°C)
  • J-Box Wire Volume : Max 5 No 12 AWG or 8 No 14 AWG
  • Cable Rating : FT6 / CMP Open Plenum
  • Certifications : c ETL us, FCC, Air Tight, Open Plenum, Wet Location IP54
  • Rated: Type IC (Direct Contact with Insulation), Air-Tight
  • Lifetime Warranty : Lotus warranties for as long as lotus manufacture this line + 5 years.

DIMENSIONS:

  • ID 2 3/8″ Square; OD 3″ Square; Thickness 4 3/4″
  • Cut out: 2 5/8″ Square Hole
  • Junction Box Dimensions (with driver inside): 3 3/4″ x 2 5/8″ x 1 3/4″

Suitable for wet locations and soffit installations.

Spec Sheet L3F-SDT

Video

Customer Reviews

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

You may also like…

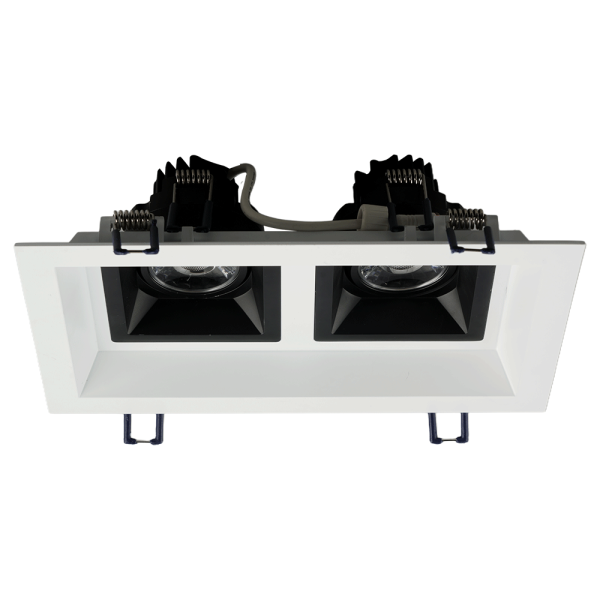

Lotus LED Lights – Multi 2 Head Recessed Fixture for LSG3-HO-TT – LLL-M2

Lotus LED Lights – Multi 2 Head Recessed Fixture for LSG3-HO-TT – LLL-M2

CAD$ 32.34 Read more
LOTUS LED LIGHTS - Multi 2 head fixture for 3" Square Regressed LED Gimbals.
  • 1″ regressed for high end apearance and reduced glare
  • Mount white, black and custom colour light fixtures with 5CCT or Dim to Warm light options
  • Compatible fixture – LSG3-HO-TT
  • White or Black
  • model # LLL-M2

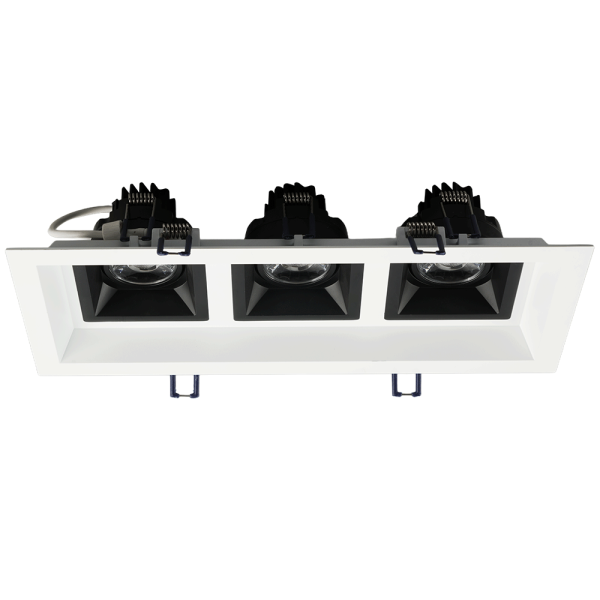

Lotus LED Lights – Multi 3 Head Recessed Fixture for LSG3-HO-TT – LLL-M3

Lotus LED Lights – Multi 3 Head Recessed Fixture for LSG3-HO-TT – LLL-M3

CAD$ 38.50 Read more
LOTUS LED LIGHTS - Multi 3 head fixture for 3" Square Regressed LED Gimbals.
  • 1″ regressed for high end apearance and reduced glare
  • Mount white, black and custom colour light fixtures with 5CCT or Dim to Warm light options
  • Compatible fixture – LSG3-HO-TT
  • White or Black
  • model # LLL-M3

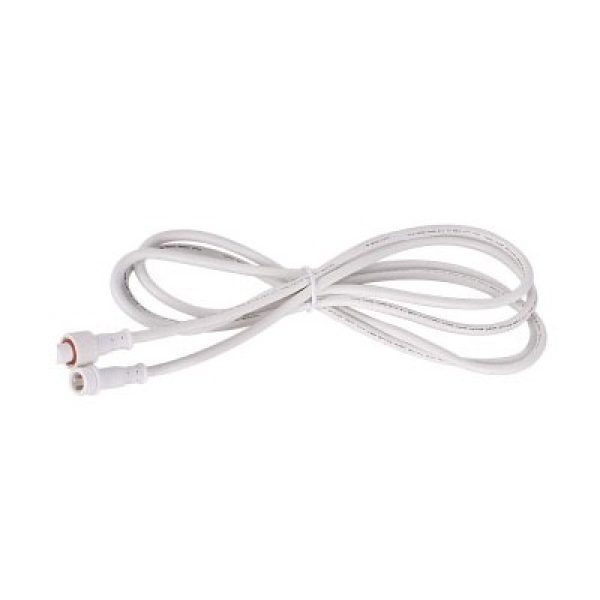

Lotus 20′ Extension Cord – EXC20

Lotus 20′ Extension Cord – EXC20

CAD$ 12.45 Read more
The EXC20 is a 20 foot extension cord used to allow for remote mounting of the driver for your Lotus LED downlight. This inter-linkable cord easily and securely extends the low voltage cable between the fixture and diver. A maximum of 40 feet extension is allowed.

Downloads:

Certifications
Lotus 6′ Extension Cord – EXC6

Lotus 6′ Extension Cord – EXC6

CAD$ 8.32 Read more
The EXC6 is a 6 foot extension cord used to allow for remote mounting of the driver for your Lotus LED downlight. This inter-linkable cord allows you to easily and securely extend the low voltage cable between the fixture and driver. A maximum of 40 feet extension allowed.

Downloads:

Certifications

Related products

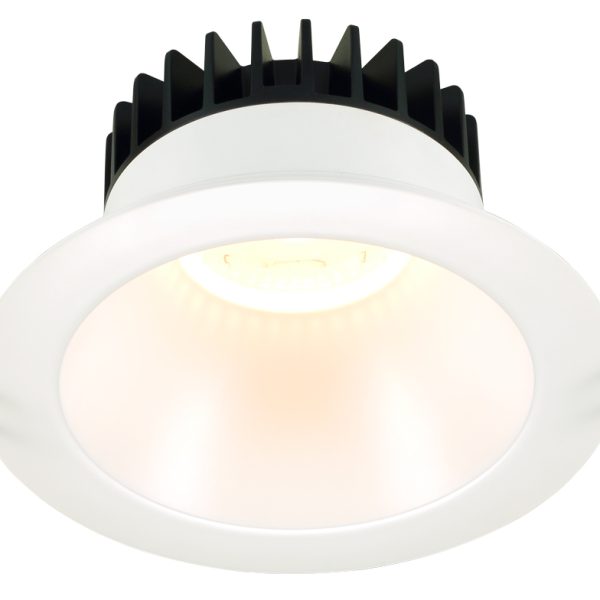

Lotus LD6R – 18 Watt 6″ Deep Regressed LED Downlight – 120V
