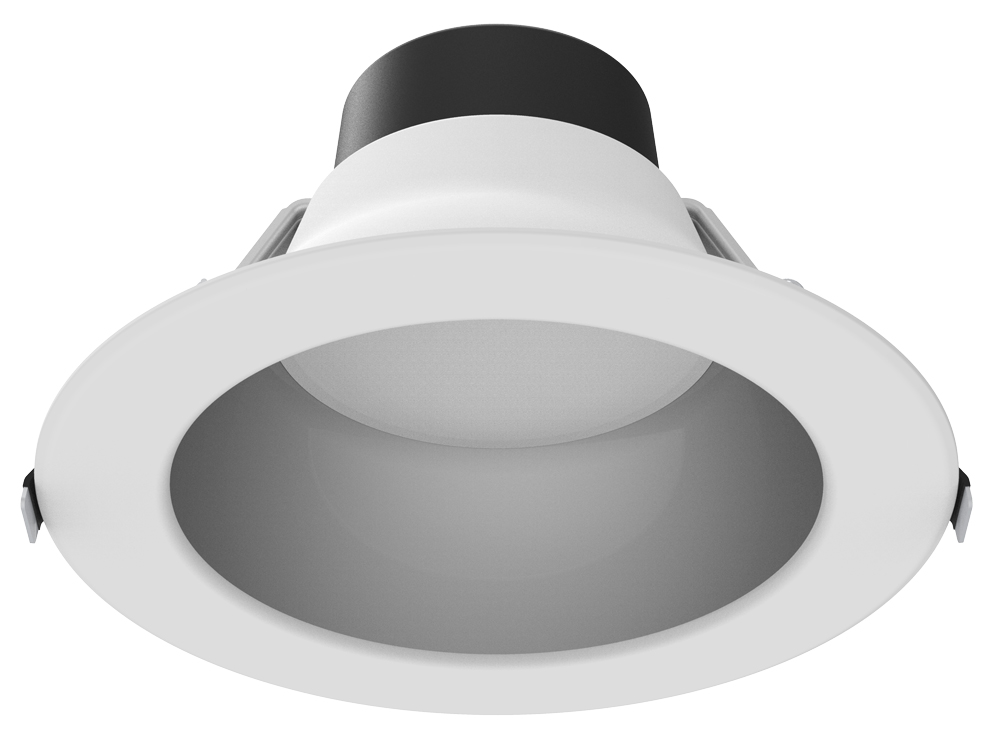

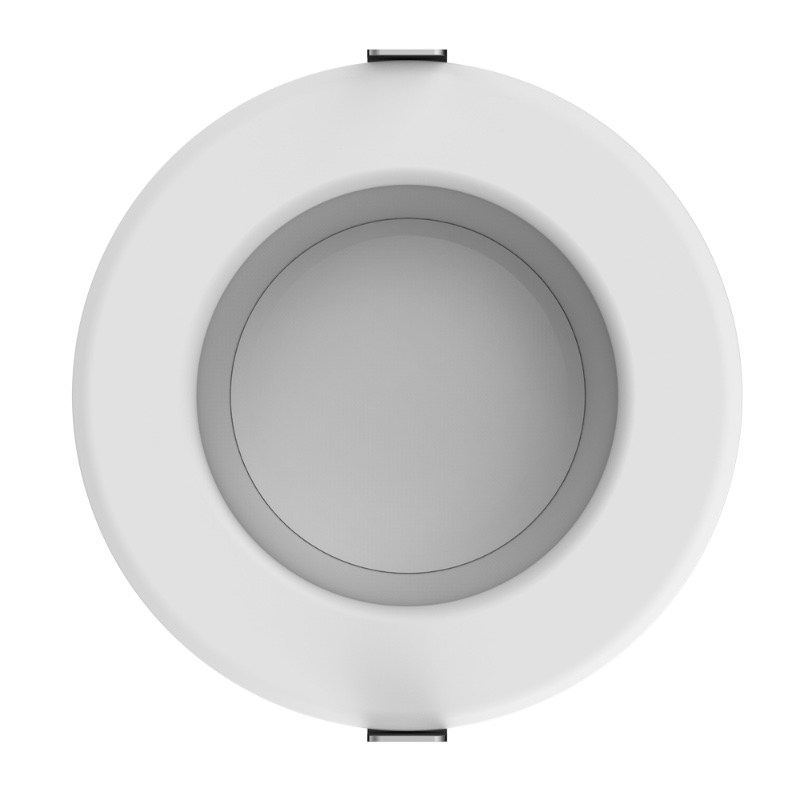

Lotus TP120-347-RT9.5-C-DIM-G1-ES – Wattage Selectable 10″ Recessed LED Downlight – 0-10V Dimmable

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 90.30

The Lotus LED Lights, traditional style LED commercial downlights are a versatile option to provide long lasting, energy efficient LED illumination for your office, retail or other commercial lighting application. They are wattage and color temperature tunable, allowing the installer or end-user to select their desired brightness and color temperature to suit their preferences. Their high CRI of 90+ means you’ll enjoy true color rendering in the area of illumination ,while their regressed optics reduce glare. They are suitable for installation in wet locations as well as direct contact with insulation, and are 0-10V dimmable. Optional black and silver trim rings as well as goof rings available (sold separately).

The TP120-347-RT9.5-C-DIM-G1-ES is a wattage selectable 10″ round LED downlight that provides 2,000-3,000 lumens of CCT-tunable white light color temperatures and the following features:

    • All in one solution 10″ round recessed commercial grade LED fixture
    • Perfect for hospitality, shopping mall & retail, office, exterior soffit, etc.
    • User selectable 3 light colors & 3 power options
    • Color Temperatures: 3000K / 3500K / 4000K
    • Power Levels: 20W / 25W / 32W
    • Light Output: 2000 lm / 2500 lm / 3000 lm
    • Universal voltage 120V-347V input
    • 0-10V Dimmable 5%-100%
    • CRI 90+ for true color rendering
    • Type IC, Wet location & Air-tight
    • Regressed optics with low glare
    • Suitable for new construction and retrofit applications
    • cETLus, Energy Star, T24
    • Warranty: 5 Year

Product Information

CONSTRUCTION:

All in one solution 10″ round recessed commercial grade LED fixture.
Perfect for hospitality, shopping mall & retail, office, exterior soffit, etc.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 6 3/8″

  • Input: 120V-347V AC 50/60 Hz
  • Power Levels (W): 20 | 25 | 32
  • Light Output (lm): 2000 | 2500 | 3000
  • Color Temperature (K): 3000K | 3500K | 4000K
  • Dimming: 0 – 10V
  • Beam Angle: 92°
  • CRI: 90+
  • Approved Location: Insulated Ceiling & Wet Locations
  • Ambient Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Projected Life: 70% Light Output at 50,000 Hours
  • Compliance: cULus, Energy Star, T24
  • Warranty: 5 Year

DIMENSIONS:

  • ID 9″; OD 11 1/2″; Thickness 6 3/8″
  • Cut out: 9″ to 10 1/2″

Suitable for insulated ceilings, open plenum, and wet locations.

ACCESSORIES – Sold Separately

  • Black trim cover cat # LBL-10CRT-B

  • Silver trim cover cat # LBL-10CRT-S

  • Goof Ring White OD 12 1/2″ cat # LBL-10CGR-W

  • New Construction Mounting Plate for T-bar Ceiling cat # LBL-MP-C4-10-TBAR
