CONSTRUCTION:
3″ Tangra Fixed Square Deep Regressed Thin Trim.
One driver for every fixture required. Drivers ordered separately.
MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 4″
- One Driver per Fixture Required (Drivers ordered separately)
- 120V Triac Dimmable Residential Driver available
- 120V Triac Dimmable Commercial Driver available
- 120-347v / 0-10v Dimmable Residential Driver available.
- 120-347v / 0-10v Dimmable Commercial Driver available.
- Energy Used: 11W or 15W (User Selectable)
- Beam Angle: 20°,24°, 36°, 50° Options available.

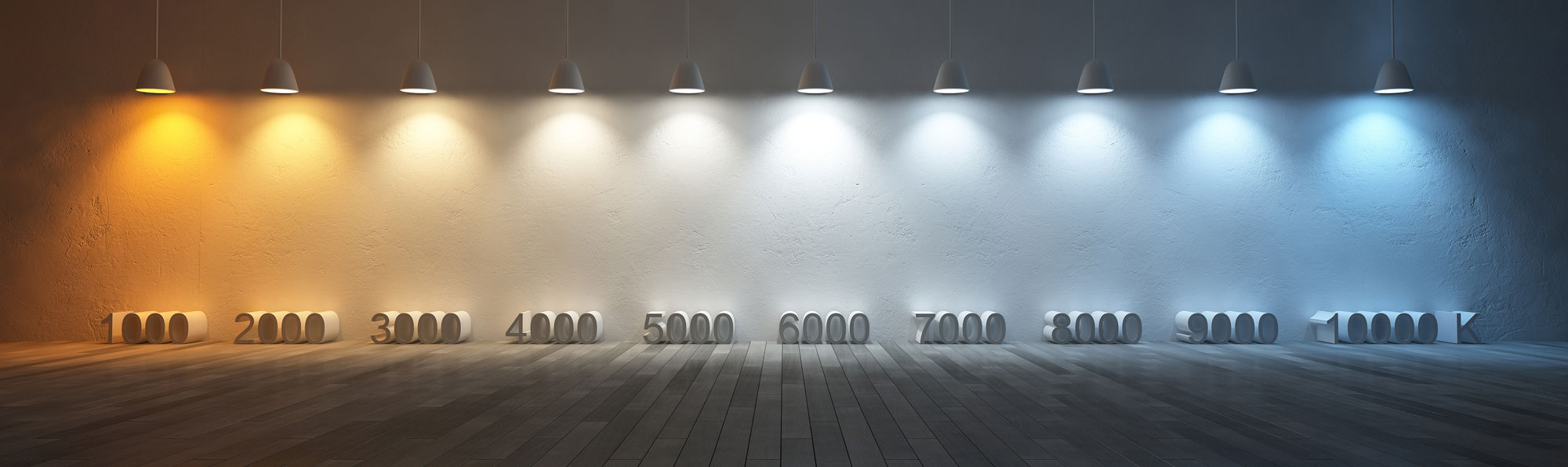

- Light colour options: 5CCT user selectable, , 3000K fixed or Dim to Warm 3000K to 1800K (CRI95 Only), 4CCT (22-27-30-40K) + DTW 3500K to 2700K – CRI90
- Light output: up to 1600lm at 3000K CRI95
- CRI: 95 or 98
- Ambient Operating Temperature: -40°F (-40°C) to +113°F (+45°C)
- J-Box Wire Volume : Max 5 No 12 AWG or 8 No 14 AWG
- Cable Rating : FT6 / CMP Open Plenum
- Certifications : c ETL us, FCC, Air Tight, Open Plenum, Wet Location IP54
- Rated: Type IC (Direct Contact with Insulation), Air-Tight
- Lifetime Warranty : Lotus warranties for as long as lotus manufacture this line + 5 years.
DIMENSIONS:
- ID 2 3/8″ Square; OD 3″ Square; Thickness 4 3/4″
- Cut out: 2 5/8″ Square Hole
- Junction Box Dimensions (with driver inside): 3 3/4″ x 2 5/8″ x 1 3/4″
Suitable for wet locations and soffit installations.
Spec Sheet L3F-SDT
