Lotus 11 Watt 5″ Square Sloped LED Gimbal High Output – LSG3-5SSL-HO – 120V

SKU : N/A Categories : , , , , , , , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 109.34

Save on labor with the Lotus 5″ square sloped regressed LED gimbal downlight. Installation is simple, just cut a hole in the ceiling and the attached spring clips snap the fixture into place – no housing required! These slim recessed fixtures are air-tight, IC-rated for direct contact with insulation, and suitable for damp or wet locations. A high CRI provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings and highlighting artwork or other features.

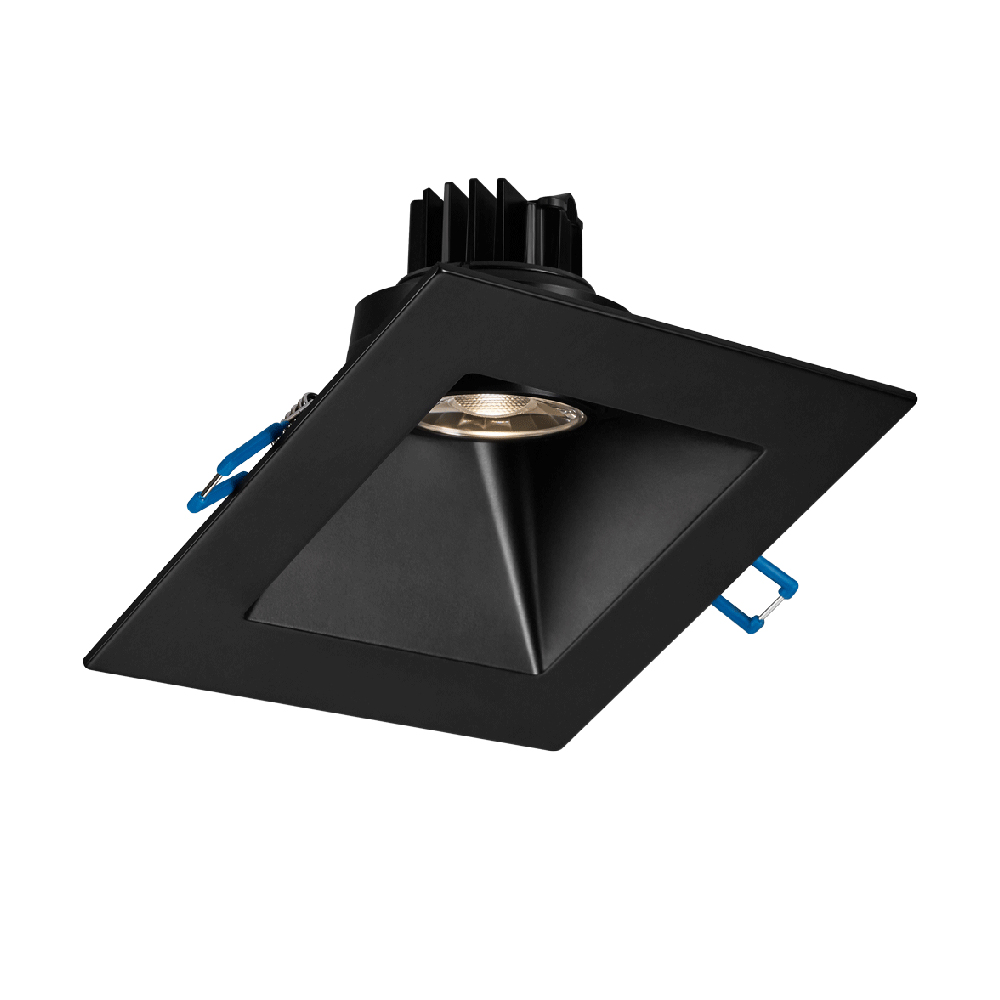

The LSG3-5SSL-HO is a 5″ square 11 watt sloped regressed LED gimbal downlight HIGH OUTPUT available in White, Black and Oil Rubbed Bronze Trim, with the following features:

  • Models: LSG3-5SSL-HO
  • 30° Sloped Trim & 20° Tilt – Ideal for Wall Washing & Sloped Ceilings with 5° to 55° Pitch
  • Type IC Rated – Approved for Direct Contact with Insulation
  • Air-Tight, Wet Location, Insulated and Non Insulated Ceilings
  • 11W model light options: 5CCT user selectable 2700-3000-3500-4000-5000K or Dim to Warm 3000K to 1800K
  • CRI 90+ for True Colour Rendering
  • Triac Dimmable with most CL dimmers 120V input
  • 0-10V Dimmable Option with 120V to 347V input
  • External Driver Inside Connection Box – No Junction Box Needed
  • Warranty: 10 Year on Residential, 5 Year on Commercial Installations
  • cULus Listed
  • 10 year residential / 5 year business application warranty

Product Information

CONSTRUCTION:
5″ Sloped Square Regressed Gimbal LED.
30° Sloped Trim for Wall Washing and Sloped Ceilings from 5° to 55°.
Class 2 Isolated external driver factory installed inside junction box. One driver for every fixture required.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 3″

  • Default Driver Triac Dimmable: 120V AC Input
  • Optional Driver 0-10V Dimmable: 120V-347V AC Input
  • Power factor: > 0.98
  • Energy Used: 11W
  • Halogen equivalent:  90W
  • Beam Angle: 38° Beam with 20° tilt and 360° rotation
  • Light colour options: Warm White 2700K, Soft White 3000K, Bright White 3500K, Neutral White 4000K, Daylight White 5000K, Dim to Warm 3000K to 1800K, 5CCT user selectable 2700K to 5000K
  • Light output 11W: 2700K 840 lm, 3000K 900 lm, 3500K 960 lm, 4000K 980 lm, 5000K 1000 lm, Dim to Warm 760 lm
  • CRI: 90 +
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus approved, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Air-Tight

DIMENSIONS:

  • ID 4 1/4″; OD 5 1/4″ Square; Thickness 11W 4″
  • Cut out: 4 1/2″ to 5″
  • Junction Box Dimensions (with driver inside): 3 3/4″ x 3 3/8″ x 1 1/2″

Suitable for wet locations and soffit installations.

120-347V / 0-10V Dimmable Driver

  • LLL-LD1025T3

Mounting Plates

  • Flanged: cat # FRP5
  • Flat: cat # RIP5

Jumper Cables 6ft & 20ft

  • cat # EXC6
  • cat # EXC20

Specification Sheets
Spec Sheet LSG3-HO-5SSL

Photometric PDF files
pdf file LSG3-HO-5CCT-5SSL at 2700K | pdf file LSG3-HO-5CCT-5SSL at 3000K | pdf file LSG3-HO-5CCT-5SSL at 3500K | pdf file LSG3-HO-5CCT-5SSL at 4000K | pdf file LSG3-HO-5CCT-5SSL at 5000K | pdf file LSG3-HO-3018K-5SSL at 100%

Photometric IES files
IES file LSG3-HO-5CCT-5SSL at 2700K | IES file LSG3-HO-5CCT-5SSL at 3000K | IES file LSG3-HO-5CCT-5SSL at 3500K | IES file LSG3-HO-5CCT-5SSL at 4000K | IES file LSG3-HO-5CCT-5SSL at 5000K | IES file LSG3-HO-3018K-5SSL at 100%
