Lotus 22 Watt 12″ LED Surface Mount – 120V – ADS12R9 Model

SKU : N/A Categories : , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 67.07

The Lotus LED LIGHTS, 12″ surface mount LED edge-lit ceiling light is an energy efficient option that is suitable for both indoor and outdoor applications. It’s low-profile design with narrow flange provide a modern, architectural appearance and the high CRI of 90+ provides true color rendering in the area of illumination. Fast and easy installation in junction boxes lets you save on labor, and the flicker free AC design provides comfortable, irritation-free light output. Perfect for multi-family, residential, and hospitality applications.

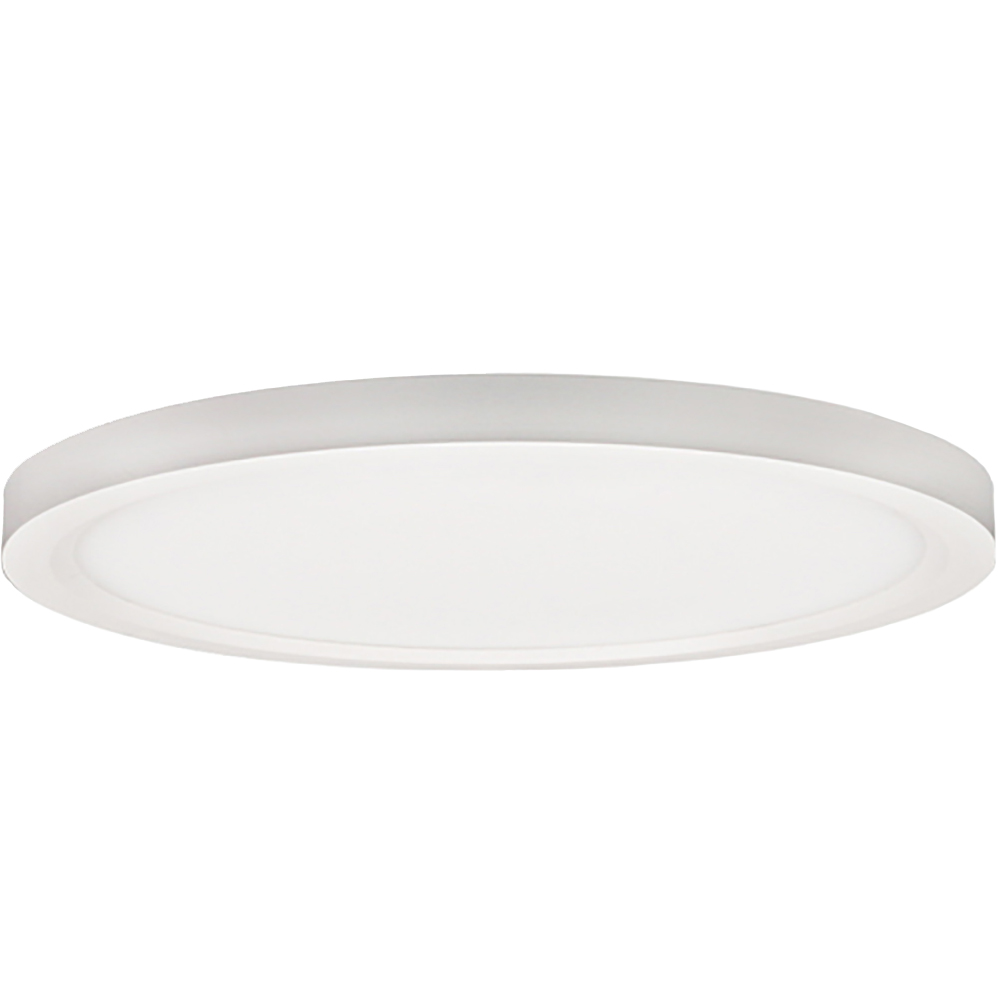

The ADS12R9-WH is a 12″ round, 22 watt LED surface mount fixture, available in 3K, 4K AND 5CCT color selectable with the following features:

  • 12″ Multi-Purpose Surface Mounted Energy-Efficient Fixture
  • Low Profile With Narrow Flange For Elegant Appearance

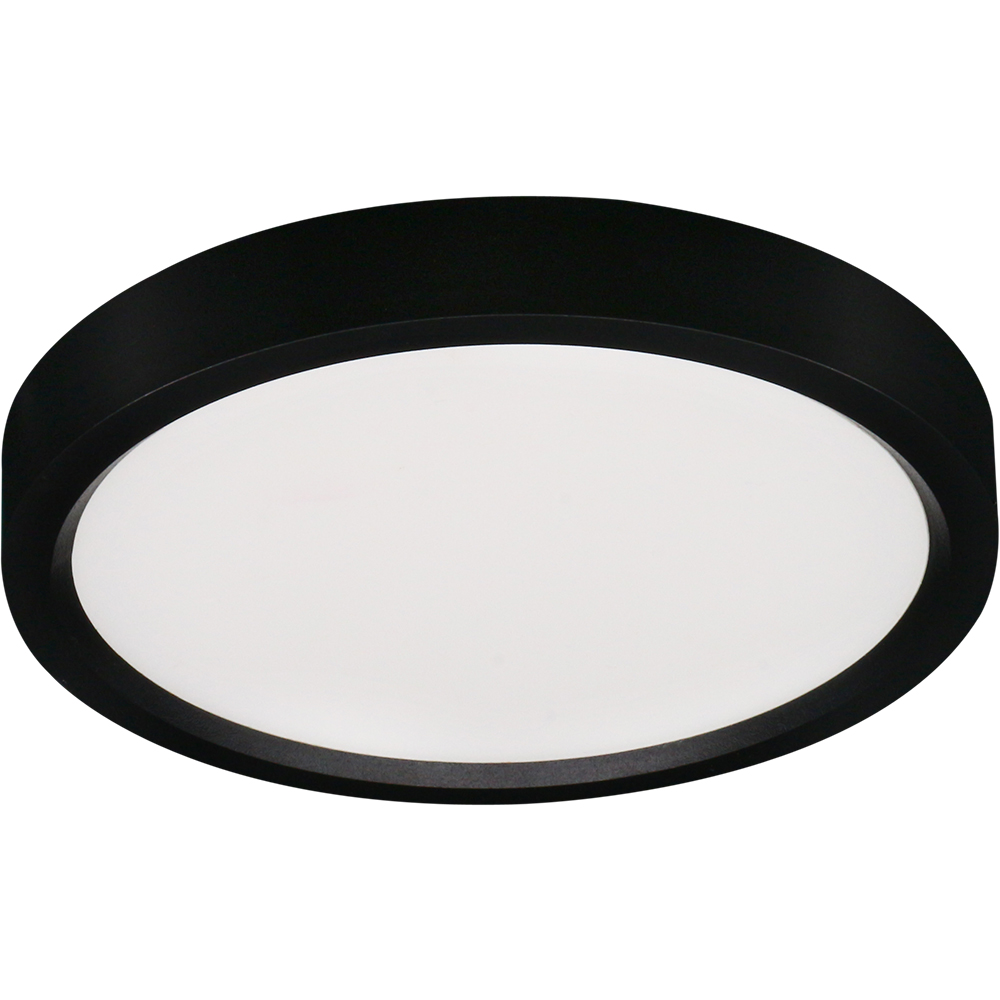

  • White & Black trims in stock
  • Fast & Easy to Install in J-Box – Save on Labor
  • Triac Dimmable Down to 10% Flicker Free
  • Options of 3000K, 4000K or 5CCT user selectable
  • CRI 90+ for True Color Rendering
  • Wet Location Approved
  • Warranty: 5 Year

Product Information

CONSTRUCTION:
Round 12″ Multi-Purpose Surface Mount Fixture

MOUNTING:
Installation Instructions

  • Driver Input Voltage: 120V AC
  • Dimmability – TRIAC Dimmable 10% – 100%
  • Energy Used: 22W
  • Halogen equivalent: 120W
  • Beam Angle: 120°
  • Stock Light colors: 3000K, 4000K and 5CCT user selectable 2700-3000-3500-4000-5000K
  • Light output: 1320 to 1570 lm
  • Trim color:  White & Black
  • CRI: 90+
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Warranty: 5 Years
  • Rated: cETLus, Energy Star, T24

DIMENSIONS:

  • OD 12″; Thickness 1″

Specification Sheet

Installation Instructions

Photometric PDF files:
PDF 2700K | PDF 3000K | PDF 3500K | PDF 4000K | PDF 5000K

Photometric IES files:
IES 2700K | IES 3000K | IES 3500K | IES 4000K | IES 5000K
