Lotus AD-LED-4-S9W-MFG – 9W 4″ Multi Fit Floating Gimbal LED

SKU : N/A Categories : , , , , , , , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 49.12

This innovative 4″ Floating Gimbal Downlight by Lotus LED Lights, Fits in J-BOX or Can with Adjustable Gimbal in any direction and easy to use, available with a E26 adapter that provides for simple too-free installation, it’s as easy as changing a light bulb. Being wet location rated, these fixtures are suitable for outdoor or shower applications. A high CRI of 90 provides true color rendering in the area of illumination, and 5CCT color selectable.

The AD-LED-4-S9W-MFG is a 4″ Multi Fit Floating Gimbal with the following features:

  • Model AD-LED-4-S9W-MFG

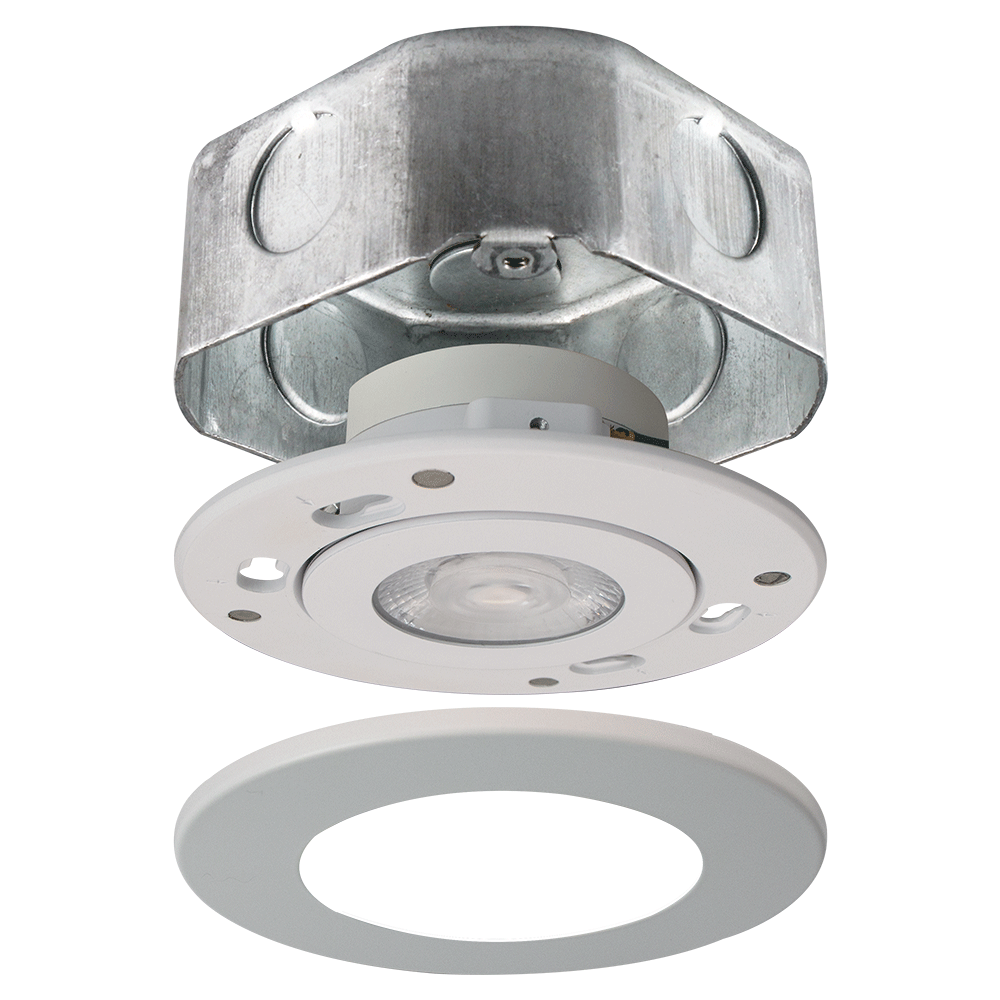

  • 4″ Multi LED – Fits in 4O – 1 1/2″ deep octagon box or Recessed Can
  • Recessed Fixture Look Due to Very Thin Trim
  • Adjustable in any direction and easy to use
  • 5CCT user selectable with CRI 90+
  • Magnetic Trims – White & Black in stock
  • Wet Location Certified – Suitable for Showers and Outdoor
  • Meets Fire Rating Code When Used in a Fire Rated J-Box
  • Warranty: 5 Years

Product Information

CONSTRUCTION:
Round 4″ Multi Fit J-Box or Retrofit Gimbal fixture.

MOUNTING:>
Installation Instructions

  • Input Voltage: 120V AC
  • Dimmability – TRIAC Dimmable 10% – 100%
  • Power: 9W
  • Halogen equivalent: 75W
  • Beam Angle: default 38° | optional 24° & 60°
  • Round Metal Magnetic Trims with Optional Colors
  • Light colour options: 5CCT user selectable 2700K-3000K-3500K-4000K-5000K
  • Light output: 675 lm to 830 lm
  • CRI: 90+
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Rated: cETLus

DIMENSIONS:

  • ID 3 1/2″; OD 4 7/8″; Thickness 1 1/2″

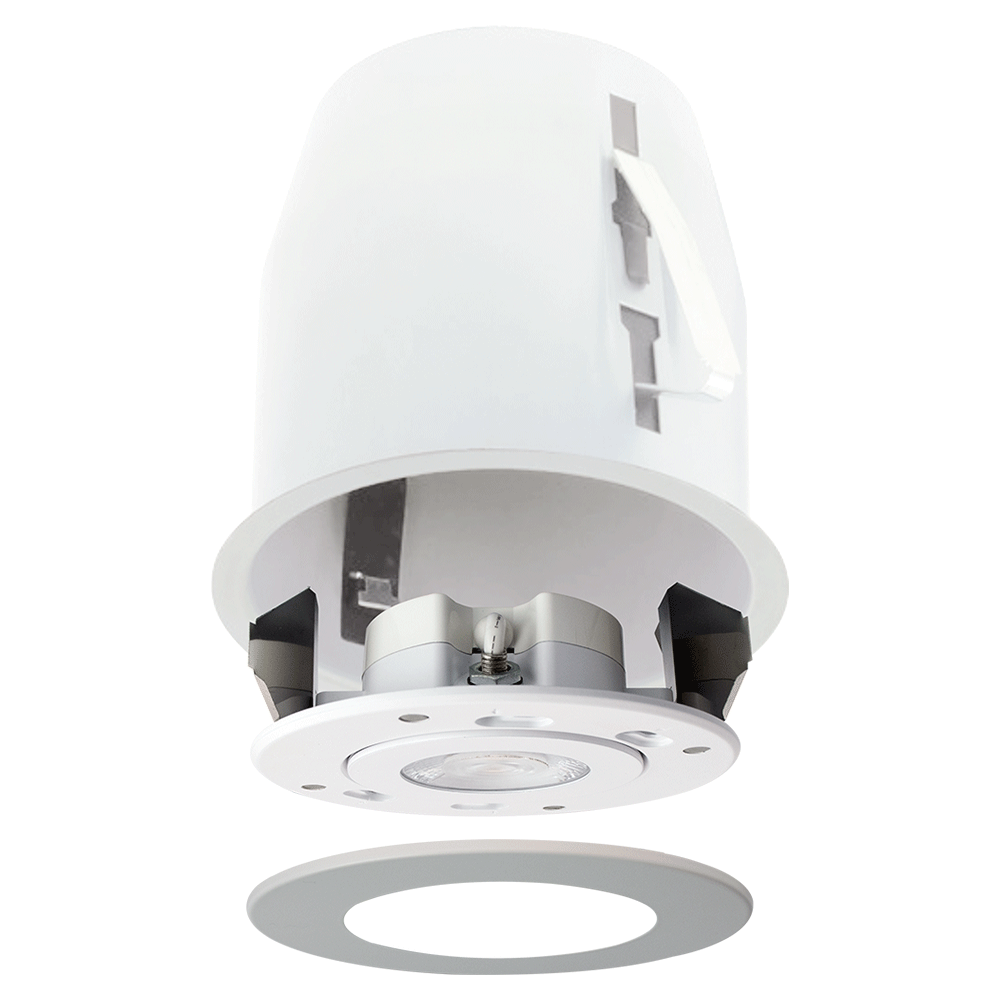

Retrofit Kit with E26 Adapter & Butterfly Clips

    • model # RK-4M


Specification Sheet

Specification Sheet

Photometric PDF files:

Default 38° Beam:
PDF AD-LED-4-S9W-5CCT-WH-MFG-38D 2700K
PDF AD-LED-4-S9W-5CCT-WH-MFG-38D 3000K
PDF AD-LED-4-S9W-5CCT-WH-MFG-38D 3500K
PDF AD-LED-4-S9W-5CCT-WH-MFG-38D 4000K
PDF AD-LED-4-S9W-5CCT-WH-MFG-38D 5000K

Optional 24° Beam:
PDF AD-LED-4-S9W-5CCT-WH-MFG-24D 2700K
PDF AD-LED-4-S9W-5CCT-WH-MFG-24D 3000K
PDF AD-LED-4-S9W-5CCT-WH-MFG-24D 3500K
PDF AD-LED-4-S9W-5CCT-WH-MFG-24D 4000K
PDF AD-LED-4-S9W-5CCT-WH-MFG-24D 5000K

Optional 60° Beam:
PDF AD-LED-4-S9W-5CCT-WH-MFG-60D 2700K
PDF AD-LED-4-S9W-5CCT-WH-MFG-60D 3000K
PDF AD-LED-4-S9W-5CCT-WH-MFG-60D 3500K
PDF AD-LED-4-S9W-5CCT-WH-MFG-60D 4000K
PDF AD-LED-4-S9W-5CCT-WH-MFG-60D 5000K

Photometric IES files:

Default 38° Beam:
IES AD-LED-4-S9W-5CCT-WH-MFG-38D 2700K
IES AD-LED-4-S9W-5CCT-WH-MFG-38D 3000K
IES AD-LED-4-S9W-5CCT-WH-MFG-38D 3500K
IES AD-LED-4-S9W-5CCT-WH-MFG-38D 4000K
IES AD-LED-4-S9W-5CCT-WH-MFG-38D 5000K

Optional 24° Beam:
IES AD-LED-4-S9W-5CCT-WH-MFG-24D 2700K
IES AD-LED-4-S9W-5CCT-WH-MFG-24D 3000K
IES AD-LED-4-S9W-5CCT-WH-MFG-24D 3500K
IES AD-LED-4-S9W-5CCT-WH-MFG-24D 4000K
IES AD-LED-4-S9W-5CCT-WH-MFG-24D 5000K

Optional 60° Beam:
IES AD-LED-4-S9W-5CCT-WH-MFG-60D 2700K
IES AD-LED-4-S9W-5CCT-WH-MFG-60D 3000K
IES AD-LED-4-S9W-5CCT-WH-MFG-60D 3500K
IES AD-LED-4-S9W-5CCT-WH-MFG-60D 4000K
IES AD-LED-4-S9W-5CCT-WH-MFG-60D 5000K

Customer Reviews

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

You may also like…

Retrofit Kit for 4″ Lotus LED-S8W J-Box Mount or Retrofit LED Downlight – E26 Adapter & Butterfly Clips (RK-4M)

Retrofit Kit for 4″ Lotus LED-S8W J-Box Mount or Retrofit LED Downlight – E26 Adapter & Butterfly Clips (RK-4M)

CAD$ 4.64 Read more
Retrofit Kit with E26 Adapter and Butterfly Clips for model LED-S8W Spec Sheet

Related products

Lotus LD4R-HO-IT – 18 Watt 4″ High Output Round Deep Regressed LED Downlight – Trimless Model – 120V

Lotus LD4R-HO-IT – 18 Watt 4″ High Output Round Deep Regressed LED Downlight – Trimless Model – 120V

CAD$ 127.82 Read more
The new deep regressed models by Lotus LED Lights provide efficient LED illumination without glare in an elegantly designed downlight. The deep reflector and trimless design provides an architectural aesthetic, and open-plenum rated armored cable connection are suitable for commercial application. Being IC-rated, these lights can be installed right into the ceiling without housing and, being only 3.5" deep, can be installed where ceiling space is limited. A high CRI of 90+ means you'll enjoy true color rendering in the area of illumination. Comes standard as 120V dimmable, with optional 0-10V dimmable driver available. Requires use of flanged rough-in-plate (FRP412) - see recommended accessories. The LD4R-HO-IT is a 4" round 18 watt deep regressed trimless LED downlight, available in silver, black and white reflector with the following features:
  • Includes standard dimmable driver
  • Triac Dimmable with most CL dimmers 120V input
  • 0-10V Dimmable Option 120V – 347V input
  • IC-rated
  • Wet and damp location rated
  • High CRI of 90+ for true color rendering
  • Open plenum rated armored cable and metal connectors
  • Fast and easy installation and no junction box required
  • Air-tight
  • Energy Star
  • Title-24 certified
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty

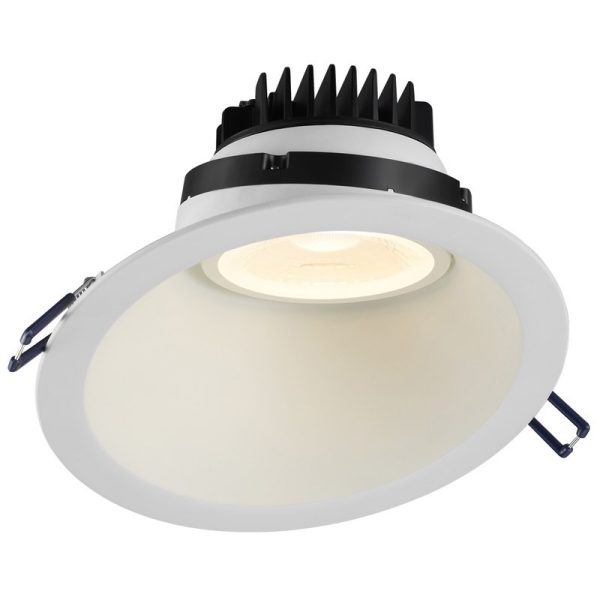

Lotus LRG6-6RSL – 15 Watt 6″ Sloped LED Gimbal – 120V

Lotus LRG6-6RSL – 15 Watt 6″ Sloped LED Gimbal – 120V

CAD$ 117.04 Read more
Save on labor with the Lotus LED Lights 6" round sloped regressed LED gimbal downlight. Installation is simple, just cut a hole in the ceiling and the attached spring clips snap the fixture into place with no housing required. These 30º sloped trim models are ideal for 10º to 50º sloped ceilings. They are air-tight, IC-rated for direct contact with insulation, and suitable for damp or wet locations. A high CRI of 90+ provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings, creating wall wash effects and highlighting artwork or other features. Watch the below video to learn more. The LRG6-6RSL is a 6" round 15 watt sloped regressed LED gimbal downlight available in White, Black and Oil Rubbed Bronze finish with the following features:
  • Includes standard dimmable driver
  • 30º sloped trim suitable for 10º to 50º sloped ceilings (2:12 through 14:12 pitch range)
  • 38° beam angle / 20° tilt / 360° rotation
  • 4" thin - install where ceiling space is limited
  • IC rated - no housing required
  • High CRI of 90+ for true color rendering
  • IP54 rated
  • Suitable in wet and damp locations
  • Oil based spray painted - scratch resistant and smooth finish
  • Energy Star
  • Title-24 certified
  • Operating temp: -40º to 104º F
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty
Lotus LRG4-HO – 15 Watt 4″ High Output Regressed LED Gimbal – 120V

Lotus LRG4-HO – 15 Watt 4″ High Output Regressed LED Gimbal – 120V

CAD$ 90.86 Read more
Save on labor with the Lotus LED Lights 4″ round regressed LED gimbal downlight. Installation is simple, just cut a hole in the ceiling and the attached spring clips snap the fixture into place with no housing required. These recessed fixtures are air-tight, IC-rated for direct contact with insulation, and suitable for damp or wet locations. A high CRI provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings and highlighting artwork or other features. The LRG4-HO model is a 4″ round 15 watt high output regressed LED gimbal downlight in a White, Black and Oil Rubbed Bronze finish, with the following features:
  • Includes standard dimmable driver
  • 2700K, 3000K, 3500K, 4000K, 5000K, Dim To Warm 3000K to 2000K, and 5CCT and Dim To Warm 3000K to 1800K
  • 38° beam angle with 10° tilt each direction and 360° rotation
  • 3″ thin – install where ceiling space is limited
  • IC rated – no housing required
  • High CRI of 90+ for true color rendering
  • IP54 rated
  • Suitable in wet and damp locations
  • Oil based spray painted – scratch resistant and smooth finish
  • Title-24 certified
  • Energy Star
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty

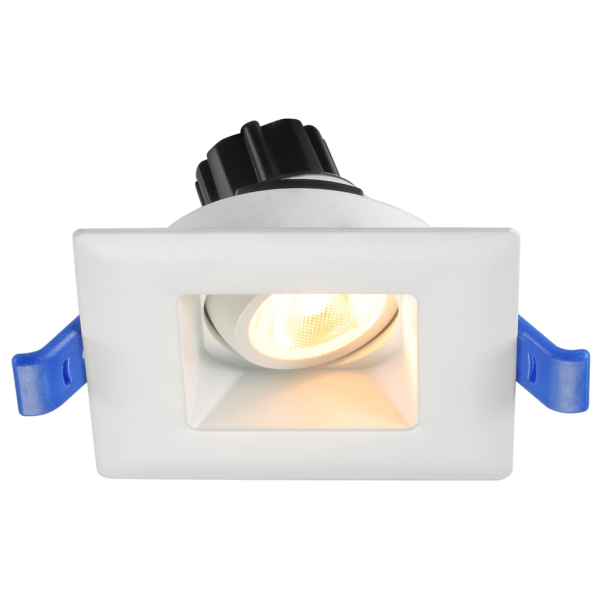

Lotus LSG2-HO – 5.5 Watt 2″ High Output Square Regressed LED Gimbal – 120V

Lotus LSG2-HO – 5.5 Watt 2″ High Output Square Regressed LED Gimbal – 120V

CAD$ 58.52 Read more
Save on labor with the Lotus LED Lights High Output 2" square regressed LED gimbal downlight. Installation is simple, just cut a hole in the ceiling and the attached spring clips snap the fixture into place - no housing required! These slim recessed fixtures are air-tight, IC-rated for direct contact with insulation, and suitable for damp or wet locations. A high CRI provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings and highlighting artwork or other features. The LSG2-HO is a 2" square 5.5 watt high output regressed LED gimbal downlight, available in White and Black finish with the following features:
    • 120V operation and dimming
    • 24° beam angle with 10° tilt each direction and 360° rotation
    • 1 3/4" thin - install where ceiling space is limited
    • IC rated - no housing required
    • High CRI of 90+ for true color rendering
    • IP54 rated
    • Suitable in wet and damp locations
    • Oil based spray painted - scratch resistant and smooth finish
    • Title-24 certified
    • Energy Star
    • 50,000 hour rated
    • 10 year residential / 5 year business application warranty

Recently Viewed Products

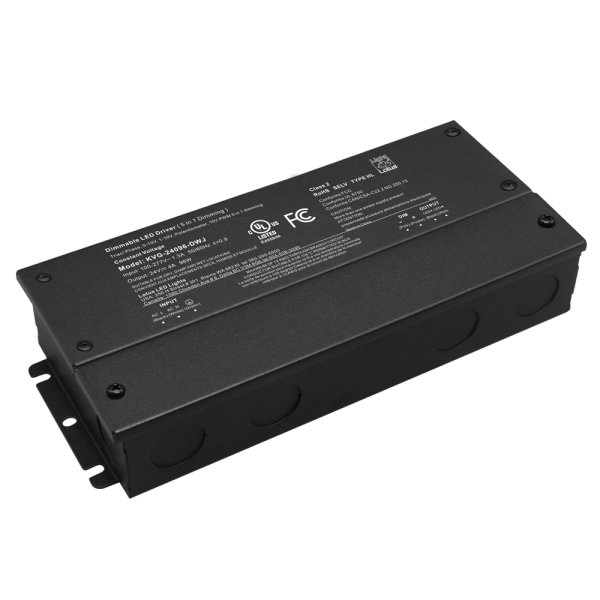

Lotus KVG-24096-DWJ – 24V DC Driver – 96 Watt – 5 in 1 Dimmable
