Lotus Emergency Battery Backup for ADS7R9

SKU : EMB-SF001 Categories : , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 96.18

*NOTE* Please Note that only the single CCT 3000K and 4000K versions are compatible ADS7R9-5CCT is NOT COMPATIBLE

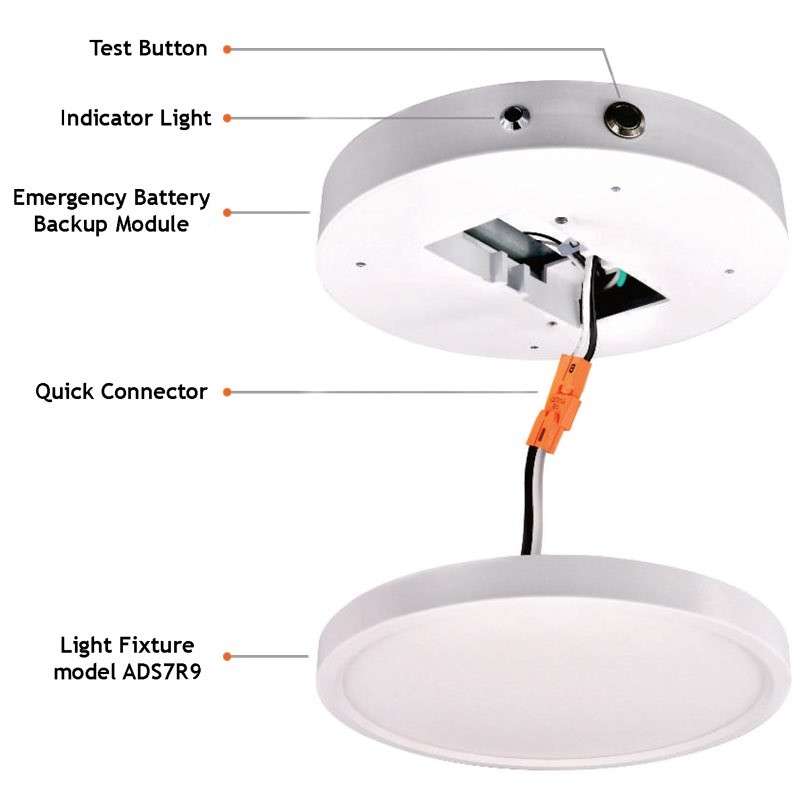

Utilize this battery backup base to provide 90 minutes of backup emergency power to your Lotus ADS7R9 model surface mount ceiling lights. Built with durable die-cast aluminum with lithium-ion battery that lasts 500 charging cycles. Empty surface mount backbox available (see recommended accessories).

  • Model EMB-SF001
  • Emergency battery backup for 7″ slim surface LED model ADS7R9
  • Guarantees 90 minutes operation from battery in case of power outage
  • Over charge / discharge protection
  • Self test function
  • Durable die-cast aluminum with Li-ion battery

Product Information

MOUNTING:
Please refer to EMB-SF001 Installation Instructions

  • Input Voltage: 120V AC 50/60Hz
  • Charging Time: 24 Hours
  • Charging Current: 185 mA
  • Switching Time < 1 second
  • Output Voltage: 65 V DC
  • Discharging Time: 90 minutes guaranteed
  • Actual discharging time of a new battery: 3 hours at around 50% brightness for model ADS7R9
  • Output Current: 45 mA
  • Output Power: 3W
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Approved Location: Damp
  • Battery Life: 500 Charging Cycles
  • Warranty: 5 Years
  •

Specification Sheet

Installation Instructions

PDF Photometric files of ADS7R9 in emergency mode

IES Photometric files of ADS7R9 in emergency mode
