Lotus HIGH OUTPUT 11 Watt 3″ Round LED Gimbal – LL3G-HO

SKU : N/A Categories : , , , , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 67.76

Save on labor with the Lotus 3″ round HIGH OUTPUT 11watt LED gimbal downlight. Installation is simple, just cut a hole in the ceiling and the attached spring clips snap the fixture into place – no housing required! These slim recessed fixtures are air-tight, IC-rated for direct contact with insulation, and suitable for damp or wet locations. A high CRI provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings and highlighting artwork or other features.

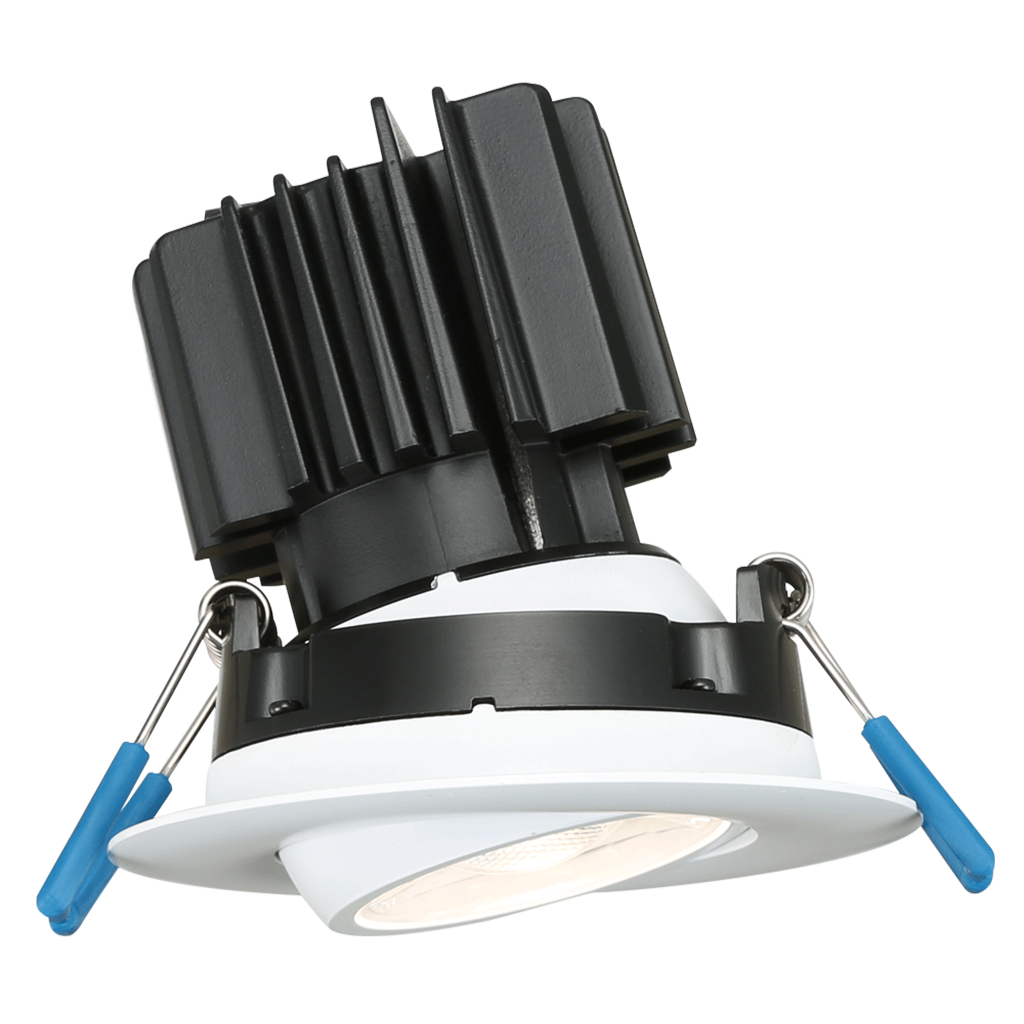

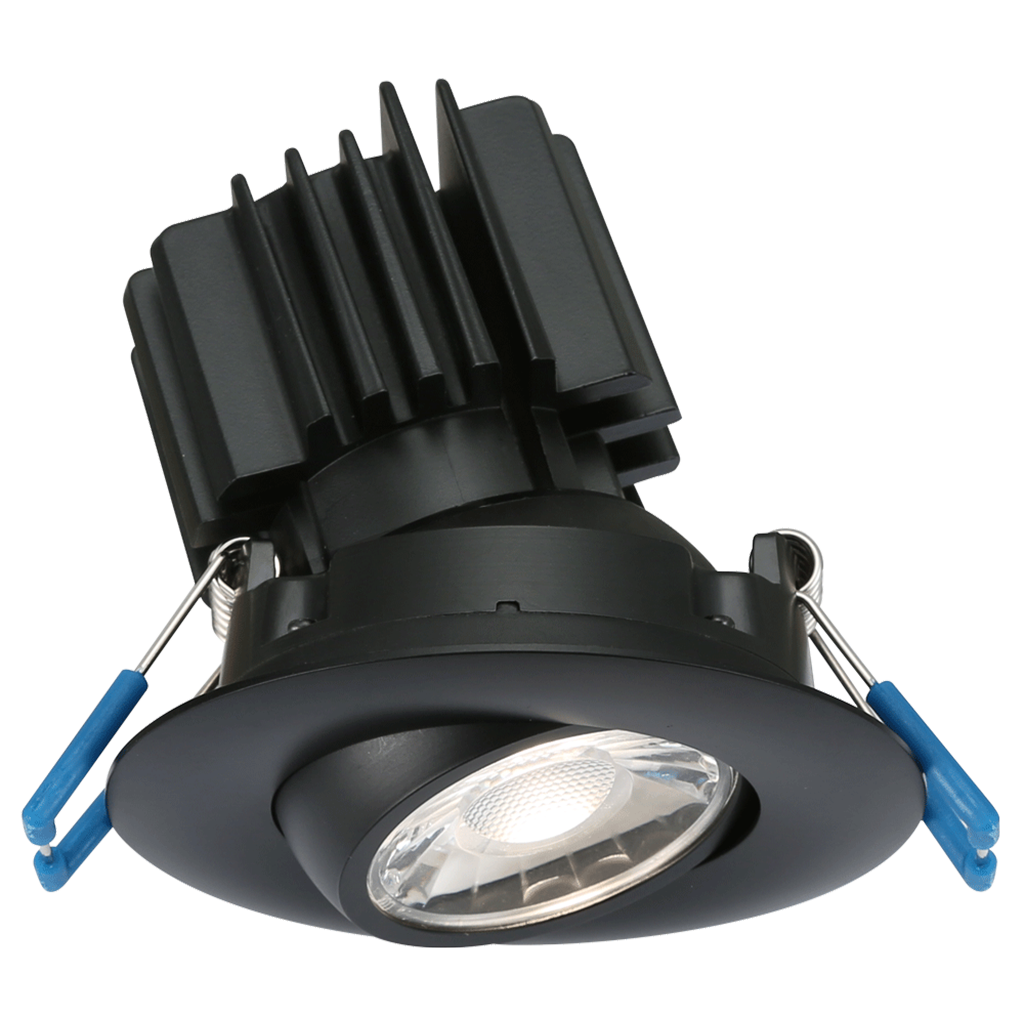

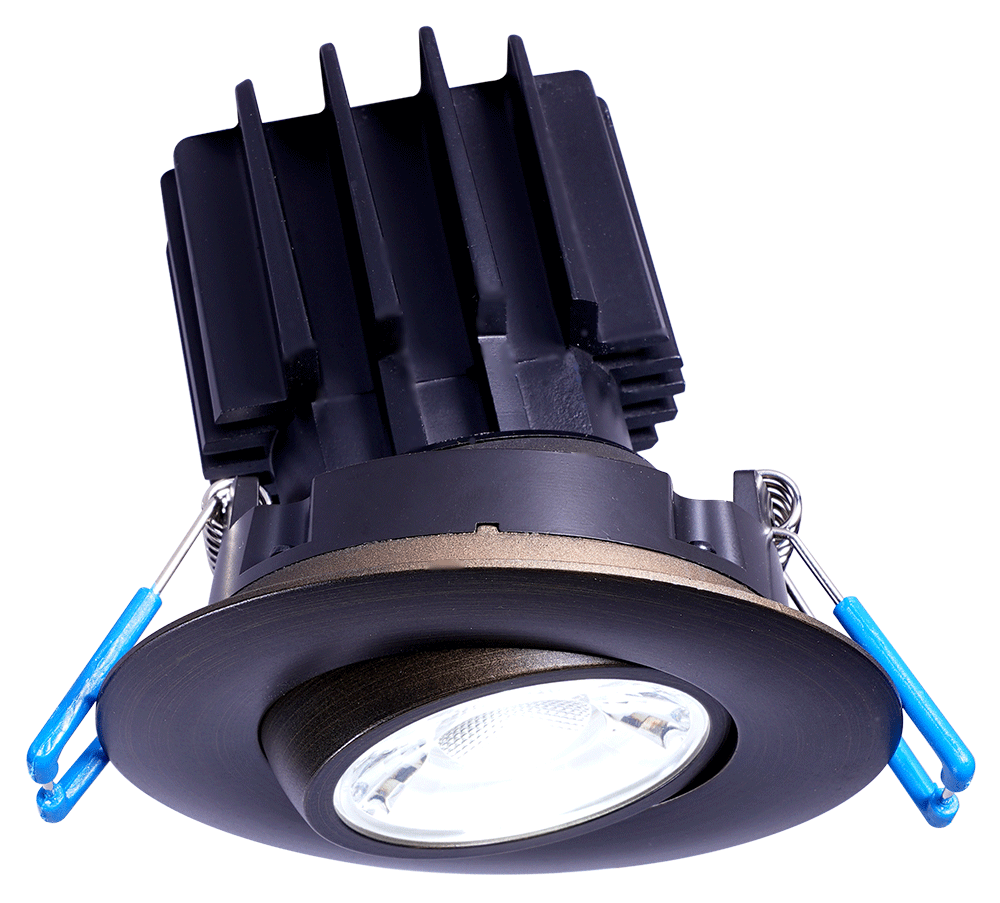

The LL3G-HO Model is a 3″ round HIGH OUTPUT 11Watt LED gimbal downlight, available in White, Black or Brushed Nickel Trim option

    • Includes standard dimmable driver
    • 38° beam angle with 20° tilt and 360° rotation
    • 3″ thin – install where ceiling space is limited
    • IC rated – no housing required
    • High CRI of 90+ for true color rendering
    • IP54 rated
    • Suitable in wet and damp locations
    • Oil based spray painted – scratch resistant and smooth finish
    • cULus Listed and Type IC rated
    • 50,000 hour rated
    • 10 year residential / 5 year business application warranty

Product Information

CONSTRUCTION:
Round 3″ Gimbal fixtures with integral LEDs. Class 2 Isolated external driver factory installed inside junction box.
One driver for every fixture required.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 2 1/2″ for Romex, 3 1/2″ for MC or BX installations.

  • Default Driver Input Voltage: 120V AC (Dimmable)
  • Optional Driver Input Voltage: 277V-347V AC (Not Dimmable)
  • Power factor: > 0.98
  • Energy Used: 11W
  • Halogen equivalent: 90W
  • Beam Angle: 38° with 20° tilt and 360° rotation
  • Light colour options: 5CCT user selectable 2700-3000-3500-4000-5000K or Dim to Warm 3000K to 1800K
  • Light output: 920 | 990 | 1060 | 1080 | 1090 | DTW 780 lm
  • CRI: 90 +
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus approved, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation)

DIMENSIONS:

  • ID 2 1/4″; OD 3 1/4″; Thickness 2 1/2″
  • Cut out: 2 3/4″ to 3″
  • Junction Box Wire Capacity: Max 5 No 12 AWG or 8 No 14 AWG
  •

Suitable for wet locations and soffit installations.

120-347V / 0-10V Dimmable Driver

  • LLL-LD1025T3

Mounting Plates

  • Flanged: cat # FRP3
  • Flat: cat # RIP

Jumper Cables 6 ft & 10ft

  • cat # EXC6
  • cat # EXC20

Specification Sheet
LL3G-HO

PDF files
LL3G-HO: pdf file LL3G-HO-5CCT at 2700K | pdf file LL3G-HO-5CCT at 3000K | pdf file LL3G-HO-5CCT at 3500K  | pdf file LL3G-HO-5CCT at 4000K | pdf file LL3G-HO-5CCT at 5000K | pdf file LL3G-HO-3018K at 100%

IES files
LL3G-HO: IES file LL3G-HO-5CCT at 2700K | IES file LL3G-HO-5CCT at 3000K | IES file LL3G-HO-5CCT at 3500K | IES file LL3G-HO-5CCT at 4000K | IES file LL3G-HO-5CCT at 5000K | IES file LL3G-HO-3018K at 100%
