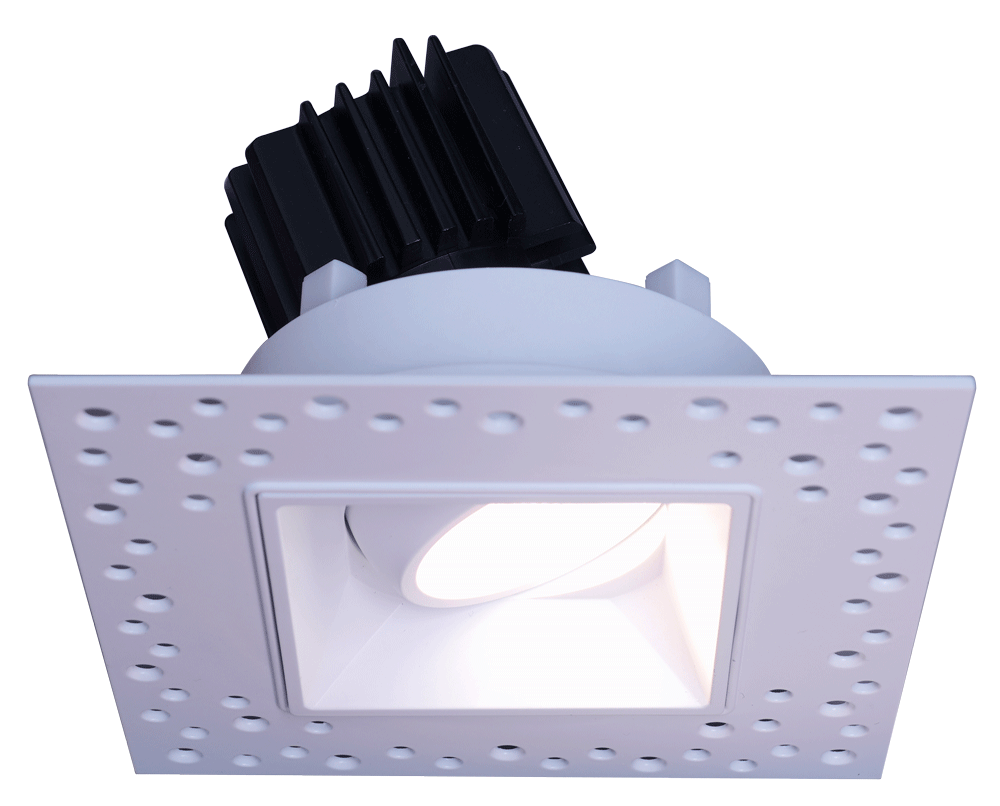

Lotus HIGH OUTPUT 11 Watt 3″ Square Regressed LED Gimbal Trimless – LSG3-HO-IT

SKU : N/A Categories : , , , , , , , , , , Tags : , Brand:

Lead Time: Normally Ships in 3-5 Business Days
Need it Sooner? Contact Us

Price from :
CAD$ 109.34

The Lotus LED Lights 3″ Square regressed HIGH OUTPUT 11watt LED gimbal downlight Trimless Model. Their mud ring trims allow for easy of application of drywall spackle over mud rings after installation, providing the seamless ‘trimless’ appearance. These slim recessed fixtures are air-tight, IC-rated for direct contact with insulation, and suitable for damp or wet locations. A high CRI provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings and highlighting artwork or other features.

The LSG3-HO-IT Model is a 3″ Square HIGH OUTPUT 11Watt regressed LED gimbal downlight Trimless, available in White or Black Trim option

  • Model LSG3-HO-IT
  • Trimless High-End Contemporary Installations
  • 3 1/2” Deep – Install Where Ceiling Space Is Limited
  • Type IC Rated – Approved for Direct Contact with Insulation
  • Air-Tight, Wet Location, Insulated and Non Insulated Ceilings
  • Light options: 5CCT user selectable 2700-3000-3500-4000-5000K or Dim to Warm 3000K to 1800K
  • CRI 90+ for True Colour Rendering
  • Triac Dimmable with most forward phase dimmers 120V input
  • 0-10V Dimmable Option with 120V to 347V input
  • External Driver Inside Connection Box – No Junction Box Needed
  • Warranty: 10 Year on Residential, 5 Year on Commercial Installations
  • cULus Listed

Product Information

CONSTRUCTION:
3″ Square Regressed Gimbal Trimless fixtures. Class 2 Isolated external driver factory installed inside junction box.
One driver for every fixture required.

SPECIFICATIONS:
Ceiling Clearance Required: 4″

  • Default Driver: 120V – Triac Dimmable with most forward phase dimmers
  • Optional Driver: 120V-347V 0-10V Dimmable
  • Power factor: > 0.98
  • Energy Used: 11W
  • Halogen equivalent: 90W
  • Beam Angle: 38° with 20° tilt and 360° rotation
  • Light colour options: 5CCT user selectable 2700-3000-3500-4000-5000K or Dim to Warm 3000K to 1800K
  • Light output: 880 | 980 | 1000 | 1030 | 1040 | DTW 750 lm
  • CRI: 90 +
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus approved, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Air-Tight

DIMENSIONS:

  • ID 4″ Round; OD 5″ Square; Thickness 3 1/2″
  • Cut out: 4″ Round Hole
  • Junction Box Dimensions (with driver inside): 3 1/4″ x 2 1/4″ x 1 1/2″

Suitable for wet locations.

120-347V / 0-10V Dimmable Driver

  • LLL-LD1025T3

Rough-In plate Kits

  • RIP4
  • FRP4

Jumper Cables 6 ft & 10ft

  • cat # EXC6
  • cat # EXC20

Spec Sheet LSG3-HO-IT

PDF files
38° beam model:
pdf file LSG3-HO-5CCT at 2700K | pdf file LSG3-HO-5CCT at 3000K | pdf file LSG3-HO-5CCT at 3500K | pdf file LSG3-HO-5CCT at 4000K | pdf file LSG3-HO-5CCT at 5000K | pdf file LSG3-HO-3018K at 100%

IES files
38° beam model:
IES file LSG3-HO-5CCT at 2700K | IES file LSG3-HO-5CCT at 3000K | IES file LSG3-HO-5CCT at 3500K | IES file LSG3-HO-5CCT at 4000K | IES file LSG3-HO-5CCT at 5000K | IES file LSG3-HO-3018K at 100%

Customer Reviews

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

You may also like…

Lotus 347V / 0-10V Dimmable Driver – LLL-LD1025T3

Lotus 347V / 0-10V Dimmable Driver – LLL-LD1025T3

CAD$ 26.18 Read more
The LLL-LD1025T3 is a 120-347V, 0-10 dimmable driver option for the Lotus LED LSG3-HO, LRG3-HO and LL3R series recessed downlights. The 120V driver will be replaced with this 120-347V driver before shipping. Compatible LED Driver for Lotus LED LSG3-HO, LRG3-HO and LL3R series downlight, can be purchased by it self or with a fixture.
Lotus Flanged Rough-In Plate with Expandable Bars for 4″ Downlights – FRP4

Lotus Flanged Rough-In Plate with Expandable Bars for 4″ Downlights – FRP4

CAD$ 12.46 Read more
Utilize this new construction rough-in plate to assist with placement and pre-wiring your Lotus LED 4″ models. Use this rough-in plate for easier layout planning and new construction pre-wiring.

Downloads:

Certifications
Lotus Rough-in Plate for 4″ Downlights – RIP4

Lotus Rough-in Plate for 4″ Downlights – RIP4

CAD$ 9.60 Read more
Utilize this new construction rough-in plate to assist with placement and pre-wiring your Lotus LED 4″ models. Use this rough-in plate for easier layout planning and new construction pre-wiring. Made of galvanized steel and is 26″ long to fit up to 24″ spaced studs/joists. Minimum Order Quantity : 5pcs

Downloads:

Certifications
Lotus 20′ Extension Cord – EXC20

Lotus 20′ Extension Cord – EXC20

CAD$ 12.45 Read more
The EXC20 is a 20 foot extension cord used to allow for remote mounting of the driver for your Lotus LED downlight. This inter-linkable cord easily and securely extends the low voltage cable between the fixture and diver. A maximum of 40 feet extension is allowed.

Downloads:

Certifications

Related products

Lotus LD4S-HO – 18 Watt 4″ High Output Square Deep Regressed LED Downlight – 120V

Lotus LD4S-HO – 18 Watt 4″ High Output Square Deep Regressed LED Downlight – 120V

CAD$ 101.64 Read more
The new deep regressed models by Lotus LED Lights provide efficient LED illumination without glare in an elegantly designed downlight. The deep reflector and high-end finish trim present an architectural aesthetic, and open-plenum rated armored cable connection are suitable for commercial application. Being IC-rated, these lights can be installed right into the ceiling without housing and, being only 3.5" deep, can be installed where ceiling space is limited. A high CRI of 90+ means you'll enjoy true color rendering in the area of illumination. Comes standard as 120V dimmable, with optional 0-10V dimmable driver available. The LD4S is a 4" square 18 watt HIGH OUTPUT deep regressed LED downlight, available in 5 different reflector and trim options with the following features.
  • Models: 18W LD4S-HO, Polycarbonate Trim LD4S-CPL
  • Deep Regressed LED – Elegant Design Without Glare
  • Interchangeable Trims With High End Finishes
  • Armoured Cable & Metal Connectors – Open Plenum Rated
  • Type IC, Air-Tight & Wet Location – No Housing Required
  • 3 1/2″ thick – fits in limited ceiling space
  • Triac Dimmable with most CL dimmers 120V input
  • 0-10V Dimmable Option 120V – 347V input
  • Light Options: 2700K, 3000K, 3500K, 4000K, 5000K, 5CCT user selectable, Dim to Warm 3000-2000K or 3000-1800K
  • Light output 18W: 2700K-1500 lm, 3000K-1550 lm, 3500K-1600 lm, 4000K-1650 lm, 5000K-1700 lm, Dim To Warm 3000K to 2000K-1150 lm, Dim To Warm 3000K to 1800K-1250 lm
  • Beam Angle: 30° (default), 15° & 60° optional
  • Driver Inside Connection Box with Romex Quick Connectors
  • Warranty: 10 Year Residential, 5 Year Commercial Installations
  • cULus certified and Energy Star (single CCT only) approved
Lotus LD4S – 15 Watt 4″ Square Deep Regressed LED Downlight – 120V

Lotus LD4S – 15 Watt 4″ Square Deep Regressed LED Downlight – 120V

CAD$ 86.24 Read more
The new deep regressed models by Lotus LED Lights provide efficient LED illumination without glare in an elegantly designed downlight. The deep reflector and high-end finish trim present an architectural aesthetic, and open-plenum rated armored cable connection are suitable for commercial application. Being IC-rated, these lights can be installed right into the ceiling without housing and, being only 3.5" deep, can be installed where ceiling space is limited. A high CRI of 90+ means you'll enjoy true color rendering in the area of illumination. Comes standard as 120V dimmable, with optional 0-10V dimmable driver available. The LD4S is a 4" square 15 watt deep regressed LED downlight, available in 5 different reflector and trim options with the following features.
  • Models: 15W LD4S, Polycarbonate Trim LD4S-CPL
  • Deep Regressed LED – Elegant Design Without Glare
  • Interchangeable Trims With High End Finishes
  • Armoured Cable & Metal Connectors – Open Plenum Rated
  • Type IC, Air-Tight & Wet Location – No Housing Required
  • 3 1/2″ thick – fits in limited ceiling space
  • Triac Dimmable with most CL dimmers 120V input
  • 0-10V Dimmable Option 120V – 347V input
  • Light Options: 2700K, 3000K, 3500K, 4000K, 5000K, 5CCT user selectable, Dim to Warm 3000-2000K or 3000-1800K
  • Light output 15W: 2700K-1100 lm, 3000K-1200 lm, 3500K-1250 lm, 4000K-1300 lm, 5000K-1400 lm, Dim To Warm 3000K to 2000K-900 lm, Dim To Warm 3000K to 1800K-980 lm
  • Beam Angle: 30° (default), 15° & 60° optional
  • Driver Inside Connection Box with Romex Quick Connectors
  • Warranty: 10 Year Residential, 5 Year Commercial Installations
  • cULus certified and Energy Star (single CCT only) approved
Lotus LD4R-IT-15 Watt 4″ Round Deep Regressed LED Downlight – Trimless Model – 120V

Lotus LD4R-IT-15 Watt 4″ Round Deep Regressed LED Downlight – Trimless Model – 120V

CAD$ 112.42 Read more
The new deep regressed models by Lotus LED Lights provide efficient LED illumination without glare in an elegantly designed downlight. The deep reflector and trimless design provides an architectural aesthetic, and open-plenum rated armored cable connection are suitable for commercial application. Being IC-rated, these lights can be installed right into the ceiling without housing and, being only 3.5" deep, can be installed where ceiling space is limited. A high CRI of 90+ means you'll enjoy true color rendering in the area of illumination. Comes standard as 120V dimmable, with optional 0-10V dimmable driver available. Requires use of flanged rough-in-plate (FRP412) - see recommended accessories. The LD4R-IT is a 4" round 15 watt deep regressed trimless LED downlight, available in silver, black and white reflector with the following features:
  • Includes standard dimmable driver
  • Triac Dimmable with most CL dimmers 120V input
  • 0-10V Dimmable Option 120V – 347V input
  • IC-rated
  • Wet and damp location rated
  • High CRI of 90+ for true color rendering
  • Open plenum rated armored cable and metal connectors
  • Fast and easy installation and no junction box required
  • Air-tight
  • Energy Star
  • Title-24 certified
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty

Lotus LRG6-HO – 18 Watt 6″ High Output Regressed LED Gimbal – 120V

Lotus LRG6-HO – 18 Watt 6″ High Output Regressed LED Gimbal – 120V

CAD$ 100.10 Read more
Save on labor with the Lotus LED Lights 6" round regressed LED gimbal downlight. Installation is simple, just cut a hole in the ceiling and the attached spring clips snap the fixture into place with no housing required. These recessed fixtures are air-tight, IC-rated for direct contact with insulation, and suitable for damp or wet locations. Being CCT tunable, they allow for you to select between 5 different white light color temperatures- from warm 27K to daylight 50K and every color temperature in between. A high CRI provides true color rendering in area of illumination as well. Ideal applications include sloped ceilings and highlighting artwork or other features. The LRG6-HO is a 6" round 18 watt regressed LED gimbal downlight available in White, Black and Oil Rubbed Bronze finish with the following features:
  • Includes standard dimmable driver
  • 2700K, 3000K, 3500K, 4000K, 5000K, Dim To Warm 3000K-2000K or 3000K-1800K, and 5CCT
  • 38° beam angle with 10° tilt each direction and 360° rotation
  • 3.5" thin - install where ceiling space is limited
  • IC rated - no housing required
  • High CRI of 90+ for true color rendering
  • IP54 rated
  • Suitable in wet and damp locations
  • Oil based spray painted - scratch resistant and smooth finish
  • Title-24 certified
  • 50,000 hour rated
  • 10 year residential / 5 year business application warranty

Recently Viewed Products

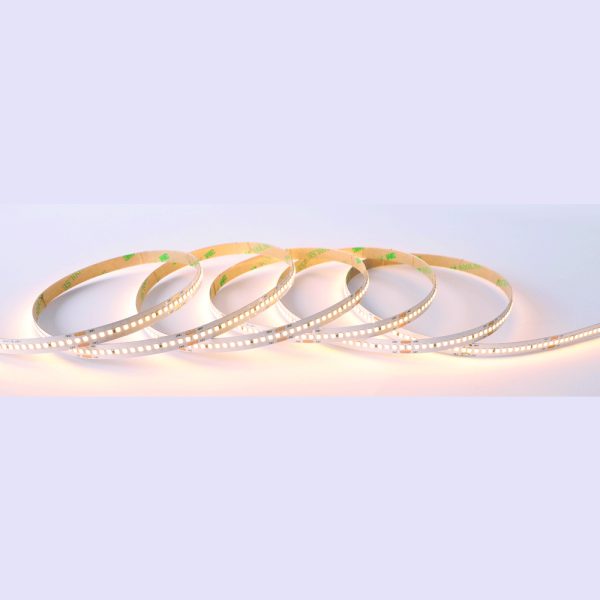

Lotus LBL-MC-280-24V-8MM-16FT-IP20 – Micro Chip LED 3W/ft 16ft High Efficiency IP20
